2007.5-2018 Cummins ProTect68 Gasket Plate Kit (1030373)
BD Diesel
Part Number:
1030373
Regular price
$275.95 CAD
Unit price
Purchase to earn 275 Dirty Dollars Learn More
Description
Description

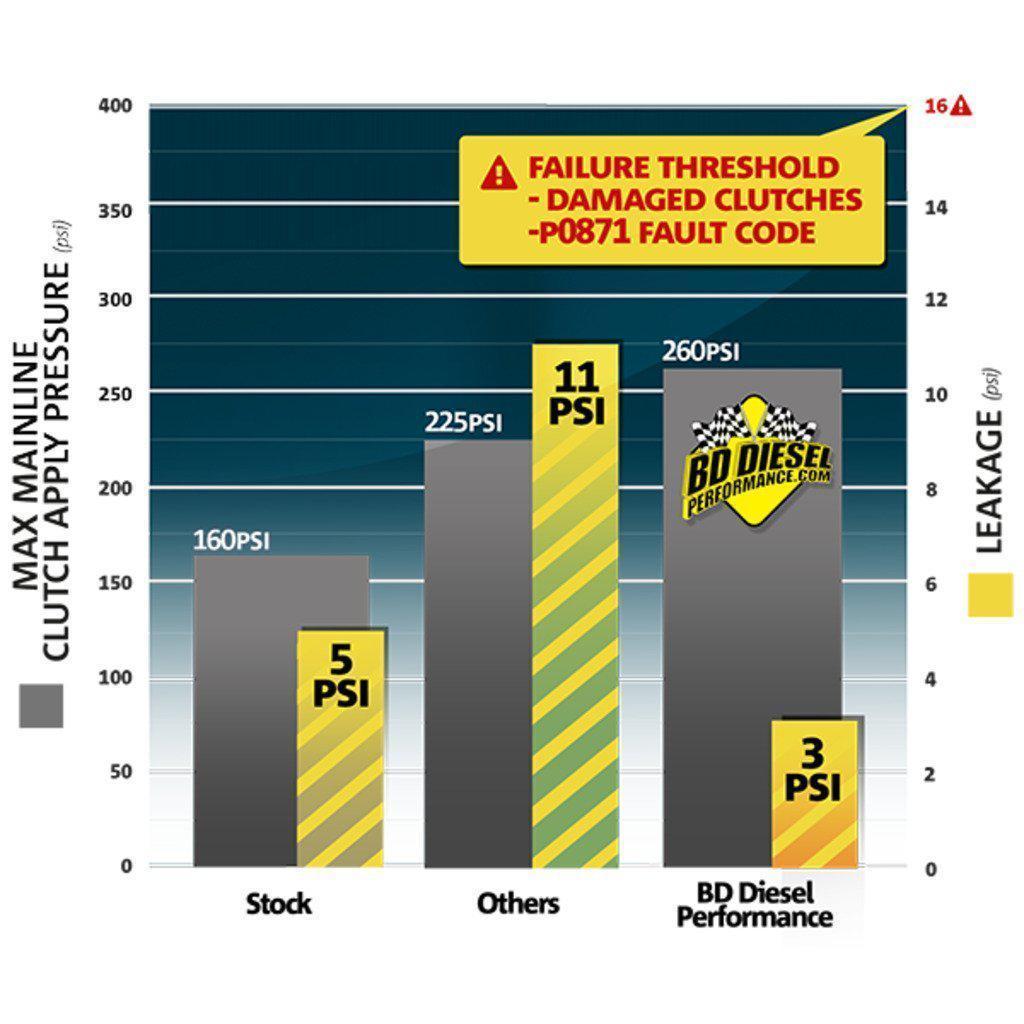

If you are looking to step-up your line pressure, you have come to the right place. The BD Protect68 Gasket Plate Kit is an industry-leading custom bonded gasket valve body separator plate that enables you to run 250psi in your 68RFE transmission. It will also eliminate cross leaks and P0871 codes! This kit also includes a heavy-duty accumulator plate to prevent an accumulator blow-out and is ideal for use with EFI Live, HP Tuners, and other transmission pressure tuning such as the BD Protect68 Transmission Pressure Controller.
A great alternative option if you do not own a tuner is the BD Protect68 Transmission Pressure Control Kit. This control kit delivers 150% of the torque holding force to stock transmissions as no others can. The electronic pressure control module will deliver up to 250psi of clutch apply pressure, in turn, this will provide 150% of the holding force which prevents clutch slippage. All of this is possible without even having to modify the transmission pump or removal of the transmission. This controller will dynamically adjust the hydraulic pressures based on your turbos boost and engine load. A brand new stock transmission will have the ability to handle up to 500HP!
Part Number: 1030373
Features
Features

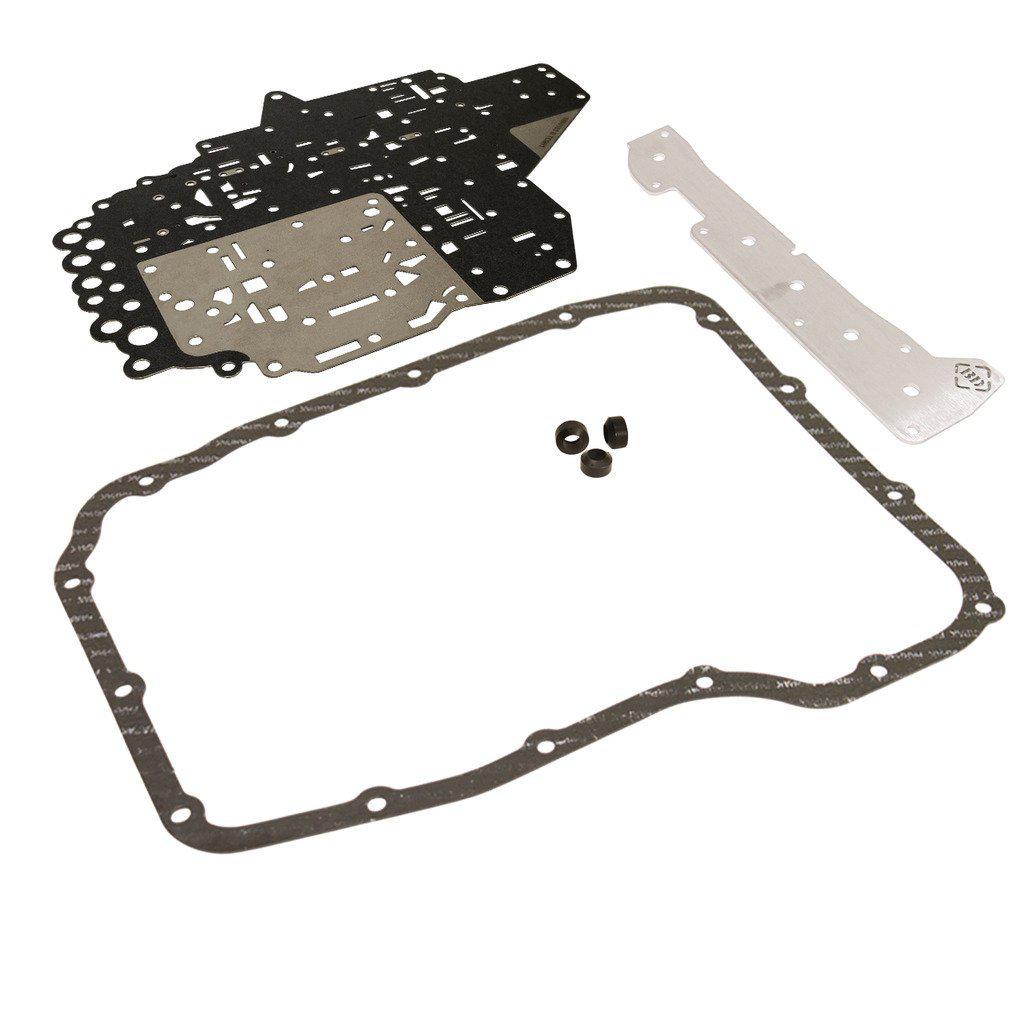

Includes:
- Custom Accumulator Plate
- Valve Body Gaskets
- Pan Gasket
- 3 Doughnut Seals
- Check Ball
- Custom Bonded Gasket Separator Plate
Gasket Plate Kit Features:
- Ideal for use with EFI Live, HP Tuners or other transmission pressure tuning
- Recommended full throttle max line pressure 225-250psi
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Exclusive BD separator plate gaskets eliminate cross leaks and eliminate P0871 codes
- Heavy-duty accumulator plate to prevent blow-out
- Kit includes pan gasket, 3 doughnut seals and check ball

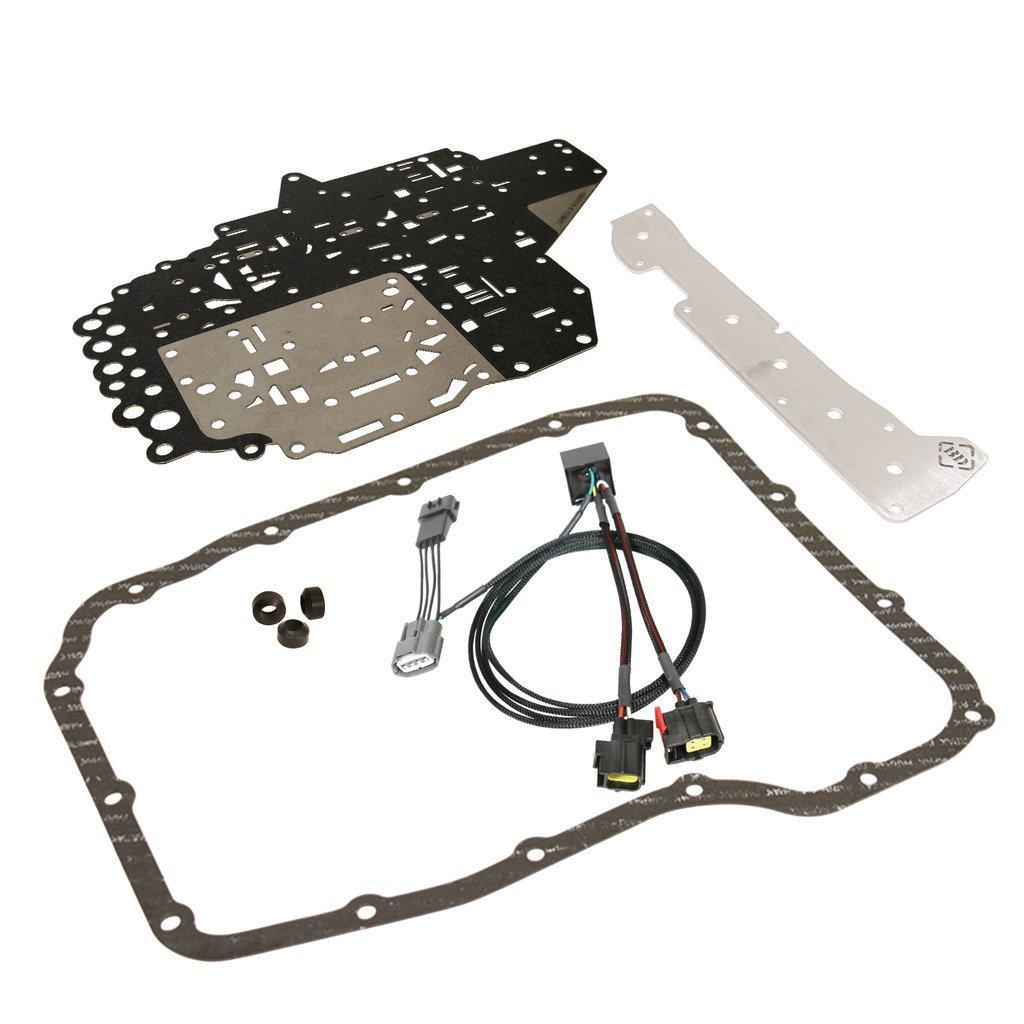

Protect68 Transmission Controller Features:
- B56% more theoretical holding power
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy-duty accumulator plate to prevent blow-out
- Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
- Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
- Dynamic control ramps up the much larger sweep
- Prevent clutch slippage
- Kit includes pan gasket, 3 doughnut seals and check ball
- Installation takes 2-to-3 hours
- No full transmission relearn required - quick relearn suggested
- A "fresh" stock transmission will have the ability to handle up to 400hp-450hp
- No tuning required
Notes
Notes
- If you only purchase the Protect68 Gasket Plate Kit, you WILL require custom transmission tuning such as EFI Live/HP/ H&S OR an additional module such as the BD Protect68 Transmission Control Kit to command higher line pressure
- For higher than 500HP or demands, a complete BD 68RFE transmission with additional clutches and newly designed components is recommended.
- If you are looking for just the BD 1030369 Transmission Pressure Enhancer, Please Click Here
Questions and Answers
Questions and Answers
Don't see your question? Ask us anything about this product.
Ask a Question
2007.5-2018 Cummins ProTect68 Gasket Plate Kit (1030373)
Vehicle Fitment - Part No: 1030373
Loading Fitments...
Customer Reviews
Overall rating: 4.9 / 5 from 17 reviews.
So far very happy. Time will tell. Install wasn’t hard but attention to detail important.
Not a very difficult install. Watched my line pressure increase to 220 psi. Shifts are more pronounced and crisper. I was looking at valvebody replacement / upgrade but with this kit I don’t see a reason to now. When I pulled it apart I could see in the previous gaskets the cross leaks. Definitely a worth while upgrade.
Instructions and everything for this kit were flawless, time and careful attention and this part installs perfect!
Great fit and finish, straightforward install
Great kit!
Attention to detail and watching the YouTube video BD has on this kit made the install seemless. Hopefully this lengthens the life of my 68.
Everything went together well, the instructions were easy to follow. Did notice the actuator plate bolts were coming loose on the valvebody which caused my truck to shift into gear slowly when cold. Transmission shifts and works much better now, great job BD Diesel.
First time into a valve body. Directions were great. transmission is functioning as it should.
Super easy to install. Love it
I ordered the EZ Lynk auto agent and CCS tunes. I finally figured out that this BD unit will boost my trans pressures to 250psi. I really appreciated the YouTube videos that BD put out showing the step by step on this install. Very happy with the purchase and nicer shifts.
Excellent product from an excellent business. Easy install
Everything fit and works great!
Solid instructions, pretty simple install. Comes with a pan gasket, which is a nice touch. My tune maxes me out at 200psi holding pressure, and never had and slipping or transmission codes yet. So far so good, and I recommend. BD is based out of Abbotsford, which is good too. Thanks Dirty.
Instructions were clear and the part fit like it should and was good quality
Good instructions relatively easy to install decent quality. Exceeded my expectations and made me consider BD more for my future modifications.
The instruction manual made this job reasonably easy. you can definitely see the improved quality vs the stock plate.
