2007-2025 Sprinter S&B 16 Gallon Undercarriage Fresh Water Tank (Passenger Side) (10-3009)

These products have an average lead time of 5-7 weeks

Fits

Check out the video overview detailing the installation process and features and benefits for the S&B 16 Gallon water tank for the Sprinter.

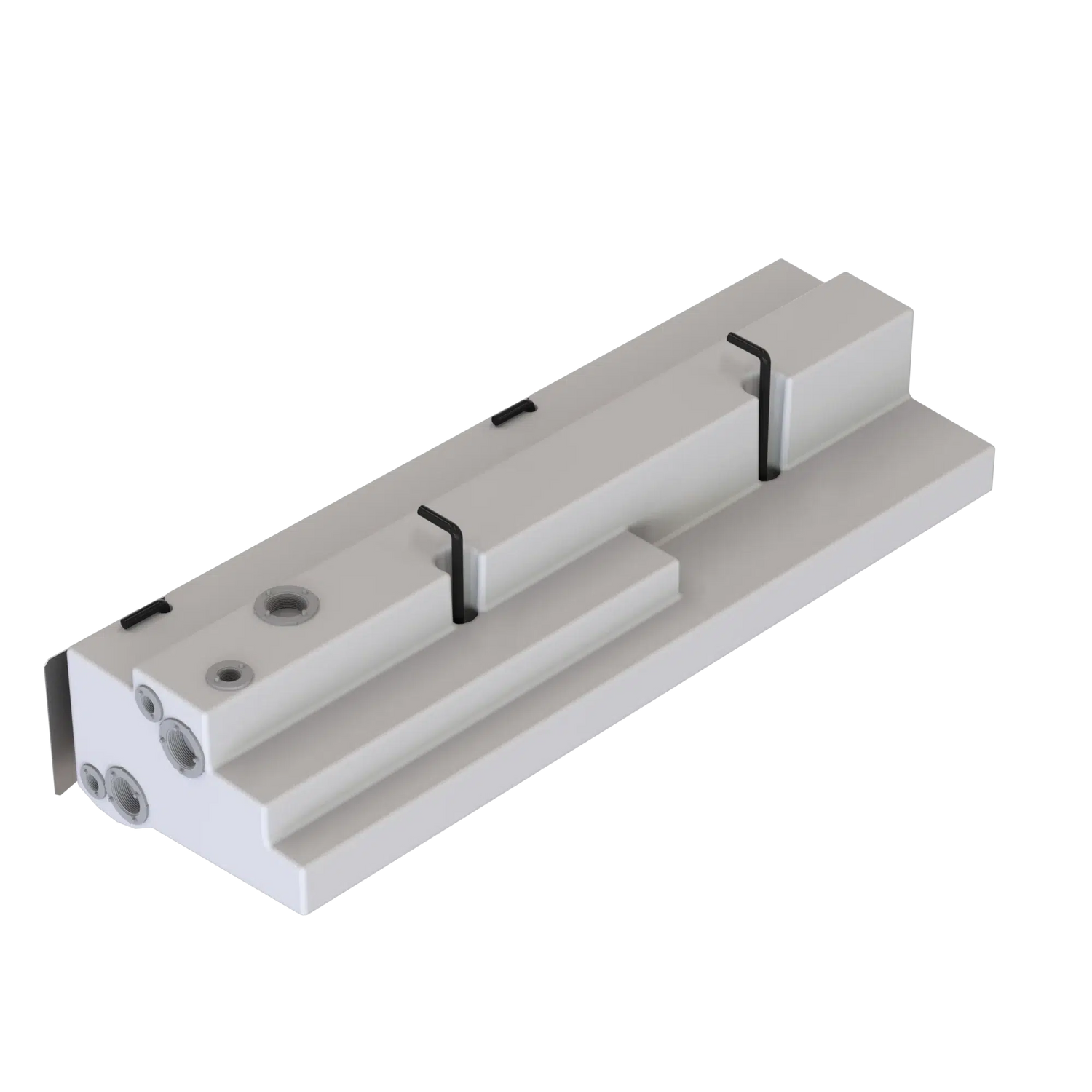

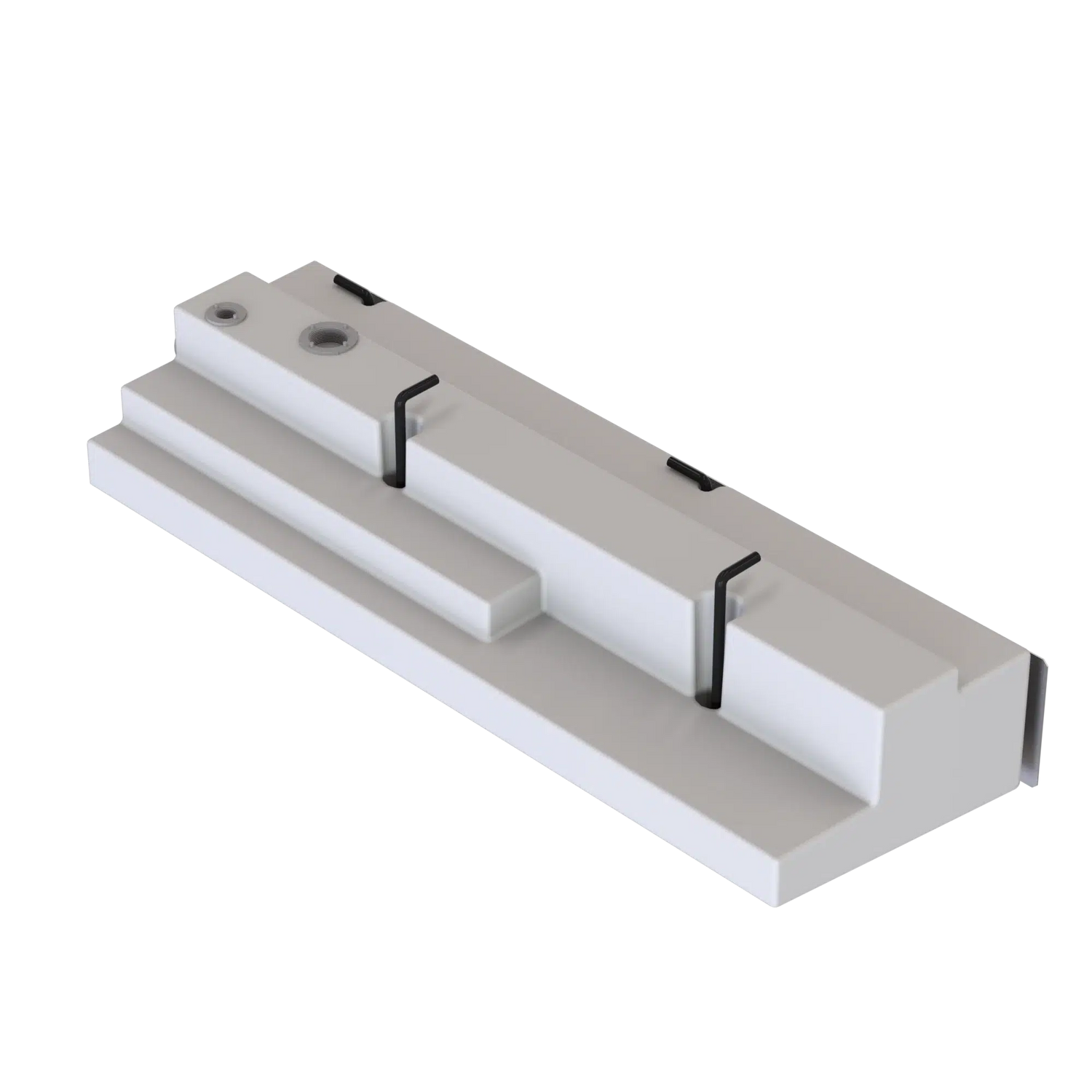

The S&B 16-gallon passenger side undercarriage fresh water tank is made from food-grade safe, BPA-free polyethylene plastic and is TEI listed. S&B's tanks are perfect for your home build or build needing RVIA certification. S&B makes tanks in-house and pressure test every tank.

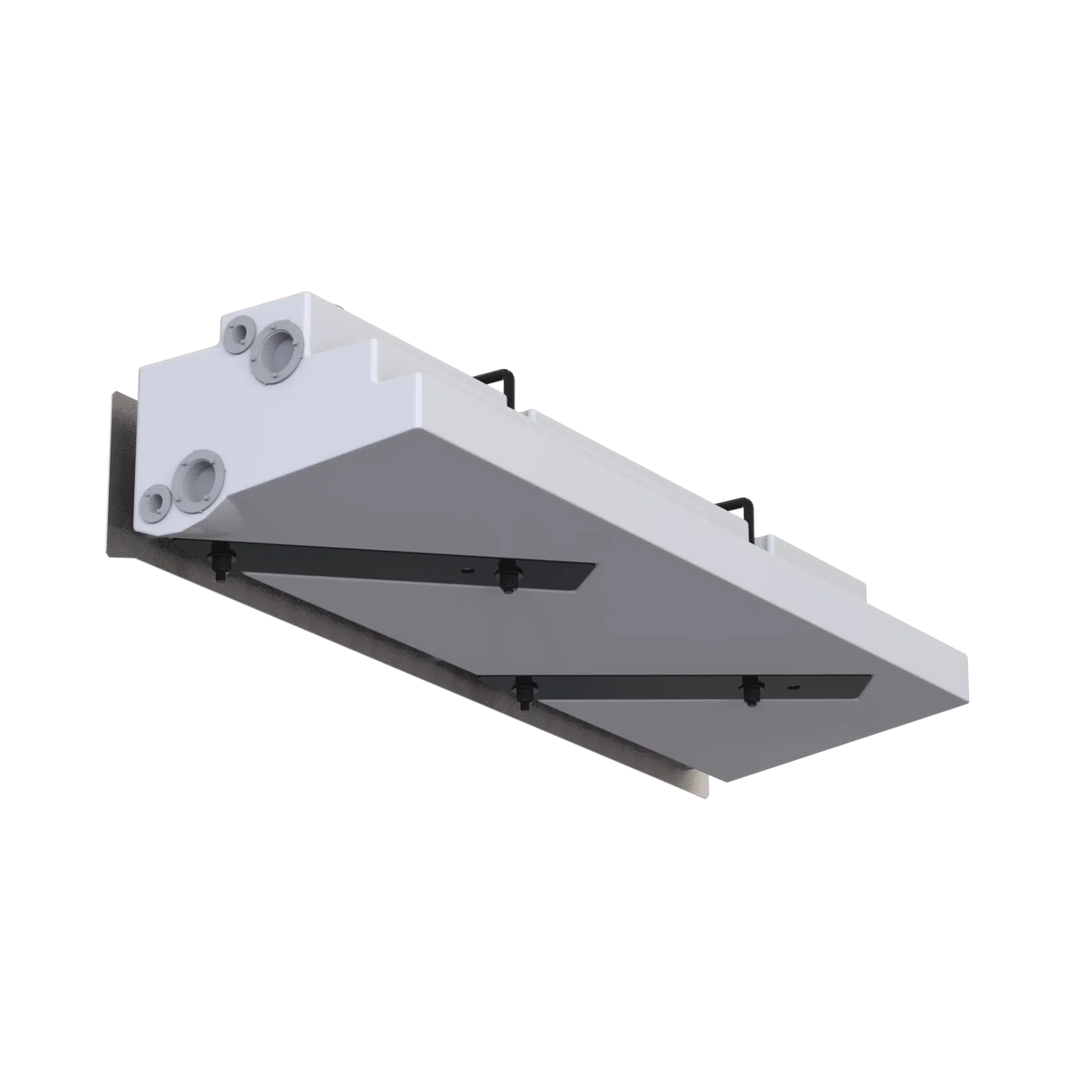

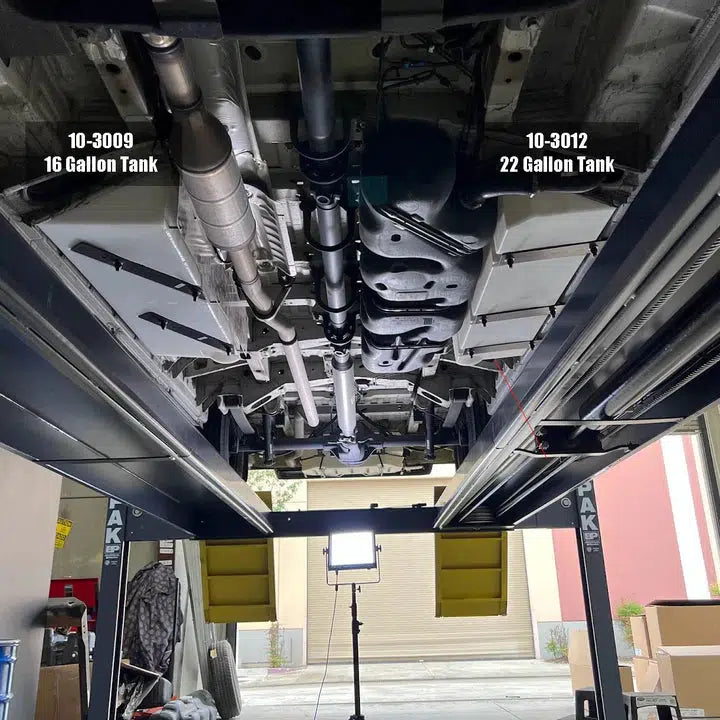

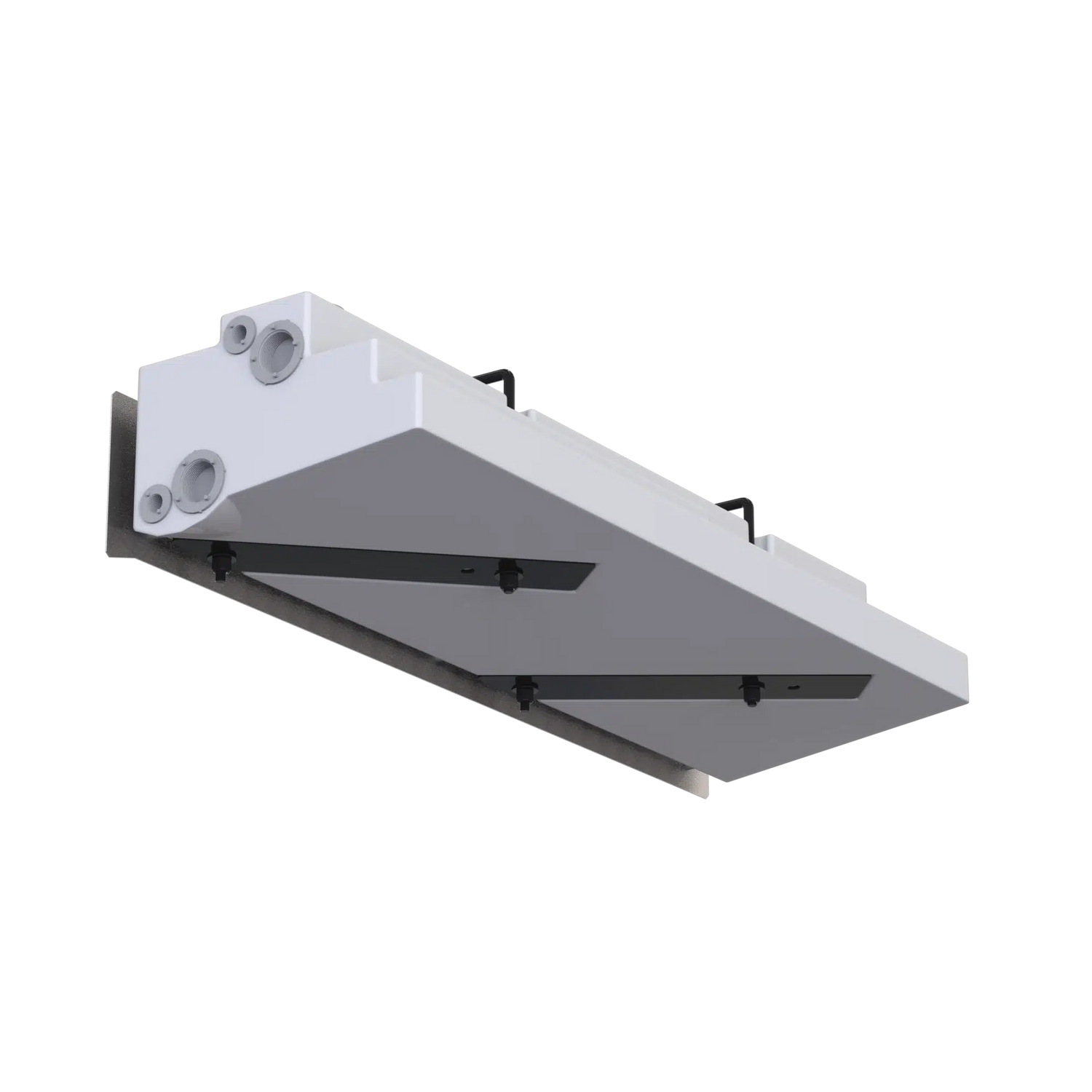

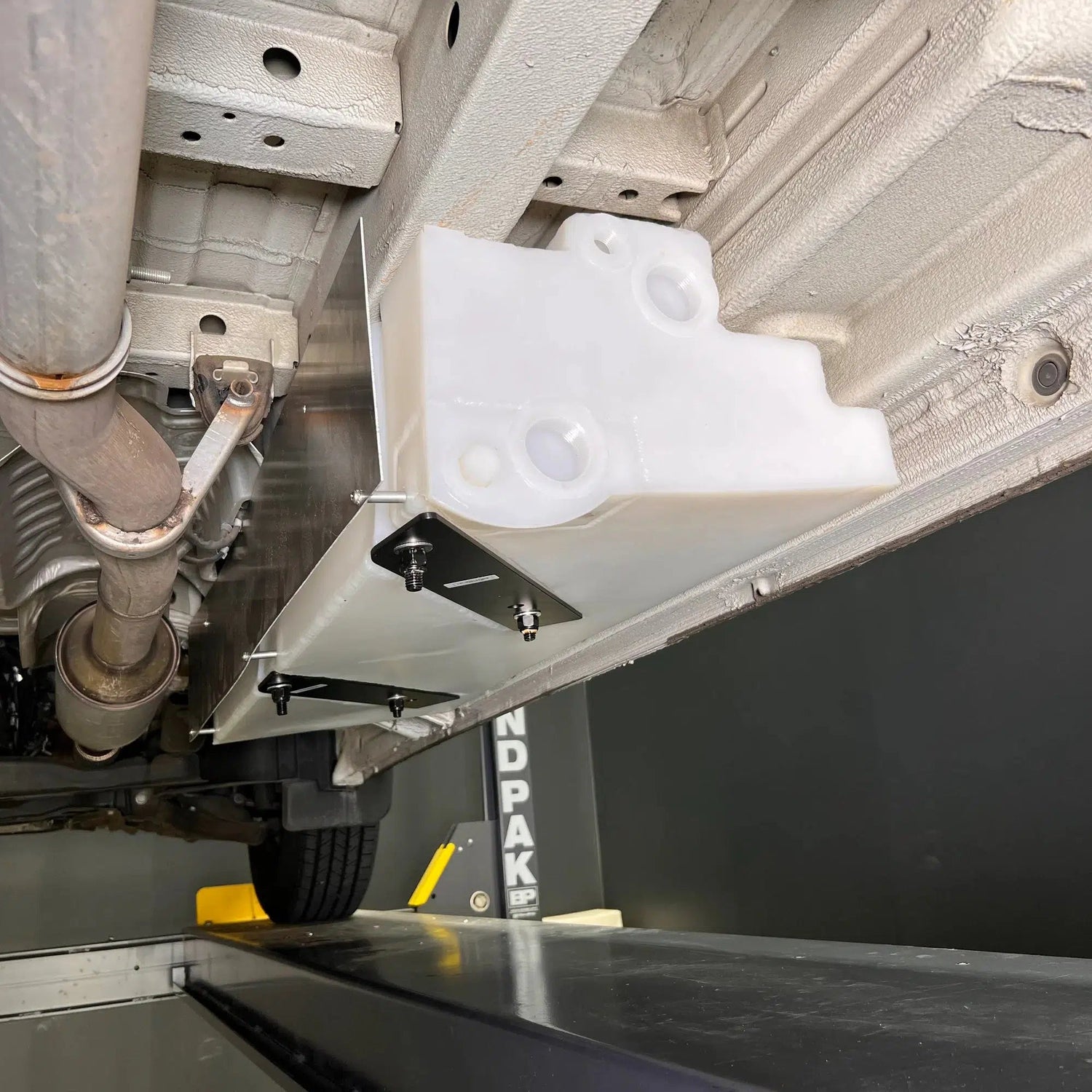

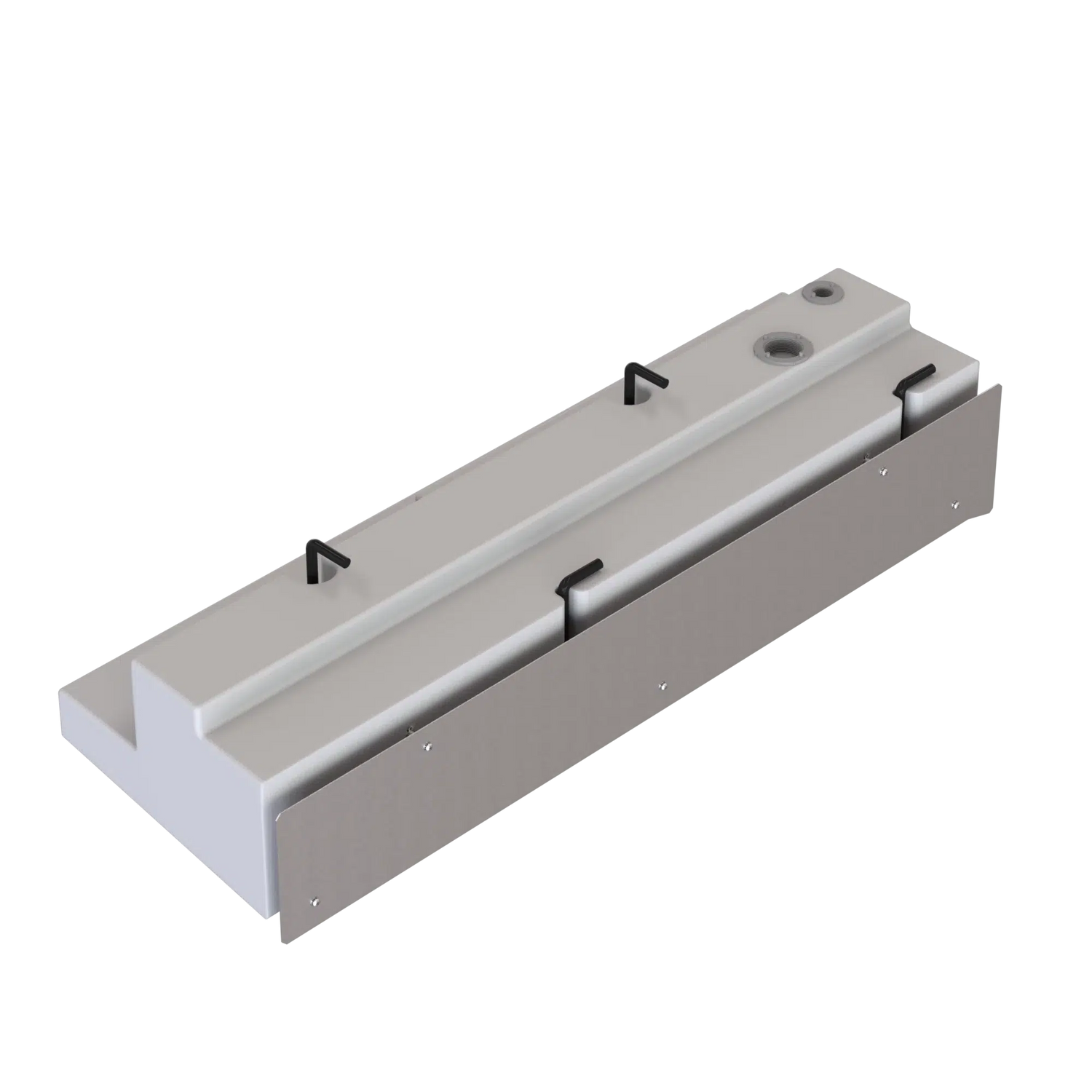

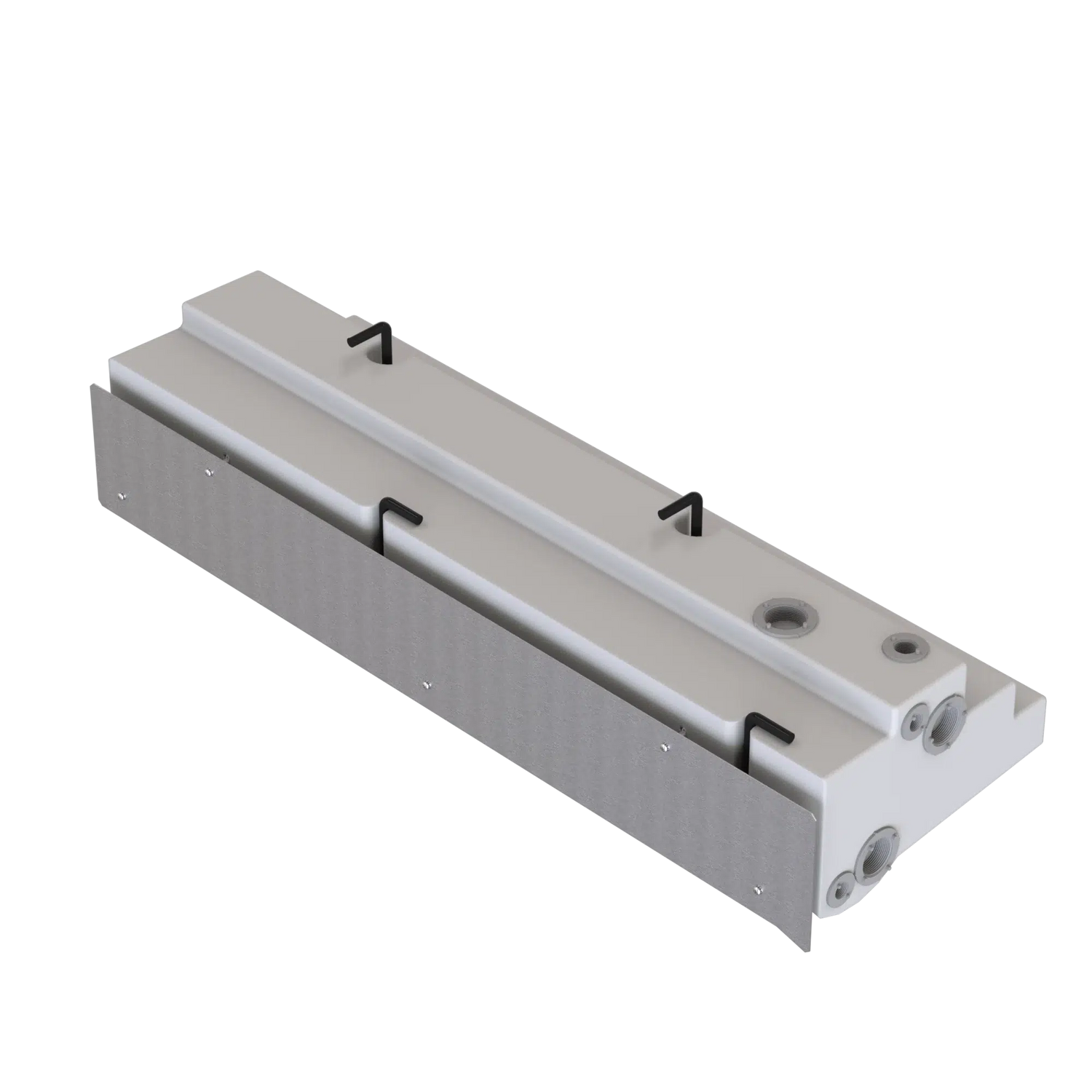

The 16 Gallon is designed to mount on the passenger side undercarriage and includes a heat shield to protect it from DPF heat. The tank slopes inward to stay out of view while giving you the benefit of a more usable capacity.  Get ready to hit the road with this complete package. Includes a mounting kit.

Part Number: 10-3009

• Works on passenger side
• 16 Gallon Tank

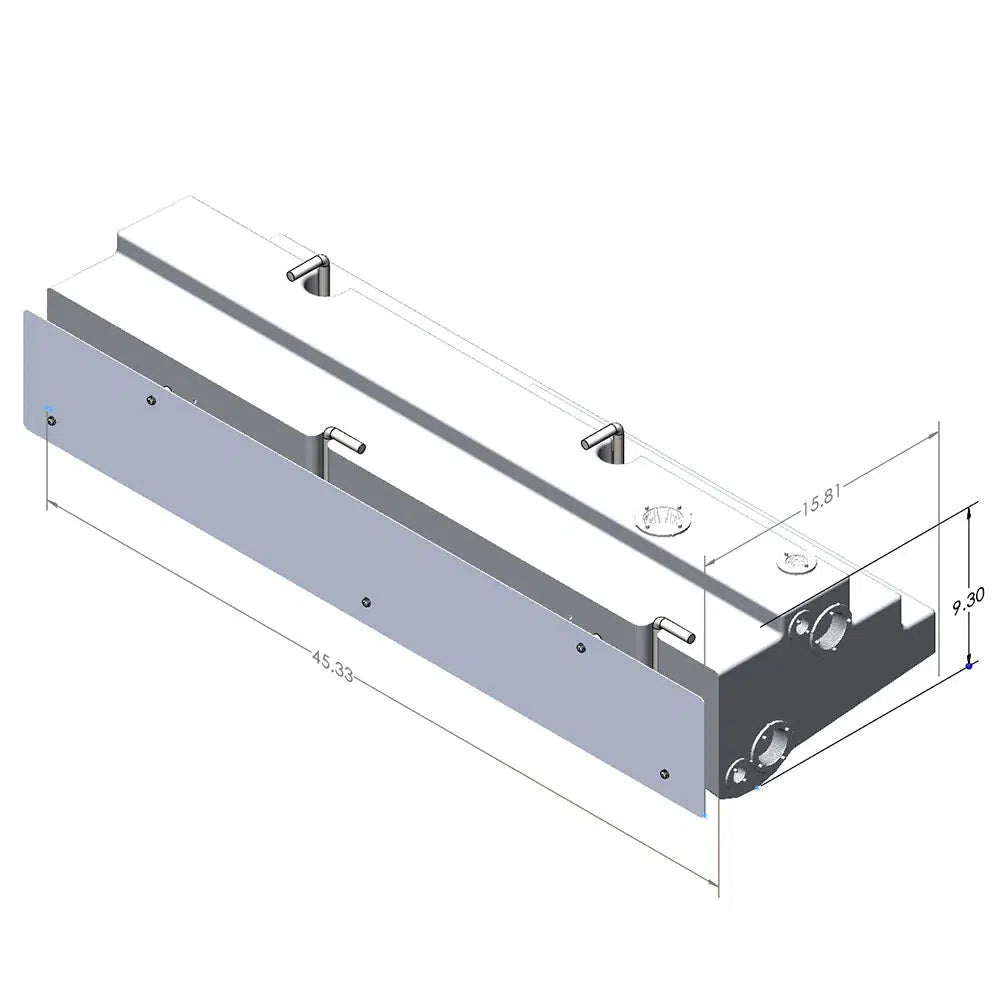

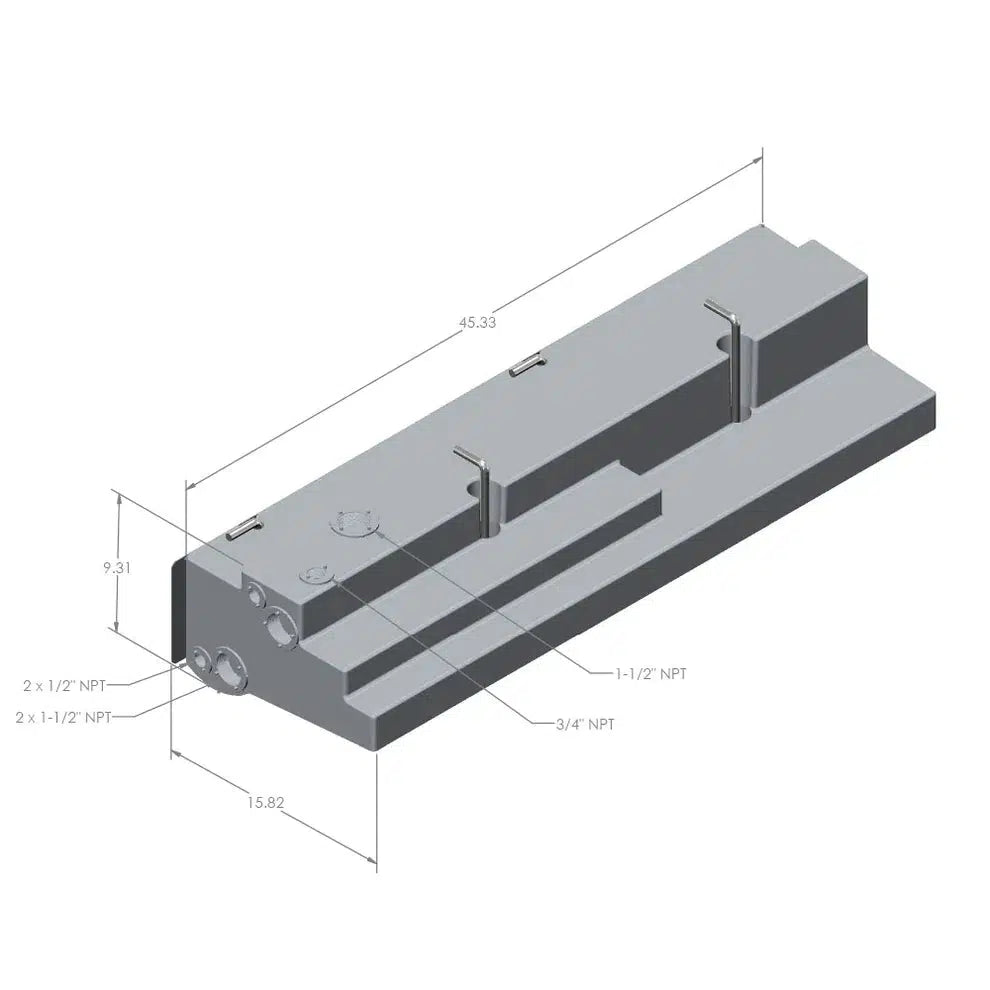

• 45.33" Length x 15.5" Width x 8.31" Height
• Includes mounting kit
• Ability to use external or KUS internal level sensors (PN: S5U-6 not included)

• Level Sensor Hight: 6"
• TEI Tested & Listed / RVIA Approved
• Dry weight: 20lbs

• Click Here

• Tank is confirmed to fit with Owl Side Steps. Will not work with AMP steps. There is .8" between the tank and body. (where the side steps mount)
• Please confirm you have inboard holes for hangers before ordering. This tank will not fit gas vans or vans with a DEF tank mounted under the van or amp steps.

S&B is firmly committed to providing our customers with best in class, reliable products from Authorized Dealers. S&B products purchased from Authorized Dealers by the original purchaser are backed by S&B’s Million Mile Limited Warranty when used under typical driving conditions and on vehicles for which they were designed. If one of our products is not performing properly or is defective, S&B will replace it. S&B will not be responsible for any consequential, indirect, contingent, special or other damages not outlined in this warranty.

Don't see your question? Ask us anything about this product.

• ?

  This tank fit on a Mercedes sprinter 2026 ?

  Unfortunatley, no.
