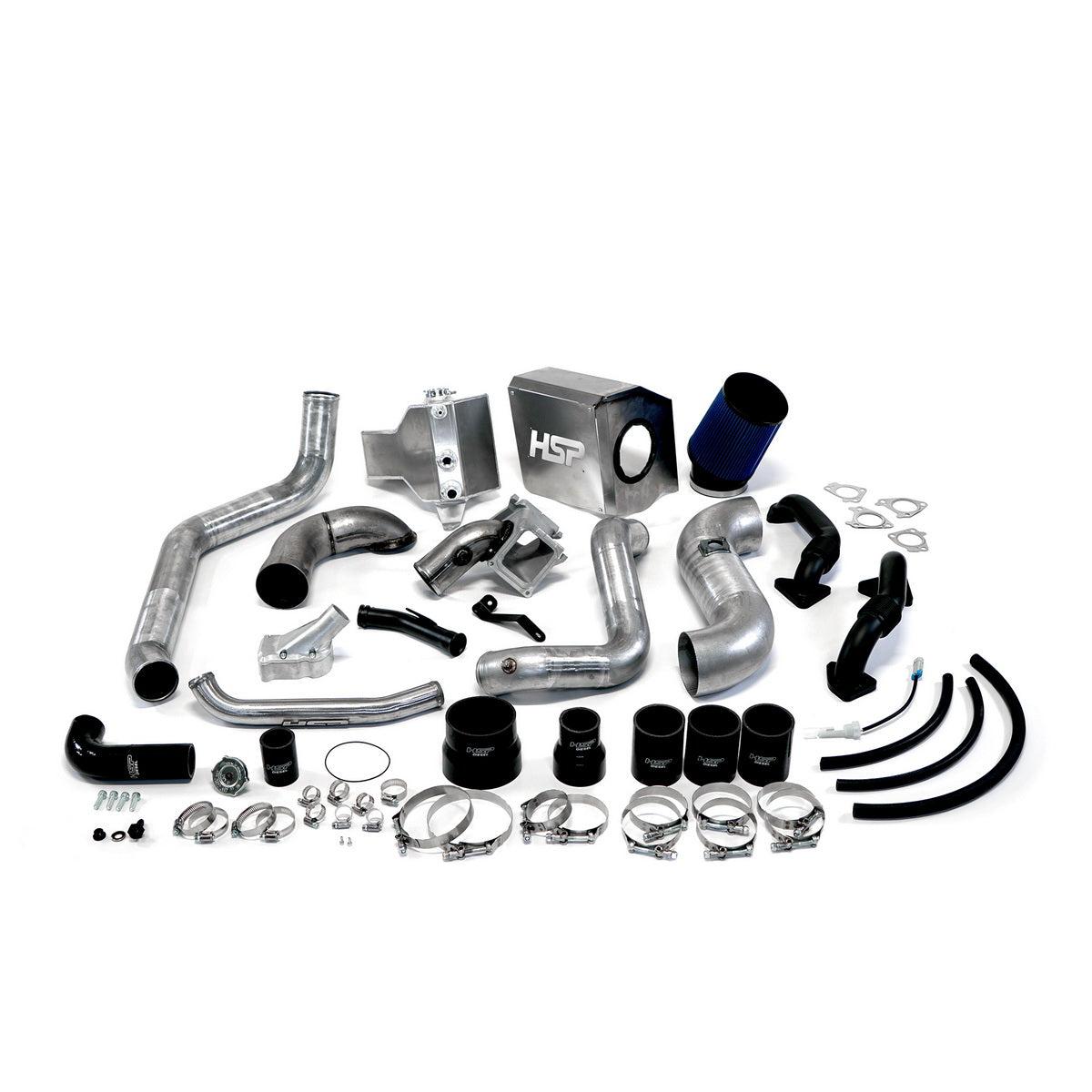

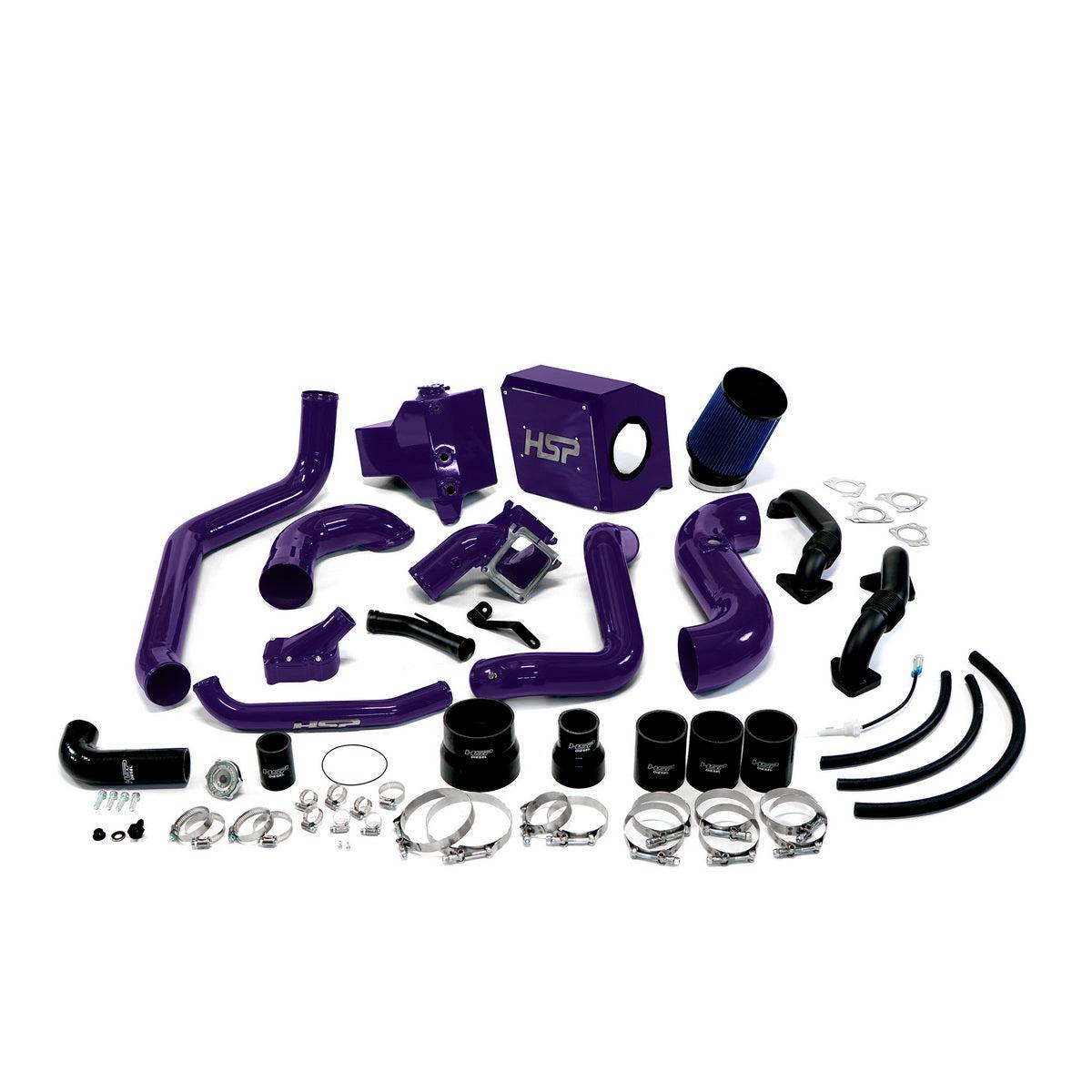

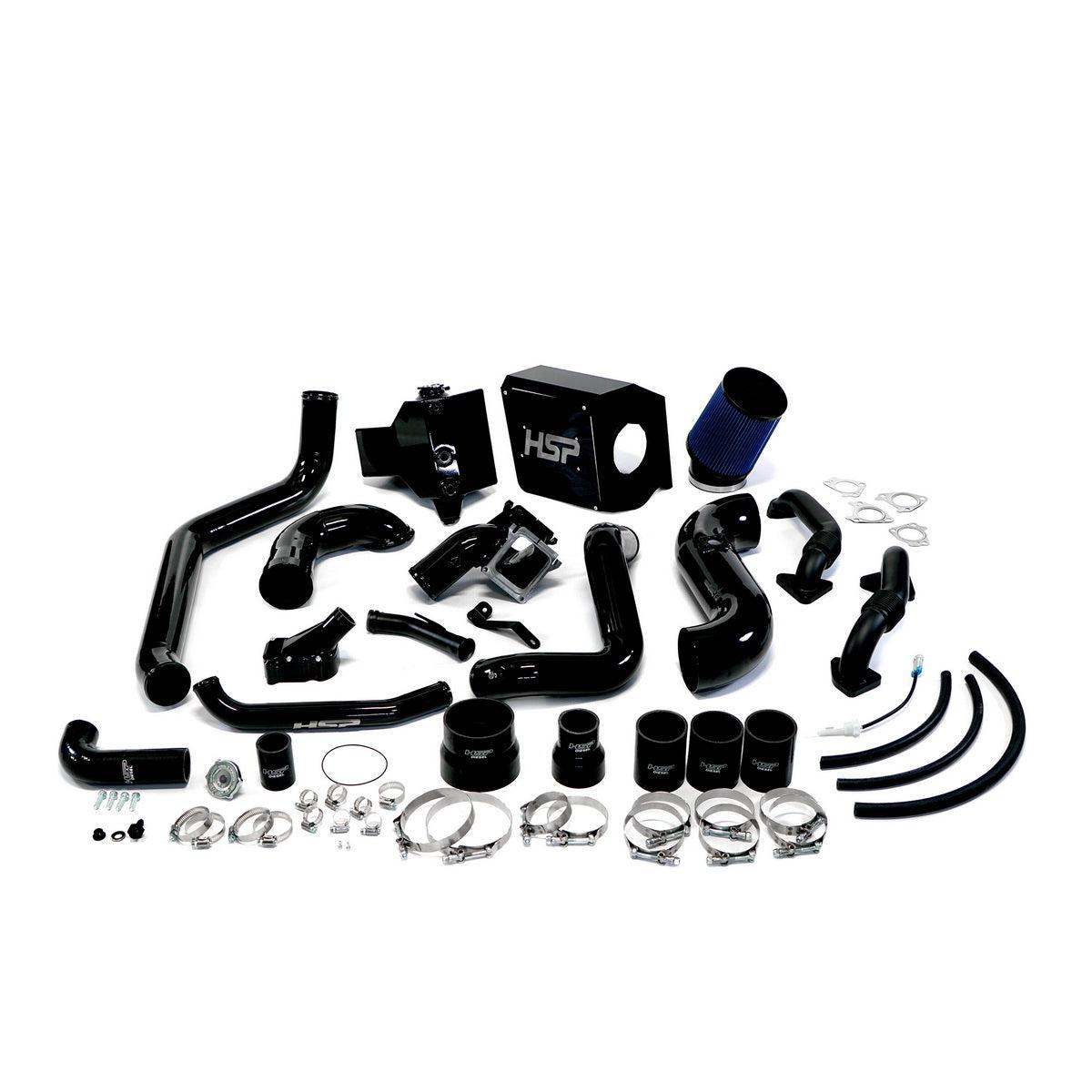

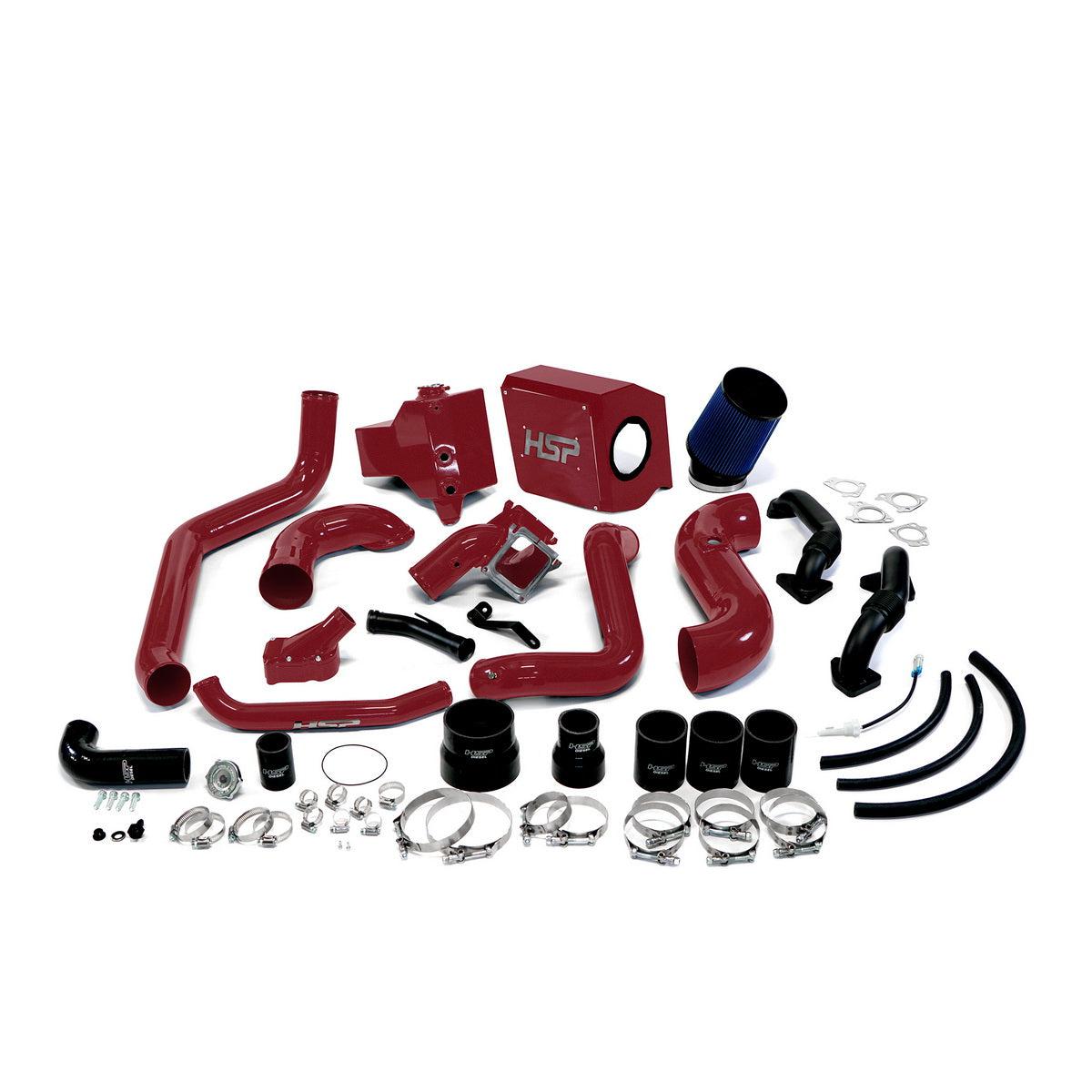

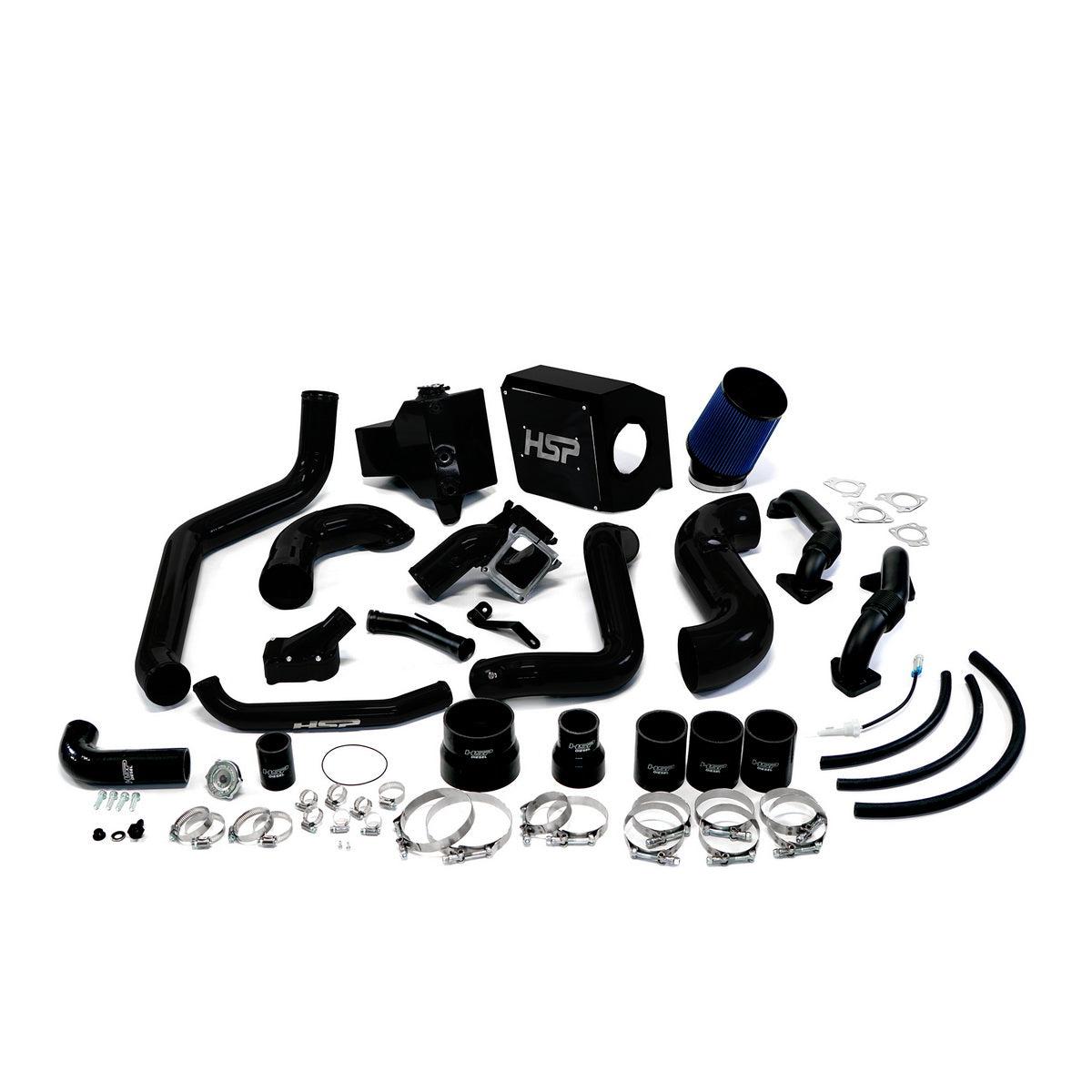

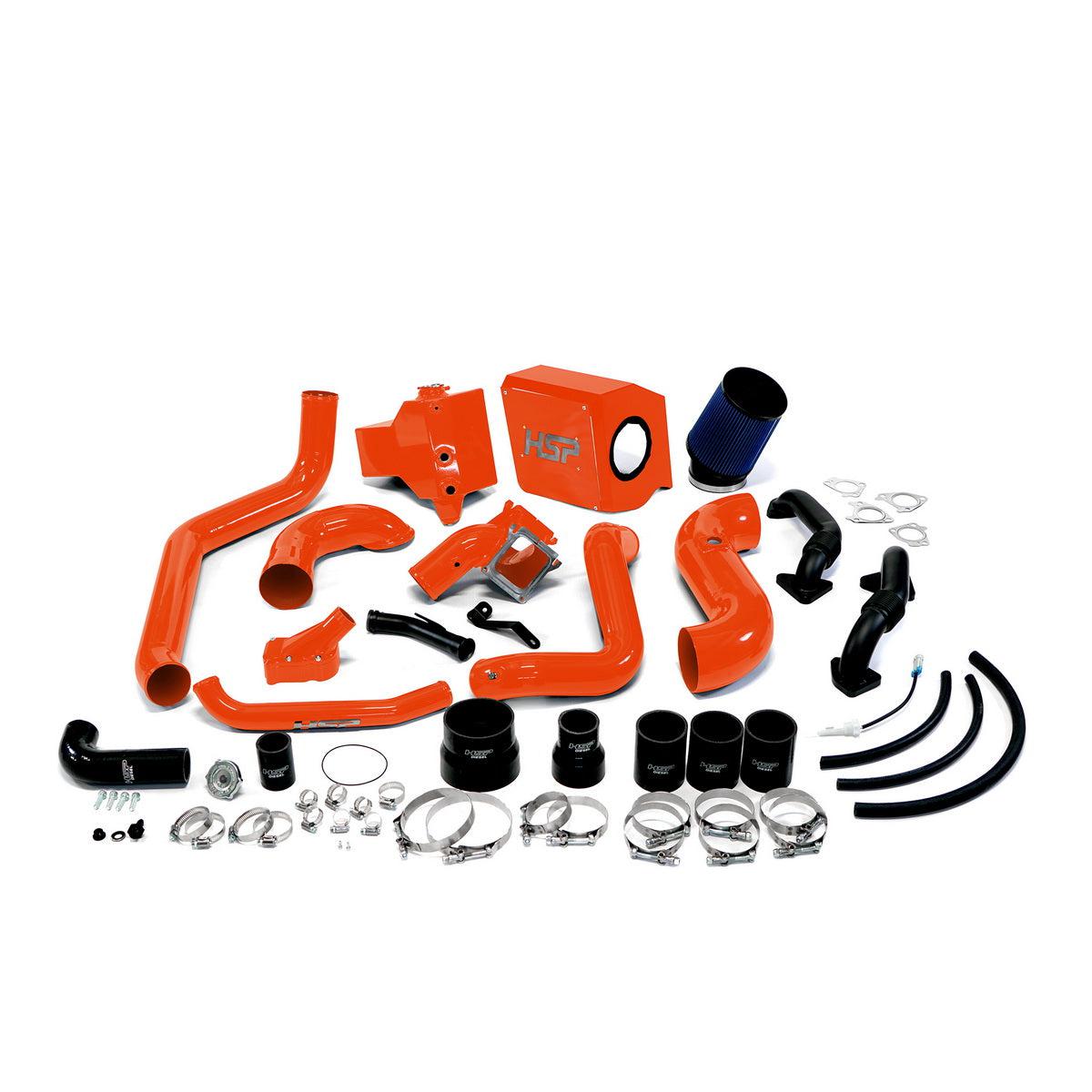

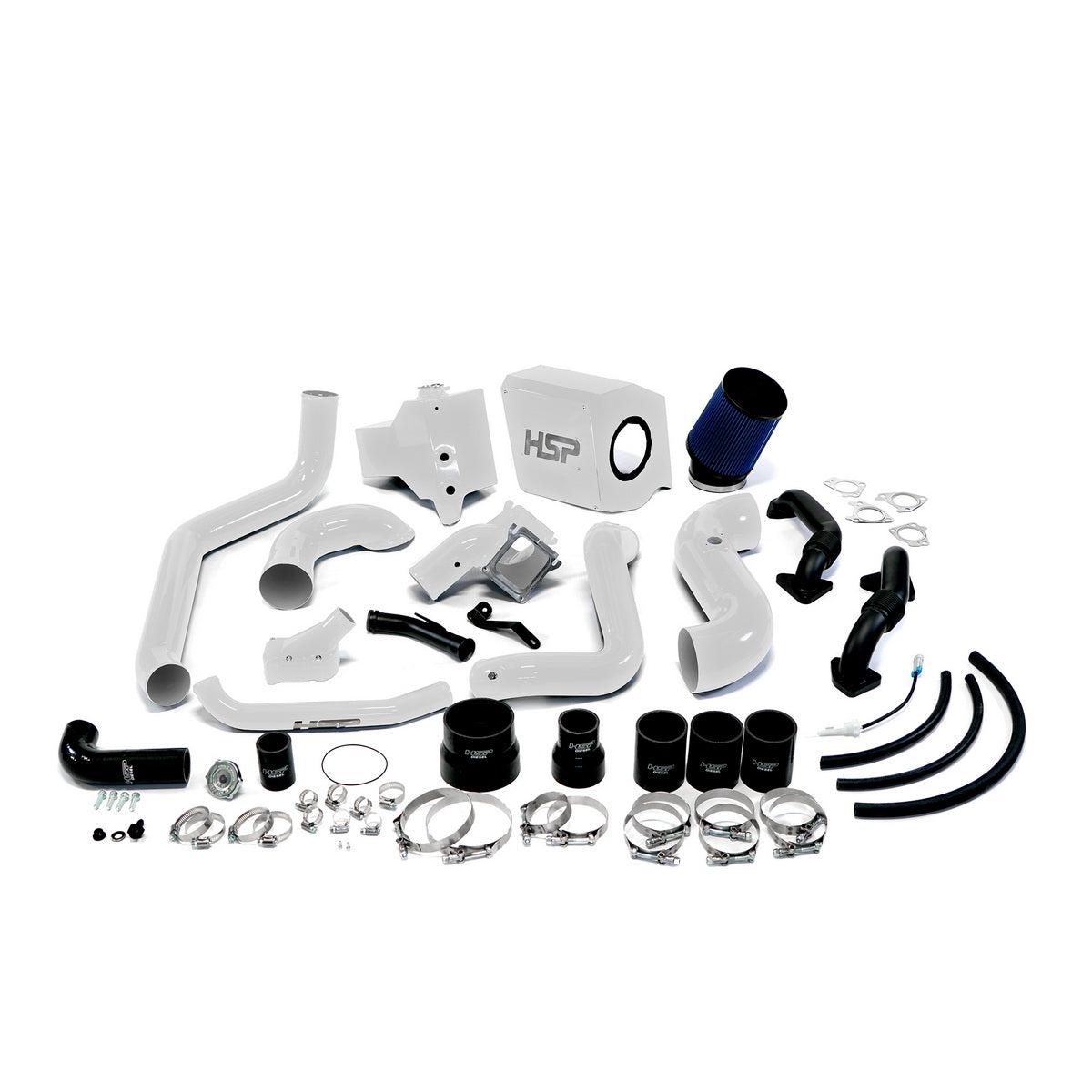

2006-2007 Duramax Deluxe Max Air Flow Bundle (384-HSP)

Fits

Featuring a mandrel bent 4 1/2" intake tube for massive airflow gains, a heat shield box eliminates unwanted hot air entering the cold air intake. For every 1­° increase in intake air temperature will result in a 3hp loss. This kit also features a high-flow turbo mouthpiece. This turbo mouthpiece will give you the ability to reroute your factory PCV system and remove the factory resonator box, eliminating unwanted engine oil gumming up the turbo and intake system.

The factory hot side intercooler tube is only 2.25" in diameter and has a 90° boot at the intercooler that is prone to failure. With this routing there is a possibility of the hot side intercooler tube rubbing on the power steering line, causing the line to rub a hole in the tube resulting in a boost leak. The solution to this problem is to run the hot side tube directly into the intercooler resulting in lower temperatures, better airflow, and added clearance in tight places.

Part Number: 384-HSP

• Mandrel bent 4 1/2" intake tube for massive airflow gains
• Low coolant sensor
• Heat shield box
• High-flow turbo mouthpiece.
• Bolted-together two-piece Y-bridge
• 2" Up pipes use .120" wall tubing with the toughest bellows on the market
• Forward-facing thermostat housing with coolant return
• Factory replacement coolant tank
• 3" mandrel bent hot side and cold side tubes

• 3x 3" x 4" Straight boot
• 7x 3" T-bolt Clamp
• 1x 2.25" - 3" Reducer boot
• 1x 2.25 T-bolt Clamp
• 1x 1/8" NPT Brass Plug
• 1x Bridge neck O-ring
• 2x 5/8" Worm Gear Clamp
• 2x Bridge neck stud
• 2x Bridge Neck 12-point Nut
• 2x M4x.7x10mm Bolt
• 3x 10-32 x 3/8" Button Head Screws
• 4x 1/8" Aluminum Rivet
• 1x 4" - 4.5" Reducer Boot
• 1x 4" t-bolt clamp
• 1x 4.5" T-bold Clamp
• 1x 4.5" Filter
• 1x Turbo inlet o-ring
• 1x Radiator cap
• 5x 1/2" Worm gear clamp
• 1x 1" Worm gear clamp
• 1x 1/2" NPT float switch
• 1x Low Coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket cap bolt
• 1x M14x1.5 to 3/8 inch Hose Barb
• 1x M14x1.5 Metric Port Plug
• 1x Metric Bonded Seal 14mm
• 1x 1.75" x 3" Straight Boot
• 1x 1.75" 90° Boot
• 4x 1 3/4" Worm Gear clamps
• 2x Up-Pipe Gaskets (Manifold Side)
• 2x Up-Pipe Gaskets (Turbo side)

Compatible with:

• LBZ: 06-07 VIN Code 2 or D
