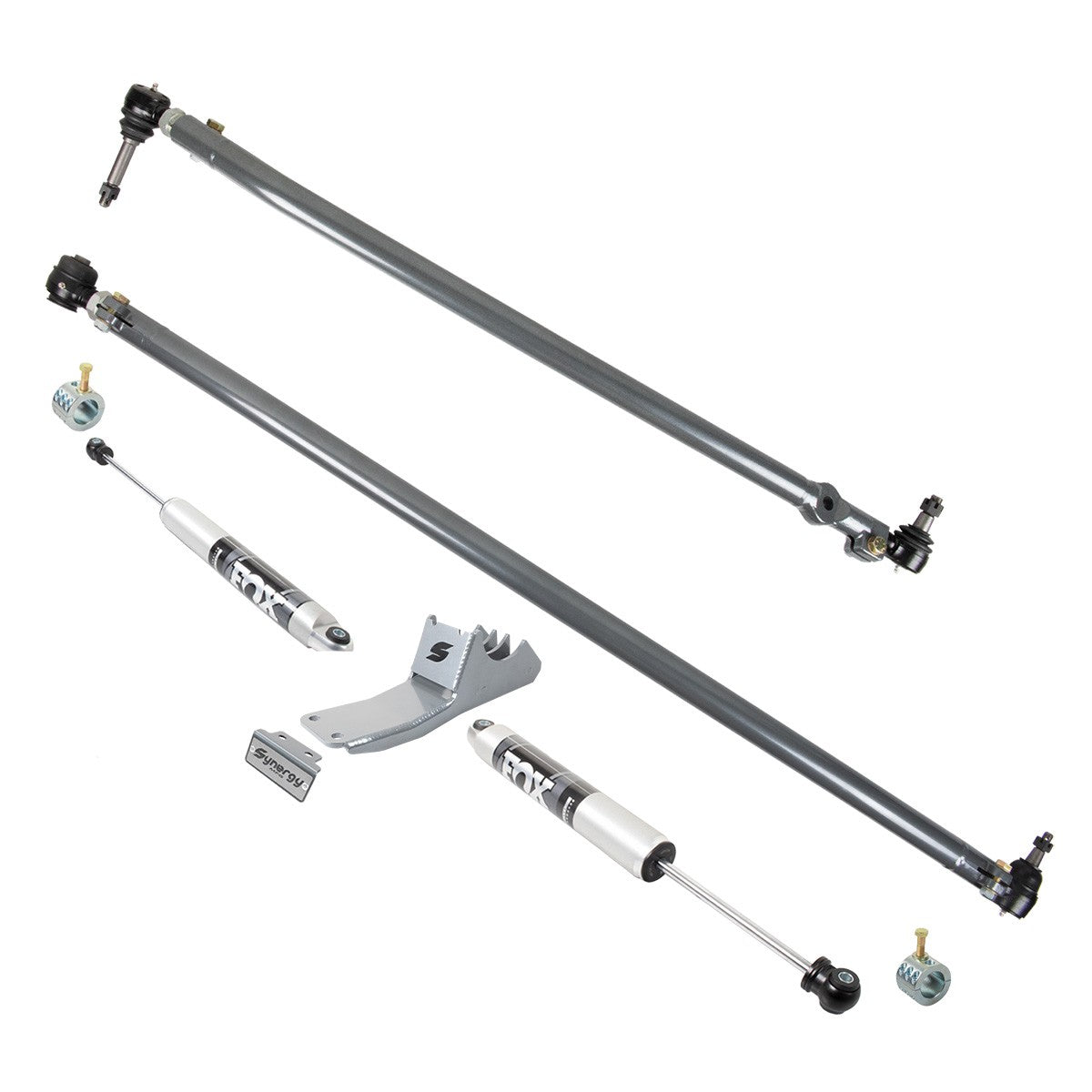

2005-2025 Powerstroke HD Steering Kit with Dual Tie Rod Mount FOX Stabilizers (8625-07)

Fits

Year	Make	Model	Wheel Drive
2005-2025	Ford	F-250 Super Duty	4x4
2005-2025	Ford	F-350 Super Duty	4x4

Upgrade your Super Duty steering with a true bolt in kit that installs using basic hand tools and works with your factory wheels and tires. This 8625-07 configuration runs dual tie rod mounted FOX IFP stabilizers on a fabricated bracket for maximum control on lifted and hard working trucks. The tie rod is CNC formed from 1.75 inch heat treated 4130 chromoly and the drag link from USA made 1.5 inch 1026 DOM steel, delivering strength and precision far beyond the factory linkage.

Part Number: 8625-07

• Tie rod formed from 1.75" x .188 wall heat treated 4130 chromoly, over 40 percent stronger than OEM
• Drag link built from USA made 1.5" x .250 wall 1026 DOM steel tubing
• Single plane tie rod ends eliminate drag link and tie rod flop and remove the on center dead spot
• Synergy metal on metal greaseable tie rod ends with 4140 steel shanks, nitrile boots, and retaining springs
• Double Adjuster Sleeve and forged pinch bolt design allow alignment in the vehicle and prevent jam nut loosening
• Dual tie rod mounted FOX IFP stabilizers on the 8610-01 bracket for maximum steering control
• Two stage abrasion resistant powder coat finish for durability and corrosion resistance
• 100 percent bolt on and compatible with stock wheels, tires, and up to 4 inches of lift

• 1x Synergy Heavy Duty Drag Link (8600-01)
• 1x Heat Treated Heavy Duty Tie Rod (8602-11)
• 1x Dual Steering Stabilizer Bracket (8610-01)
• 2x Steering Stabilizer Clamps (4050-75)
• 2x Synergy Tuned FOX IFP Stabilizers (6401-01)

• Verify your front axle before ordering. 2005 to 2022 trucks use the Super Dana 60 (M256, 10 bolt differential cover) and 2023 and newer use the Dana Advantek M235 (14 bolt differential cover)
• Compatible from stock to 4 inches of lift with the factory pitman arm and track bar bracket. Over 4 inches of lift requires a drop pitman arm and track bar drop bracket
• Tie rod mounted stabilizers are recommended for best clearance with larger aftermarket components
• Does not fit 1999 to 2004 Ford Super Duty; those trucks use a different steering kit

This product is covered by Synergy Manufacturing's Limited Lifetime Warranty against defects in materials and workmanship.
