2005-2016 Hilux 2.5 Series 0-2" Lift Front Factory Race Coilovers (883-06-092)

Fits

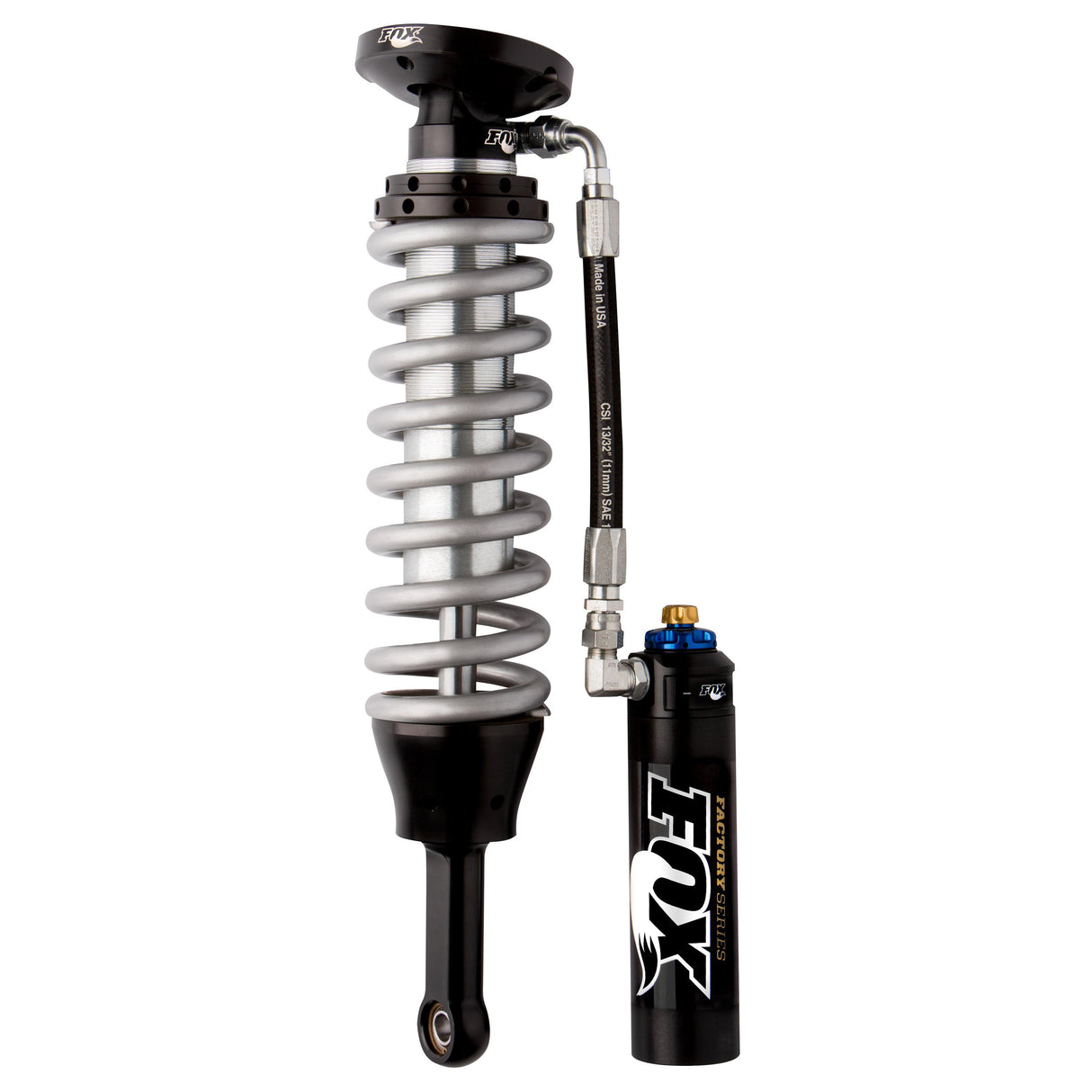

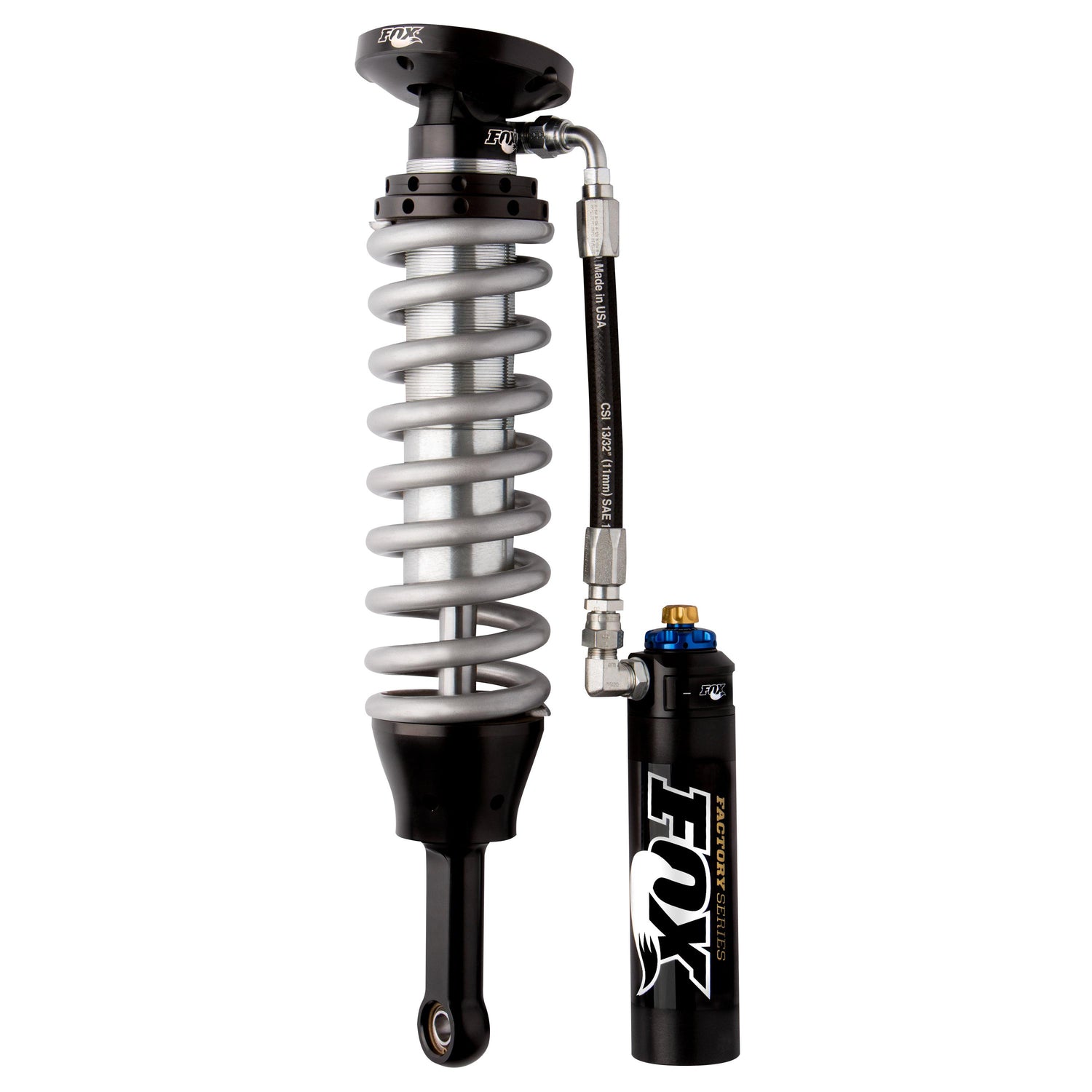

These FOX Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box. Experience the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

Part Number: 883-06-092

• Durable Zinc Plated Seamless Alloy Body
• External Reservoir System Dissipates Heat Fast

• Zinc-plated and double-clear coated for long-lasting finish
• 2.5" Smooth bore and honed seamless alloy Reservoir
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated steel Shafts
• 6061-T6 hard-anodized, high-flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical

Specs:

• Extended Length: 21.46"
• Compressed Length: 16.91"
• Bottom Mount: Eylet

• Travel: 4.55"
• Front Lift Height: 0-2"
