2005-2010 Powerstroke Alpha HD Pro S Air Suspension Kit (HP10181-J-S)

Fits

Note: For all trucks, including those with 5th wheel hitches. / Will NOT fit Chassis Cab vehicles. / Will NOT fit 2WD vehicles - Please use HP10182-J-S

The ALPHA HD PRO S Air Suspension Kit eliminates truck sag, sway, and bottoming out. It features corrosion-resistant end caps, 20 support wires for durability, and an internal polyurethane bumper to prevent damage. Designed for improved ride comfort, it can be used with or without air when not towing. Available with or without an in-bag bump stop for added customization.

Part Number: HP10181-J-S

• 5,000 lbs of load leveling capacity
• 4-hour install time
• Lifetime warranty
• Can be run at 0 psi

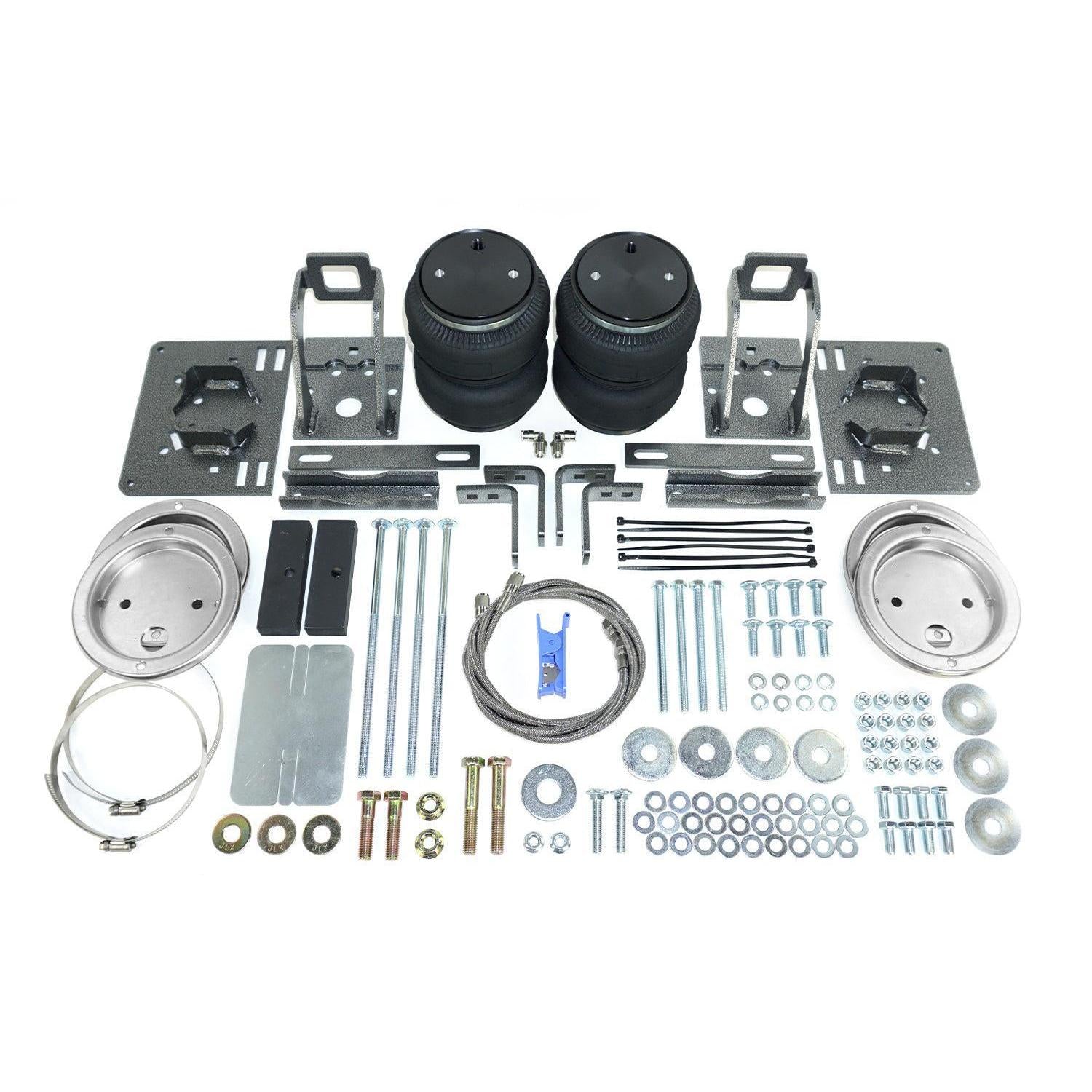

Includes:

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates
• Two Air Springs
• Everything required for install

• Click Here

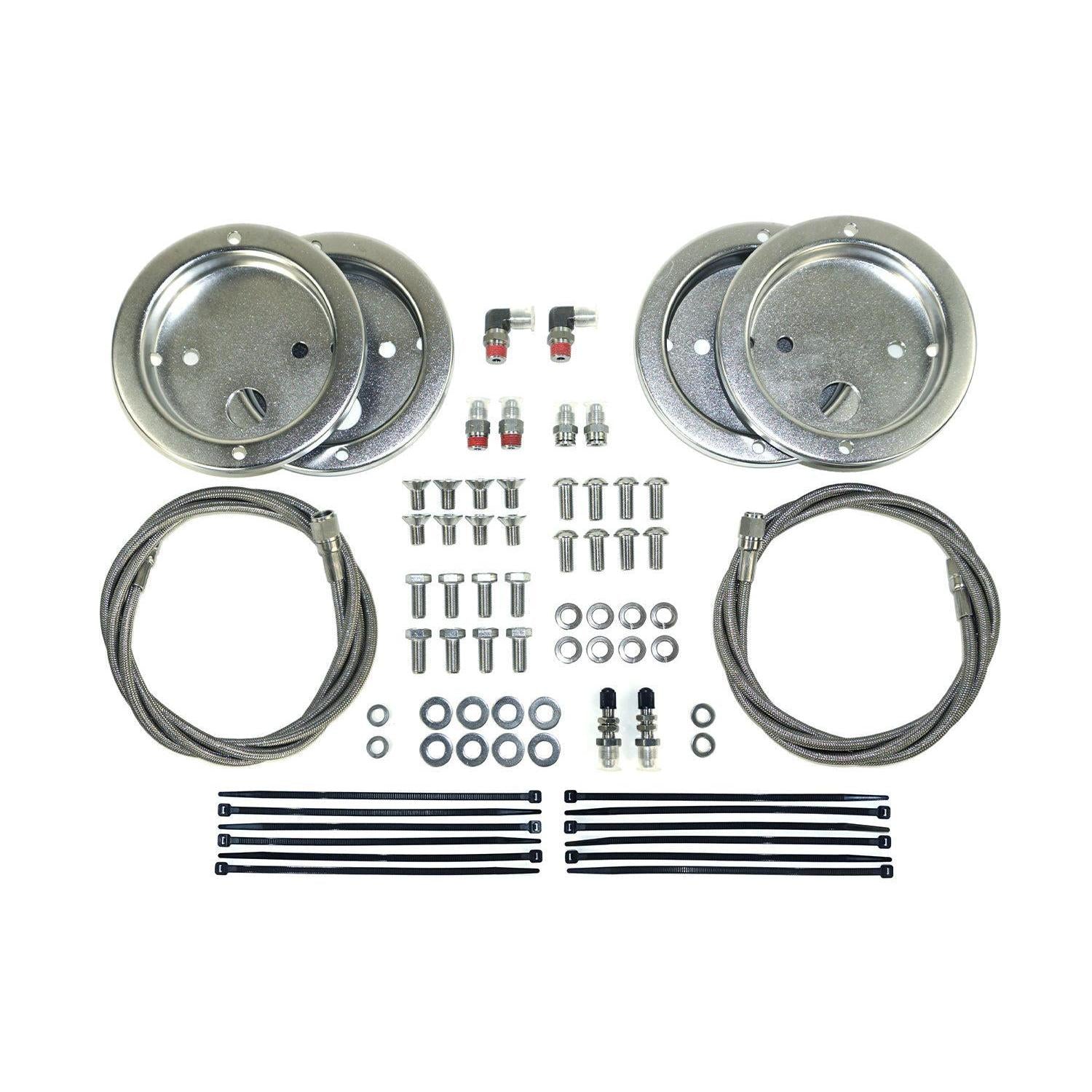

• Click Here - Stainless Steel Hardware
• Application Guide

• Never exceed manufacturer's recommended Gross Vehicle Weight Rating.

Why Pacbrake added a bump stop to their bags?

Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

An additional benefit is that you can run these air bags at 0 psi when unloaded for superior ride comfort.

Are bump stops necessary?

No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off roading, air bags without bump stops are recommended. Consider the HP10181 ALPHA HD air bag.

Parts Only

• Click Here
