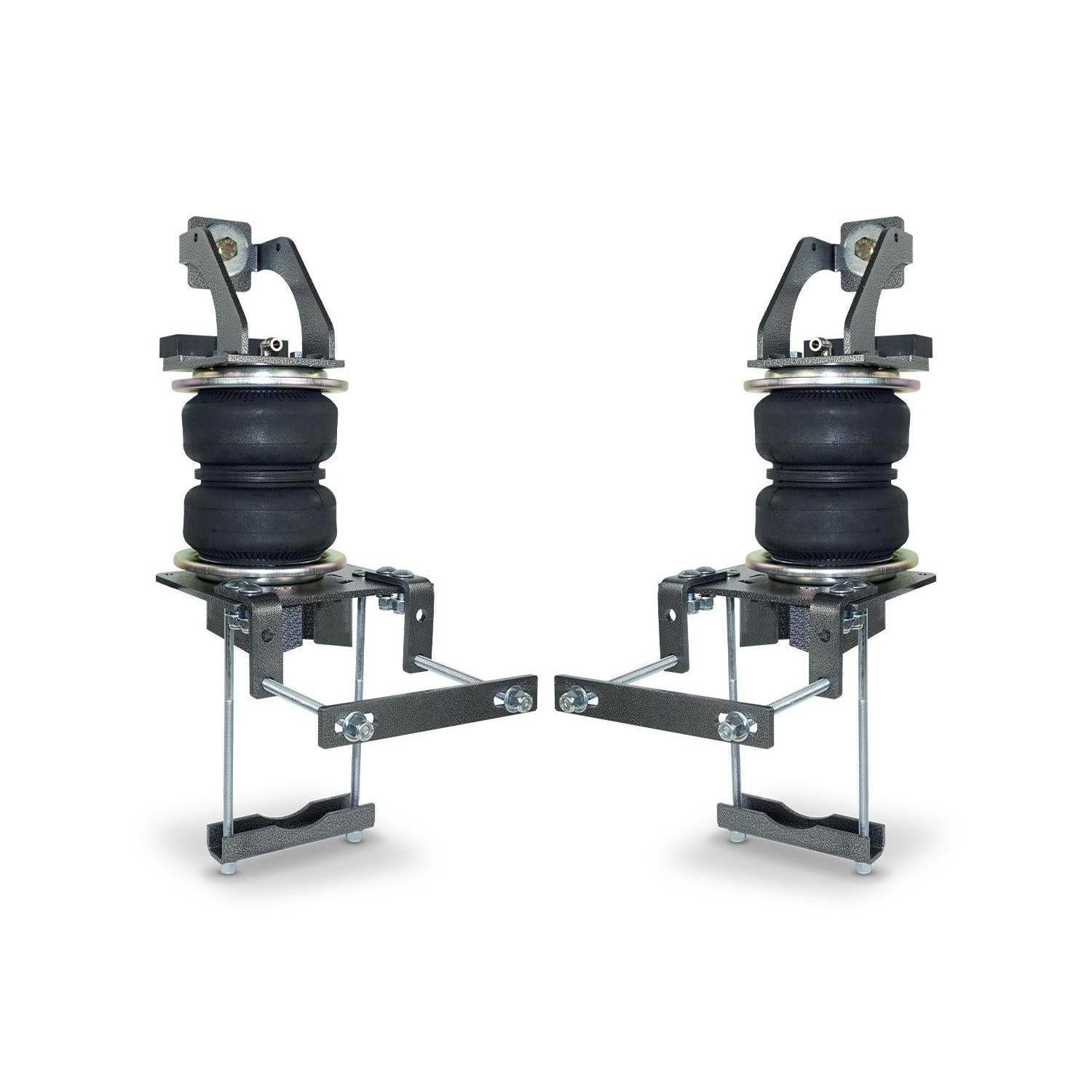

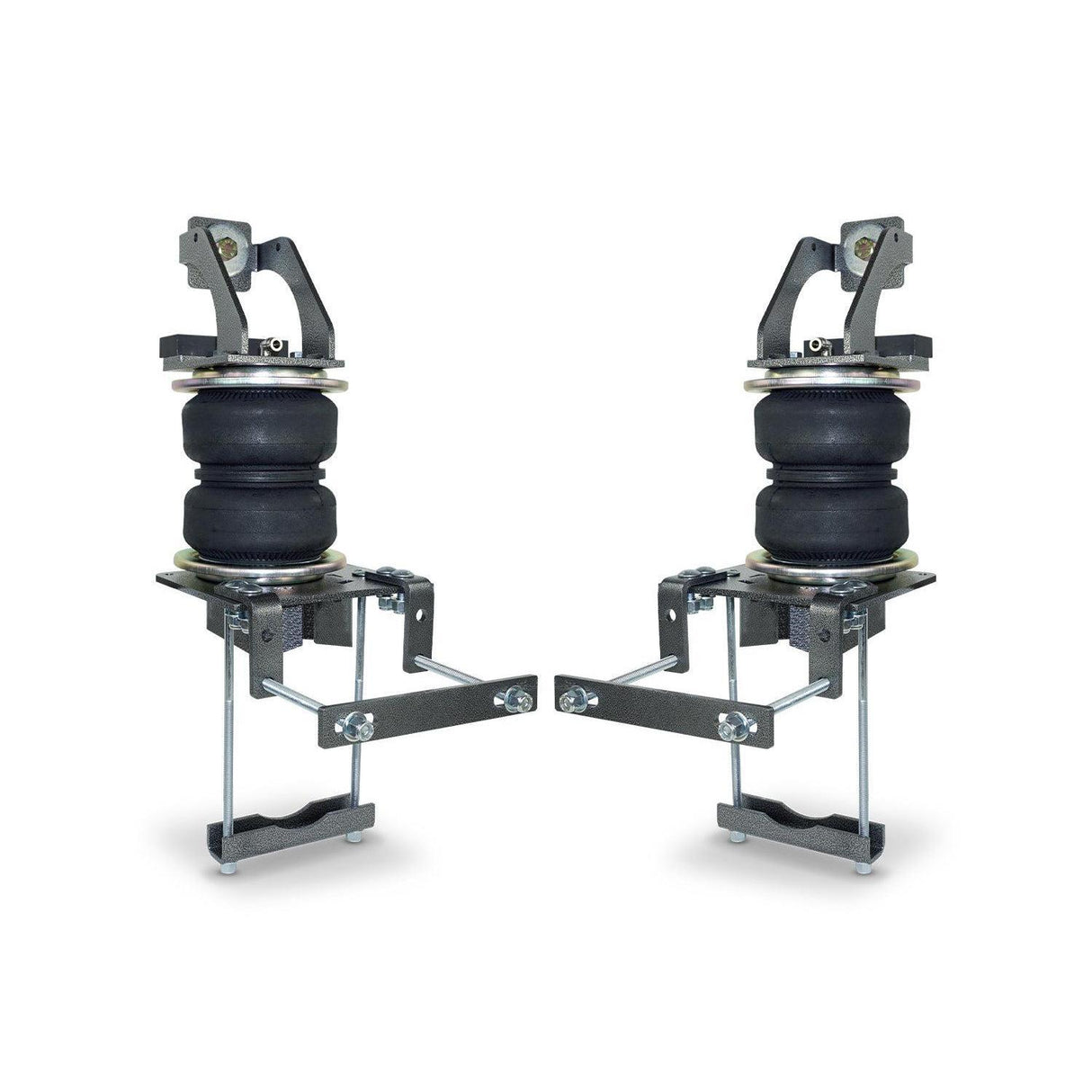

2005-2010 Powerstroke Alpha HD Pro S Air Suspension Kit (HP10182-J-S)

Fits

Note: For all trucks, including those with 5th wheel hitches. / Will NOT fit Chassis Cab vehicles. / Will NOT fit 4WD vehicles - Please use HP10181-J-S

The ALPHA HD PRO air suspension kit eliminates truck sag, sway, and bottoming out. It includes durable airbags with thick corrosion-resistant end caps and 20 support wires for strength. The built-in polyurethane bumper protects against damage when bottoming out and allows driving without air pressure when not towing. Customers can choose versions with or without the internal bump stop for tailored performance.

Part Number: HP10182-J-S

• 5,000 lbs of load leveling capacity
• 4-hour install time
• Lifetime warranty
• Can be run at 0 psi

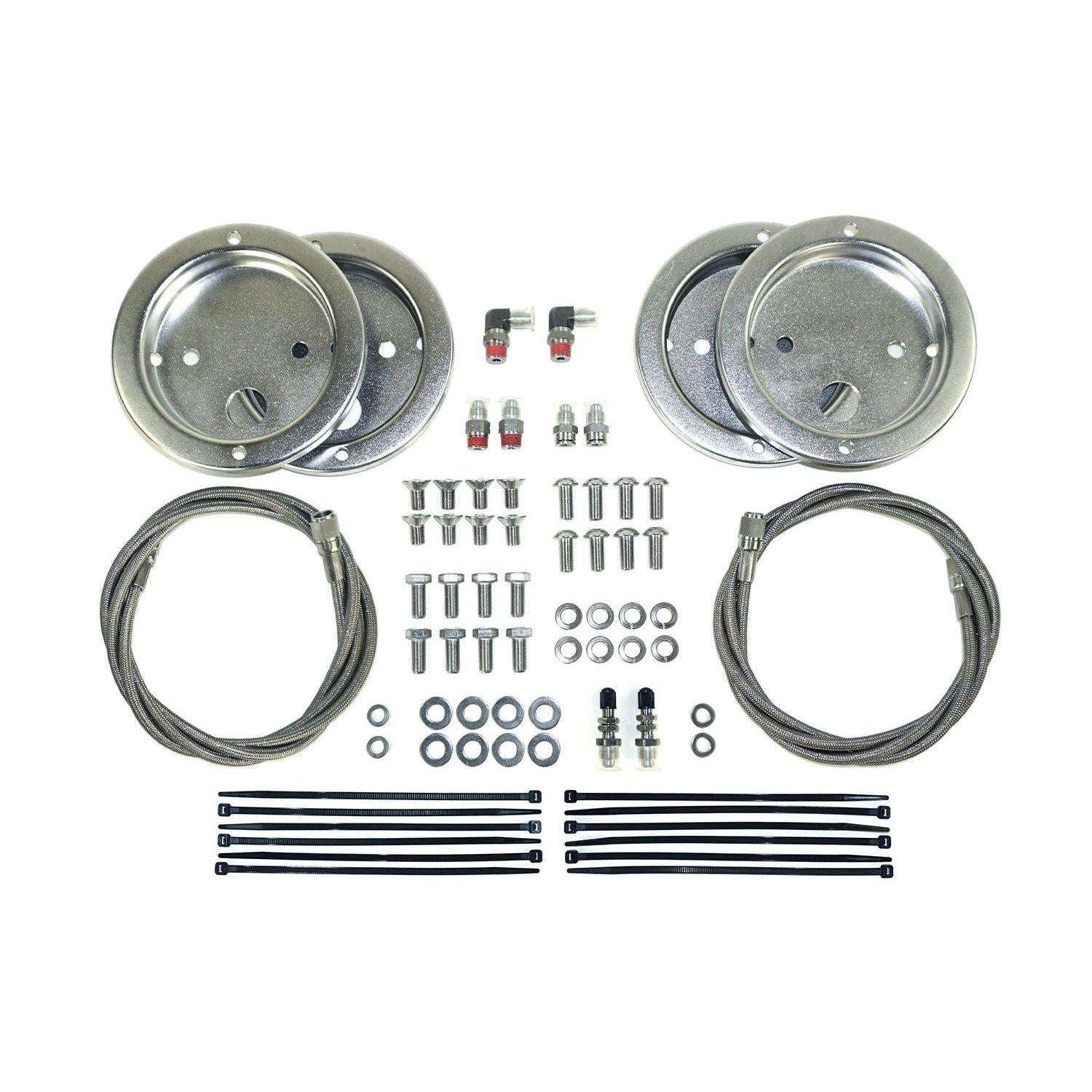

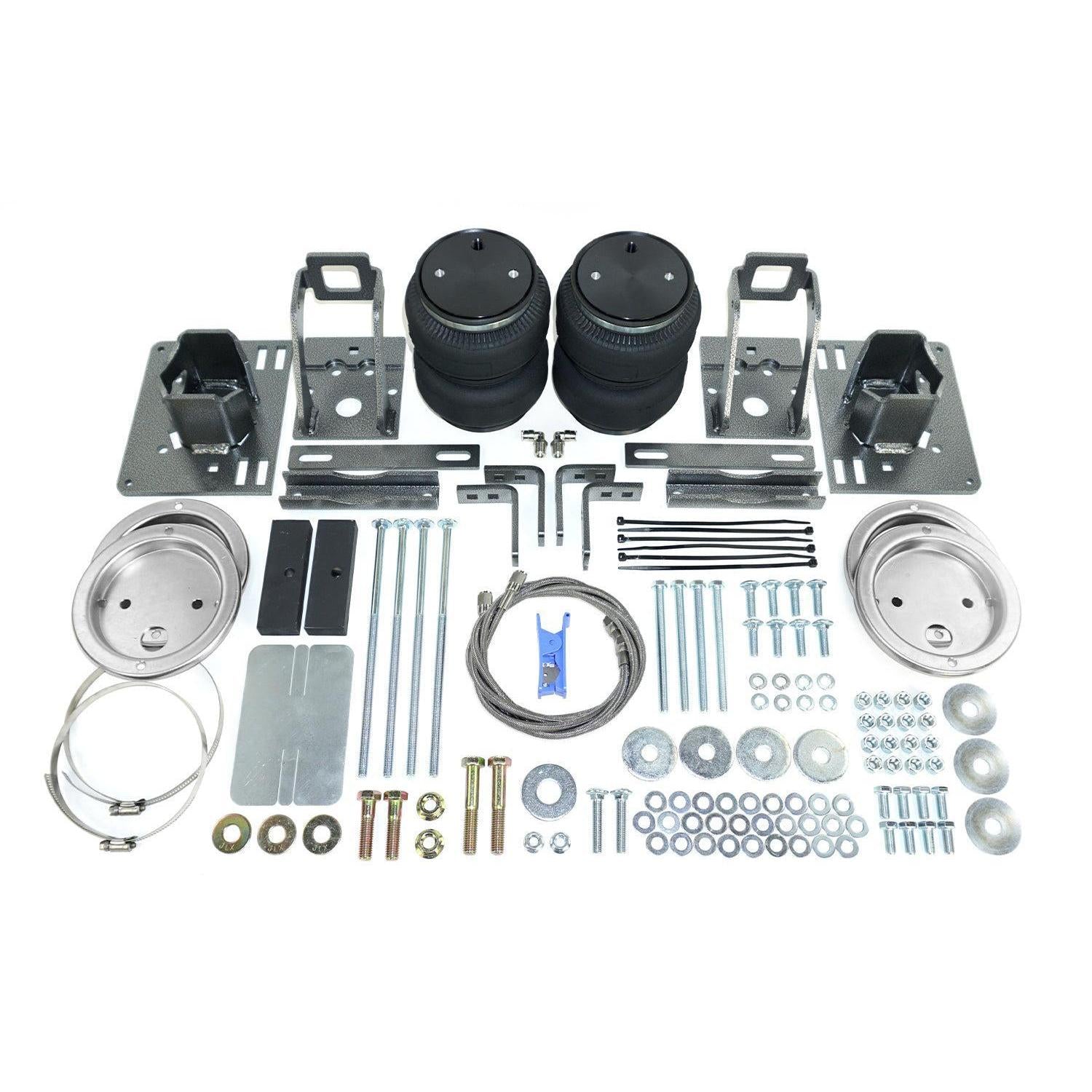

Includes:

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates
• Two Air Springs
• Everything required for install

• Click Here
• Click Here - Stainless Steel Hardware
• Application Guide

• Never exceed manufacturer's recommended Gross Vehicle Weight Rating.

  Why Pacbrake added a bump stop to their bags?

  Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

  An additional benefit is that you can run these airbags at 0 psi when unloaded for superior ride comfort.

  Are bump stops necessary?

  No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off roading, air bags without bump stops are recommended. Consider the HP100182 ALPHA HD air bag.

Parts Only

• Click Here
