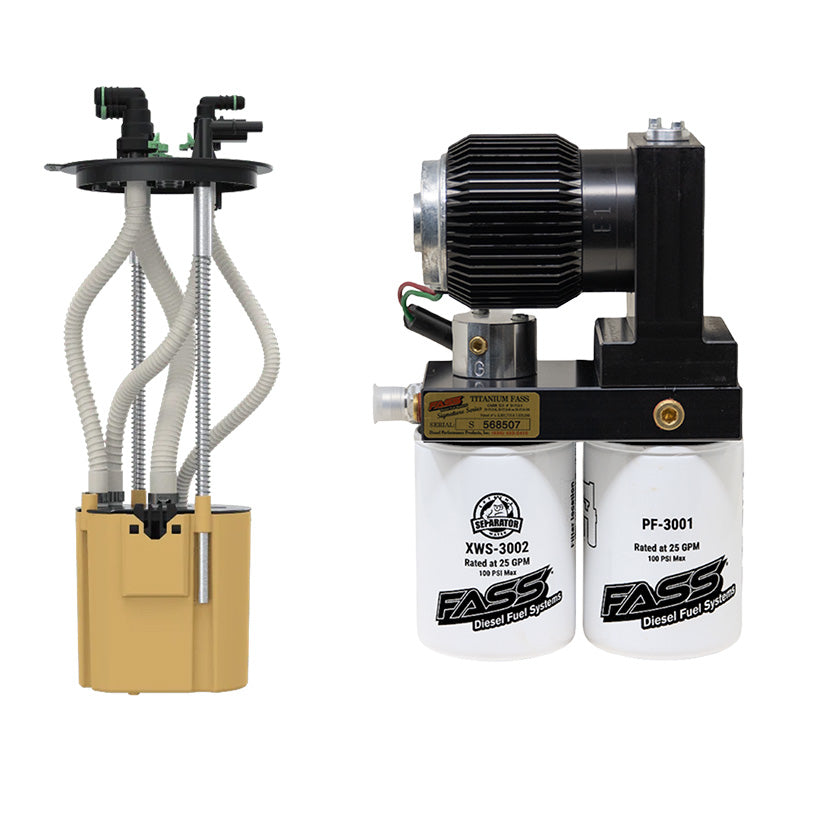

2005-2009 Cummins Plug-N-Play Titanium Signature Series Plus 165GPH Lift Pump with Sending Unit (PNPTSPD06165G)

Power Rating: 600-900 HP

Flow Rating: 165GPH

Filtration Rating: 2 Micron

The Plug-N-Play kit pairs a FASS Titanium Signature Series Plus fuel system with an S&B fuel sending unit for the 2005-2007 Dodge Ram 2500/3500 5.9L and 2007.5-2009 6.7L Cummins. The S&B unit replaces the factory sending unit and feeds the FASS system directly, so the fuel tank does not need a sump kit.

The S&B sending unit uses Active Bucket Filling: a venturi jet pump keeps its fuel basket full, even when the tank is close to empty. It connects to the FASS system with OEM-style quick-connect fittings.

The Titanium Signature Series Plus separates air and vapor out of the fuel, removes water with the FASS Extreme Water Separator and filters to 2 microns absolute. Fuel the engine does not use returns to the tank already filtered, so the fuel in the tank keeps getting cleaner.

Includes:

• (1) FASS Titanium Signature Series Plus 165GPH Fuel System (TSPD06165G)
• (1) S&B Fuel Sending Unit (86-3000)

Part Number: PNPTSPD06165G

• Titanium Signature Series Plus fuel system with an S&B fuel sending unit
• 165 gallons per hour flow rating, measured on diesel at operating pressure
• Rated for 600-900 HP
• FASS air and vapor separation
• Extreme Water Separator removes water from the fuel
• 2 micron absolute microglass filtration
• S&B Active Bucket Filling with a venturi jet pump
• OEM-style quick-connect fittings at the sending unit
• Performance Radius Cuts for smoother flow through the housing
• Black anodized ORB fittings, AN-style fittings and aluminum motor heat sink
• Bolt-on steel mounting brackets
• Port for the optional FASS electric heater
• Limited lifetime warranty when registered with FASS

• Pre-order item: FASS is scheduled to start shipping the Plug-N-Play kits on December 7, 2026. Initial quantities are limited.
• Installation on a cab and chassis may require modifications.

• FASS Titanium Signature Series Plus Installation Manuals
