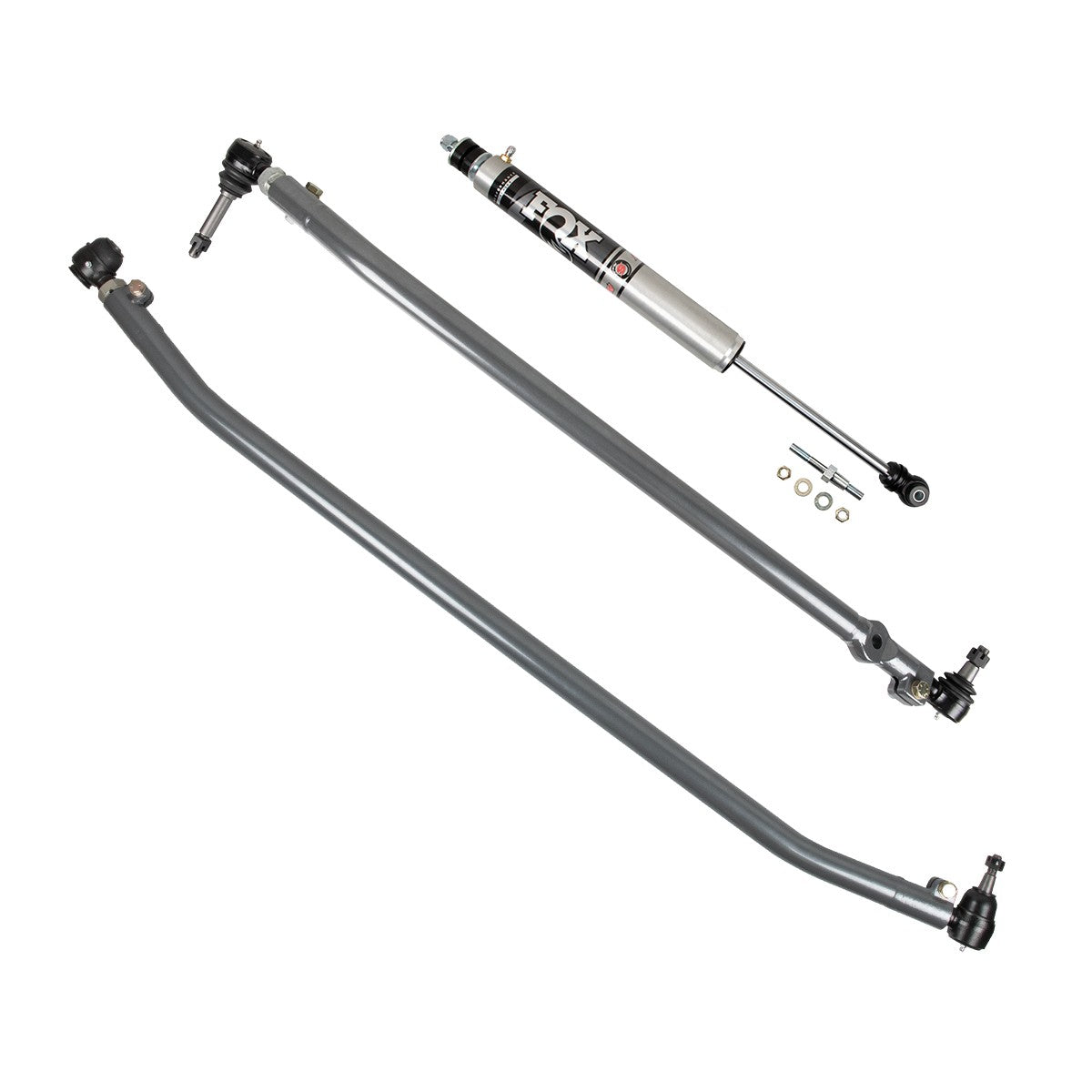

2005-2007 Powerstroke HD Steering Kit with Single FOX Stabilizer (8625-02)

Fits

Year	Make	Model	Wheel Drive
2005-2007	Ford	F-250 Super Duty	4x4
2005-2007	Ford	F-350 Super Duty	4x4

Upgrade your Super Duty steering with a true bolt in kit that installs using basic hand tools and works with your factory wheels and tires. This 8625-02 configuration adds a Synergy tuned FOX steering stabilizer in the factory drag link location on top of a 1.75 inch 4130 chromoly tie rod and USA made 1026 DOM drag link, valved for 2005 to 2007 trucks.

Part Number: 8625-02

• Tie rod formed from 1.75" x .188 wall heat treated 4130 chromoly, over 40 percent stronger than OEM
• Drag link built from USA made 1.5" x .250 wall 1026 DOM steel tubing
• Single plane tie rod ends eliminate drag link and tie rod flop and remove the on center dead spot
• Synergy metal on metal greaseable tie rod ends with 4140 steel shanks, nitrile boots, and retaining springs
• Double Adjuster Sleeve and forged pinch bolt design allow alignment in the vehicle and prevent jam nut loosening
• Two stage abrasion resistant powder coat finish for durability and corrosion resistance
• 100 percent bolt on and compatible with stock wheels, tires, and up to 4 inches of lift
• Includes a Synergy tuned FOX steering stabilizer mounted in the factory drag link location

• 1x Synergy Heavy Duty Drag Link (8600-01)
• 1x Heat Treated Heavy Duty Tie Rod (8602-11)
• 1x Synergy Tuned FOX Steering Stabilizer (6401-03)

• These trucks use the Super Dana 60 front axle (M256, 10 bolt differential cover)
• Compatible from stock to 4 inches of lift with the factory pitman arm and track bar bracket. Over 4 inches of lift requires a drop pitman arm and track bar drop bracket
• Does not fit 1999 to 2004 Ford Super Duty; those trucks use a different steering kit

This product is covered by Synergy Manufacturing's Limited Lifetime Warranty against defects in materials and workmanship.
