1998-2024 Cummins 24V Conical Valve Spring Kit (D-105-KIT-24v)

Name: 1998-2024 Cummins 24V Conical Valve Spring Kit (D-105-KIT-24v)
Brand: Manton Pushrods
SKU: D-105-KIT-24v
Price: 741.32 CAD
Availability: InStock

Manton Pushrods Part Number: D-105-KIT-24v

$741.32 CAD

Purchase to earn 741 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits

Year	Make	Model
1998-2006	Dodge/Ram	2500/3500 w/5.9L
2007-2024	Dodge/Ram	2500/3500 w/6.7L

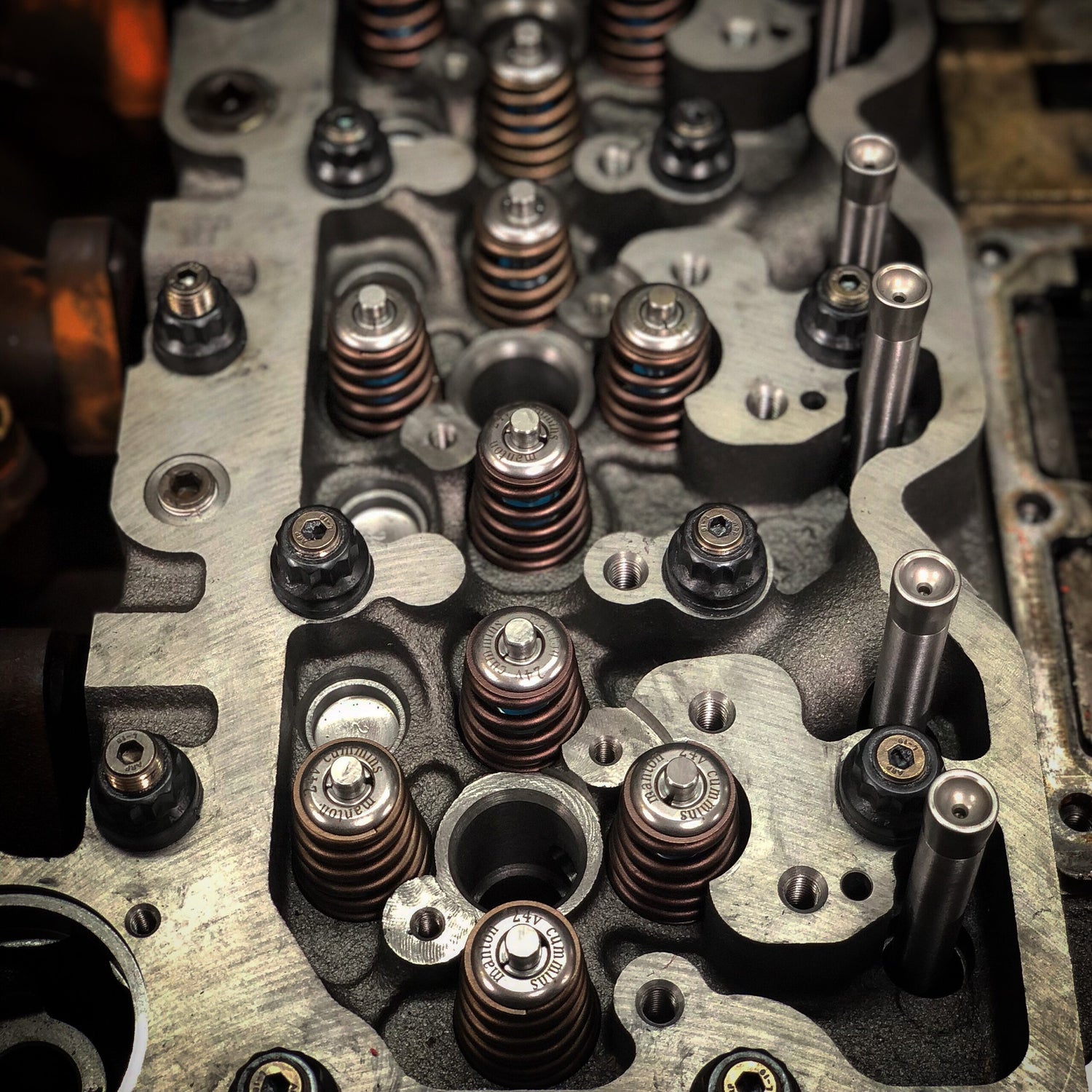

Lock down your 24V Cummins valvetrain with Manton's conical springs and ultra-light retainers. Built for boosted rigs and aggressive cams, this kit keeps your engine tight, precise, and ready to push hard. Drop it in and let your Cummins breathe without limits.

Part Number: D-105-KIT-24v

Features

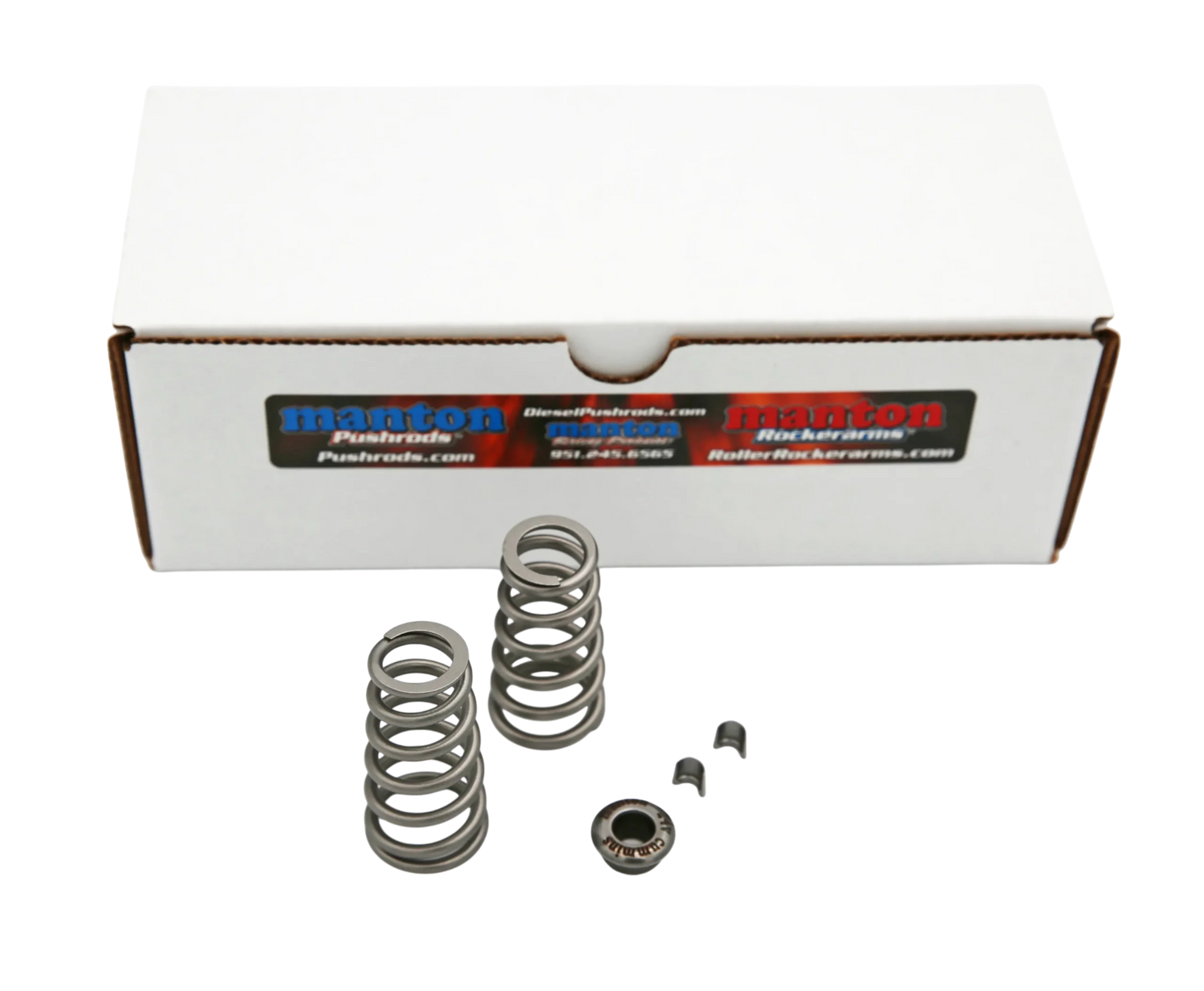

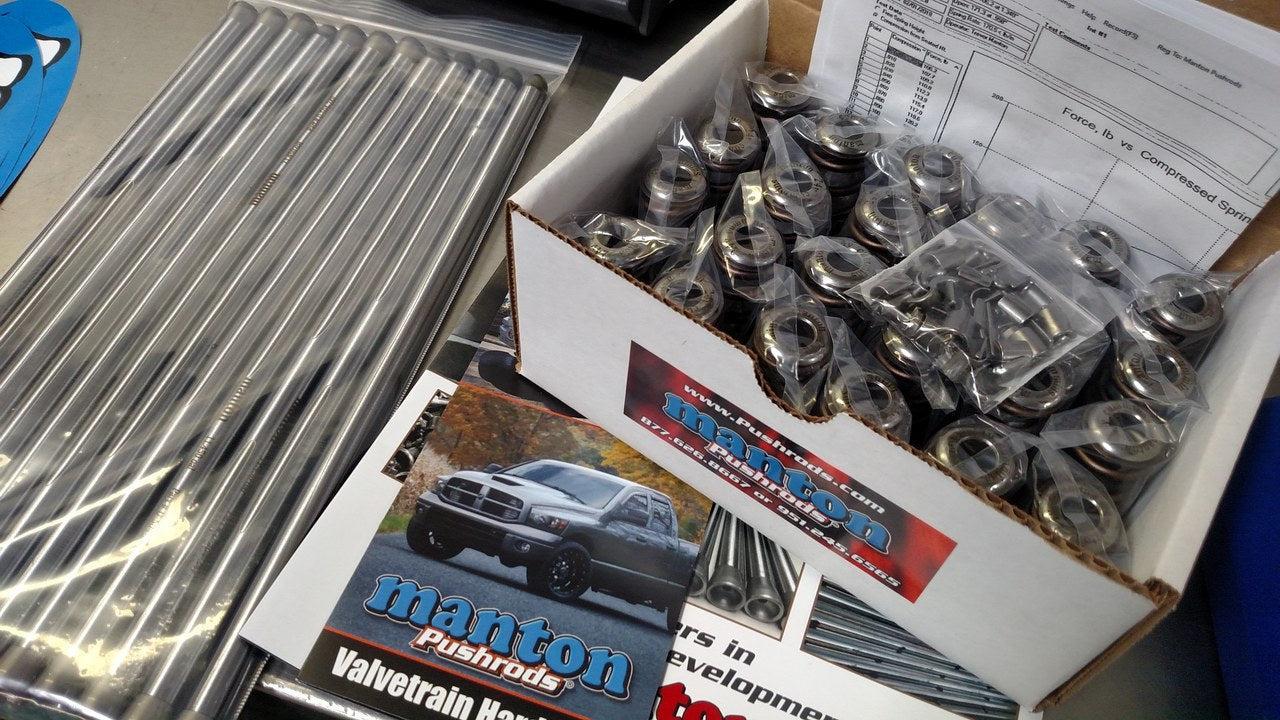

(24) Conical Valve Springs
(24) Billet Valve Spring Retainers
(48) Valve Locks
103 lbs @ 1.340″ installed height
176 lbs @ 0.920″ lift
Heat-treated shims
Boost-ready performance

Additional Information

Some 1998.5-2002 Cummins trucks may require valve spring pocket adjustments to fit conical springs properly. Manton provides a pocket cutter for this purpose.

Maximum valve lift accommodates 0.420″ at 1.340″ installed height.
