2003-2007 Powerstroke Standard Regulated Return Fuel System Kit (DD-60FS-STD-RRK-V2)

Fits

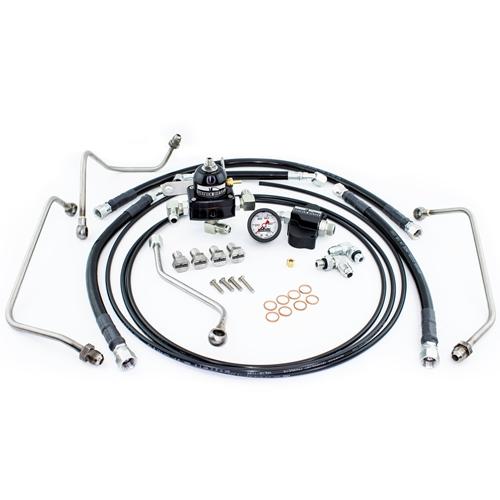

The Driven Diesel "Standard" Regulated Return Kit for the 2003-2007 6.0L Powerstroke is a vital upgrade that protects your injectors and improves fuel system performance. This kit eliminates the "dead-head" factory fuel rails and provides adjustable fuel pressure by tying the ends of each fuel rail together through a Bypass Fuel Pressure Regulator.

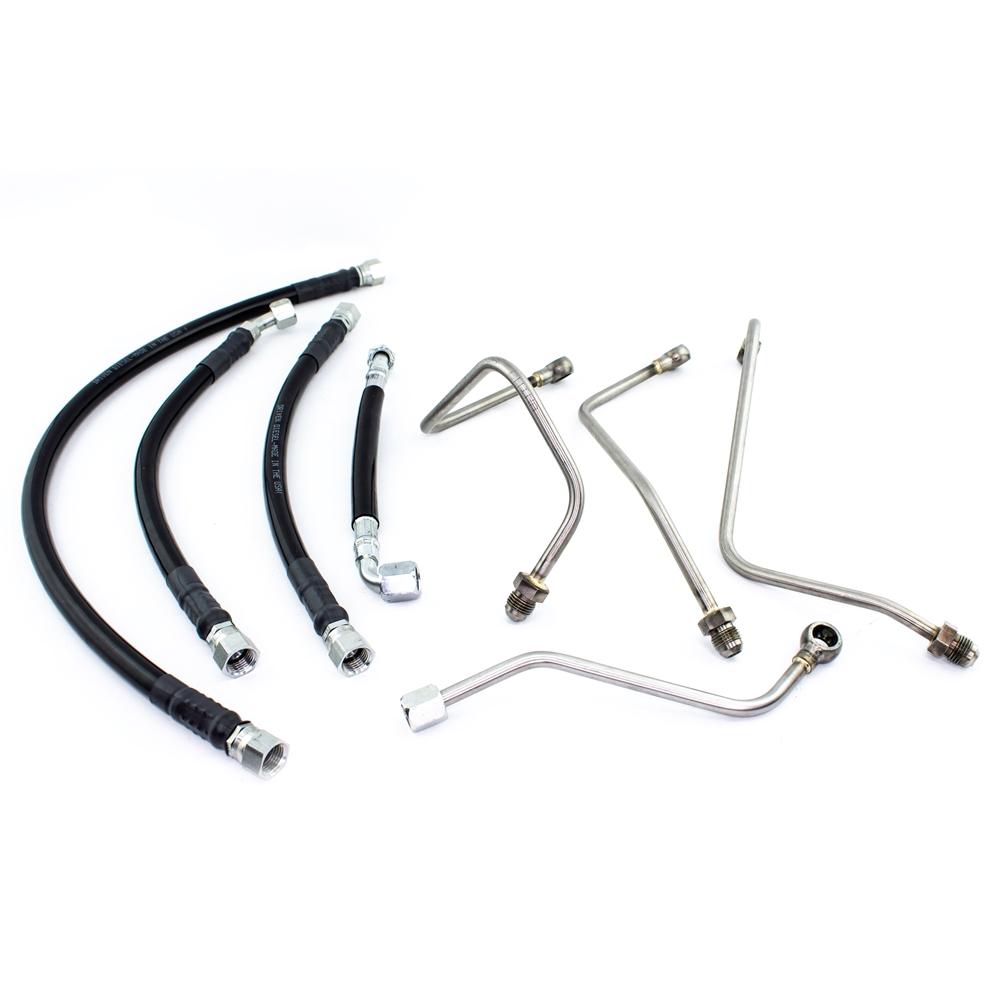

This kit also includes replacement Fuel Feed Lines (from the fuel filter to the cylinder heads) that replace the stock lines and banjo bolts with larger high-flow units, eliminating restrictive factory check valves. By ensuring each injector has adequate volume and pressure, this kit eliminates "Wide Open Throttle Pressure Drop" and reduces injector noise.

CARB Approved - CARB EO# : D-872-2 (03-07 F250/F350/Excursion ONLY!)

Part Number: DD-60FS-ST-RRK-V2

Features

• Adapter Fitting for FASS Electric Fuel Heater INCLUDED!
• Includes an exclusive, custom return fitting with an integrated fuel-filter air bleed.

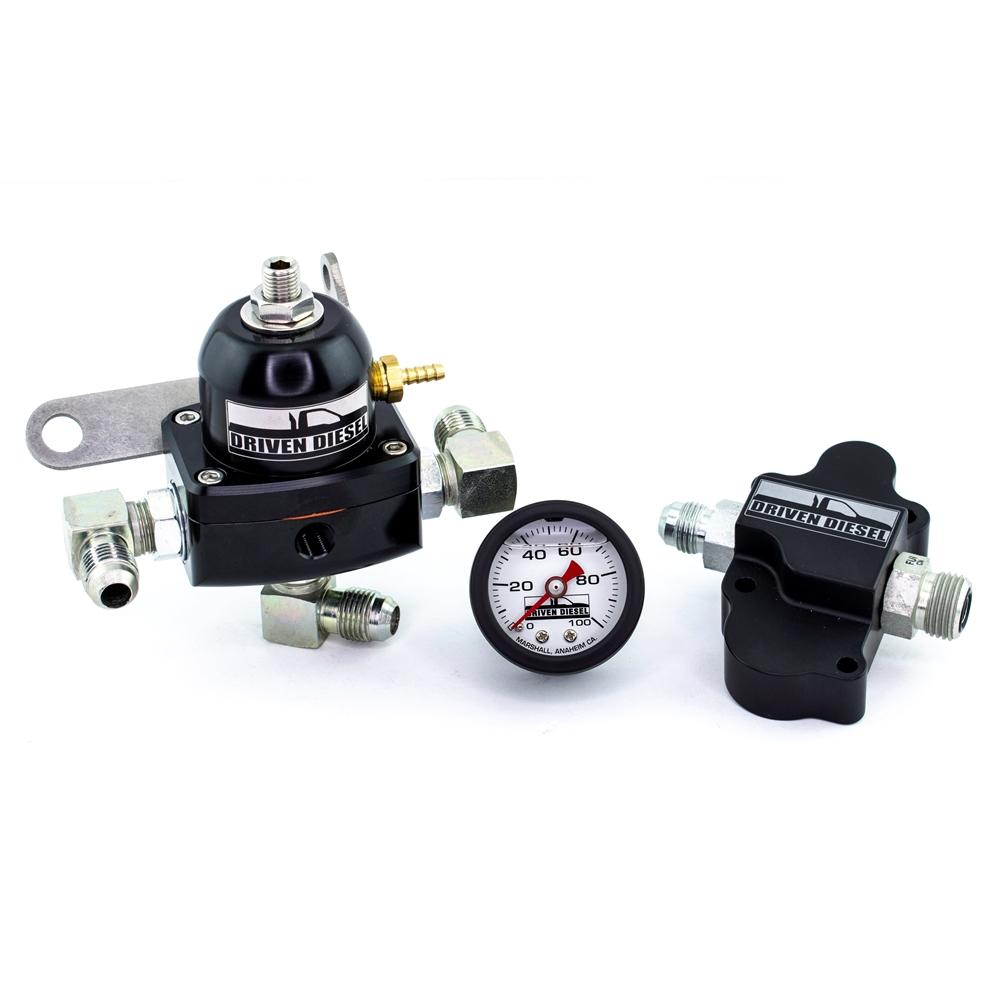

• High-Quality Fuelab Bypass Fuel Pressure Regulator with 12ga S.S. Mounting Bracket.
• Driven Diesel Custom High-Flow Banjo Bolts and CNC Bent S.S. Hard Lines.
• High-Quality S.S. Braided Teflon Fuel Lines with Black Protective Covering.
• Clears stock and aftermarket turbochargers; no interference with intercooler tubes.
• Compatible with both Single and Dual alternator engines.
• Includes a Marshall liquid-filled fuel pressure gauge.
• Includes all necessary parts, O-rings, and a special long-handled 6mm Allen tool.

• AFTERMARKET ALTERNATORS: The regulator bracket mounts to the alternator. Some high-amp aftermarket alternators use a different housing that may require bracket modification.
• BIO-DIESEL: While improved for bio-diesel compatibility, we recommend concentrations of B20 or less to protect fuel filter element glues.
• BLUE SPRING NOTE: Use of this kit eliminates the stock fuel pressure regulator assembly completely. You do not need the Ford "Blue Spring" kit.
• DOES NOT FIT E-SERIES: This kit is designed for Pickup and Excursion models and will not fit the E-Series Van.
• BOWL DELETE OPTION: If you wish to remove the factory fuel filter bowl entirely, please see our Fuel Bowl Delete Regulated Return Kit (DD-60FS-FBD-RRK-V3).

Click Here For Instructions
