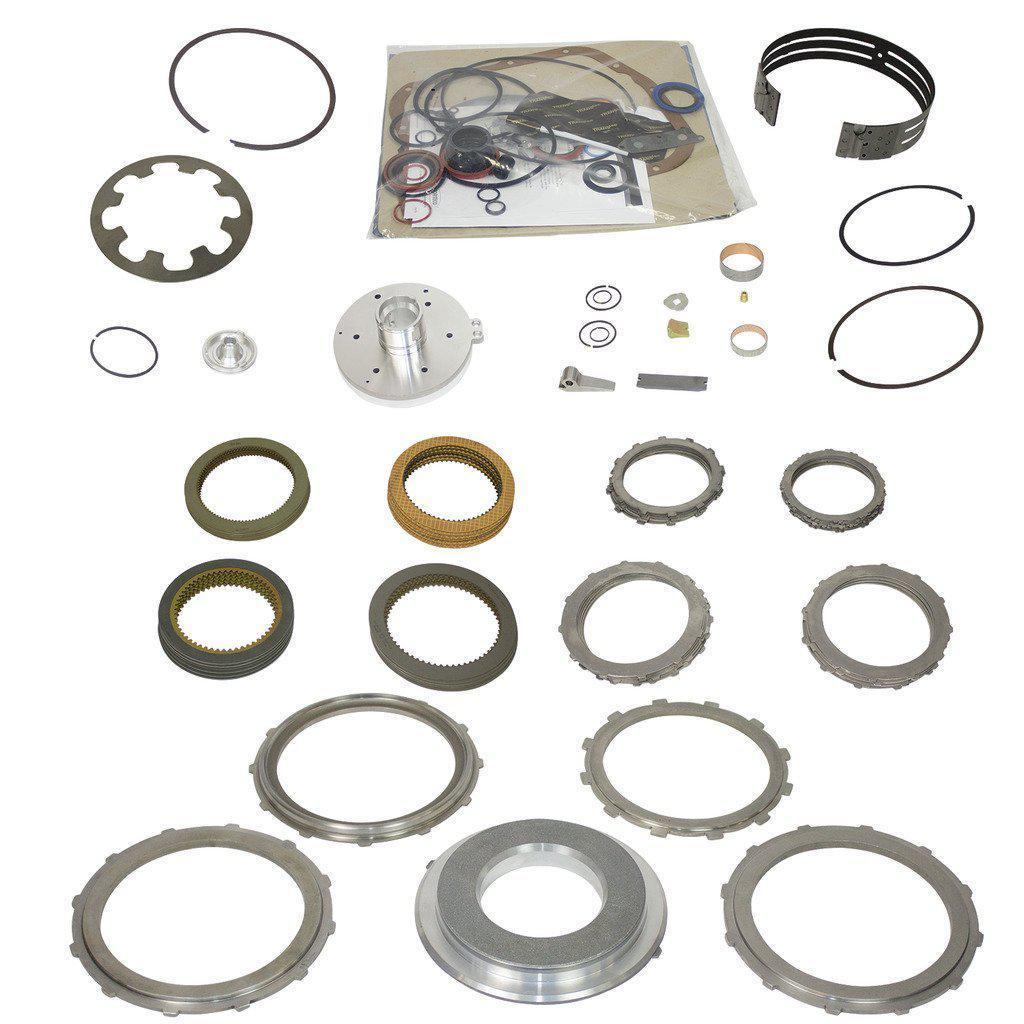

2003-2007 Cummins Stage 4 Transmission Rebuild Kit (1062014)

Are you looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts that they use in their own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to the Stage 4 Master Kit.

Part Number: 1062014

• Same parts used in their own performance transmissions
• All kits include the basic rebuild parts and gaskets
• Band - High Temp/Energy - Raybestos
• Band Anchor - Billet
• Accumulator Piston - Billet Dual Ring
• Bushing - Front Clutch Drum 0.85
• Bushing - Pump - Bronze W/Dimples
• Clutch Disc
• Friction - Front (Dir/Hi/Rev) Allomatic
• Friction - O/D Allomatic
• Friction - O/D Direct Borg Warner
• Friction - Rear (Fwd) Borg Warner
• Shifter Bracket & Lever Kit - 4.2 Ratio
• Gasket Kit - Overhaul
• Pressure Plate - Dir/Fwd (Frt).145"
• Pressure Plate - Dir/Fwd (Frt).185"
• BD Pressure Plate Forward (Rr) Beveled Machined
• BD Pressure Plate O/D Brake F&R Machined
• BD Piston - Dir. Clutch (Frt) Machined
• Piston Retainer Kit
• Servo Cover Ring
• Servo Piston Cover
• Snap Ring - Direct Clutch .062
• Snap Ring - Direct Clutch .074
• Snap Ring - Direct Clutch .088
• Rear Clutch Piston Spring
• Steel - Fwd (Dir/Hi/Rev)
• Steel - O/D Brake
• Steel - O/D Dir.525"
• Steel - Frt (Dir/Hi/Rev) Oversize
• Strut - Front Band
• Washer - Int. Shaft Thrust .052

• Recommend Option - BD Heavy Duty Transmission Pan
• Recommended Option for 2000-2007 Dodge - 1060602 Pressure Transducer or 1060605 Electronics Upgrade Kit
• Suggested option - BD Valve Body
