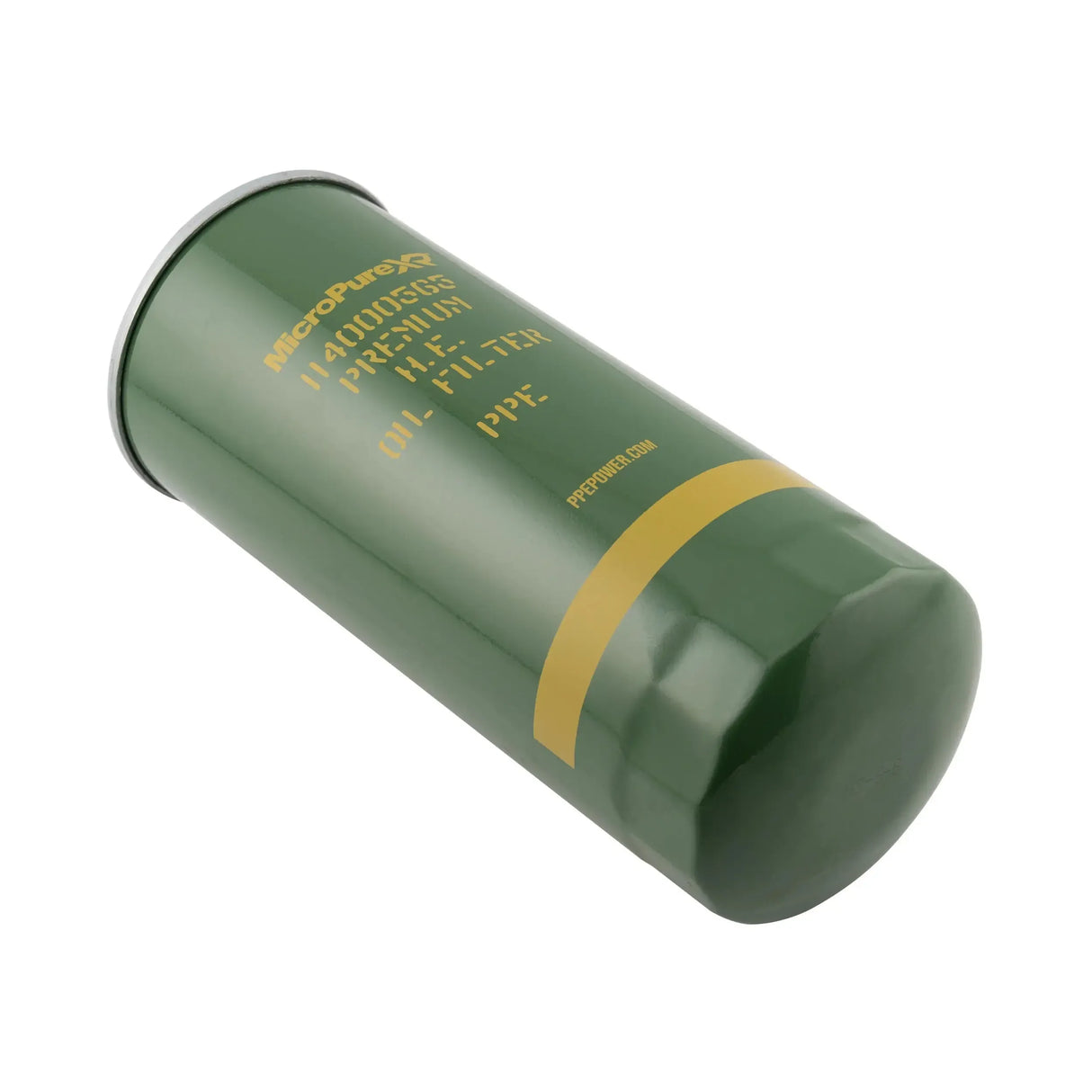

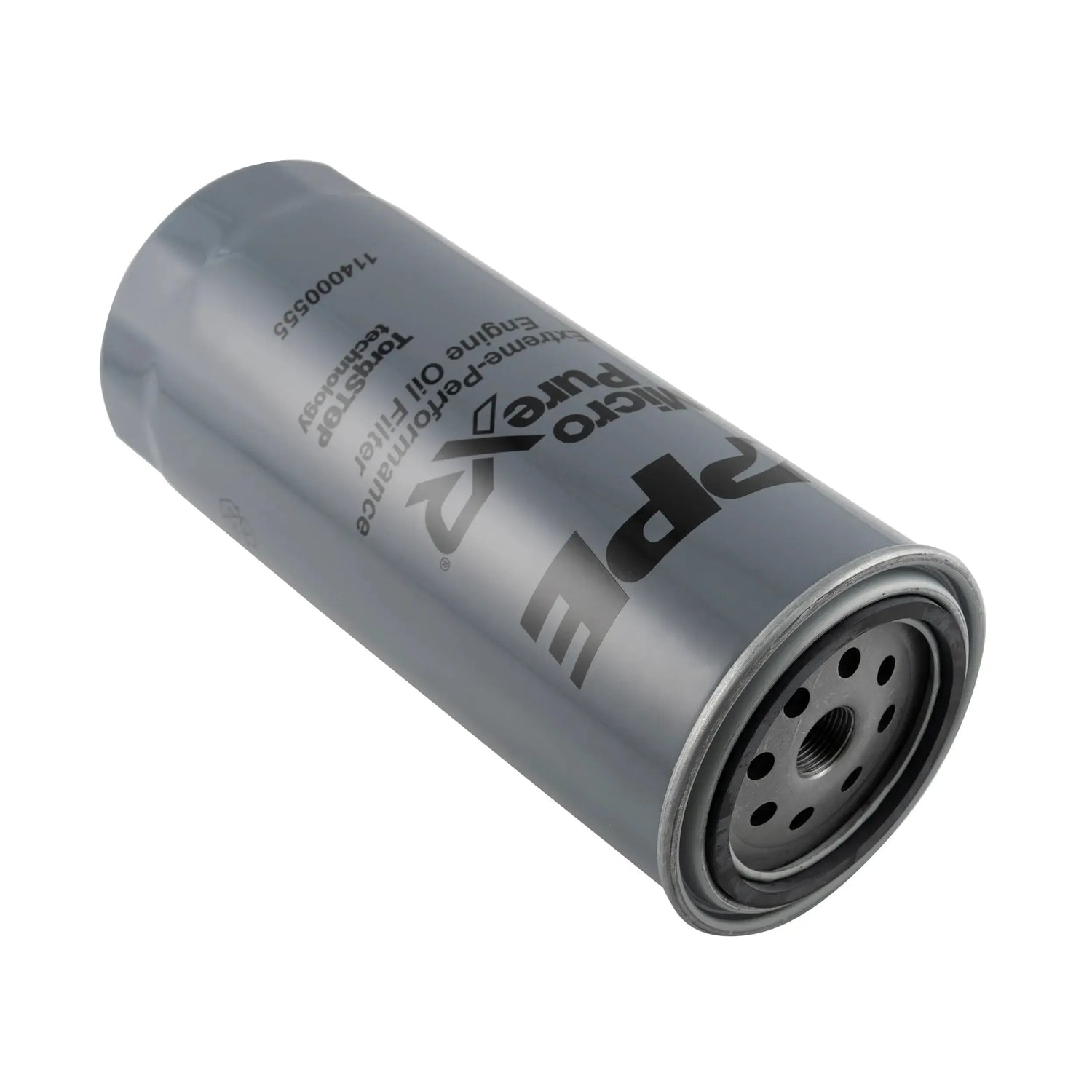

2001-2019 Duramax MicroPure XR Engine Oil Filter (1140005XX)

(44)
PPE
$51.11 CAD
Style

Purchase to earn 51  Dirty Dollars Learn More

Free shipping over $200 to most Canadian locations! Learn more

Truck Fitment

Description

Offering 2.5 times the filtration area; the PPE MicroPure Extreme-Performance Oil Filter is engineered with synthetic filtration media to trap particles down to 5 microns; these particles can cause damage & clog your filter which in return affects the life of your motor.

Part Number: 114000555/114000565

Features
  • Filtration rating down to 5-micron
  • The bypass valve opens 10 psi higher than a stock filter
  • 900 square inches of premium composite filtration media, a 150% increase over stock
  • Perforated metal core and spiral-wrapped adhesive secures filter media
  • 3/16-16 UNF threaded baseplate with 47% larger passages
  • Direct replacement for the stock oil filter
  • High-power internal Neodymium magnet
  • 50% thicker base plate
  • Withstand 450 psi maximum burst pressure
  • TorqueStop feature to ensure a tight seal
  • Reinforced silicone anti-drain-back valve ensures a unidirectional flow
  • OEM P/N REFERENCE: AC-DELCO PF2232
  • Warranty

Installation

Warranty

Parts Only

  • 1-Year Limited Warranty

Questions and Answers

Don't see your question? Ask us anything about this product.

  • Fitment on my 2006 LBZ looks like fuel lines will make contact. Any feedback on massaging fuel lines for clearance? - thanks

    Fuel line contact can be a bit of a known issue, but if you use a pry bar or wood block to gently level the fuel hard-lines away from the filter housing (probably about 1/4 to 1/2" of clearance needed) and wrap the line in rubber hose or split-loom if they're still close, you'll prevent vibration wear. If you can't get enough room, use an oil filter spacer or relocation kit. It’s a standard "mod" for Duramax owners—just pry slowly and protect the lines from rubbing.

  • What is the micron rating?

    It filters particles down to 5 microns.

  • How much does it add to the oil capacity

    Increases oil capacity by one quart.

Vehicle Fitment - Part No: 114000555

Loading Fitments...

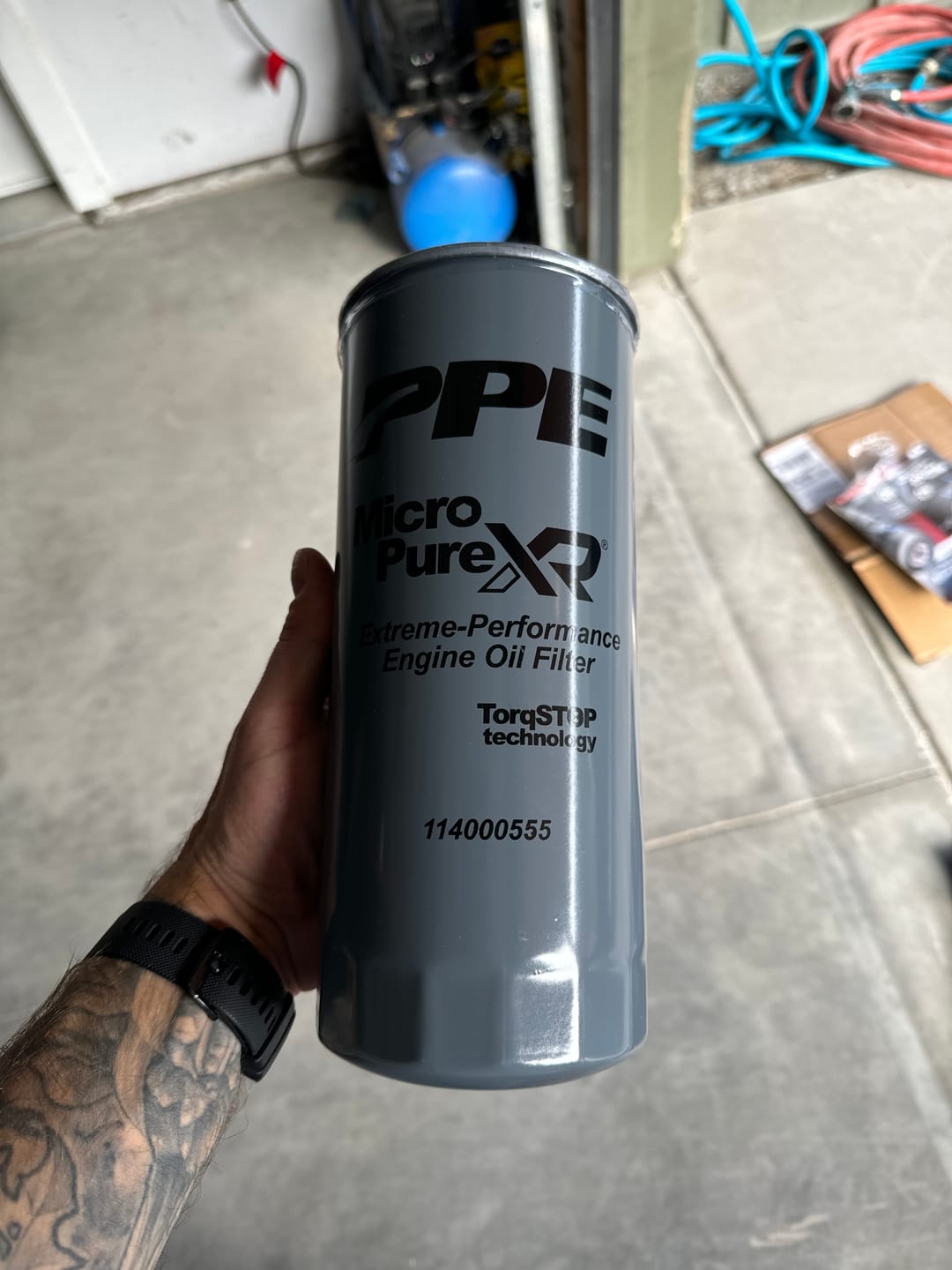

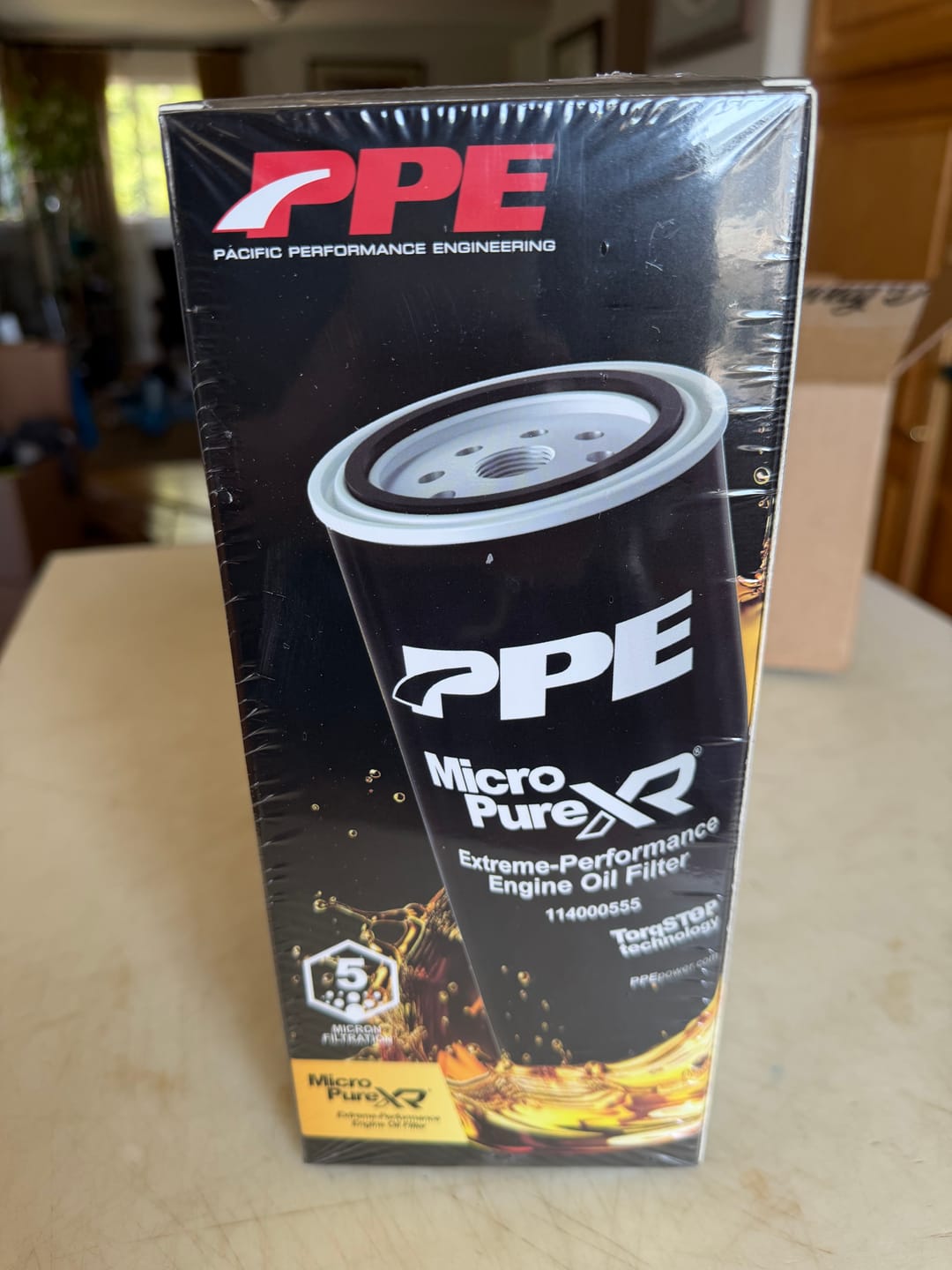

Customer Reviews

Overall rating: 4.9 / 5 from 44 reviews.
