2001-2010 Duramax Ultimate Front End Package (ULTIMATE10)

The Kryptonite Ultimate Front End Package is, hands down, the best steering upgrade you can install on your Duramax. Eliminate any potential steering or suspension weaknesses with this 'overbuilt' steering and suspension kit. Idler supports are one of many significant pieces in this kit; they prevent wandering and improve handling predictability, thus minimizing stress on steering linkage and premature wear on tires.

If you can break them, Kryptonite will replace them. Whether you want something to replace your aging factory components, revamp your tow truck, or need to supe-up your front end to handle high HP-boosted launches, Kryptonite Suspension is the answer.

Part Number: Ultimate10

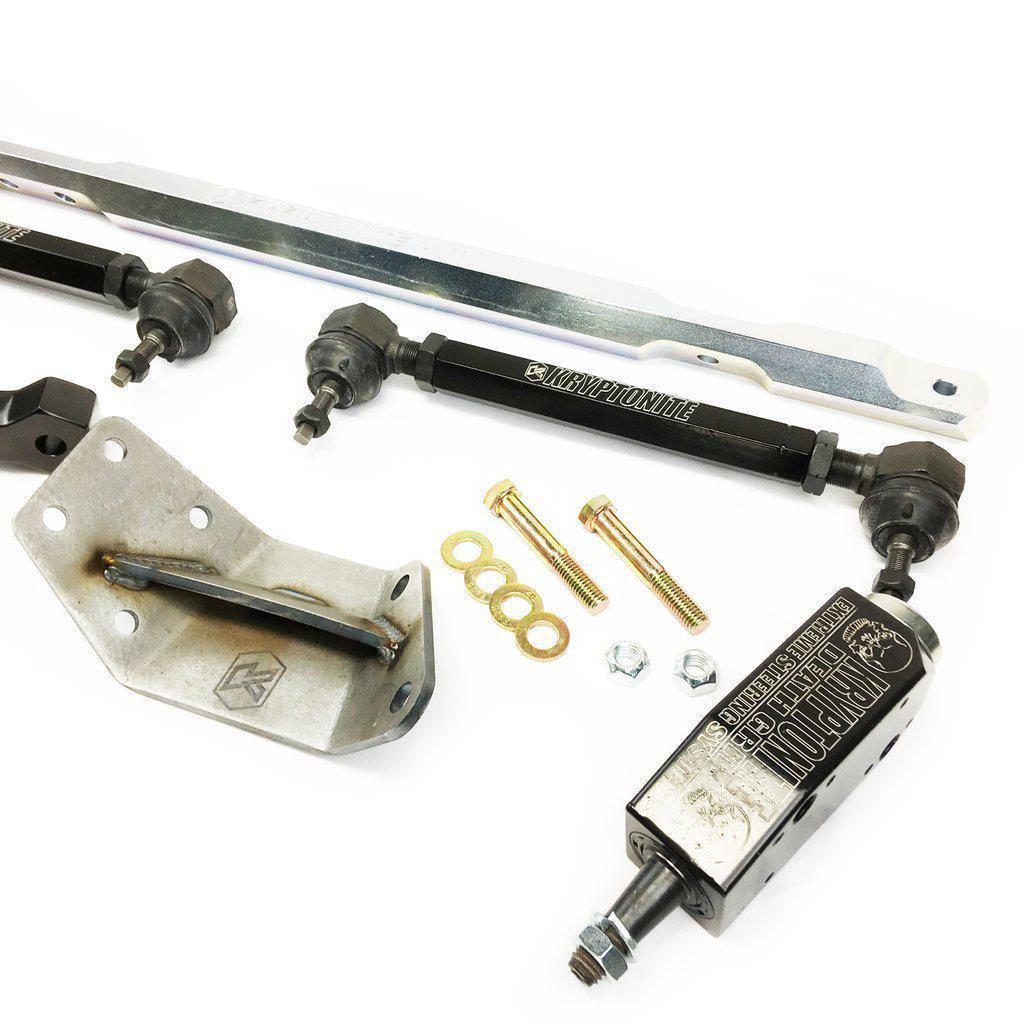

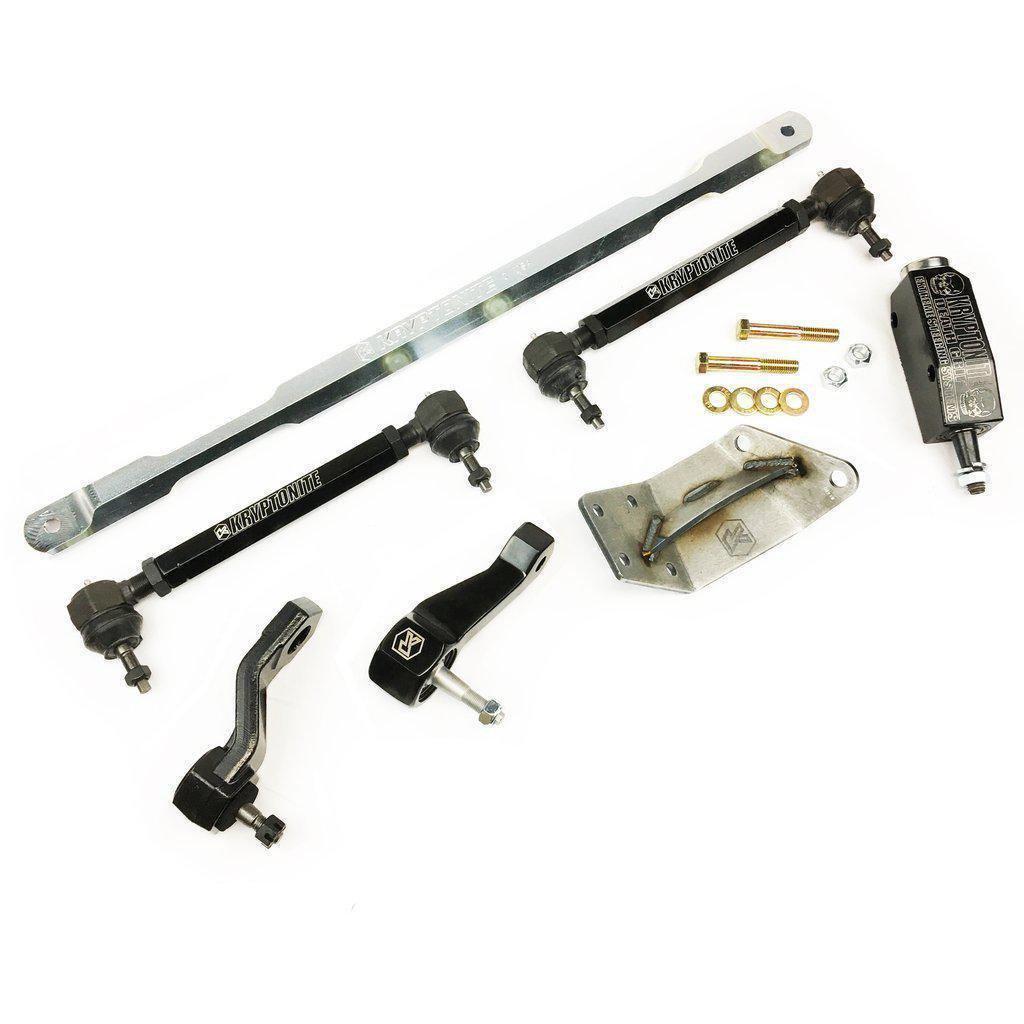

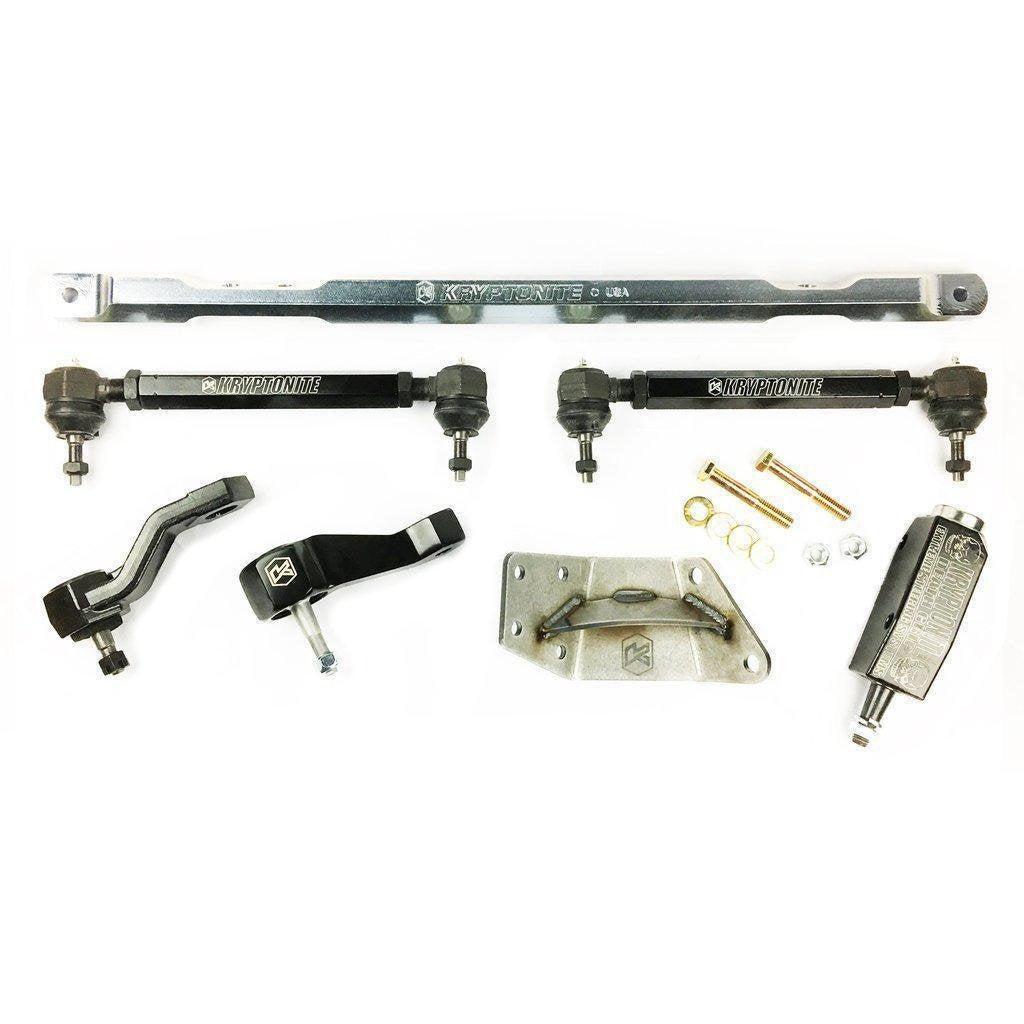

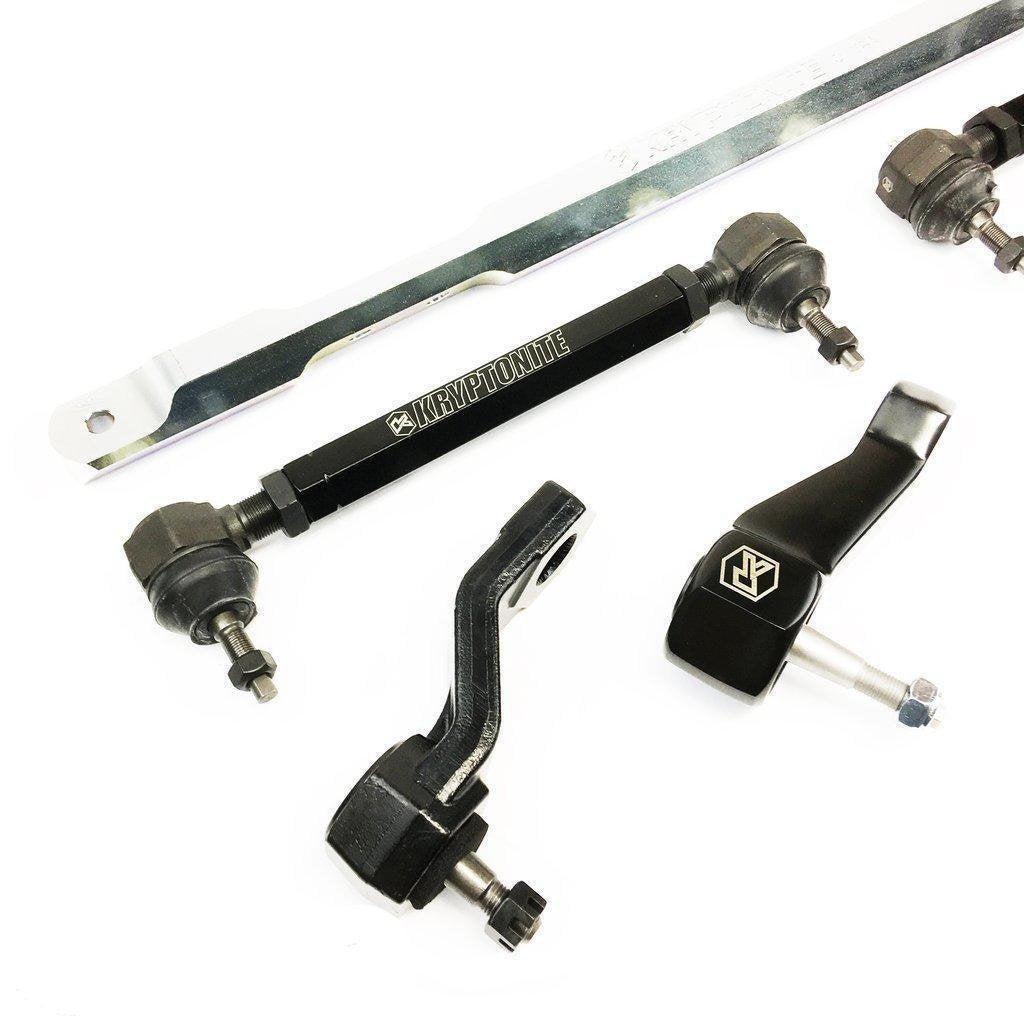

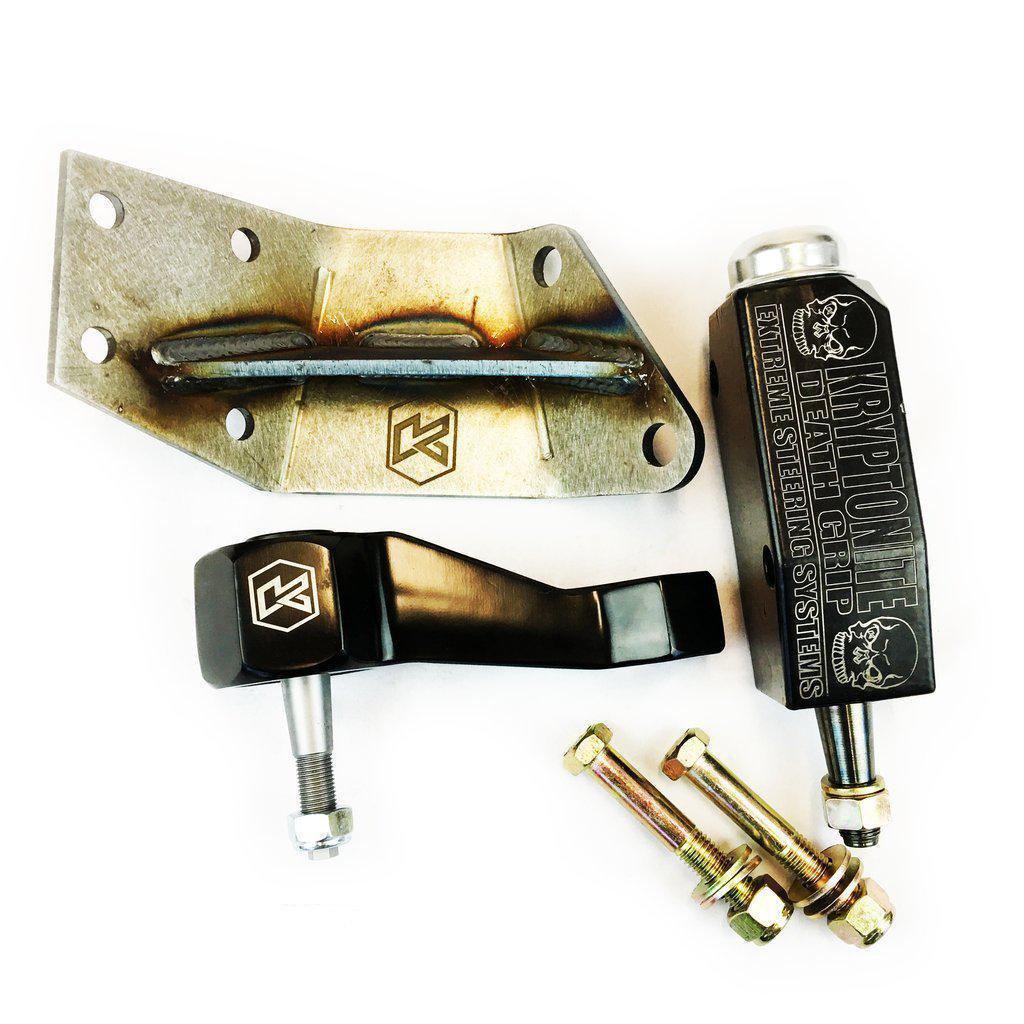

• Kryptonite SS Center Link & Tie Rod Package (KRCLP10)
• Kryptonite Tie Rods (KRCLP10)
• Kryptonite Idler Support (KR175)

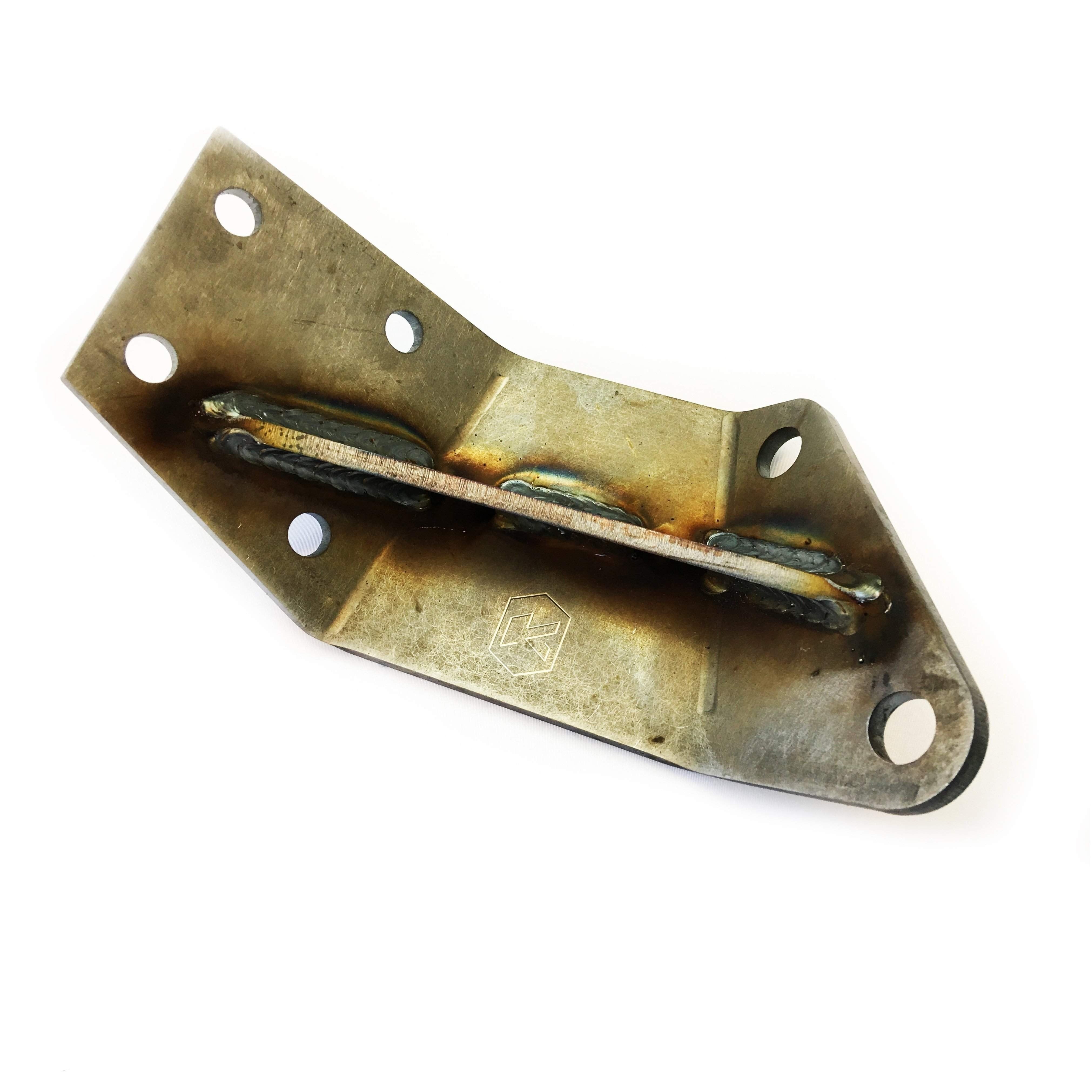

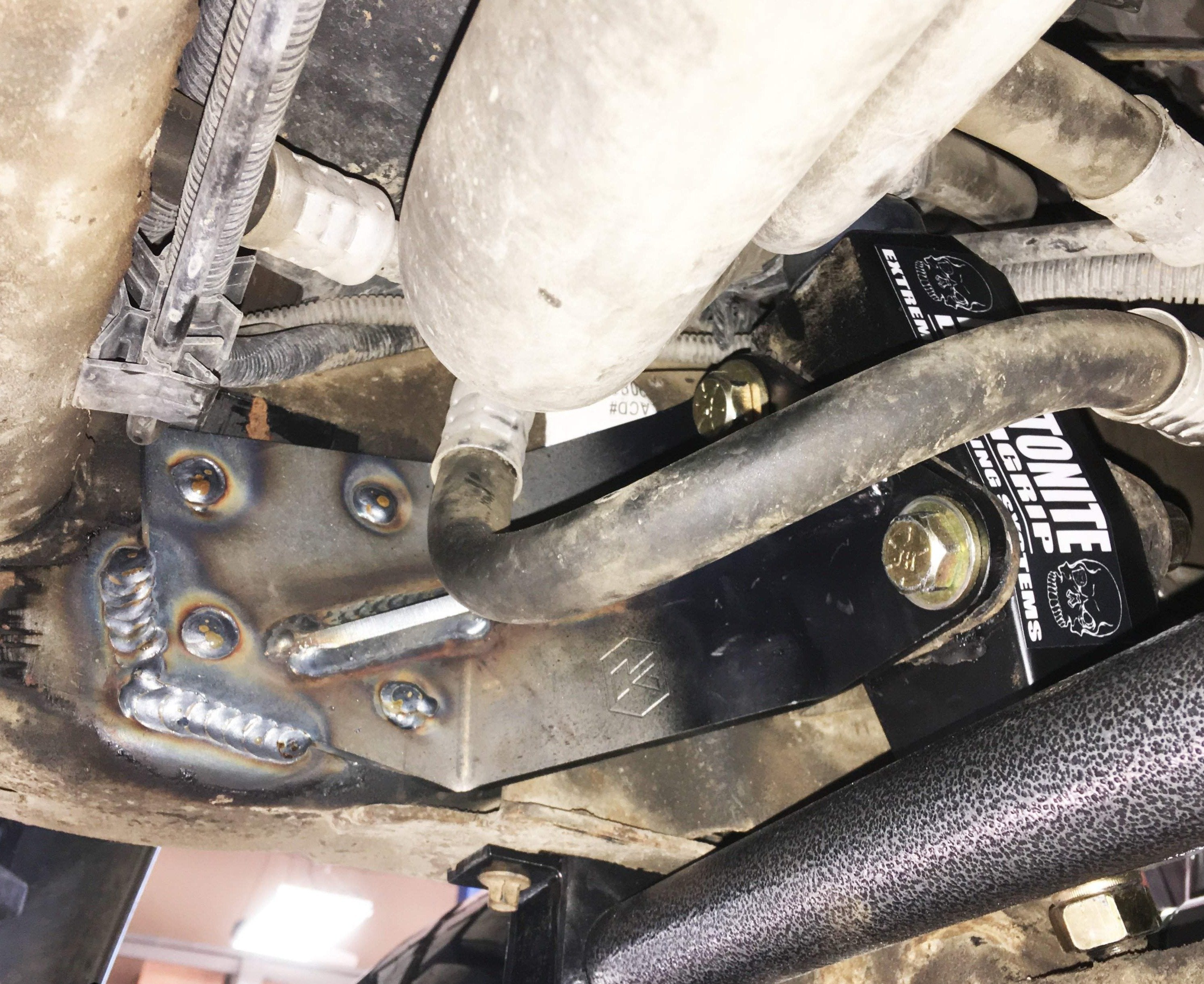

• Kryptonite Idler Support Frame Gusset (KRGUSSET10)

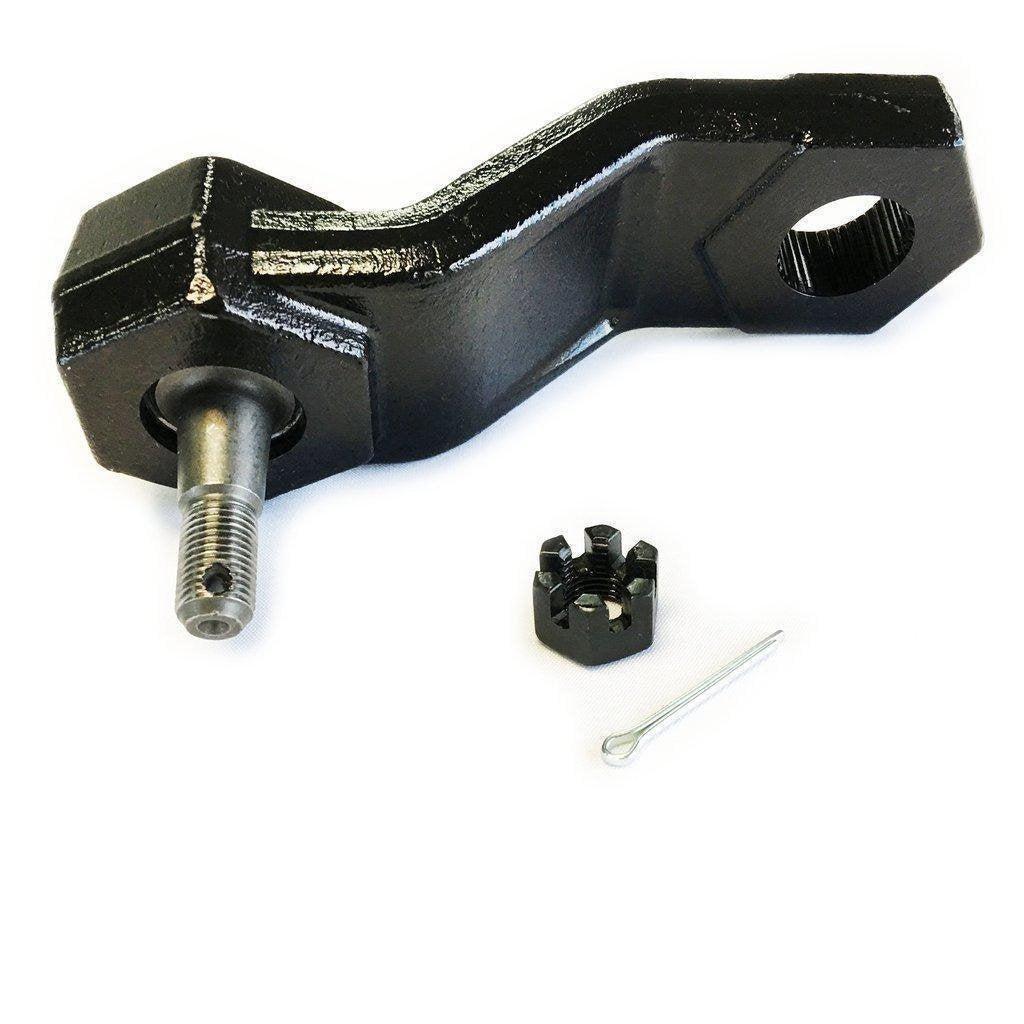

• Kryptonite Death Grip Pitman Arm (KR6654)

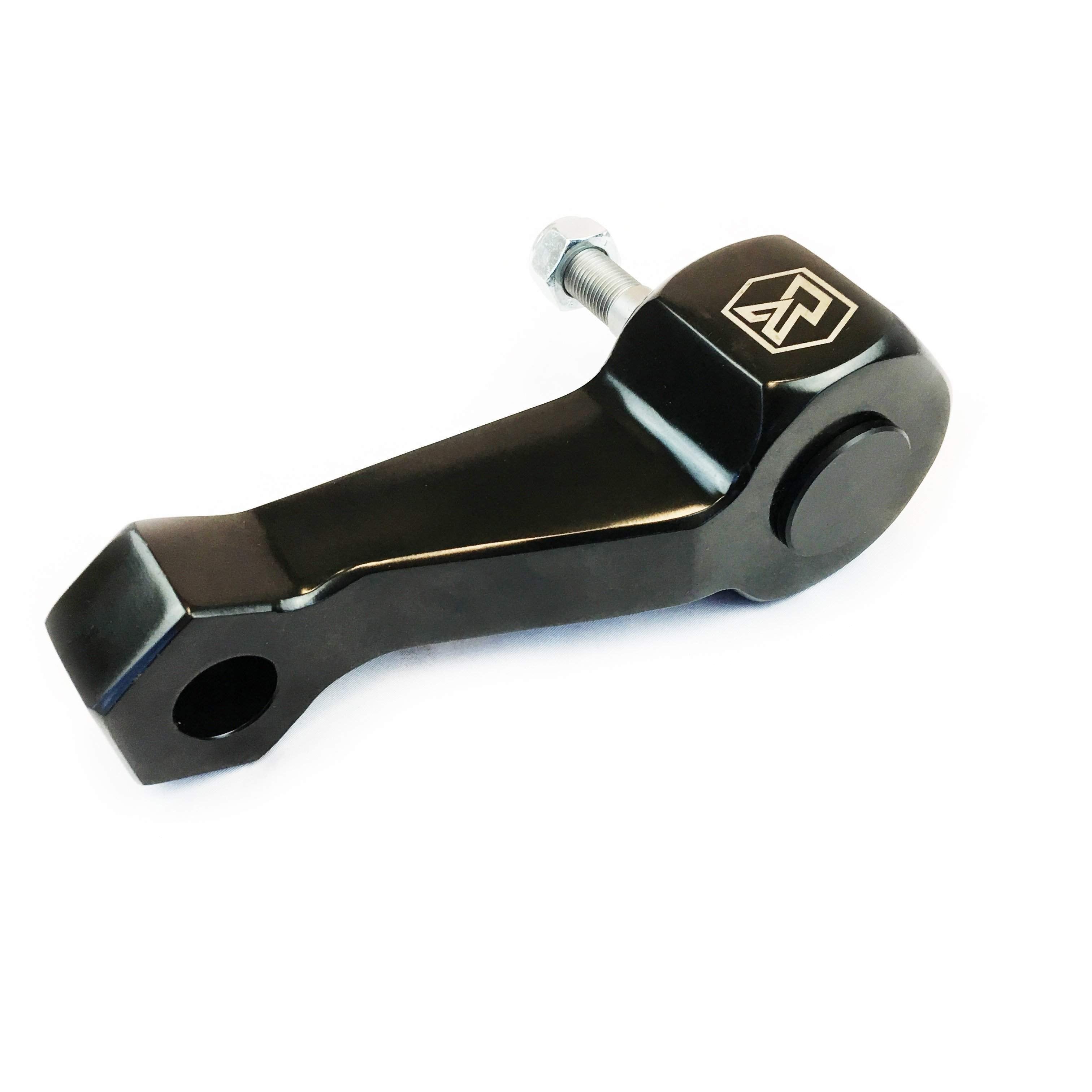

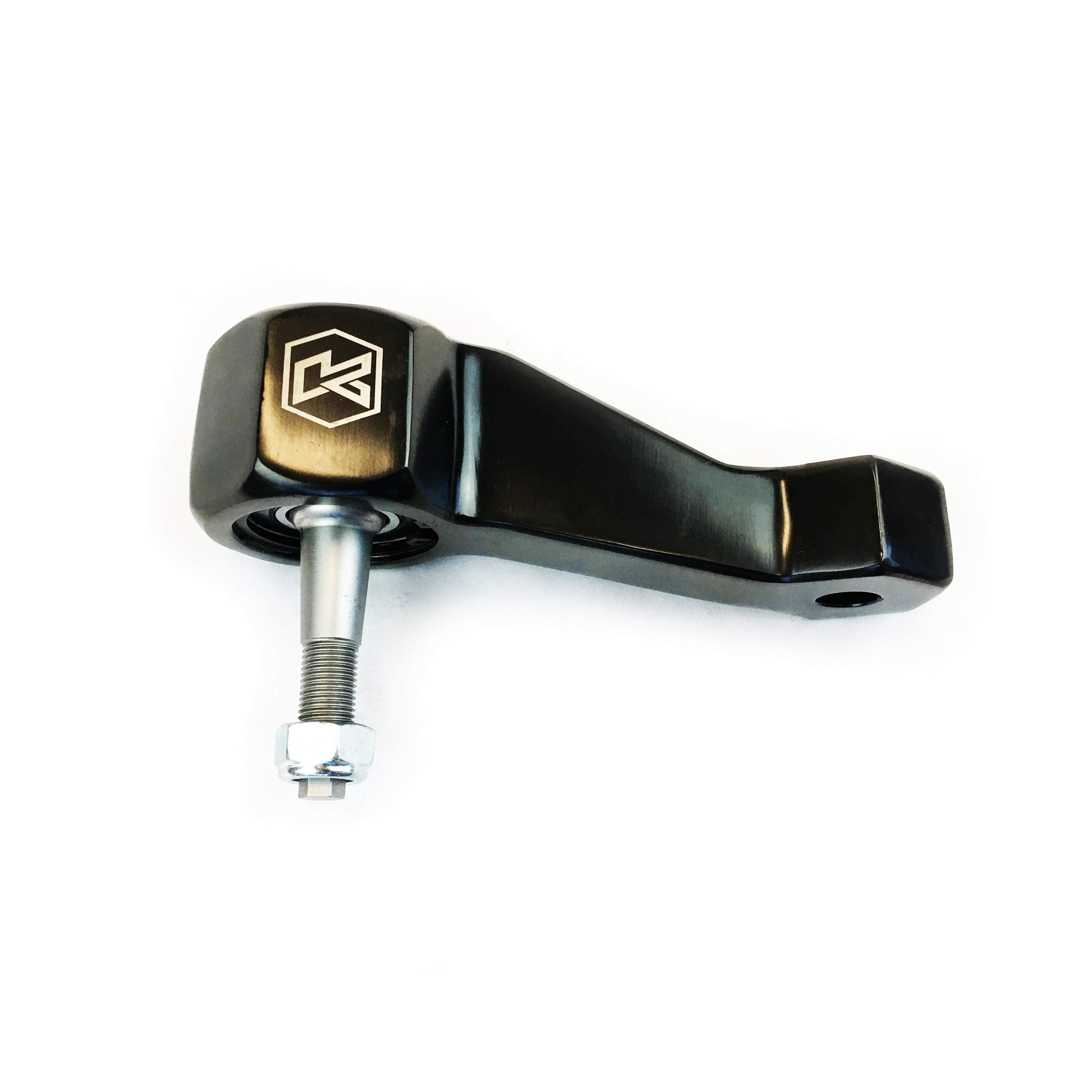

• Kryptonite Deathgrip Idler Arm (10KDG535)

• If installing the KRYPTONITE series center link on a leveled or lifted truck, you may need to install longer swaybar end links depending on how high the torsion bars have been adjusted. Kryptonite recommends their Kryptonite HD swaybar end links.
• This kit will only work on trucks that keep the center link in the factory position.
• If your truck has been lifted, make sure the lift kit you have is a spindle-style kit, not a control arm drop.
• This steering system is modeled after the Center Link on the H1 Military Hummer, which is a much stronger design when compared to what's offered by the factory on all non-Hummer GM HD Trucks.
• This Kit will not function properly with older style "Drop Centerlink" Lift kits. Or "Drop Control Arm" Lifts kits. For example, older Pro Comp and early 2000s Fabtech Kits.

• Click Here to view installation instructions

Kryptonite No Fine Print Lifetime Warranty: Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off-road it, wreck it, lift it, I think you get it? We don't care. If you can break it we will replace it.

Warranty Excludes Heim Joints.
Your Kryptonite products must be purchased from an authorized dealer and must complete warranty registration within 90 days of purchase.

Don't see your question? Ask us anything about this product.

• ?

  All components Included? Inner/outer tie rods? Upper lower ball joints?

  The ULTIMATE10 includes the center link, both inner and outer tie rods, idler arm, idler support, frame gusset and pitman arm. Upper and lower ball joints aren’t included.

  You’ll need an alignment after install. If your truck is lifted or leveled, you may also need longer sway bar end links, and the kit only works with the center link in the factory position.

• ?

  Will I need kryptonite upper control arms as well for this to install correctly?

  No, but we do recommend adding them to bullet-proof that front end!

• ?

  Do all these components have grease fittings like the oem parts? Pitman, idler arm and bracket, inner and outer tie rods.

  The only components that have grease fittings are the tie rod ends.
