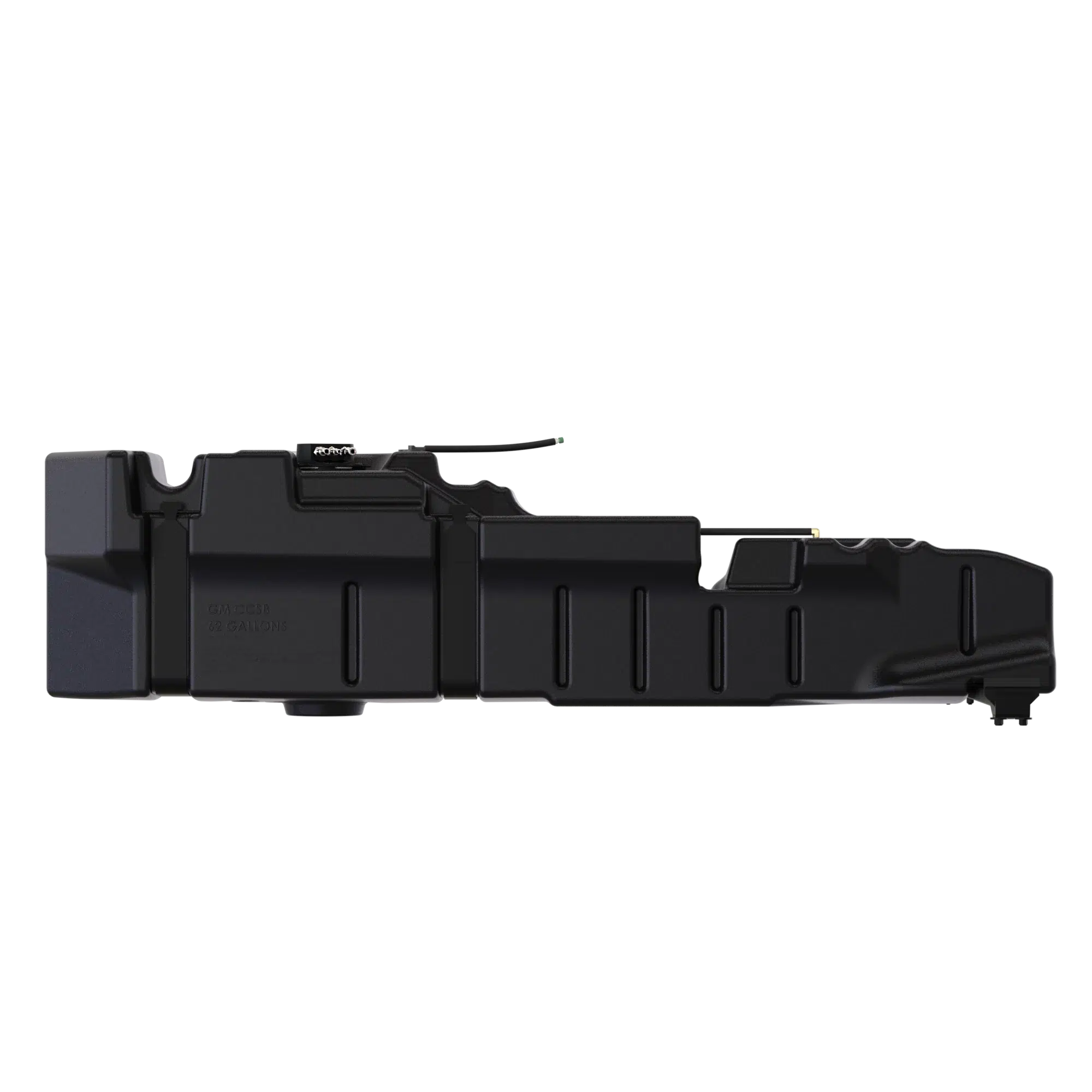

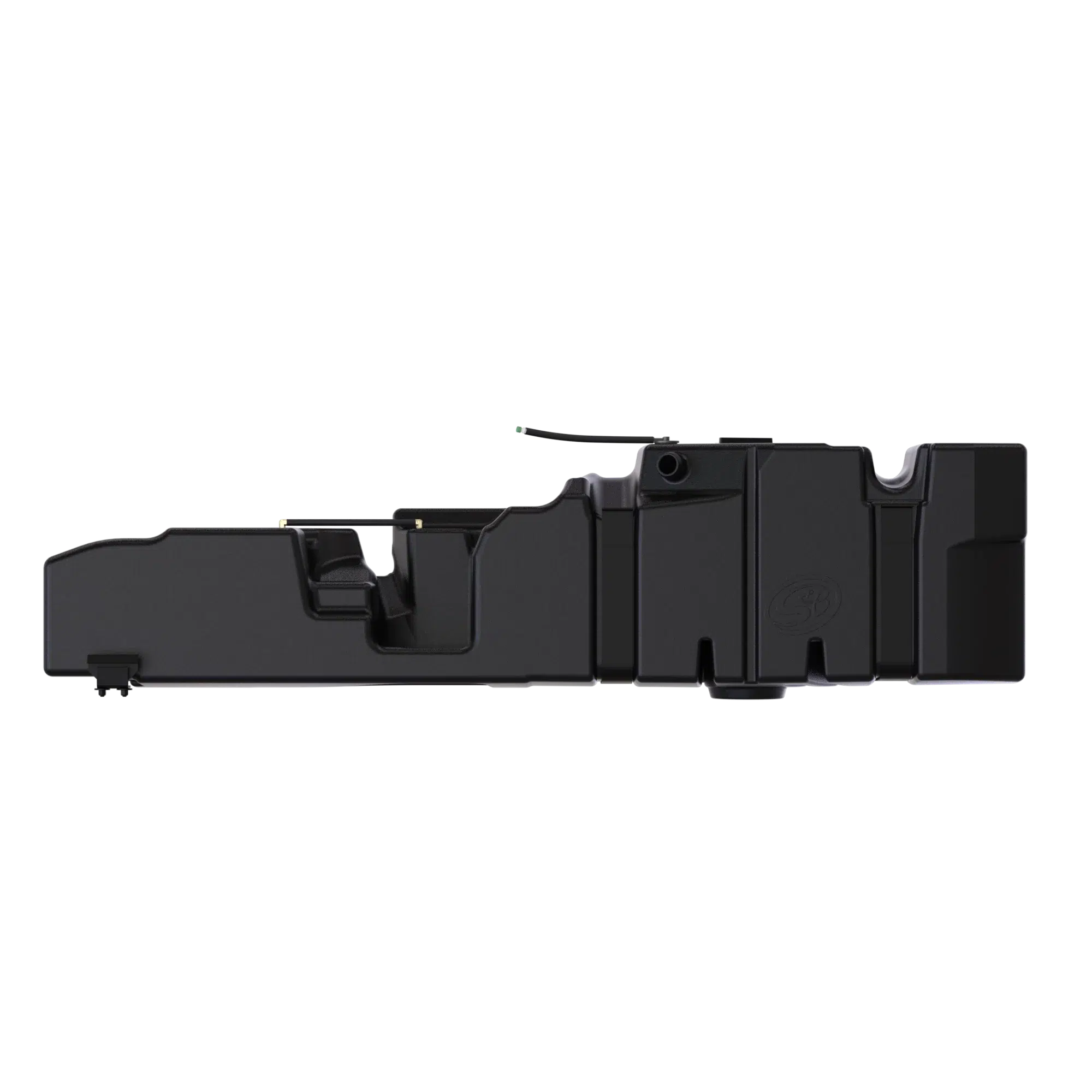

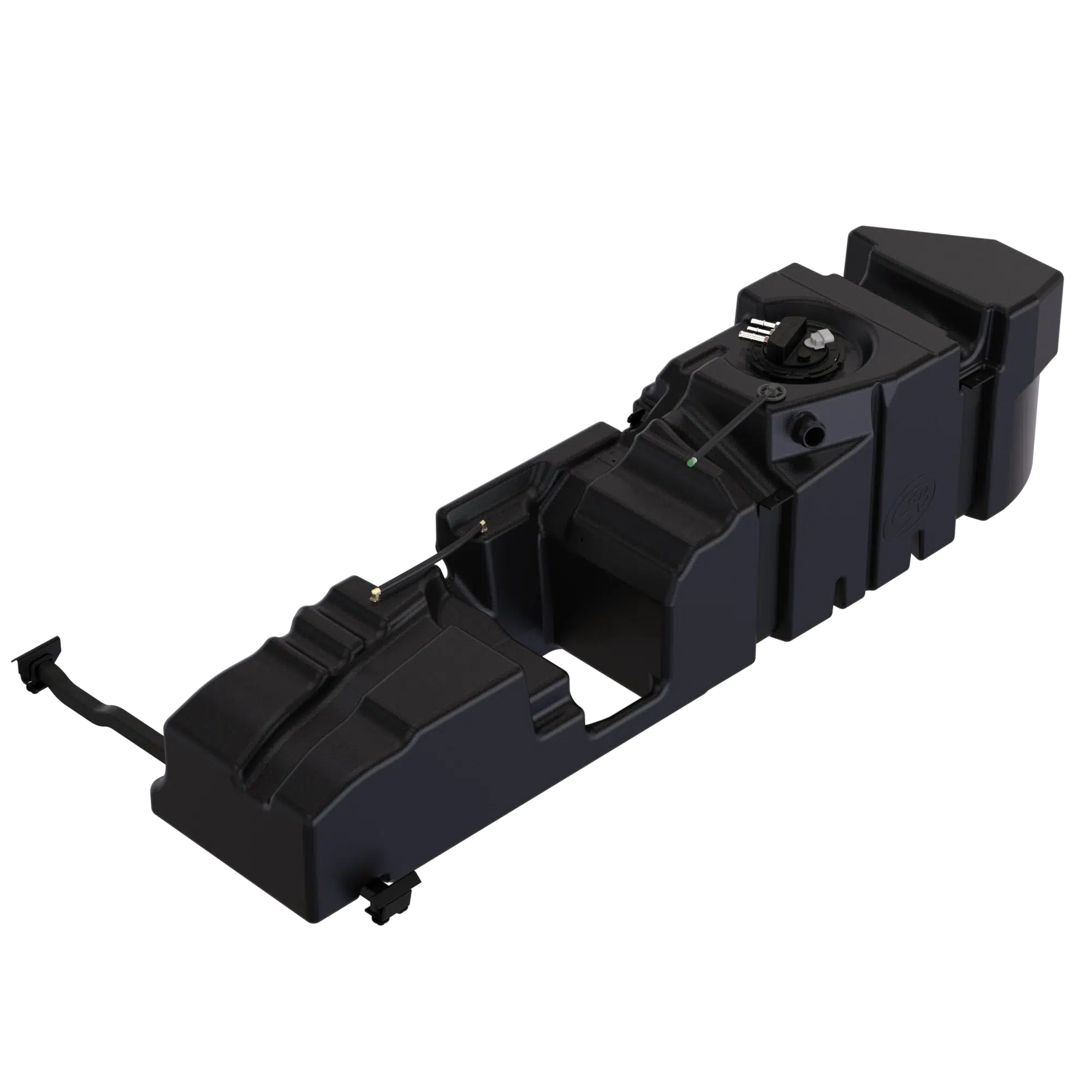

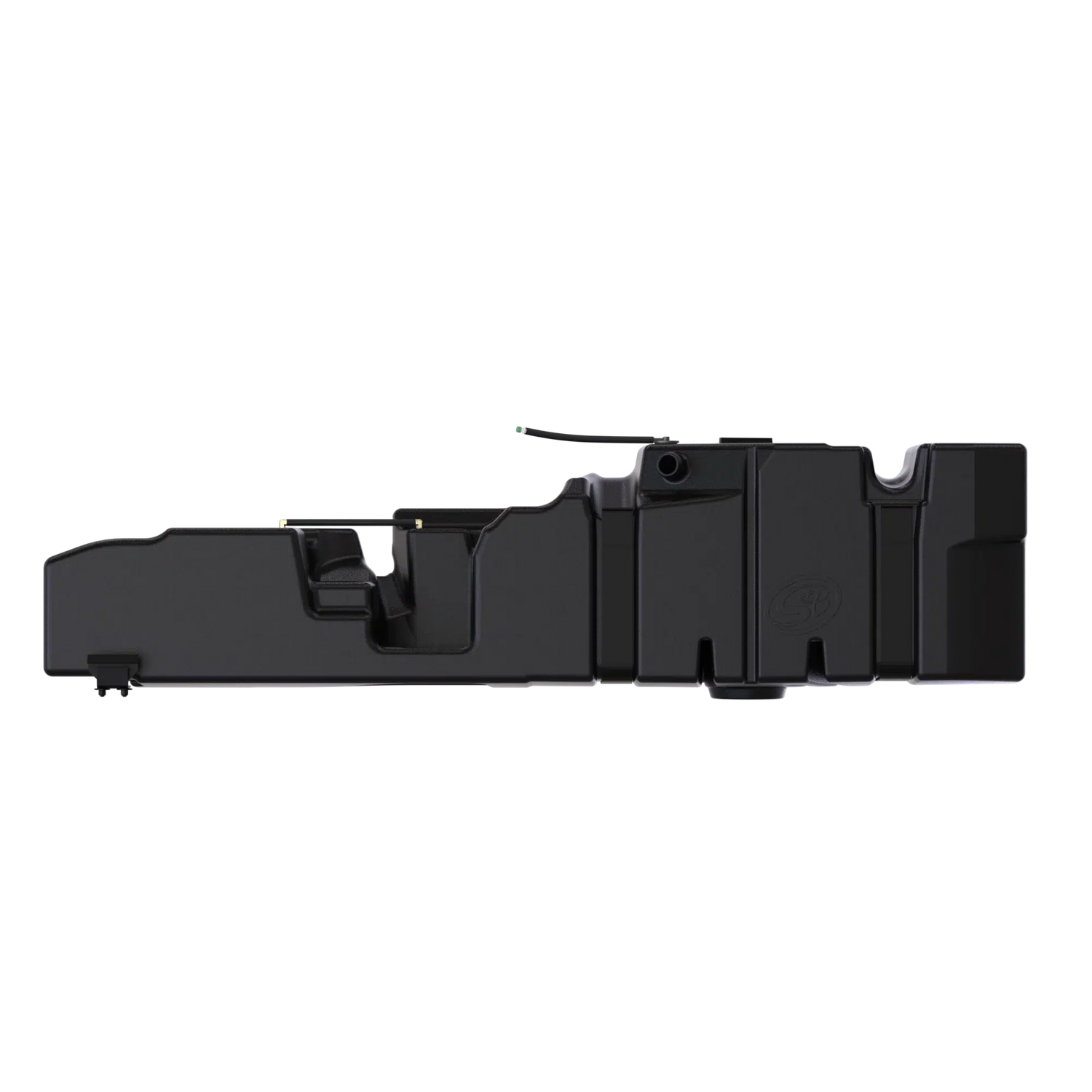

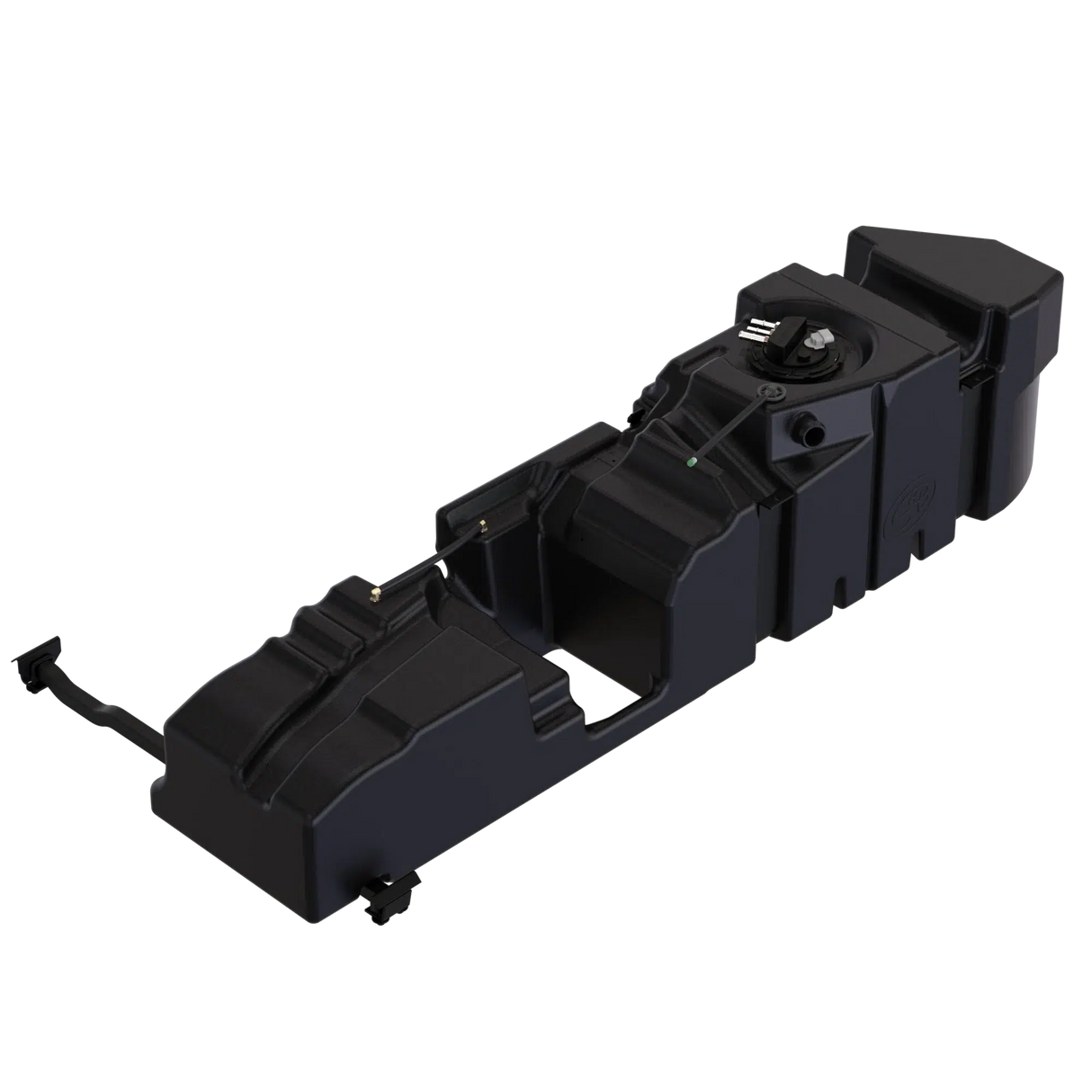

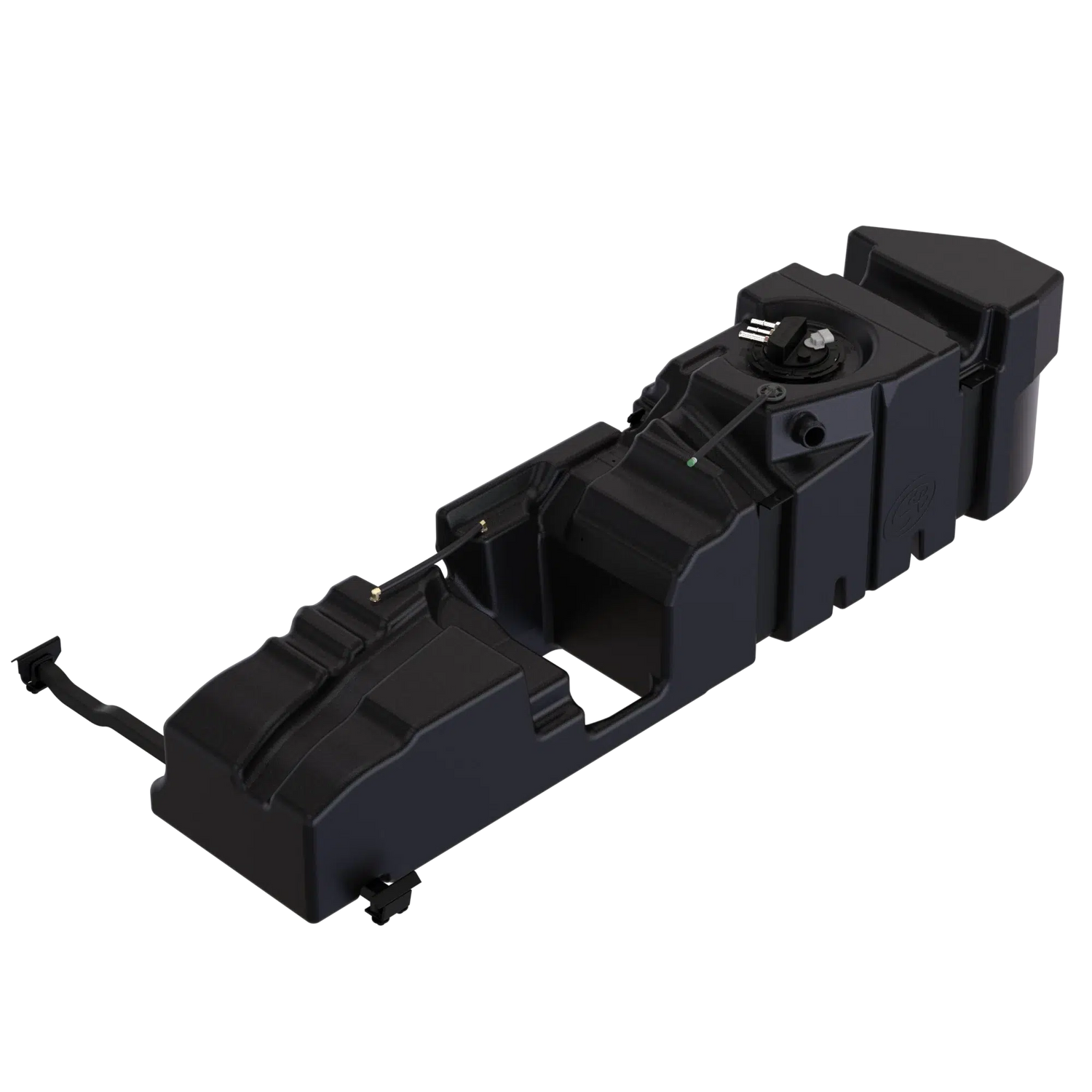

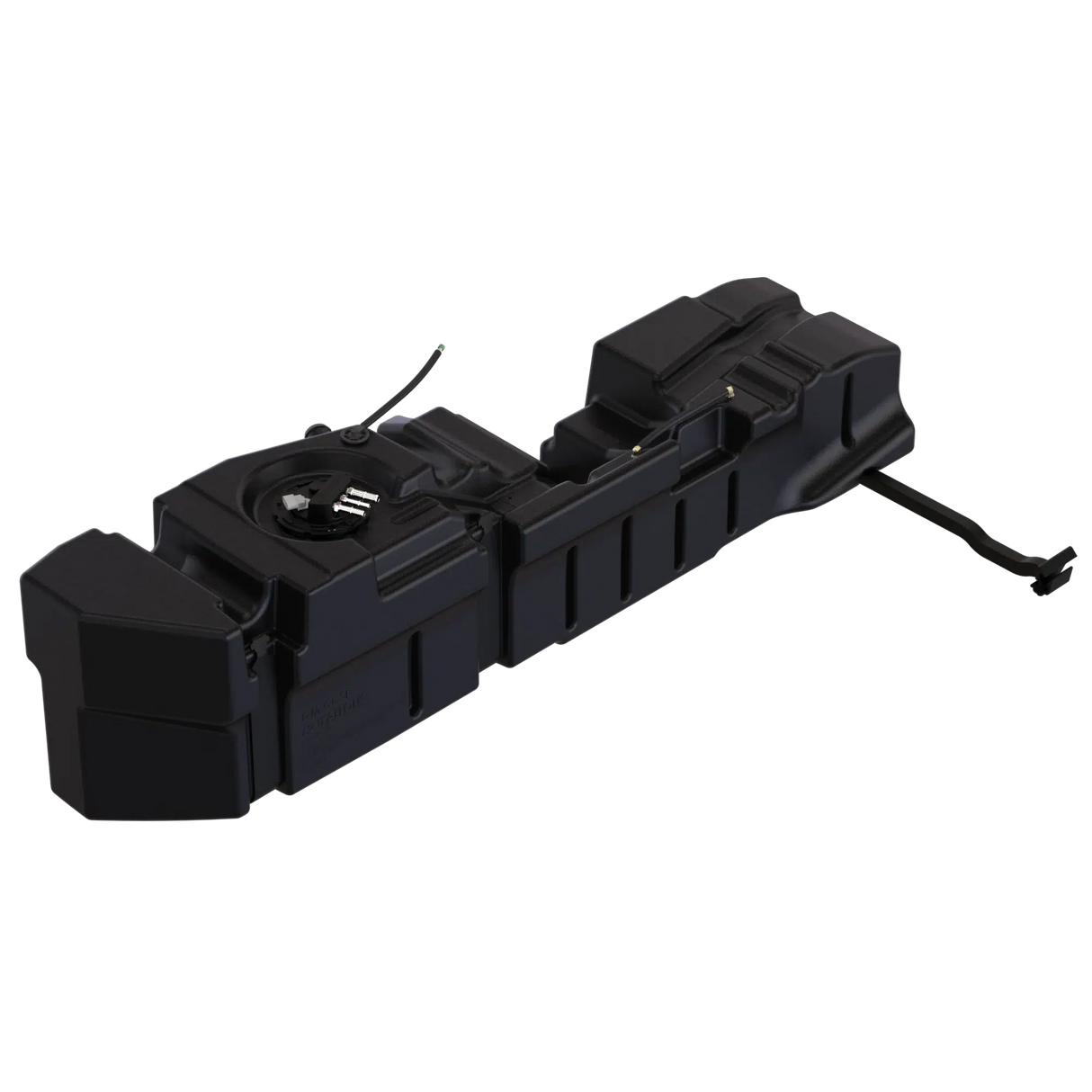

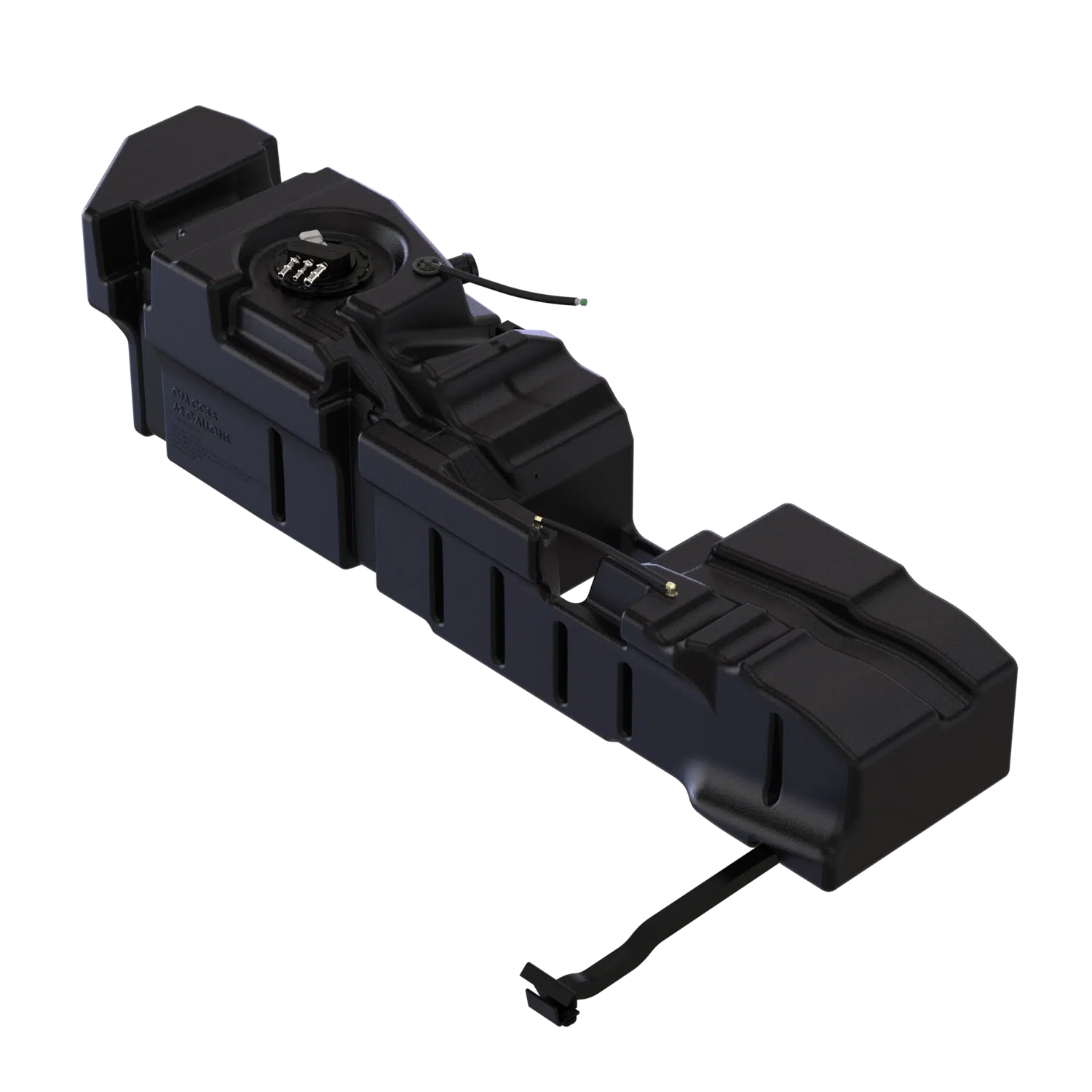

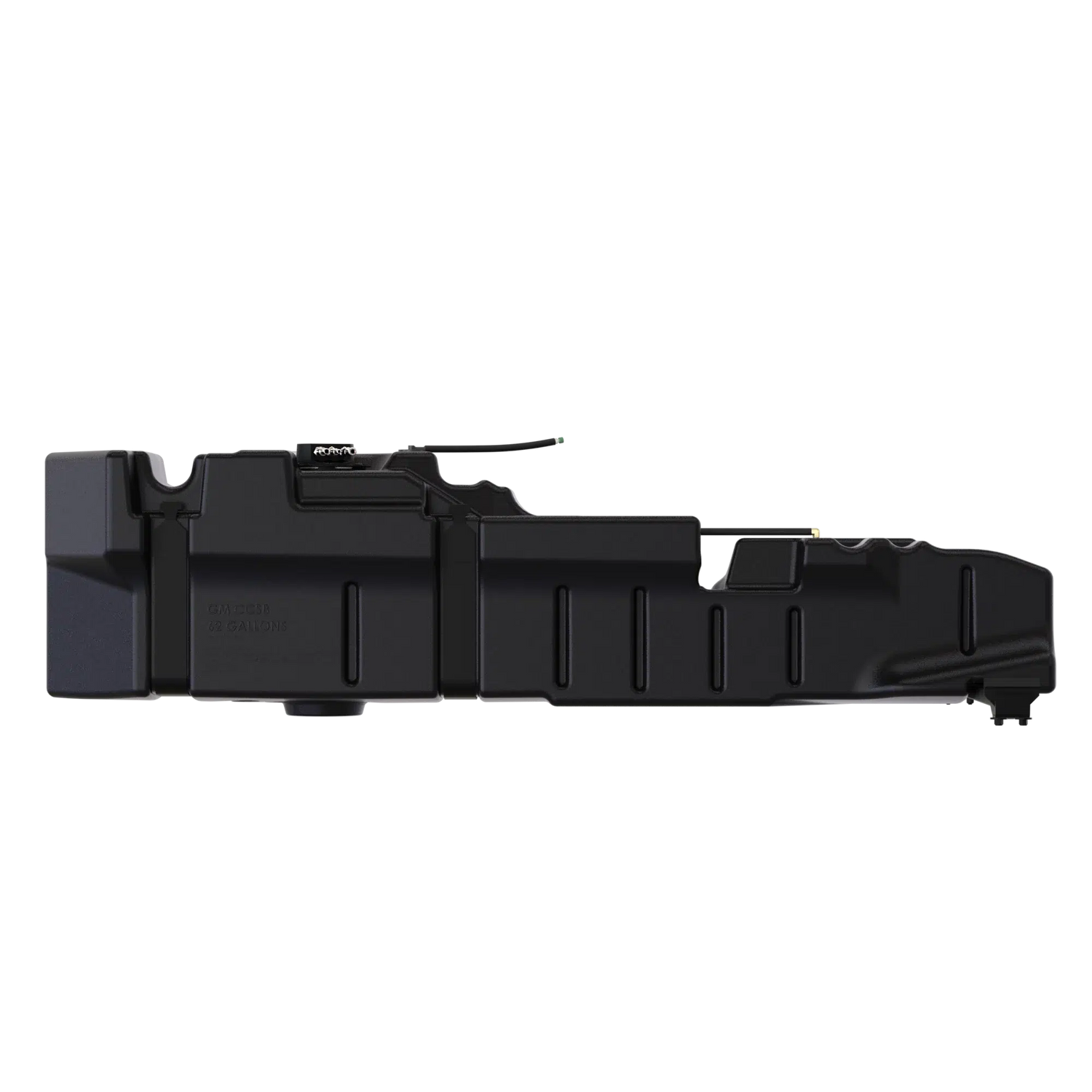

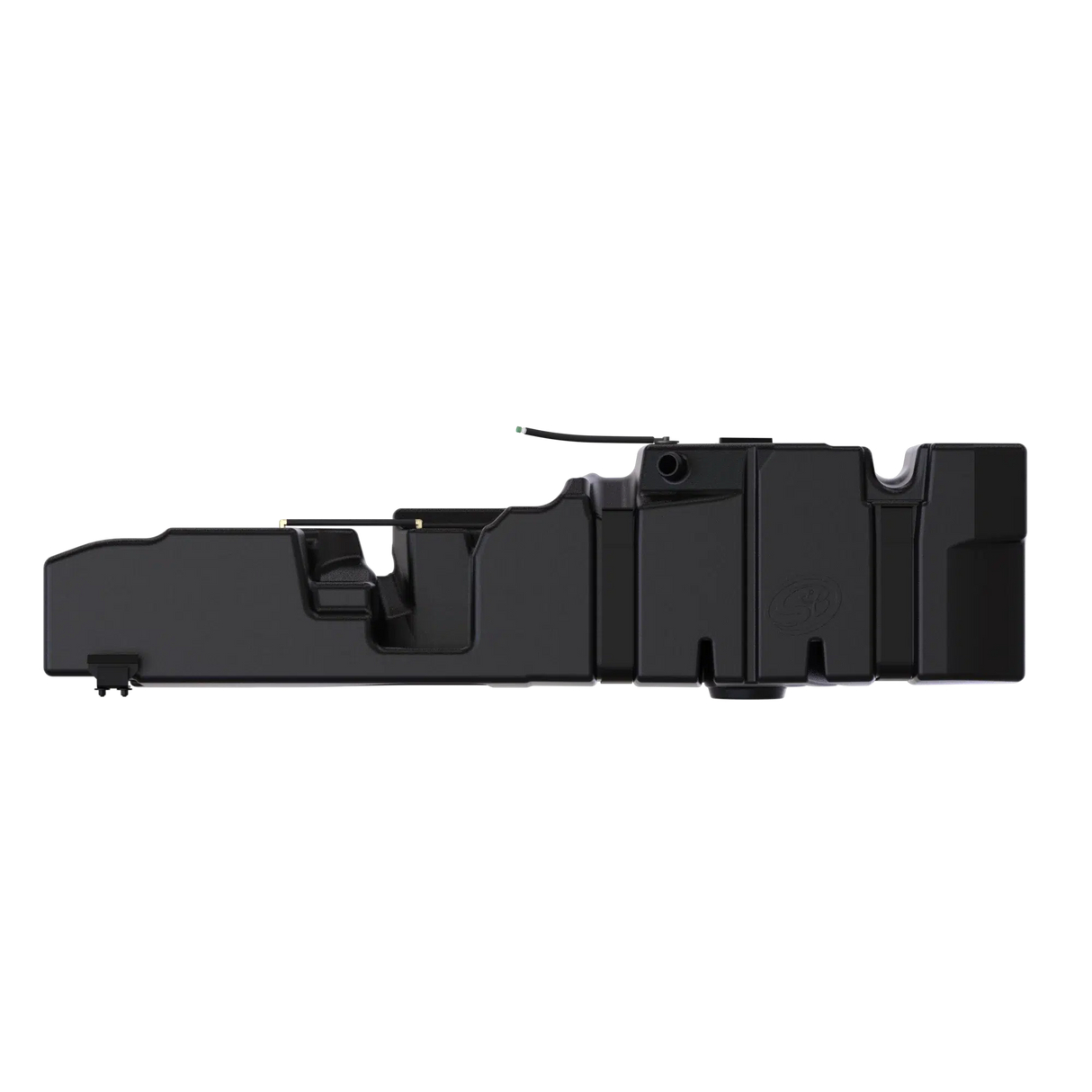

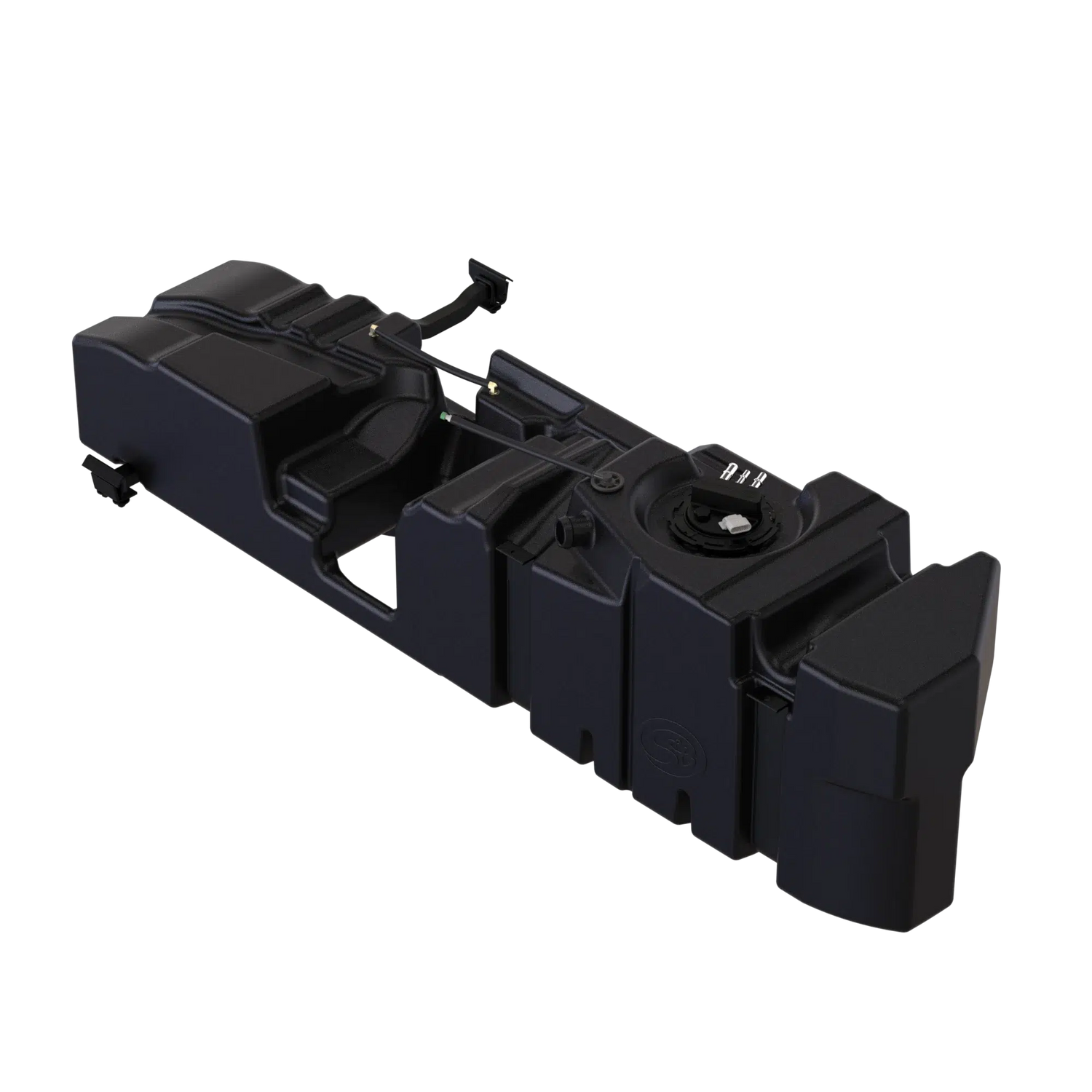

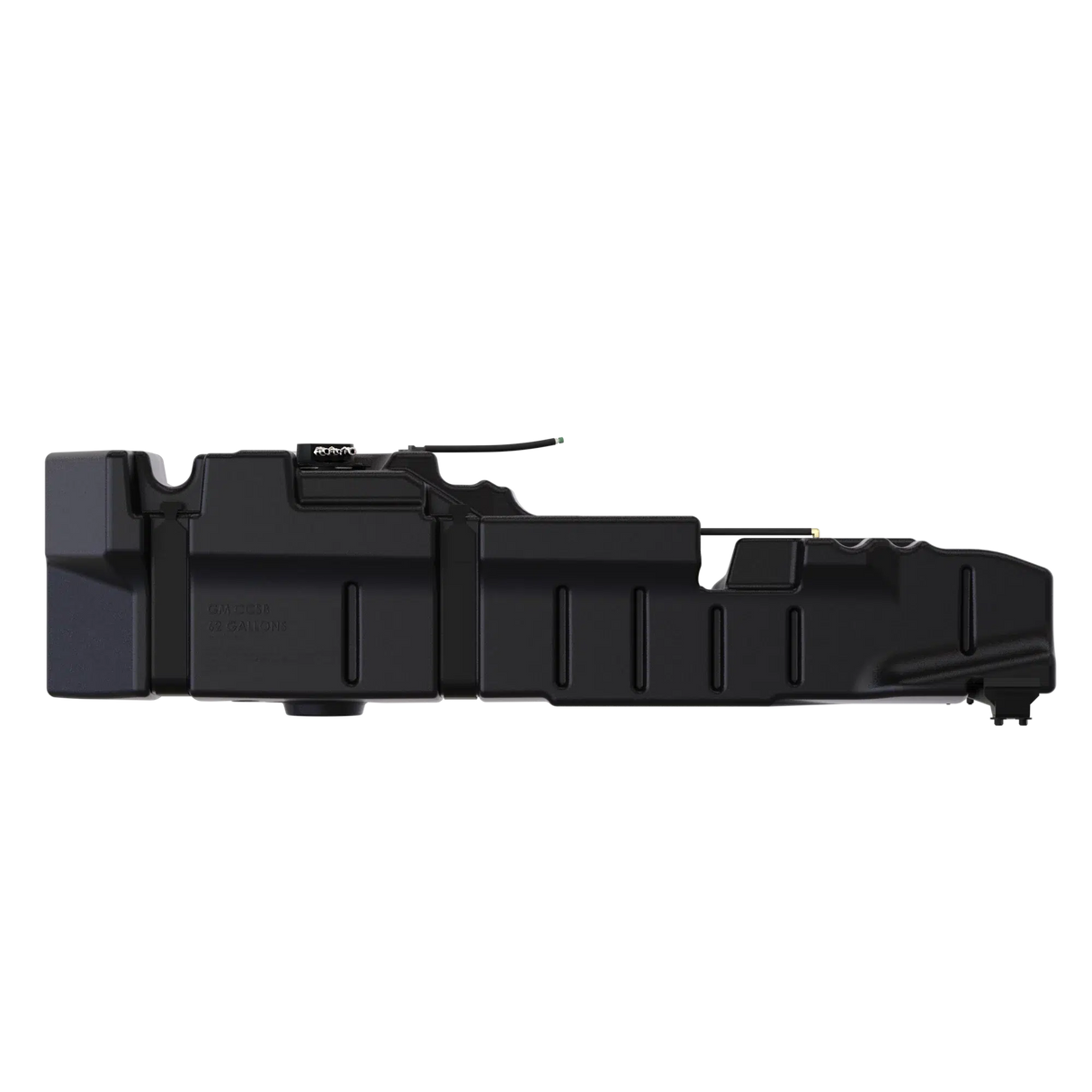

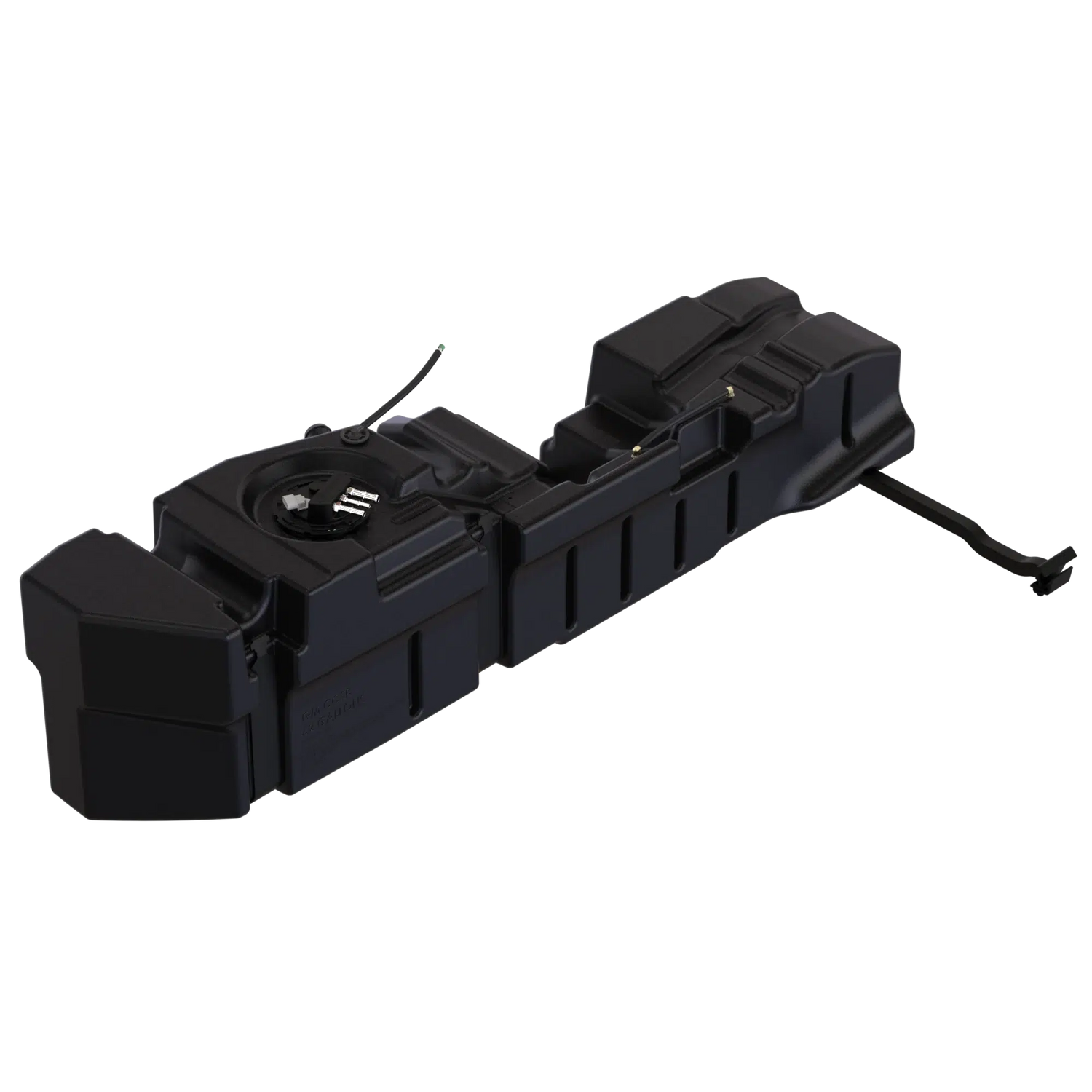

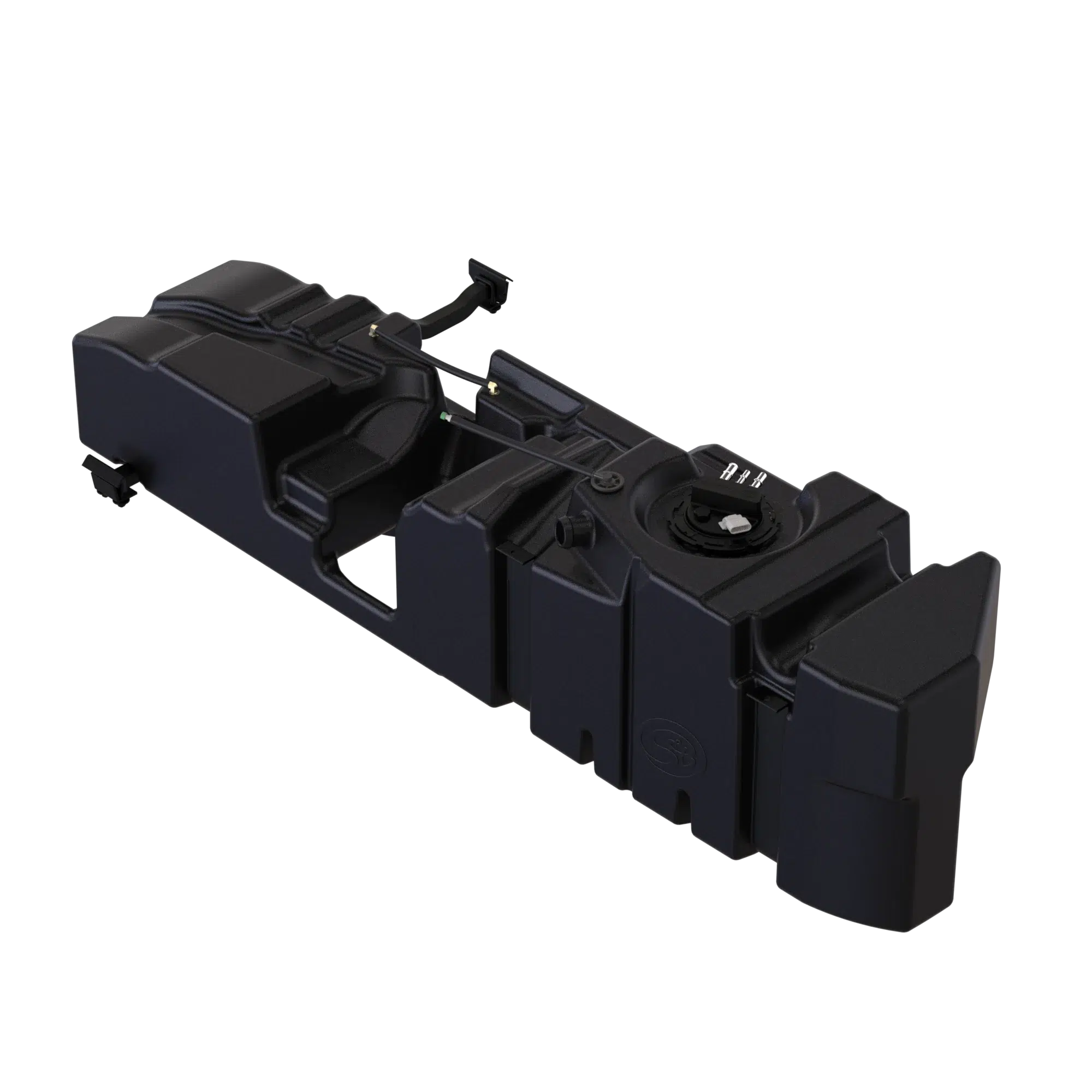

2001-2004 Duramax S&B 62 Gallon Fuel tank (CC-SB) (10-1023)

The 26-gallon OEM tank that came in your Duramax is simply not enough - the S&B 10-1023 bumps your capacity to 62 Gallons with no cutting, drilling, or modifications and installs in under 4 hours. Not only does it over double your carrying capacity, but it also includes a premium OEM-style sending unit and features a built-in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues"  common with aftermarket lift pumps

Part Number: 10-1023

• Midship 62 Gallons (246 Litres for us Canucks)
• 3-4 Hour Install
• No Cutting Required

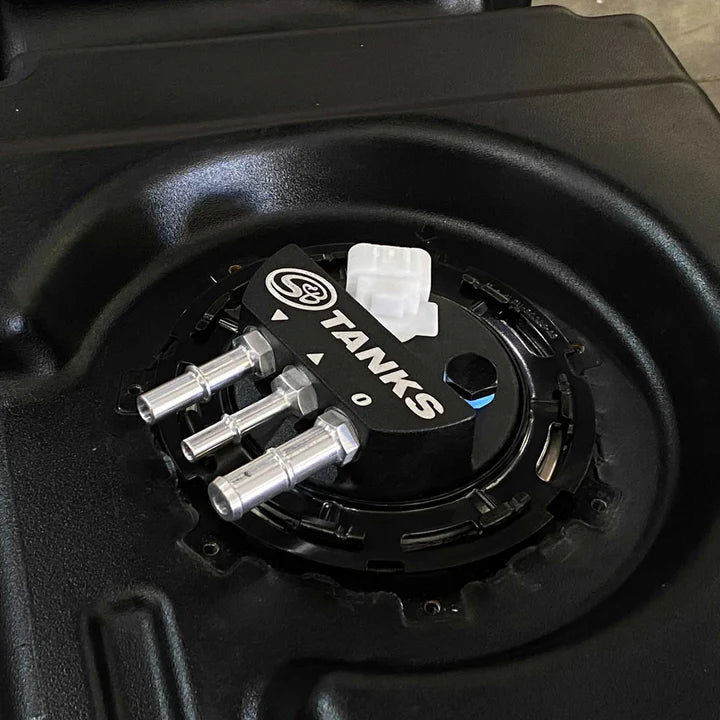

• OEM Style Sending Unit Mount
• Transfer Pump Suction

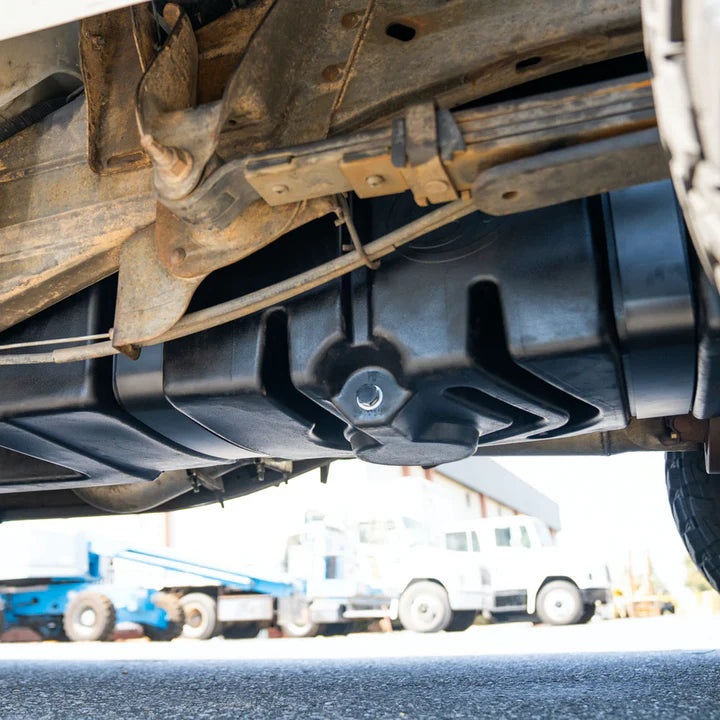

• Integrated Fuel Sump
• Anti-Wave Baffles
• Double Coated Stainless Steel Hardware
• Integrates with Factory Gauge
• Compatible w/ Gooseneck and 5th wheel
• Not compatible w/OE skid plate
• Dimensions 89.43" X 17.32" X 17.61"
• Drain: Yes

• Embedded fitting thread size: 1/2" NPT
• Ground Clearance compared to OE tank: 5" lower
• Sending Unit: S&B
• Straps Included
• Sump: Yes
• Transfer pump ready
• Dry weight 62lbs

• Click Here

• Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
• The distance to empty (DTE) on GM trucks can’t be reprogrammed, so it will show about half the mileage that is really left. This occurs with all aftermarket high-capacity fuel tanks.
• This fuel tank fits 2001-2004 LB7 trucks only. 2004.5-up trucks with LLY, LBZ, and LMM engines use part number 10-1006.
• The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically.
• The bottom of the S&B tank has more surface area than the OE, so there will be a greater fuel reserve when the low fuel indicator comes on.
