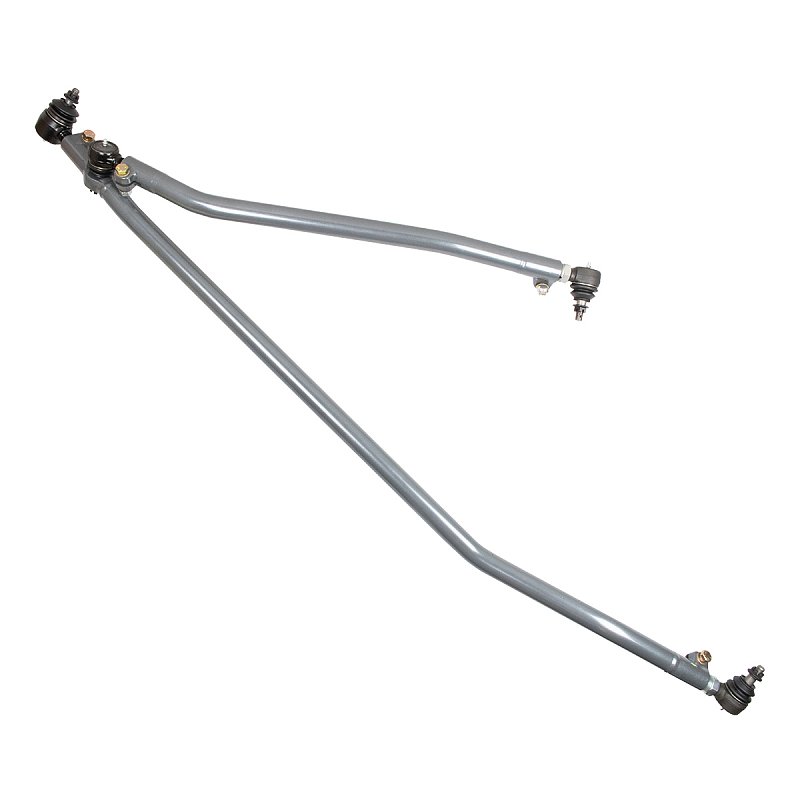

2000-2002 Cummins Heavy Duty Steering Kit w/ Single KING Steering Stabilizer (8525-23)

The 8525-23 Heavy Duty Steering Kit by Synergy MFG is a larger, stronger bolt on replacement for the stock 2000-2002 Ram steering, with no drilling or reaming of the knuckles required. It uses the updated factory T-style design to eliminate the toe change caused by Y-style steering, without the induced bump steer of most crossover conversions, and adds a Synergy tuned King 2.0 stabilizer for premium damping.

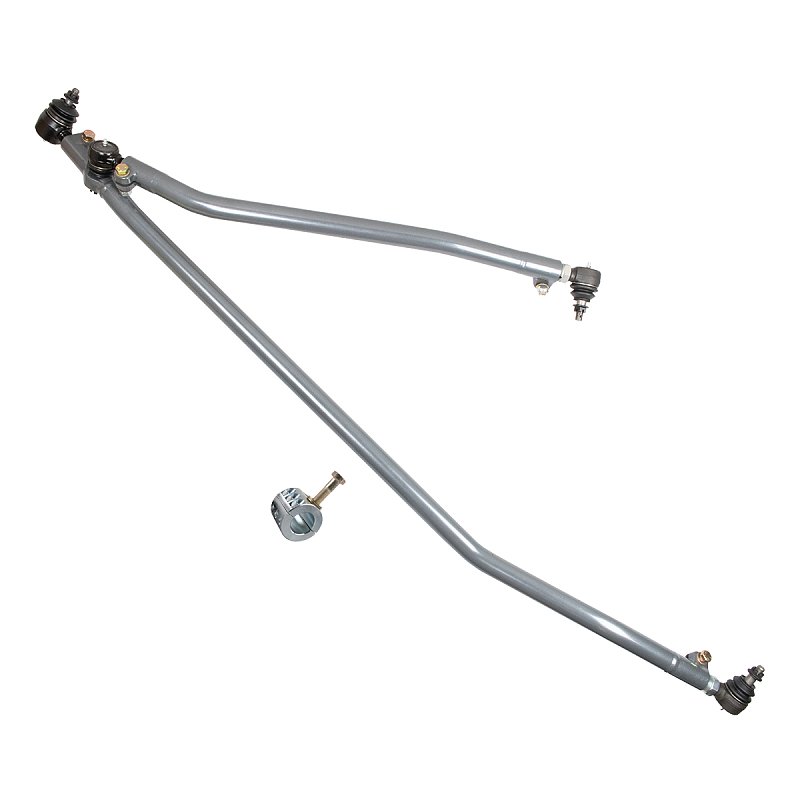

Part Numbers Included:

• 8567-12 Heavy Duty Drag Link
• 8568-22 Heavy Duty Tie Rod
• 4050-50 Steering Stabilizer Clamp
• 6410-01 Synergy Tuned King 2.0 Steering Stabilizer

Drag Link

• Precision bent to clear factory axle brackets and compatible from stock to 4" of lift (over 4" requires a drop pitman arm).
• Made from 1-1/2" x .250 wall USA made DOM.
• Synergy Double Adjuster Sleeve allows adjustment without removing it from the vehicle.
• Two stage abrasion resistant powder coat finish.
• Comes with Synergy HD metal on metal tie rod ends.

Tie Rod

• Engineered and bent from 1-1/2" x .188 wall heat treated 4130 chromoly, over 200% stronger than OEM.
• Bent to clear sway bar mounts, differential cover and steering pitman arm.
• Provides 2" of additional ground clearance over the stock tie rod.
• Single plane tie rod ends eliminate tie rod flop and the dead spot when changing direction.
• Fully sealed by forged pinch bolt housings and a complete welded assembly.

King 2.0 Stabilizer and Clamp

• Synergy tuned King 2.0 steering stabilizer, valved for the weight and steering geometry of the Ram Cummins.
• Fabricated 4050-50 clamp mounts the stabilizer to the 1.5" Synergy tie rod and also accepts factory or aftermarket stabilizers using a 1/2" mounting bolt.

• Compatible with Ram 3500 4x4 Cab and Chassis models of the same generation. Not compatible with 4500 / 5500 models.
• Synergy MFG cannot guarantee fitment with all aftermarket differential covers.
• If the cotter pin does not engage the castle nut on install, a washer is required. This varies by knuckle casting and wear.
• This steering kit will only work on solid axle Ram 1500 4x4 models.
• Known compatibility with the Mag Hitec differential cover.

• Click Here For Installation Instructions
