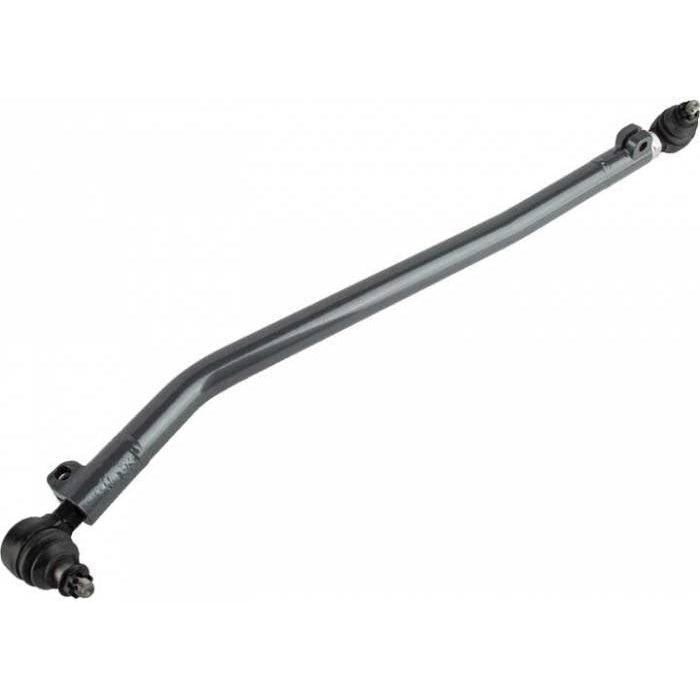

2000-2002 Cummins HD Drag Link (8567-12)

Fits

Keep your truck on the road tracking straight and tracking well. With a solid axle setup, these trucks are susceptible to bump steer and toe change because of the Y-style steering setup. The tie rod uses a low misalignment Wobble stopper Tie Rod End Boots to prevent unwanted tie rod flop which results in a dead spot in the steering in the steering when changing direction. The complete kit includes a heavy-duty drag link, heavy-duty tie rod, and steering stabilizer mount kit for use with stock or aftermarket stabilizers using a 1/2" mounting bolt.

Part Number: 8567-12

• Drag Link is bent to clear factory axle brackets and is compatible from stock to 4" lift. Vehicles over 4" of lift will require a drop pitman arm for compatibility
• Made from 1-1/2" solid 1018 bar
• Synergy Double Adjuster Sleeve: allows adjustment of Drag Link length without removing it from the vehicle
• Drag Link comes with Synergy HD metal on metal tie rod ends, 94-99 Trucks: 4136-L and 4160-L (Pitman arm side is 4136-L).
• Suspension components feature an abrasive-resistant Powdercoat finish for maximum durability and corrosion resistance
• 100 percent bolt-on components assure an easy, trouble-free installation with the use of basic hand tools

Click Here

• No guaranteed fitment with aftermarket differential covers. Known compatibility with the following diff covers: Mag Hitec
• 1998-1999 trucks that originally came with T-Style Steering (Where the tie rod connects to both knuckles) must use the pitman arm from 1994-1997 trucks, stamped TRW-246
