1999 Powerstroke KC300x Stage 1 63mm/68mm Turbocharger (300234)

KC Turbos
Regular price $1,713.60 CAD
Made in the USA

Canada charges an import tariff on US-made turbos. It's added at checkout as its own line, not built into the price.

+$340.00 CAD

Turbo Cover
Choose A/R Size

Purchase to earn 1713  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits

 Year Make Model Engine
1999 (Early) Ford
F-Series 7.3L Powerstroke

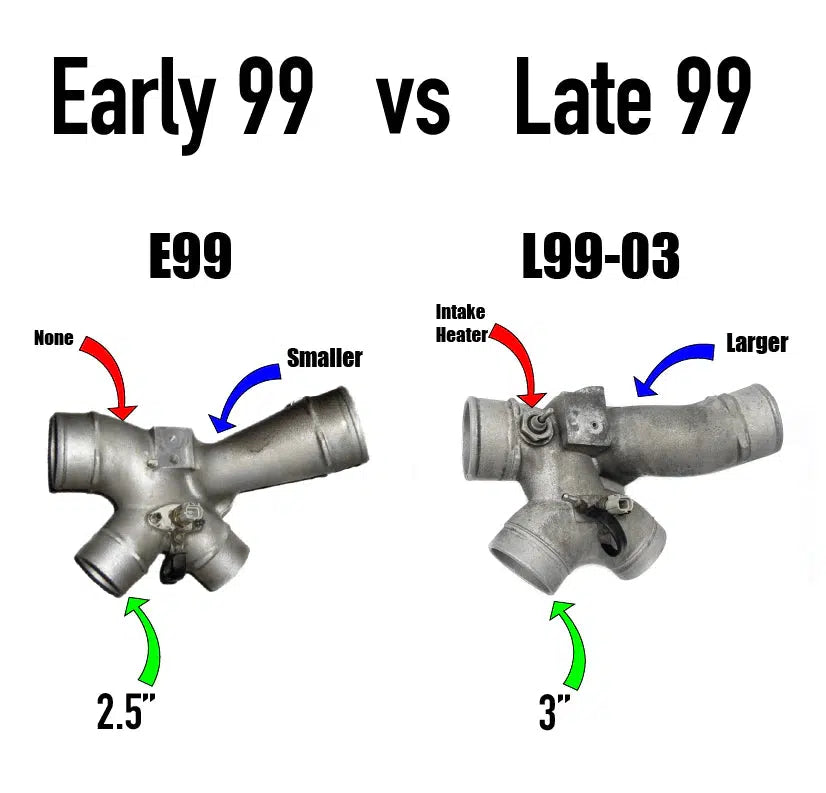

Note: Will NOT fit on Late 1999-2003 trucks.

Supports: Up to 180cc/30% injectors

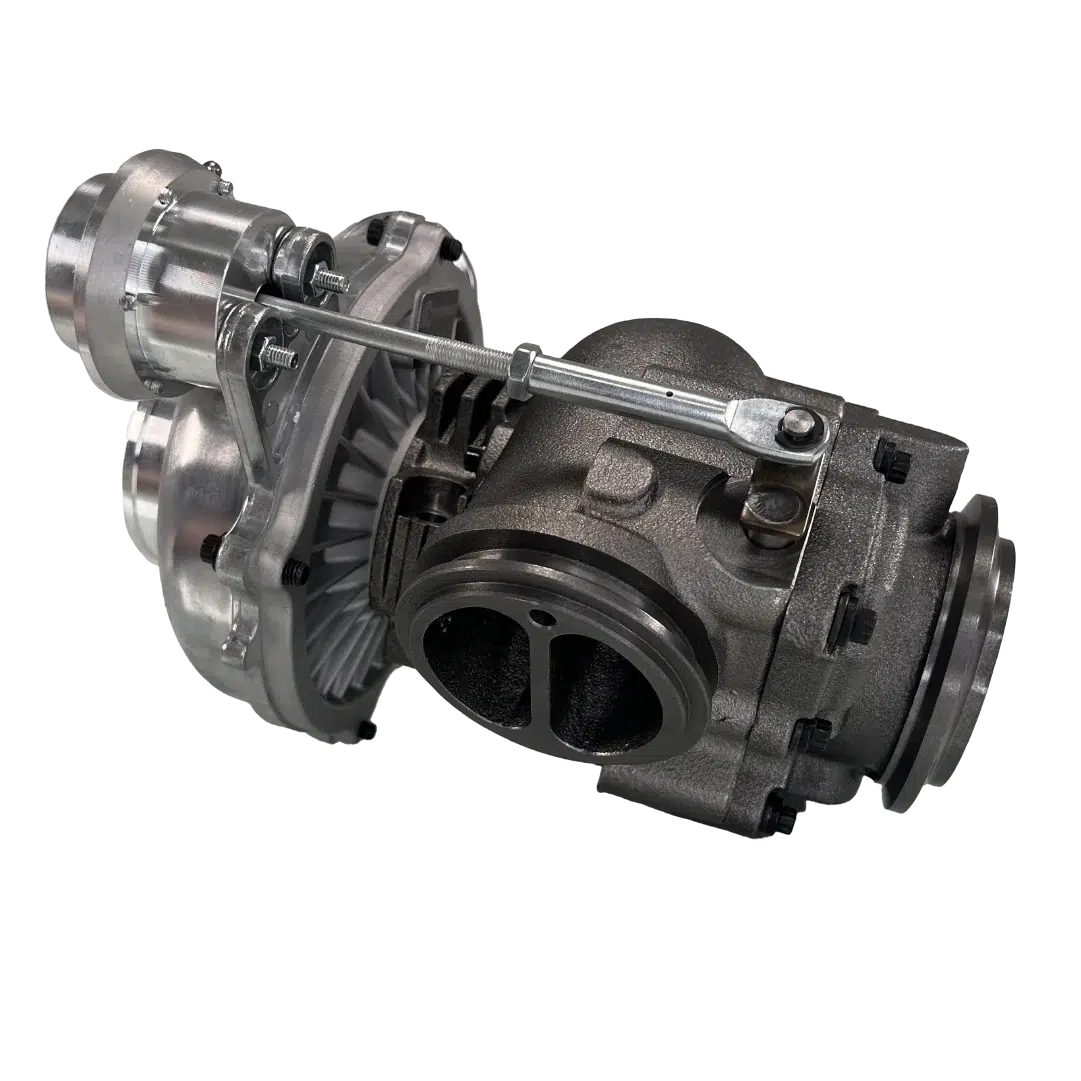

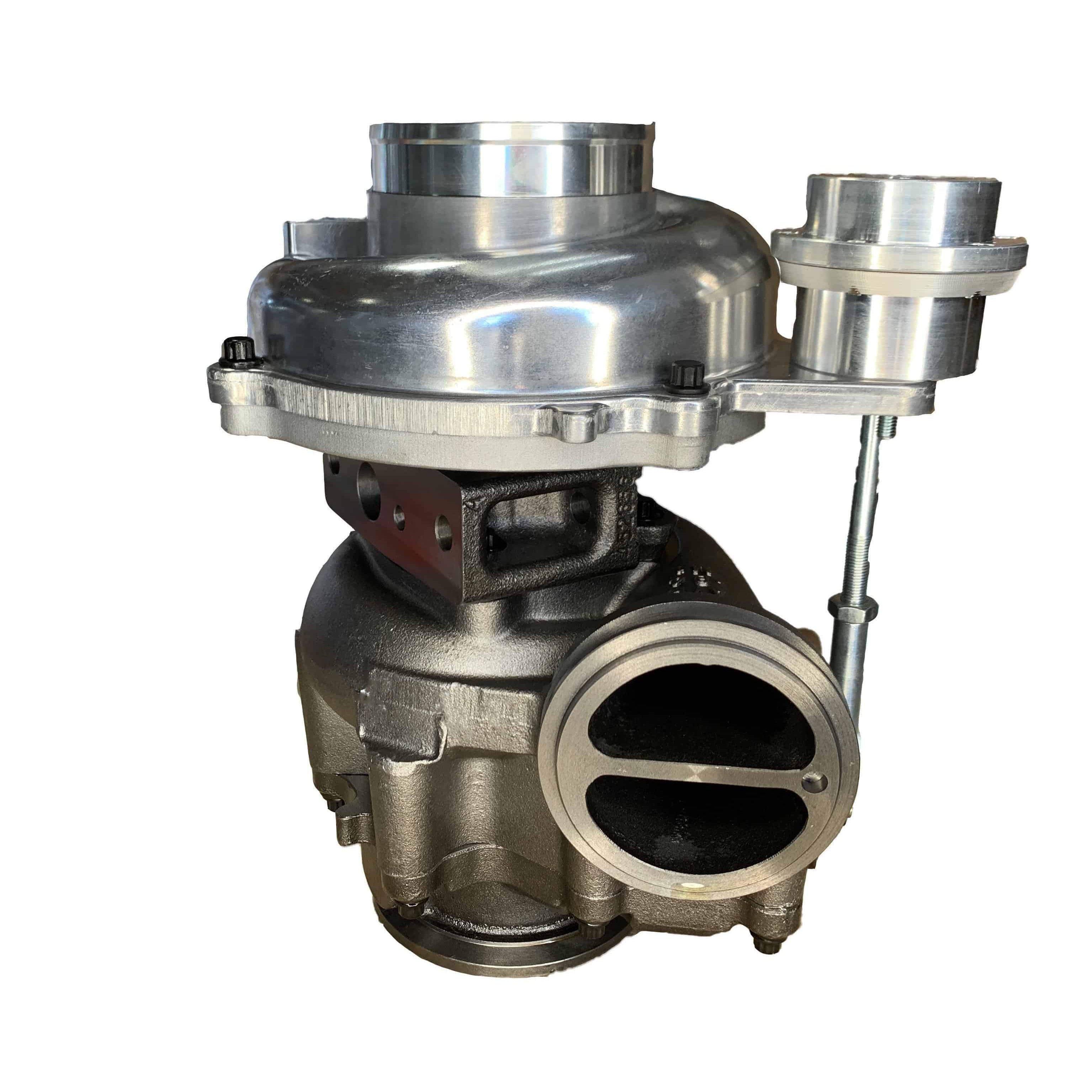

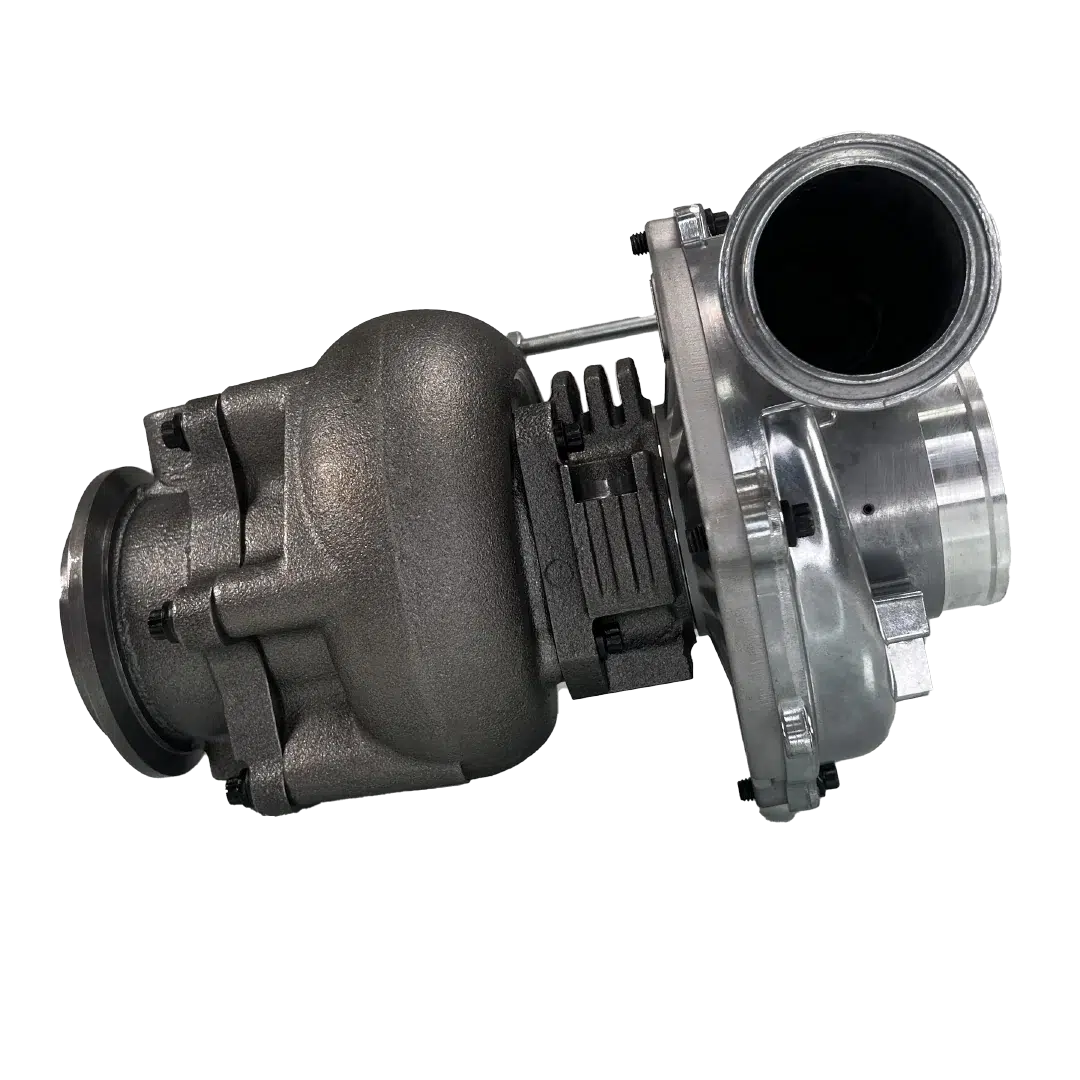

The KC Turbos 300234 KC300x Stage 1 63mm/68mm Turbocharger is a journal-bearing turbo with a Borg Warner 300sxe Style turbine wheel that has been modified to create a 100% drop-in replacement turbo for your 7.3L Powerstroke.

This turbo will surprise you at how well it runs! KC Turbos has torture tested it for longevity and has proven its capability on the dyno as well as the Race Track. The 1.0 A/R Housing is intended to cool your EGTs above 3000 RPMS which is ideal for racing applications. Then for all of the dedicated tow rigs and daily drivers, the .84 A/R housing will provide a quicker spool and cooled EGTs below 3000 RPMs.

Part Number: 300234

Replaced By: 302676

Features

  • 100% drop in turbo
  • 4" ported housing with anti-surge for high flow
  • 63mm 7x7 SXE style compressor wheel with extended tip technology
  • 68mm SXE style turbine wheel
  • Big Head Wastegate Actuator for elevated boost control
  • High Flow deleted EBPV outlet flange
  • Reliable Journal Bearing Design (Rebuildable)

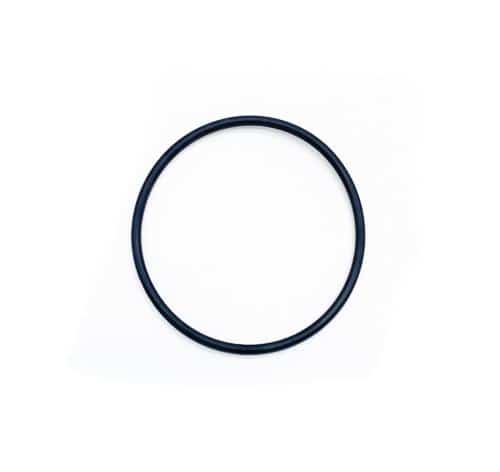

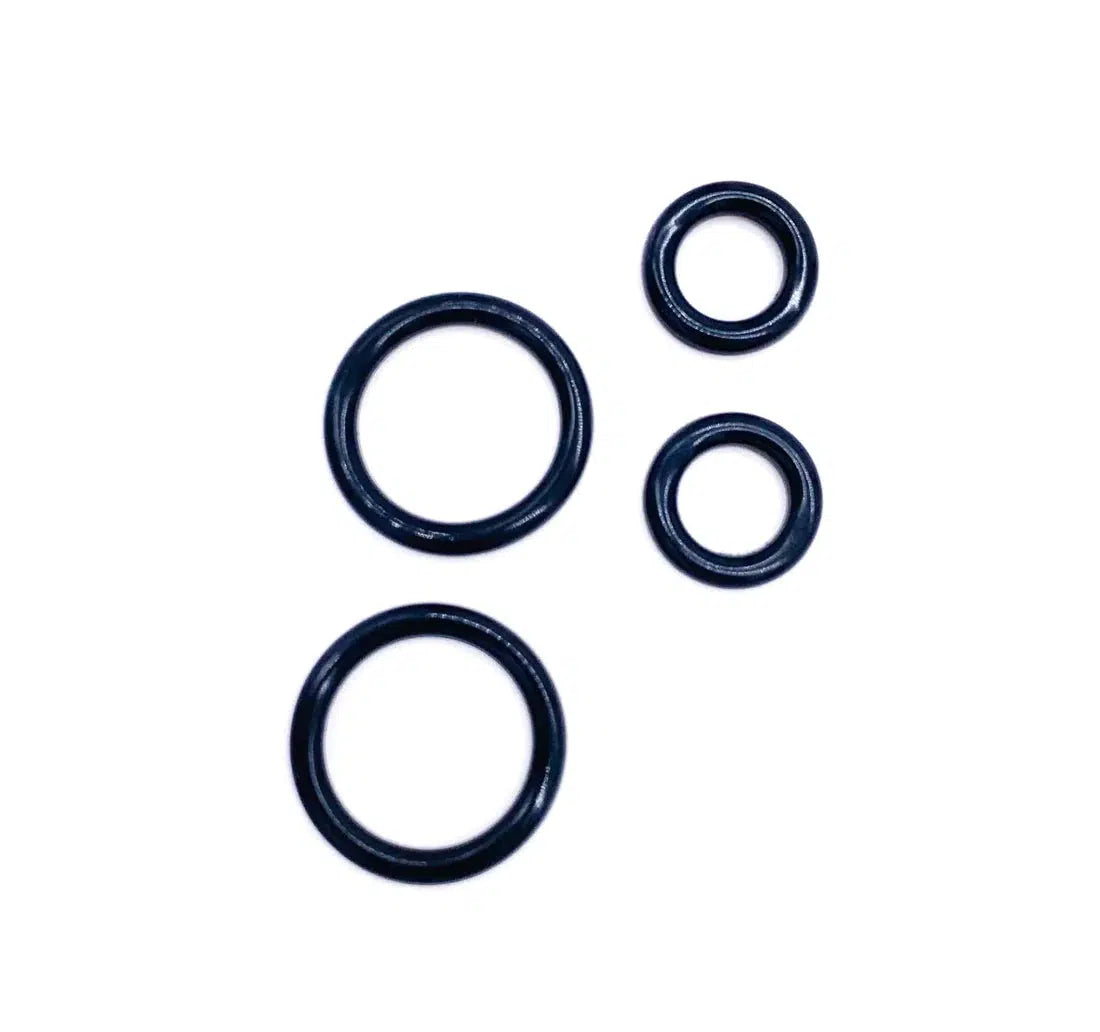

  • Comes with all gaskets and o-rings to install

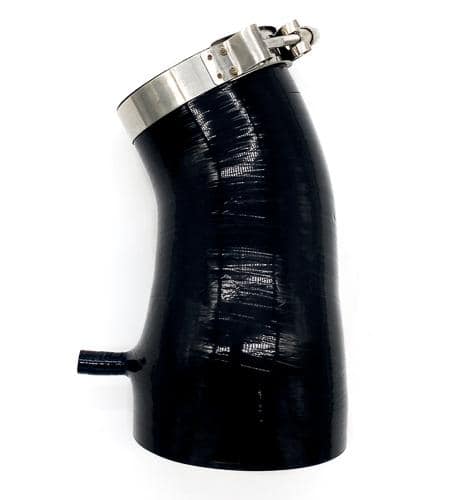

  • Comes with new 4" intake boot

Warranty

 Notes

  • KC Turbos Highly Recommends adding these products for the best results:
    • Upgrading Your Up-Pipes
    • Upgrading The EBPV Pedestal
    • Running Custom Tuning

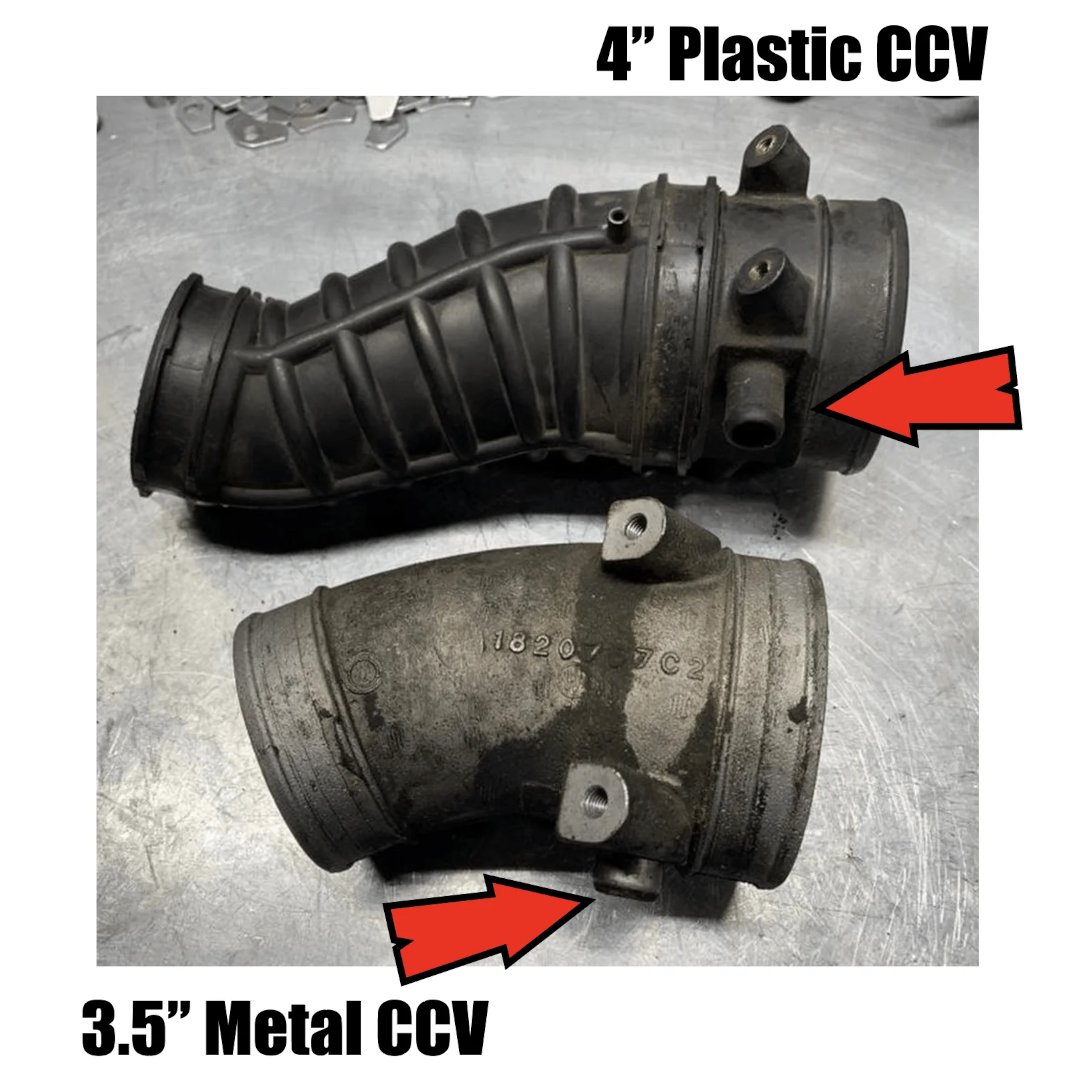

  • This turbo requires you to do a CCV mod to the truck since the boot is not long enough to work with the stock plastic CCV tube. If you don't know or don't fully understand what a CCV mod entails, please do a quick "7.3 CCV mod" Google search or feel free to give us a call with any questions!

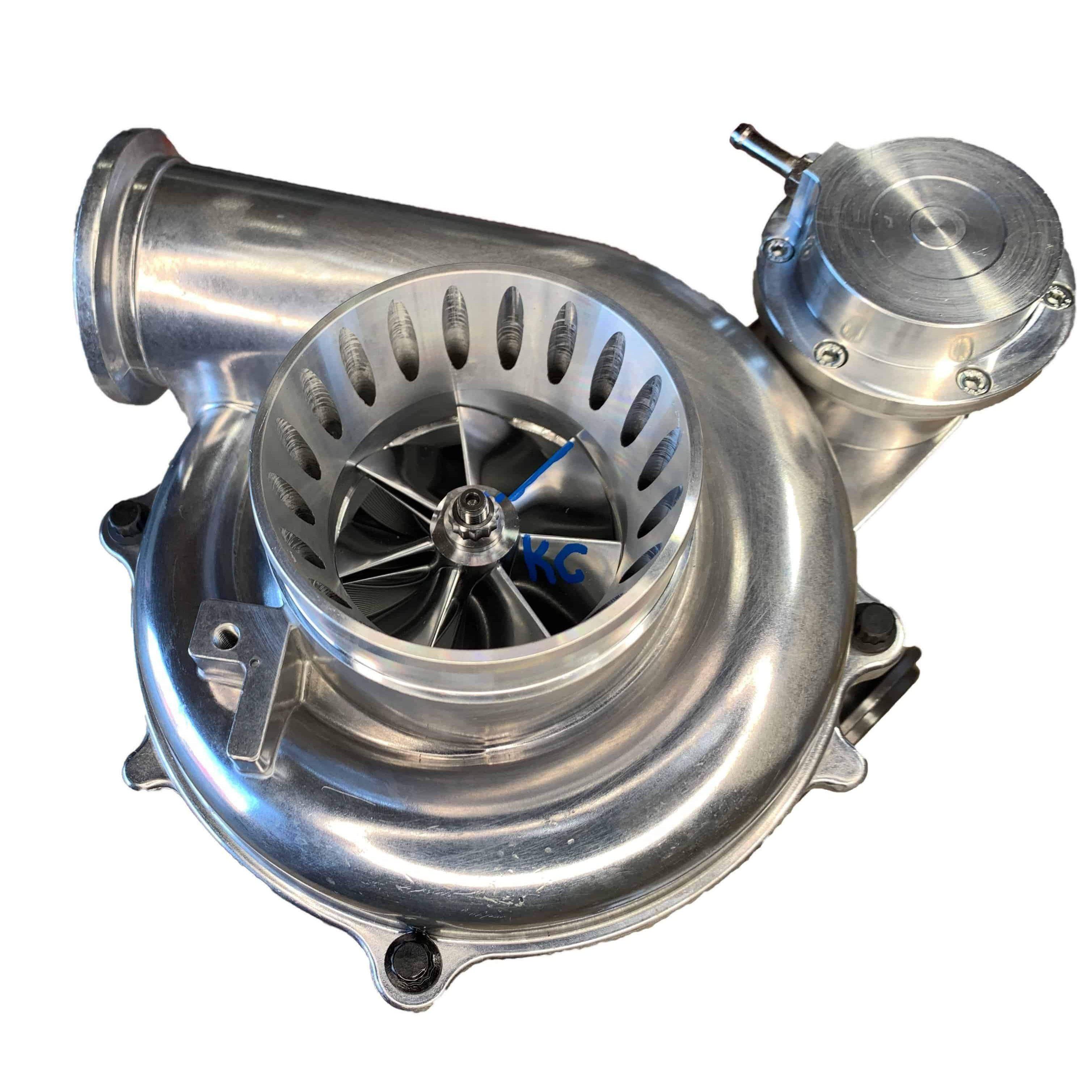

  • The turbocharger featured in the picture is the polished version. This turbo has the standard sand-cast finish.
  • All KC Turbos are assembled and built in the United States.
  • Exhaust brakes and if they work with KC turbos.  KC has found that some brands have clearance issues that might cause the brake to hinder performance, rub the turbine wheel, or cause other issues.  These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aid in braking.  This can be hard on a turbo and motor and is not recommended.  It will be up to the customer to verify fitment and functionality.
  • KC turbos are designed to fit directly in 7.3 equipped pick-up trucks. Although KC turbos can drop into 7.3 equipped Vans, you will need to modify the turbo intake boot and down-pipe for proper fitment.
