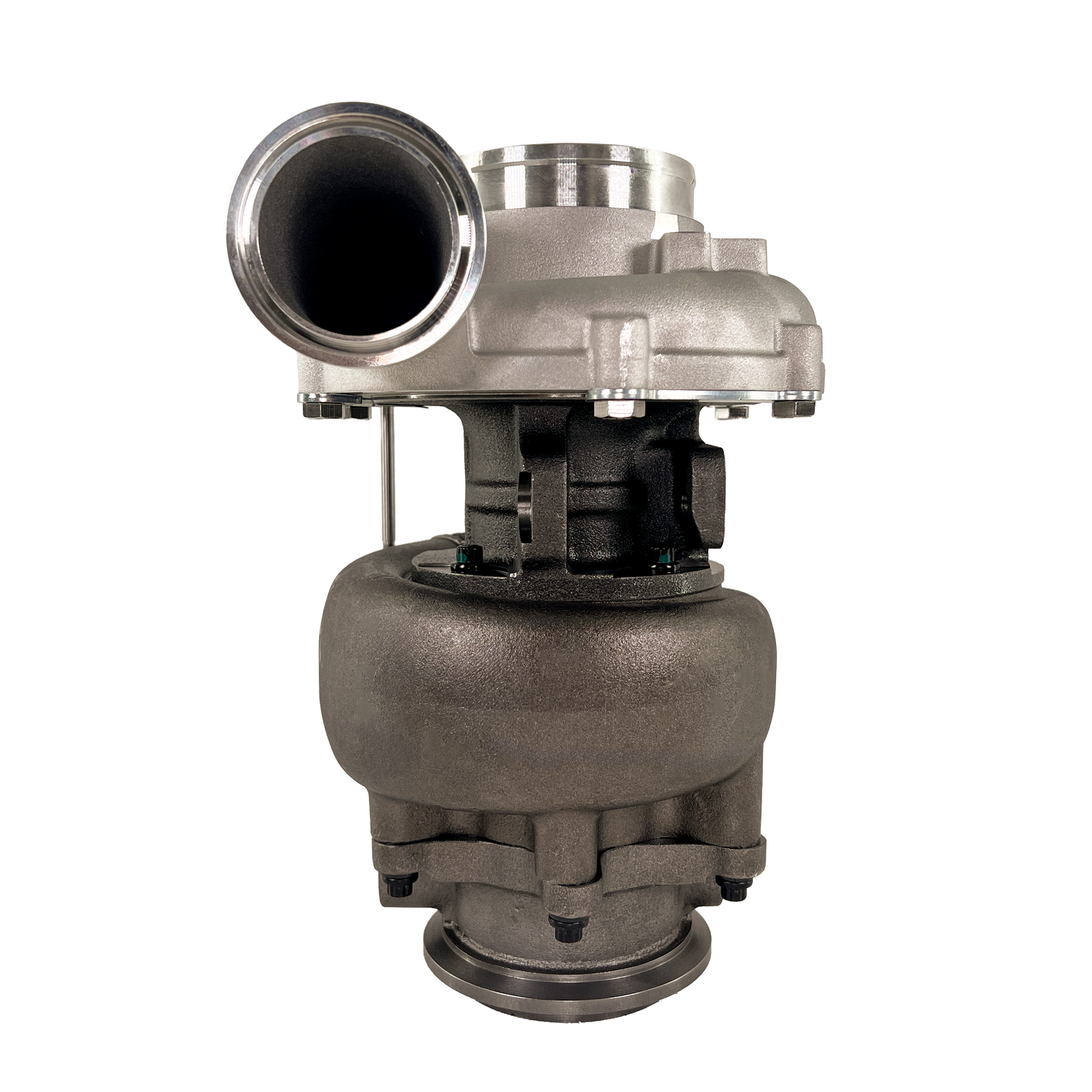

1999 Powerstroke KC300x G3 Stage 1 Turbo E99 (302676)

Fits

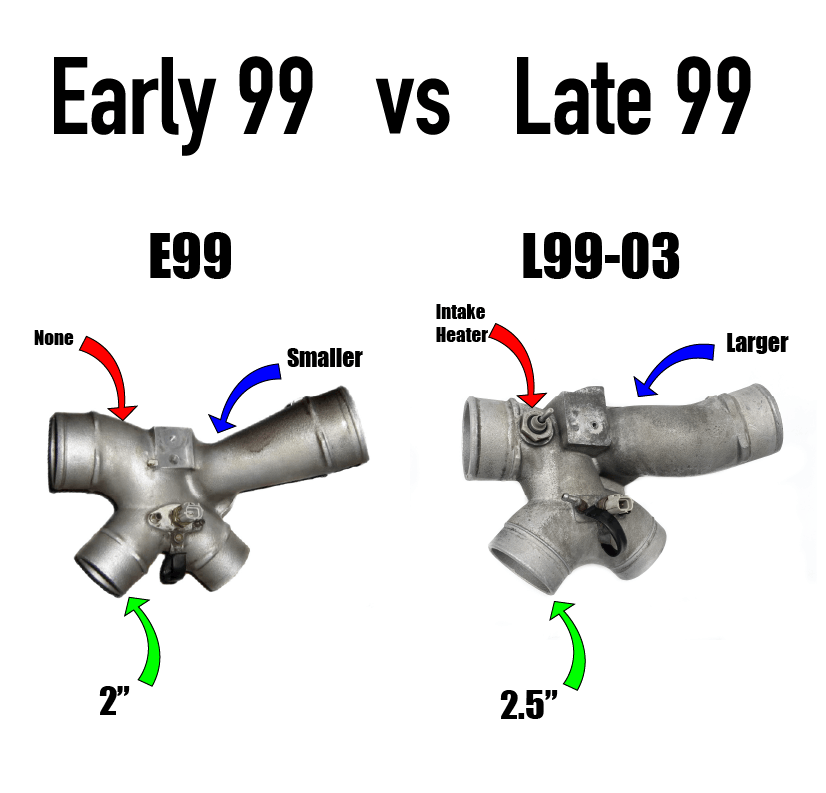

Note: Early 1999 product - will not fit Late '99–2003 trucks. Not compatible with OBS (1994–1997) trucks without modification.

Supports: Up to 205cc / 30% injectors

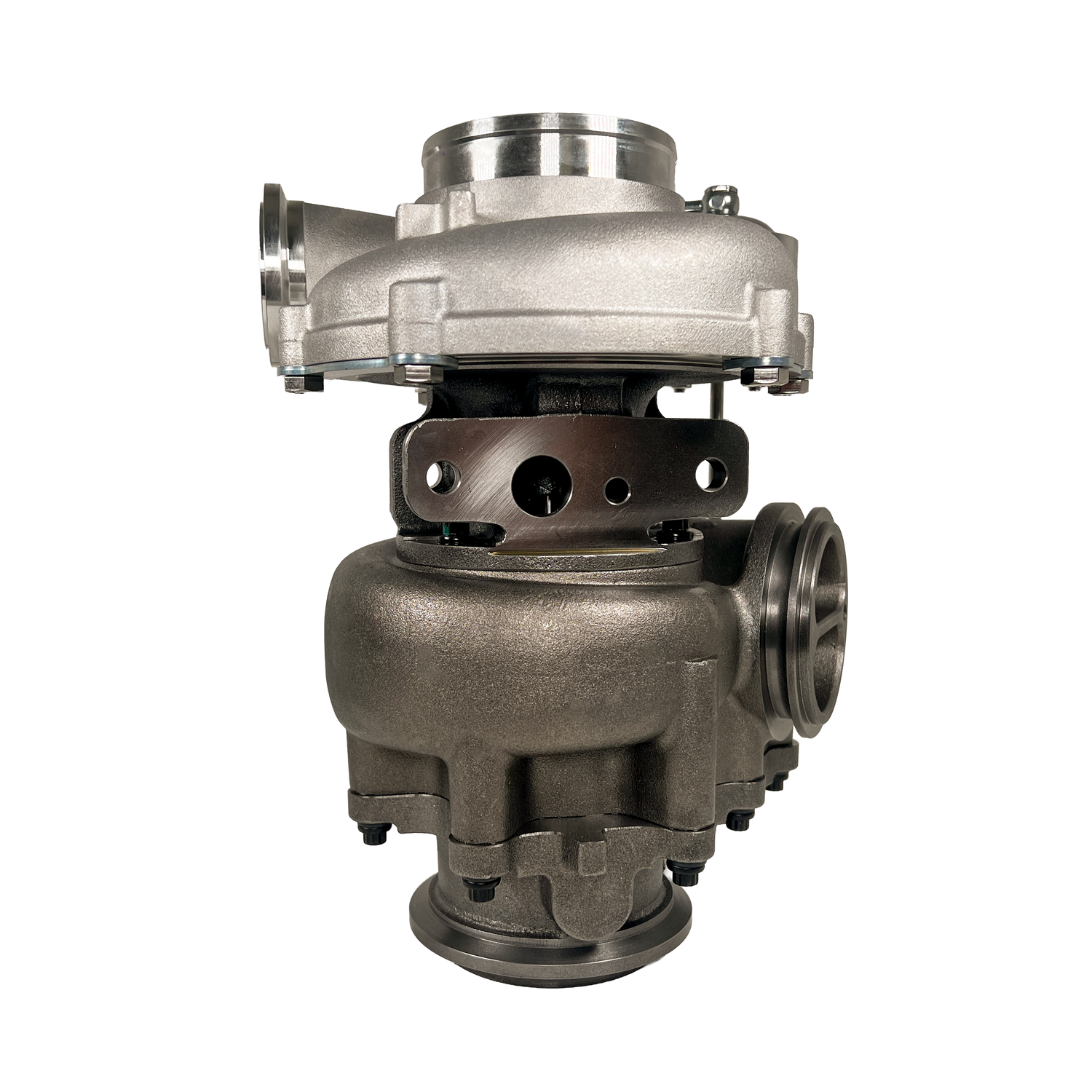

Improve your 7.3 Powerstroke's performance with the KC300x Gen 3 Stage 1 turbo. Built around a 3.5" ported housing with a redesigned 7x7 SXE-style compressor wheel and a thick-shaft SXE-style turbine wheel, this turbo combines quicker spool than the old 0.84AR with more airflow than the old 1.0AR. The redesigned bearing housing fits 200% larger thrust bearings and upgraded journal bearings on an integrated cast-iron backing plate for stability at elevated boost and HP levels.

Part Number: 302676

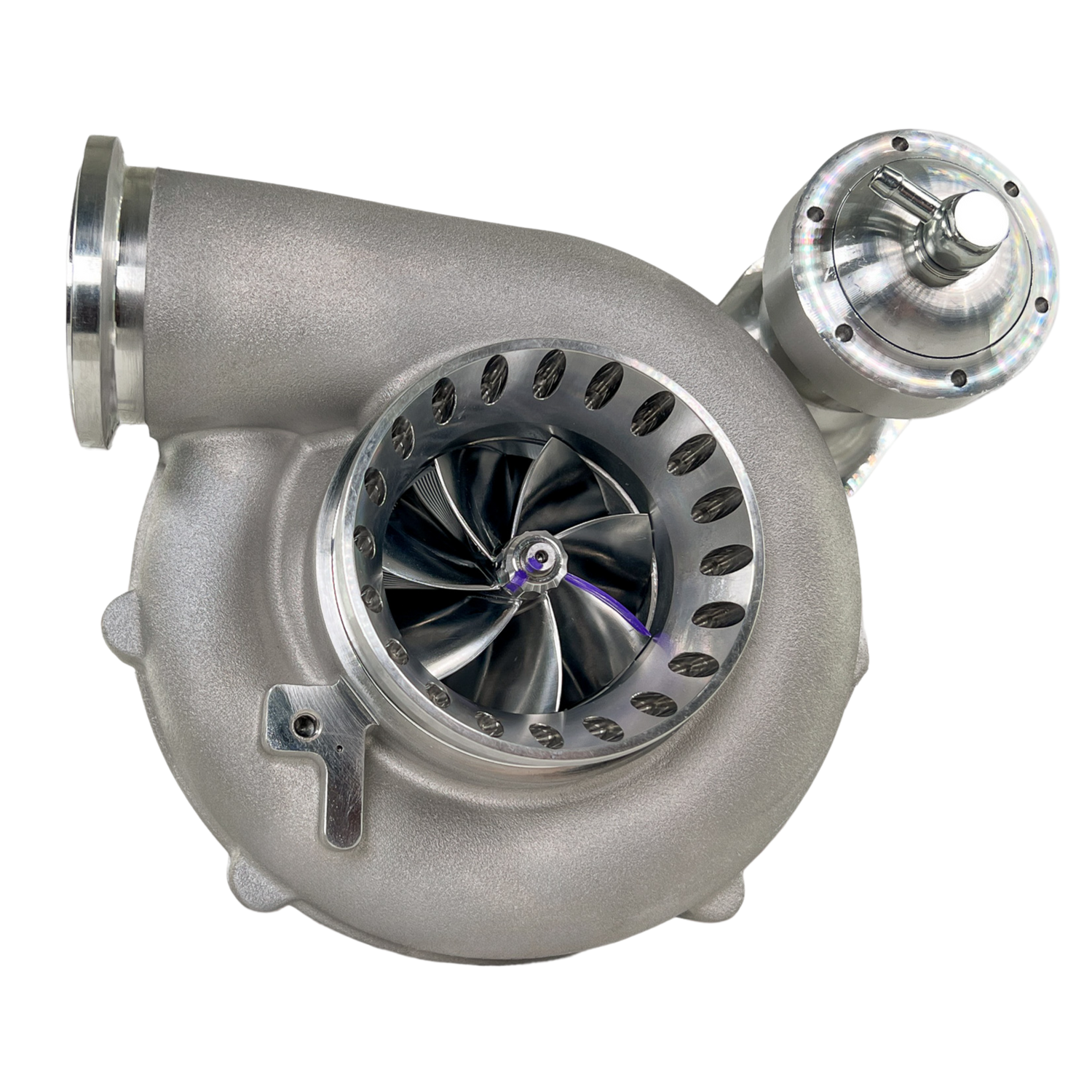

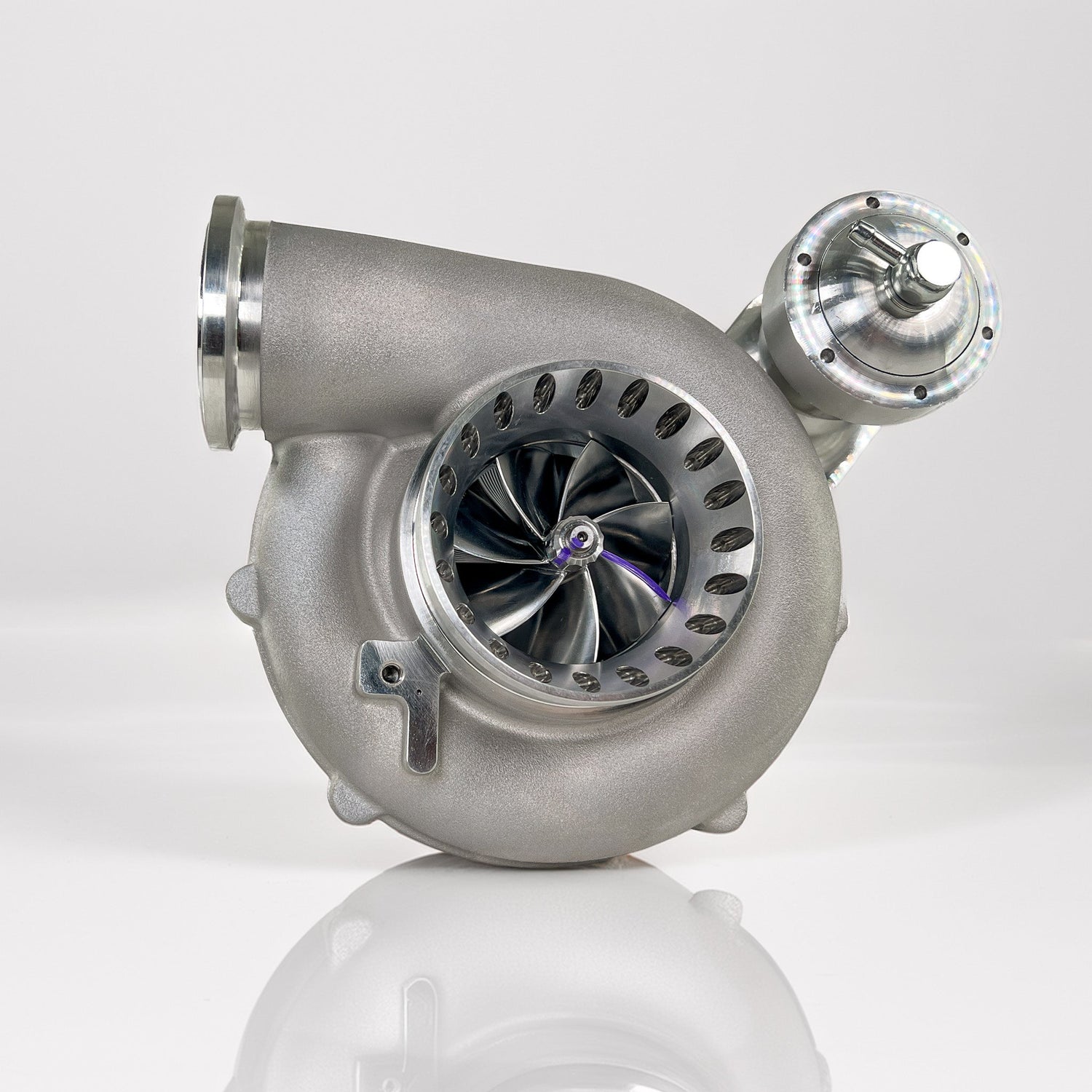

• 3.5" ported compressor housing with drilled anti-surge for high flow
• Redesigned Gen 3 7x7 SXE-style compressor wheel with extended-tip technology
• SXE-style turbine wheel with thicker shaft
• 0.70 AR redesigned compressor cover (improved MAP groove, anti-surge ring, volute shape)
• 0.91 AR turbine housing — spools faster than 0.84AR, flows more than 1.0AR
• 200% larger thrust and journal bearings
• Cast-iron backing plate integrated into bearing housing for stability
• Steel thrust insert reinforces oil slinger and piston seal contact areas
• High-flow non-EBPV outlet flange

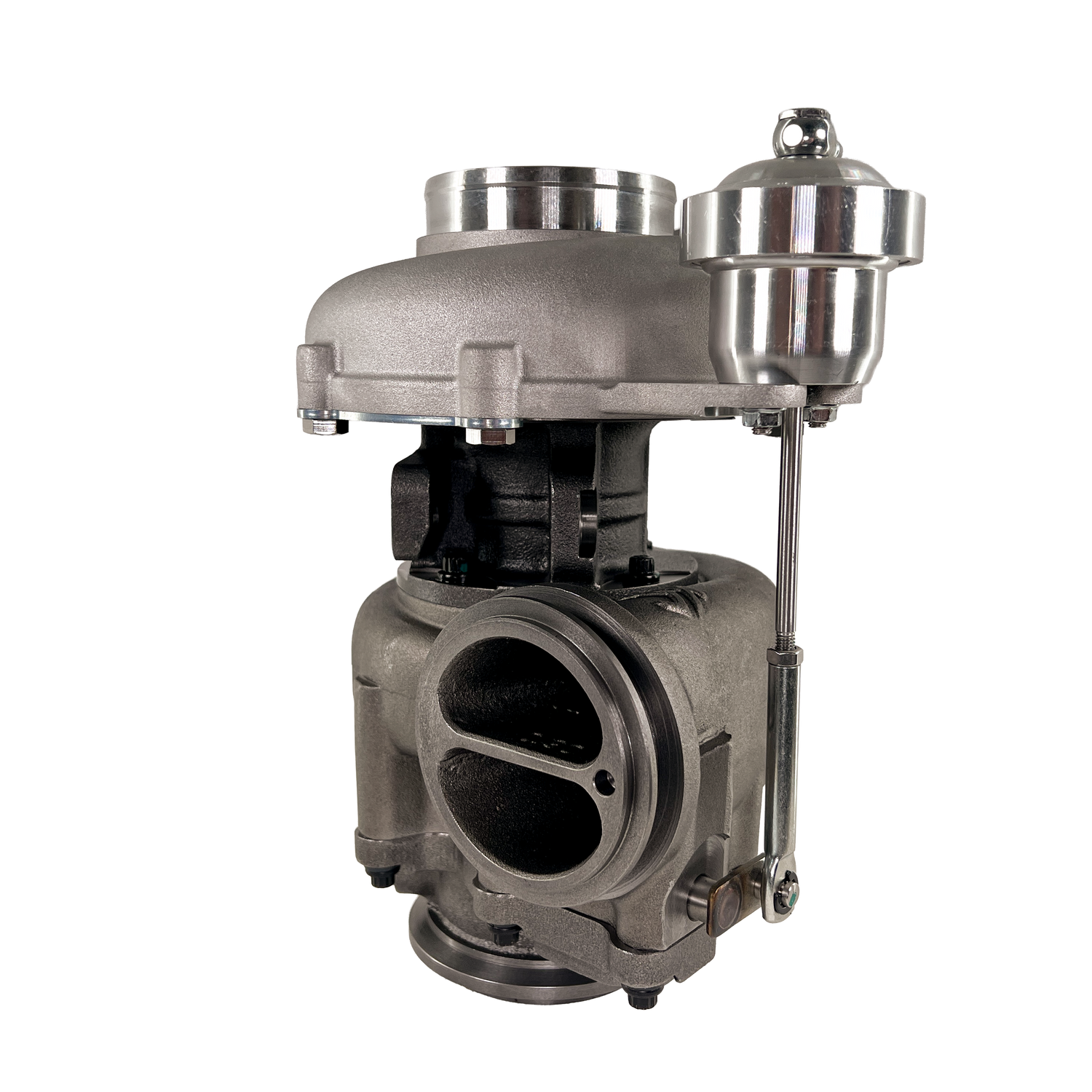

• Redesigned round-top wastegate actuator for boost control

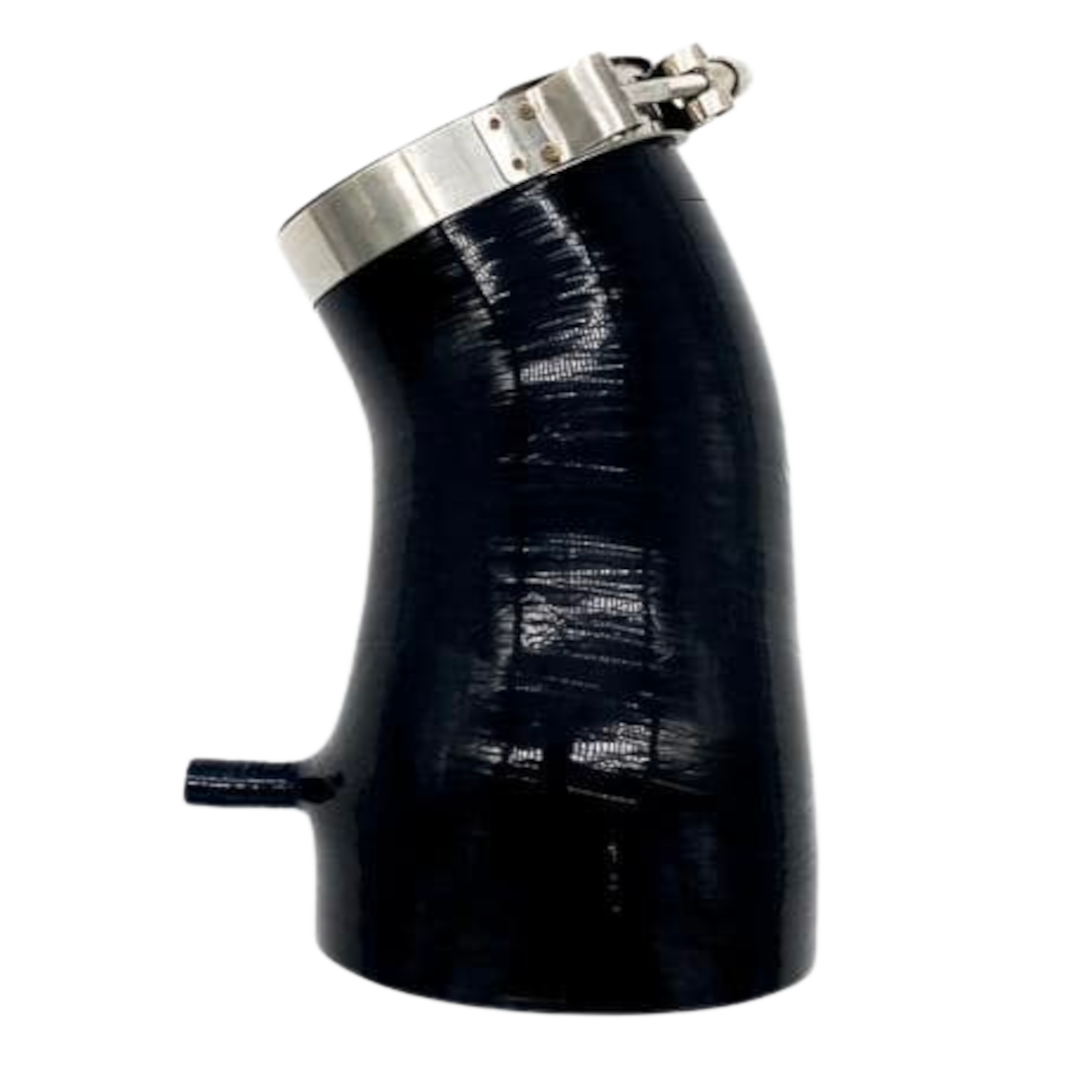

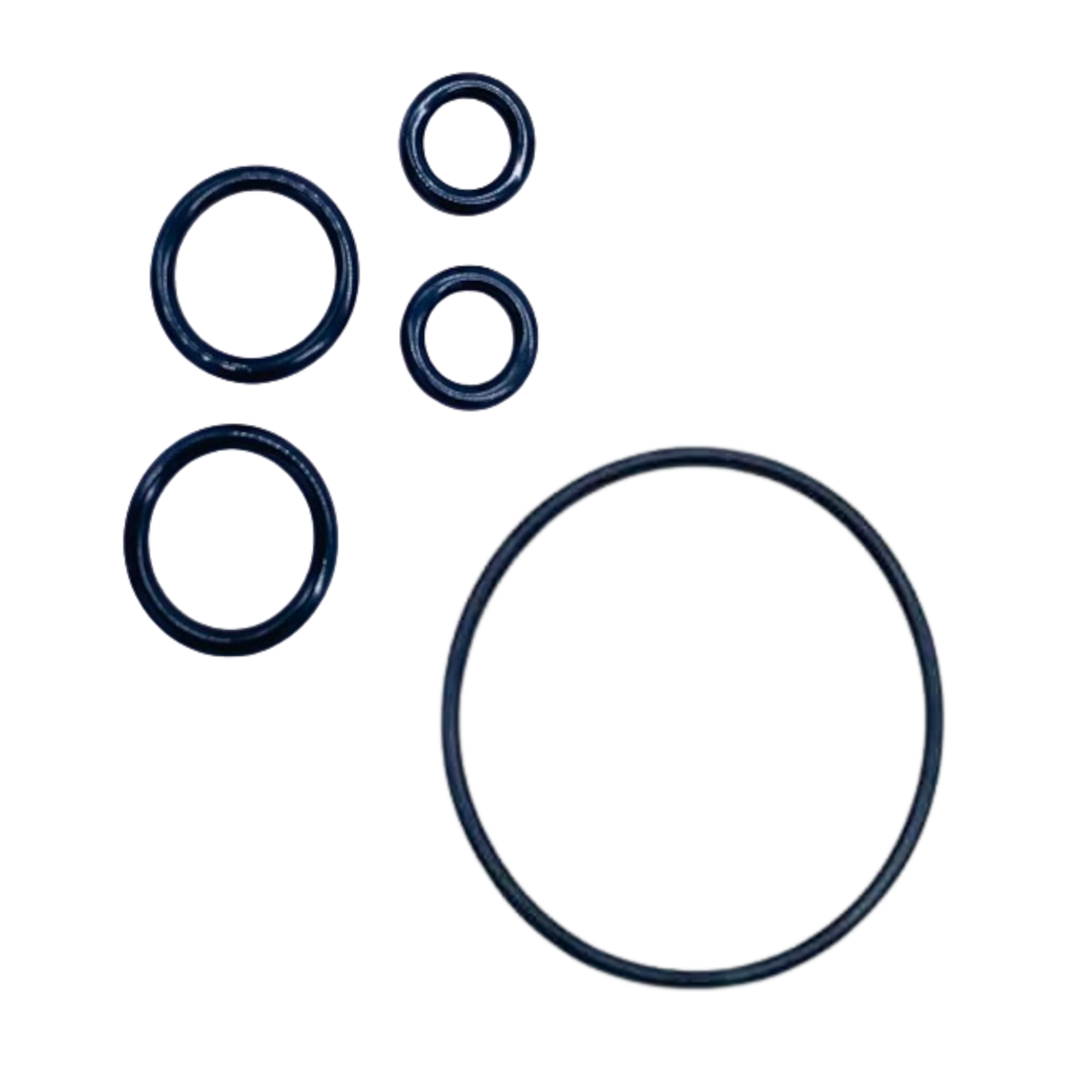

• Includes all gaskets, o-rings, and a new 3.5" intake boot
• 100% drop-in (no modifications required)
• 1-year unlimited miles limited warranty

• Designed for 7.3-equipped pickup trucks. Vans require modification of the turbo intake boot and down-pipe.
• Will not fit OBS (1994–1997) trucks without modification.
• Fitment with aftermarket fuel systems, plenums, and piping kits cannot be guaranteed.
• Exhaust brakes: some brands may cause clearance issues, rub the turbine wheel, or hinder performance. Fitment and function with exhaust brakes is the customer's responsibility.
