1994-2003 Powerstroke PHP Hydra Chip (300020)
KC Turbos
Part Number:
300020
Regular price
$718.56 CAD
Unit price
Purchase to earn 718 Dirty Dollars Learn More
Description
Description

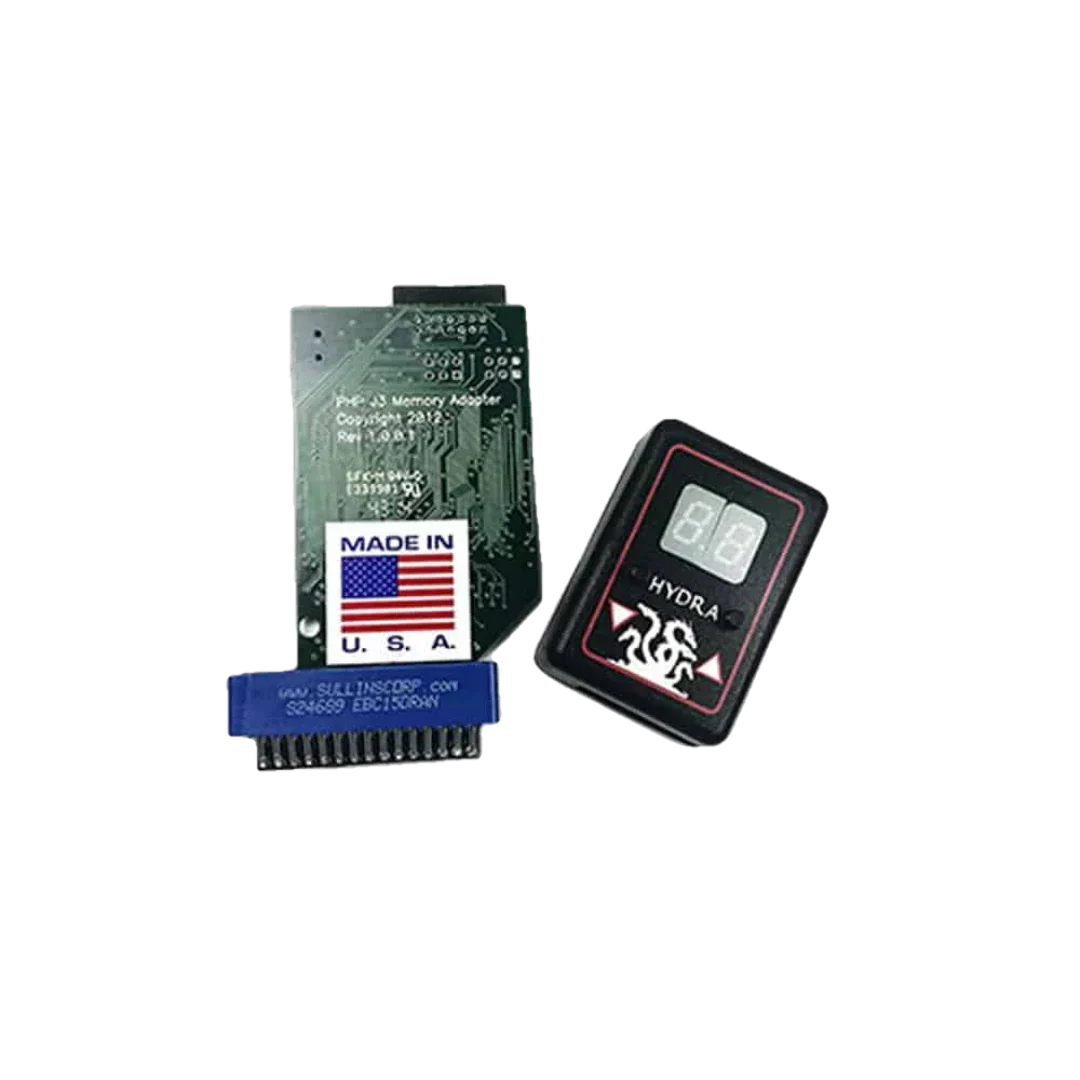

The Power Hungry Performance Hydra Chip is a 17-position programmable chip for 7.3 Powerstroke trucks, giving you on-the-fly access to up to 15 tuning presets plus a No-Start and Module Bypass position. The included two-digit LED switch lets you always see which preset is active and change it in seconds, and HydraFlash™ software lets you update or reprogram the chip online with the entire PHP calibration library.
Part Number: 300020
Tune Positions
Tune Positions
| Position | Tune | Notes |
| 1 | Stock / Modified Stock | Factory-level calibration for emissions or diagnostic use |
| 2 | 25 HP Extremely Heavy Tow | Loads over 12,500 lbs |
| 3 | 40 HP Heavy Tow | 10,000 to 12,500 lbs |
| 4 | 65 HP Moderate Tow | 7,500 to 10,000 lbs |
| 5 | 80 HP Light Tow | Up to 7,500 lbs |
| 6 | 65 HP Daily Driver | All-around driving and economy |
| 7 | 80 HP Daily Driver | Everyday power with a bit more punch |
| 8 | 65 HP Performance | More aggressive than a daily tune |
| 9 | 80 HP Performance | Stronger performance fuel curve |
| 10 | 100 HP Performance | Aggressive fuel curve, supporting mods recommended |
| 11 | 100 HP Race | Race calibration, supporting mods recommended |
| 12 | 120 HP Race | Race calibration, supporting mods recommended |
| 13 | 140 HP Extreme | Largest tune on stock injectors, supporting mods recommended |
| 14 | High Idle 1,000 RPM | Ideal for PTO operation |
| 15 | High Idle 1,100 RPM | Raised idle for accessory load |
| 16 | High Idle 1,200 RPM | Highest idle preset |
| 17 | Whisper Mode™ | Quiets the truck so you can idle at the drive-thru without shutting down |
Valet Mode (25 / 35 / 45 mph) and Teen Driver™ (65 / 75 mph) speed-limiting options are also available.
Features
Features
- 17 total memory positions (15 tunes + No-Start + Module Bypass)
- Removable two-digit LED display switch mounts on any flat surface

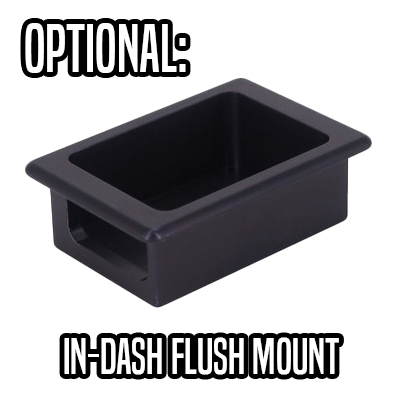

- Optional dash-mount bracket and USB extension for permanent installation
- Reprogrammable online with free HydraFlash™ software
- Supports most competitors' calibrations
- Fully compatible with PATS-equipped vehicles
- Tunes range from 25 HP Heavy Tow up to 140 HP Extreme, plus High Idle, Valet, Whisper, and Teen Driver modes
- Reads the factory PCM calibration directly through the chip

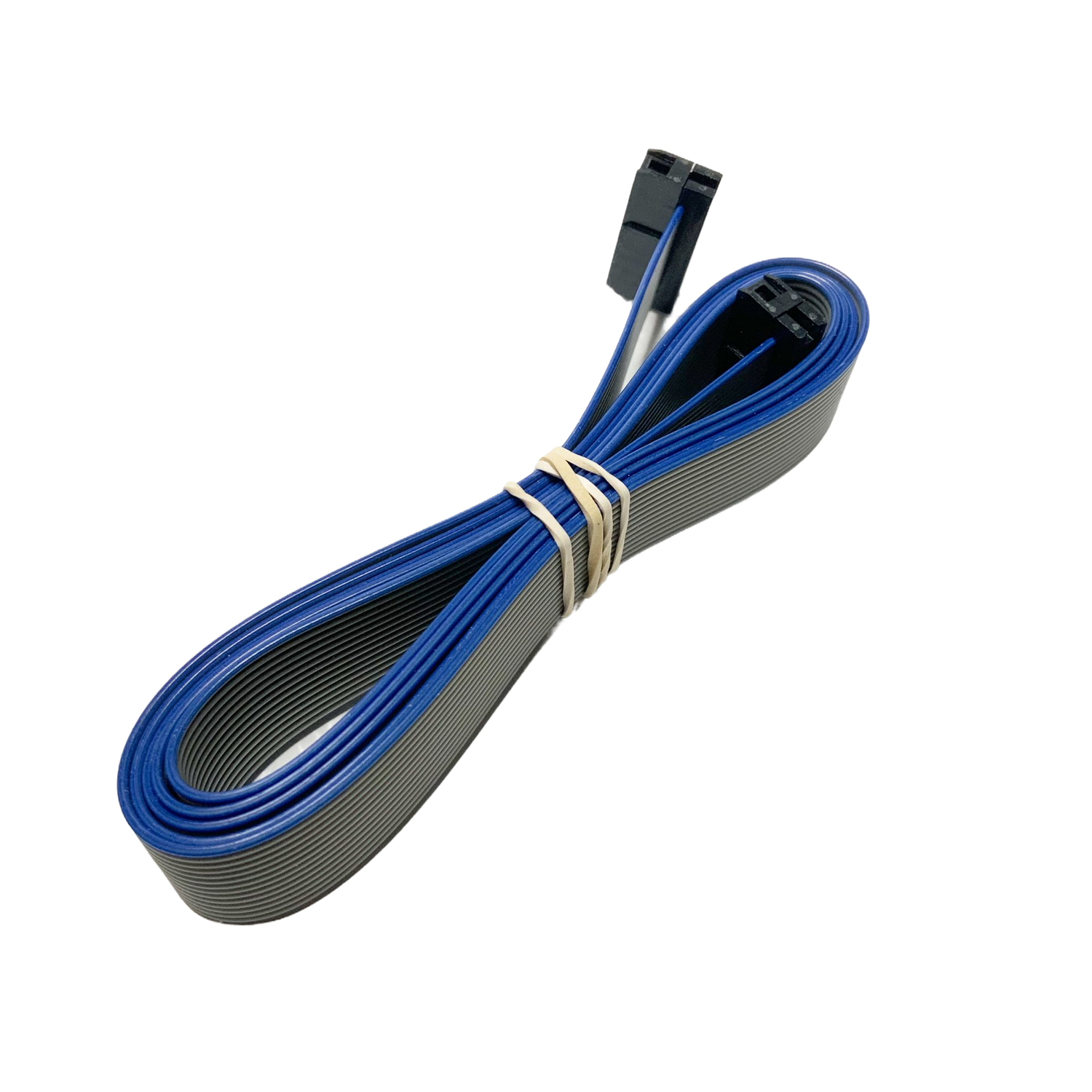

- Includes chip, digital switch, ribbon cable, and USB cable
Notes
Notes
- 100 HP and larger tunes are best paired with supporting fuel and air upgrades.
- PHP calibrations are reprogrammable - new presets can be loaded any time via HydraFlash™.
Questions and Answers
Questions and Answers
Don't see your question? Ask us anything about this product.
Ask a Question
1994-2003 Powerstroke PHP Hydra Chip (300020)
Vehicle Fitment - Part No: 300020
Loading Fitments...
Customer Reviews
Overall rating: 5.0 / 5 from 10 reviews.
US Customer here - I ordered from this website and it was shipped out the same day by KC Turbos, AZ the same day via USPS Priority. Then I went to Hydrahelp.com for installation instructions and did the install / programming in few hours. I would highly recommend this product and also dirtydieselcustoms.
Easy and straight forward set up and downloading. Follow the enclosed instructions and it is an easy process.
Love it
Works great and super simple to install. Very happy with the tuner
Dirty diesel is the spot you need to go if you need anything diesel… there such good people
Hands down best thing.. i recommend all diesel parts to these guys.. worth the momey spent
Easy to program and install and works great!
Quick easy install and worked perfectly
Great to deal with
