1999.5-2003 Powerstroke XR1 Series Turbocharger (702650-0001-XR1)
If your order ships from the USA, Canada charges an import tariff on US-made turbos. It's added at checkout as its own line, not built into the price.
Purchase to earn 2385 Dirty Dollars Learn More
Description
Description
Industrial Injection XR1 Series turbocharger for 1999.5-2003 Ford F-Series 7.3L Powerstroke. A modified drop-in turbo — 66mm billet blade compressor wheel (vs. 60mm stock), 88mm exducer (vs. 80mm stock), slim-nose wheel design, and an upsized 1.00 A/R turbine housing (vs. .84 stock). Retains OE bolt-up geometry.
The billet blade compressor wheel is stronger than the cast OE wheel. The 1.00 A/R turbine housing trades spool for top-end flow versus the .84 A/R version. Optional polished compressor cover available at additional cost.
Features
Features
- Drop-In Replacement — OE Bolt-Up
- 66mm Billet Blade Compressor Wheel (Stock 60mm)
- 88mm Exducer (Stock 80mm)
- Slim-Nose Compressor Wheel Design
- 1.00 A/R Turbine Housing (Stock .84 A/R)
- Helps Lower EGTs
- Optional Polished Compressor Housing (Additional Cost)
- Part Number: 702650-0001-XR1
Notes
Notes

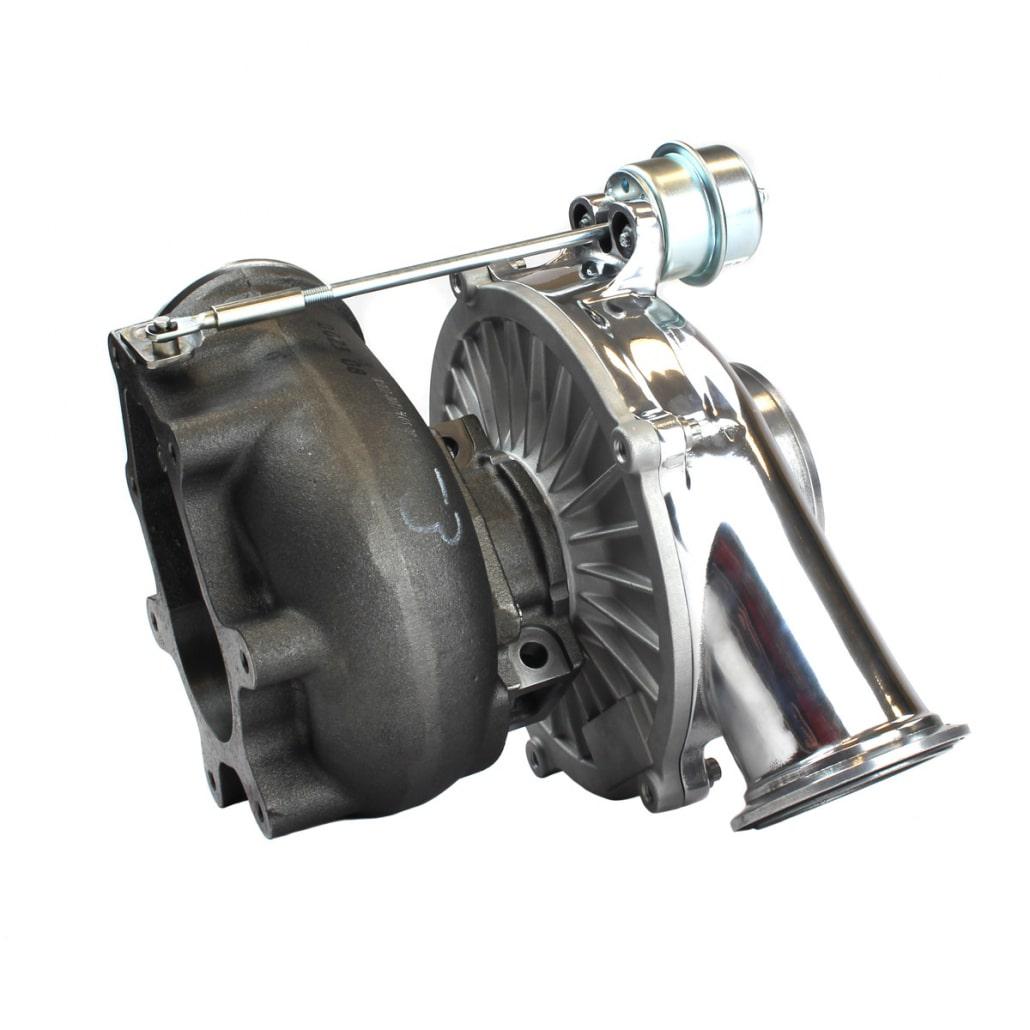

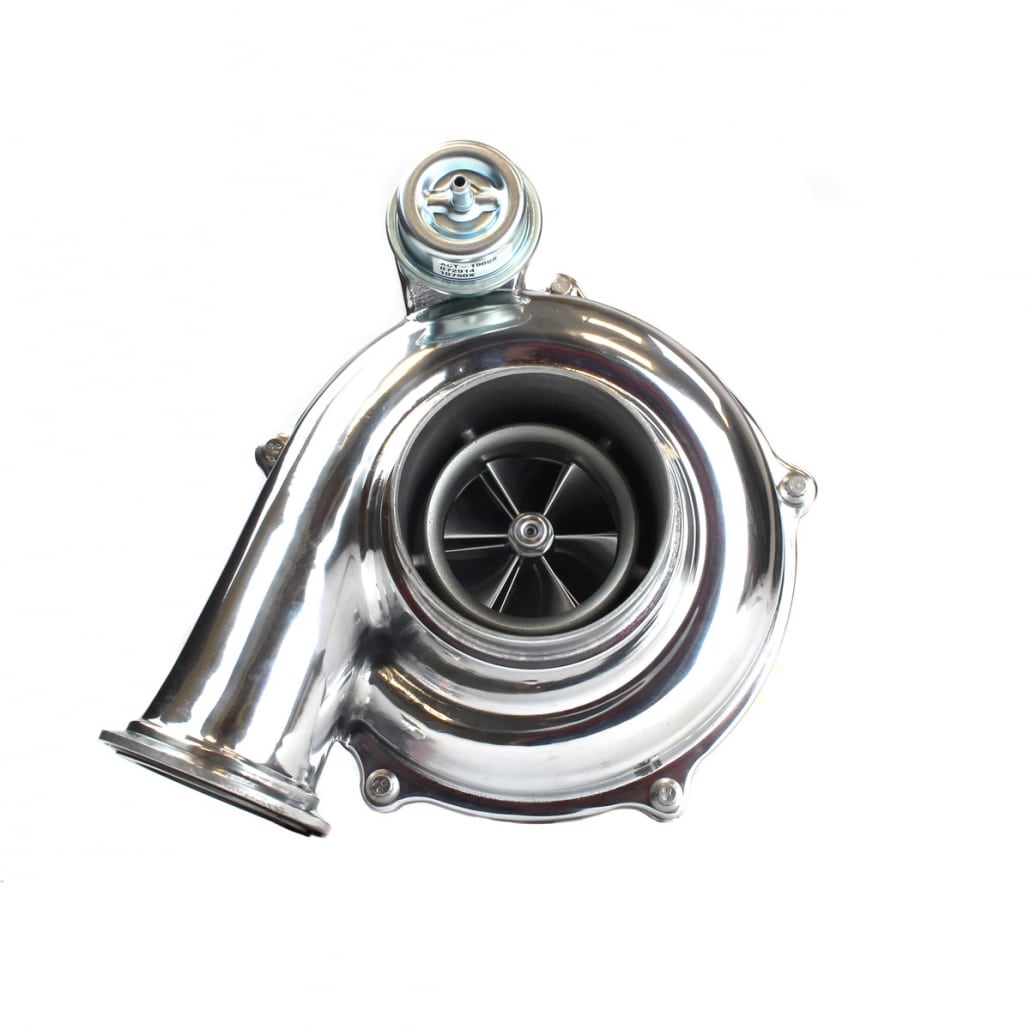

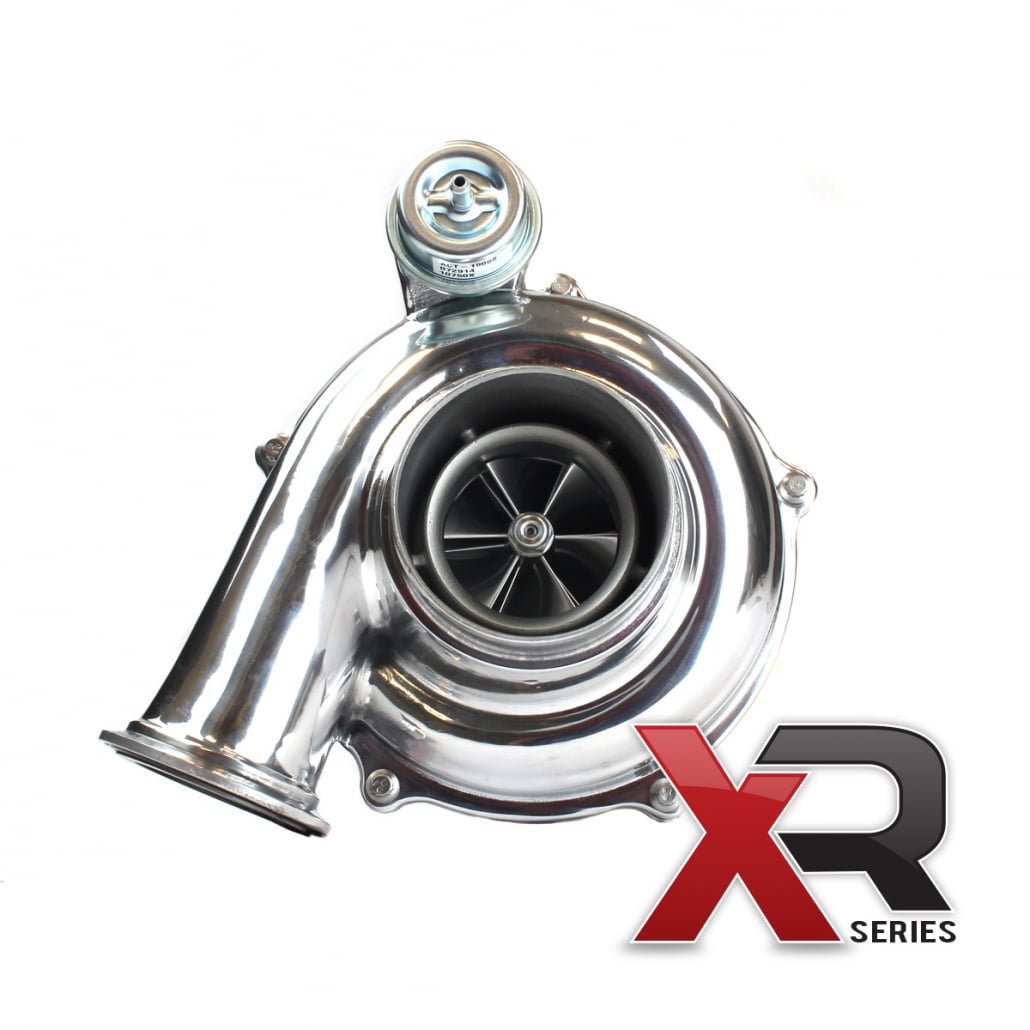

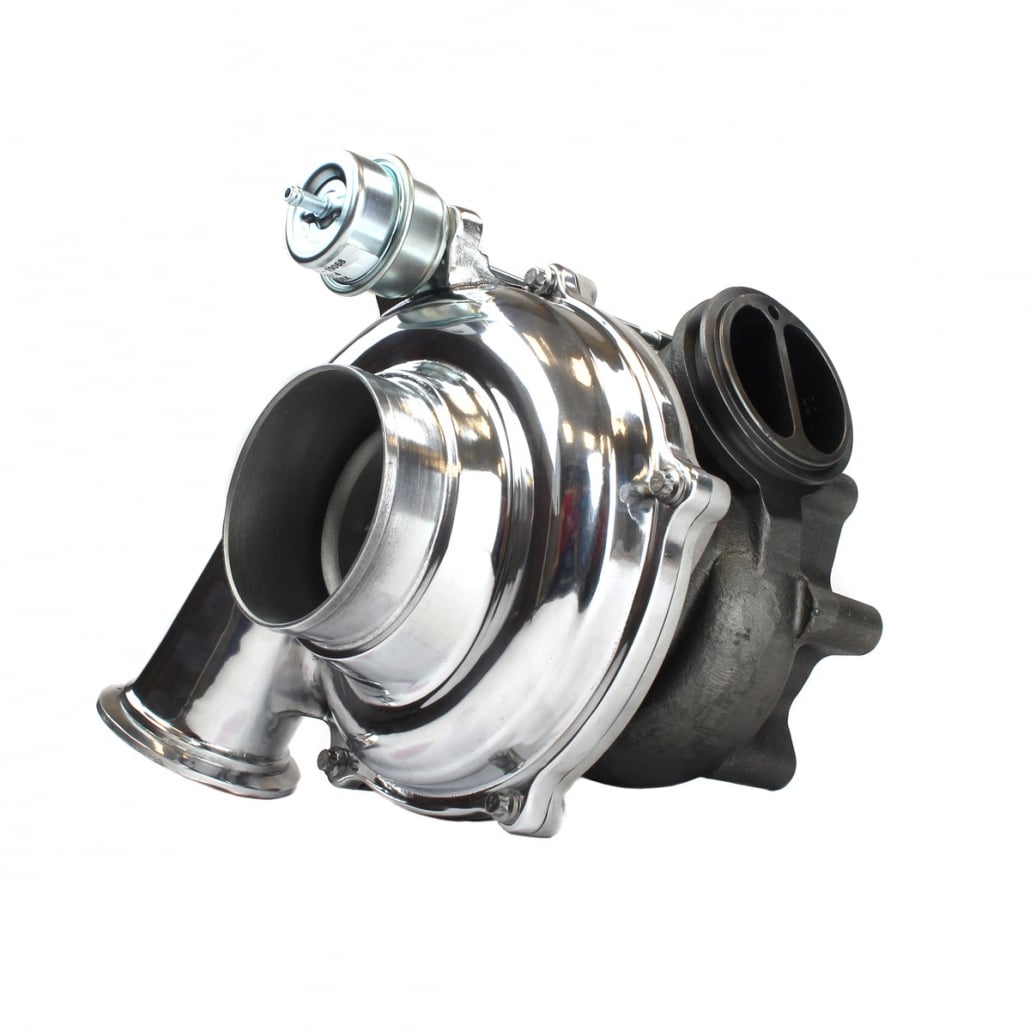

- Image is of the optional polished compressor cover.
- For the same XR1 with a .84 A/R turbine housing (faster spool, less top-end), see the 706447-0003-XR1.
- Core deposit applies — keep your old turbo and return it to recover the deposit.
