1998.5-2002 Cummins Stage 1 Camshaft 188/220 (PDM-567RV)

Industrial Injection
Regular price $969.31 CAD

This product will automatically bundle the following item:

Purchase to earn 969  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

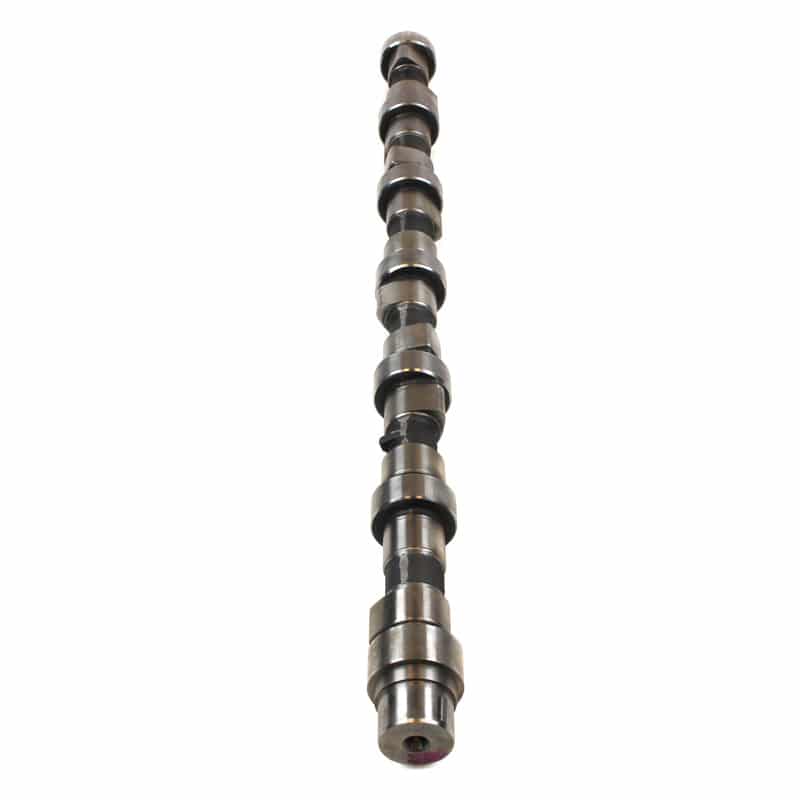

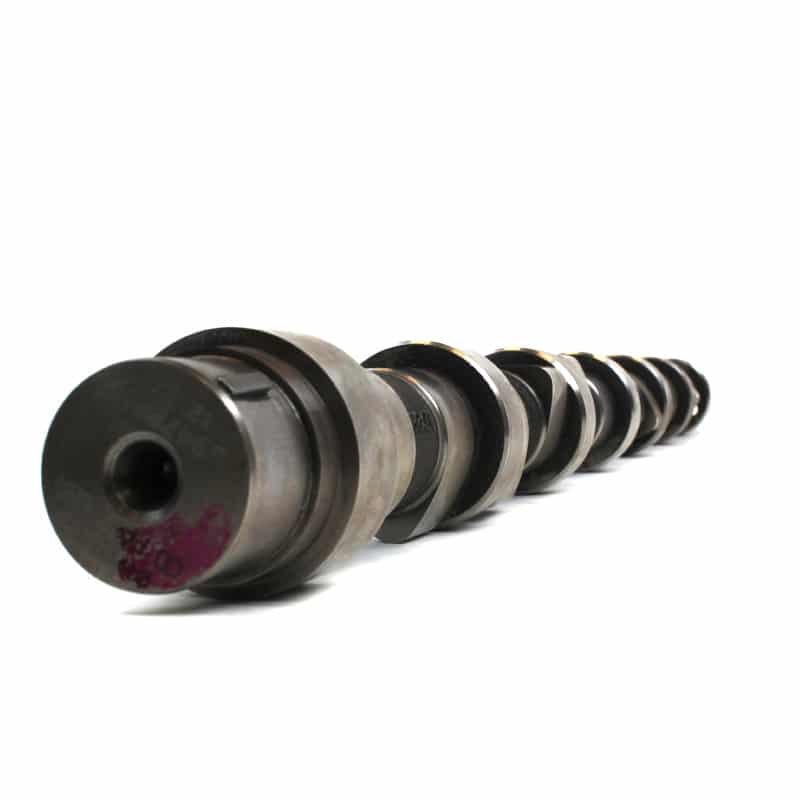

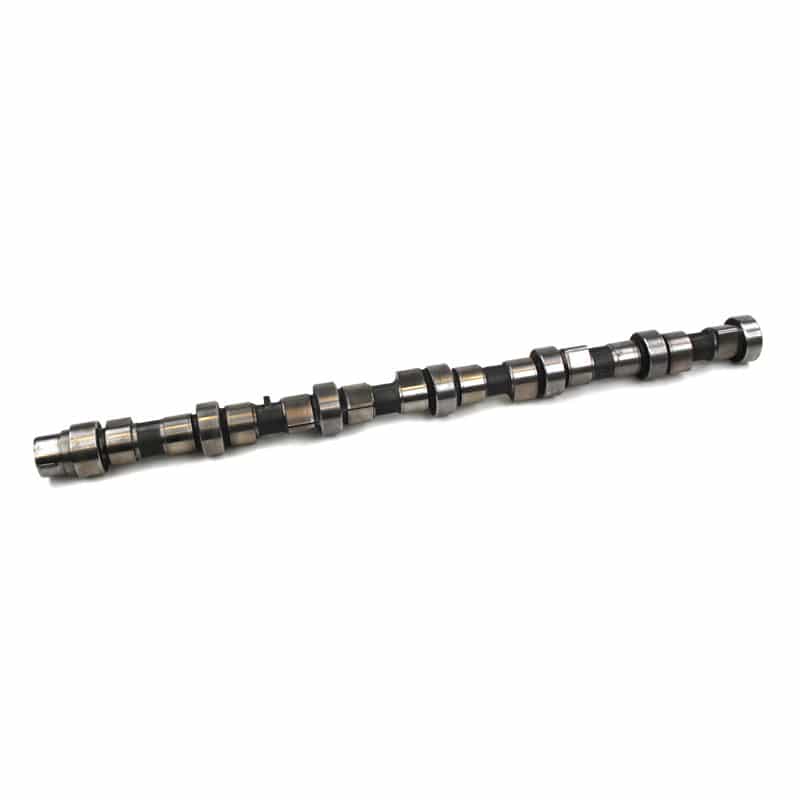

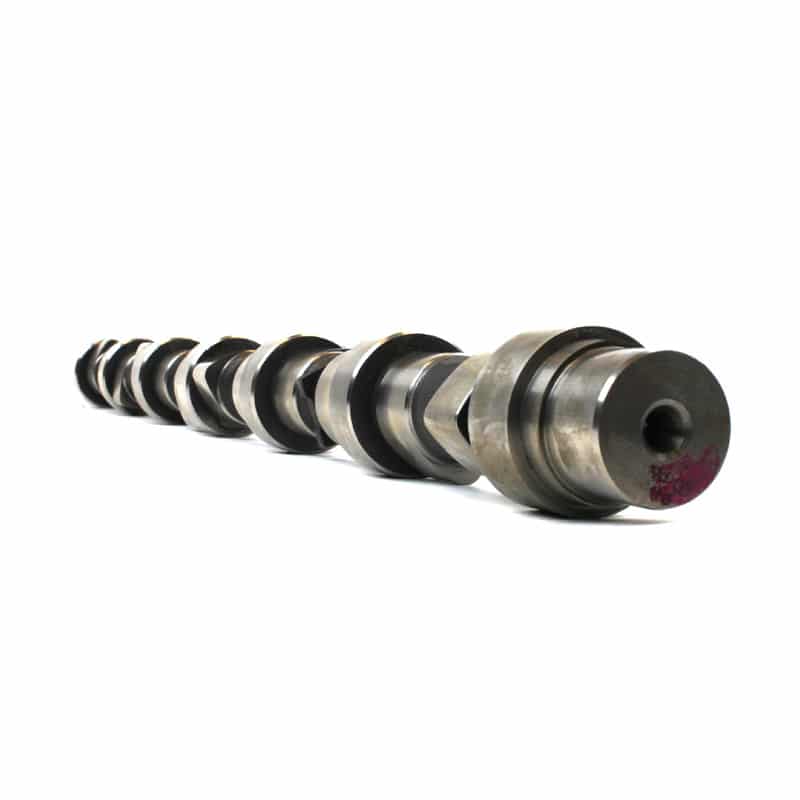

Industrial Injection Stage 1 performance camshaft for 1998.5-2002 Dodge Ram 2500/3500 5.9L 24V Cummins. A drop-in 188/220 spec cam ground for trucks that want a little more top-end pull and lower EGTs without needing piston-to-valve clearance work or upgraded valve springs.

The 188/220 spec is the mild upgrade in the IIS 24V cam line — modest duration increase over stock, optimized for daily-driver/tow use rather than competition. Drop in with stock pushrods and stock valve springs. Always measure piston-to-valve clearance on any aftermarket camshaft install.

Features

  • Stage 1 Drop-In Performance Camshaft
  • 188/220 Duration Spec
  • Lowers EGTs Under Load
  • Daily-Driver / Tow Friendly
  • Drops in with Stock Valve Springs & Pushrods
  • Part Number: PDM-567RV

Notes

  • Piston-to-valve clearance should always be measured when installing an aftermarket camshaft. Minimum .025" piston protrusion and at least .038" valve face depth with a standard-thickness head gasket.
  • For the bigger 210/220 race-only cam (requires .100" valve reliefs and upgraded springs/pushrods), see the PDM-567HP Stage 2 Race Cam.
  • Core deposit applies — keep your old camshaft and return it to recover the deposit.

Questions and Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

Vehicle Fitment - Part No: PDM-567RV


Product Fitment Notes
  • Measure piston-to-valve clearance on install — minimum .025" piston protrusion and .038" valve face depth with a standard-thickness head gasket.
