1998.5-2002 Cummins Stage 2 Race Performance Camshaft (PDM-567HP)
Purchase to earn 1107 Dirty Dollars Learn More
Description
Description

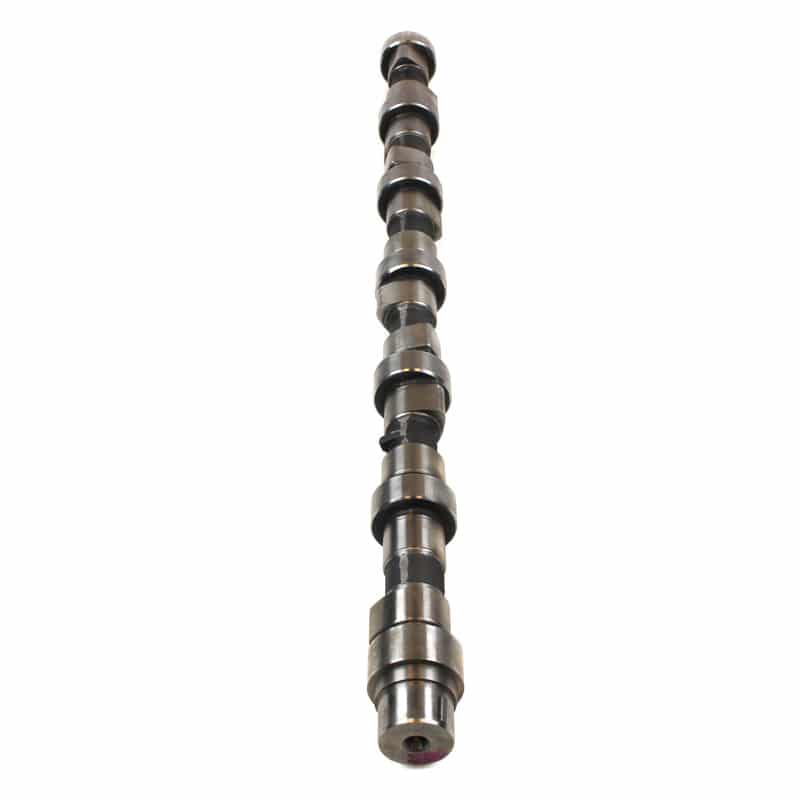

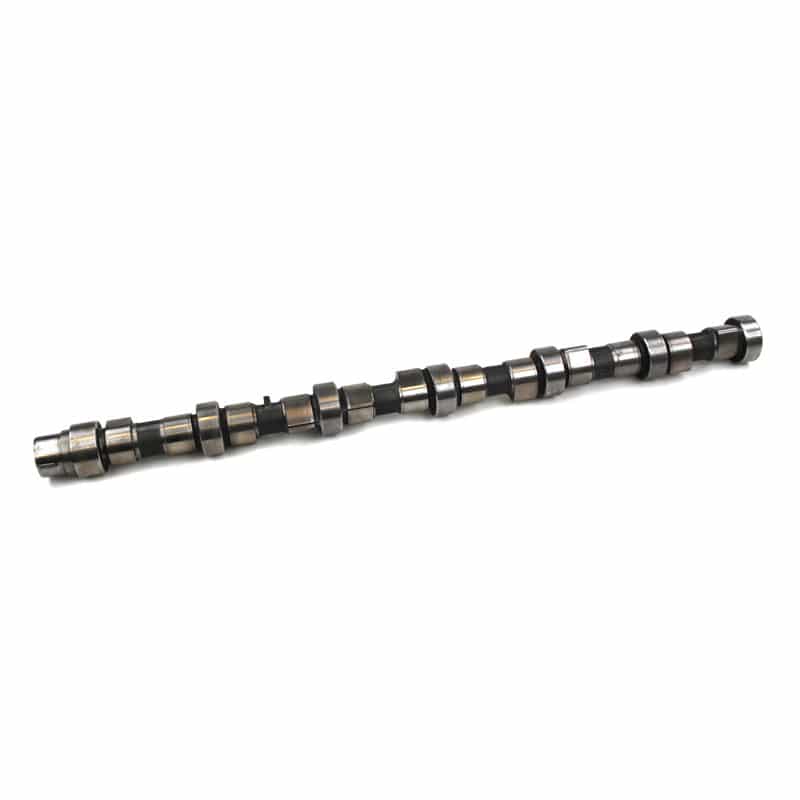

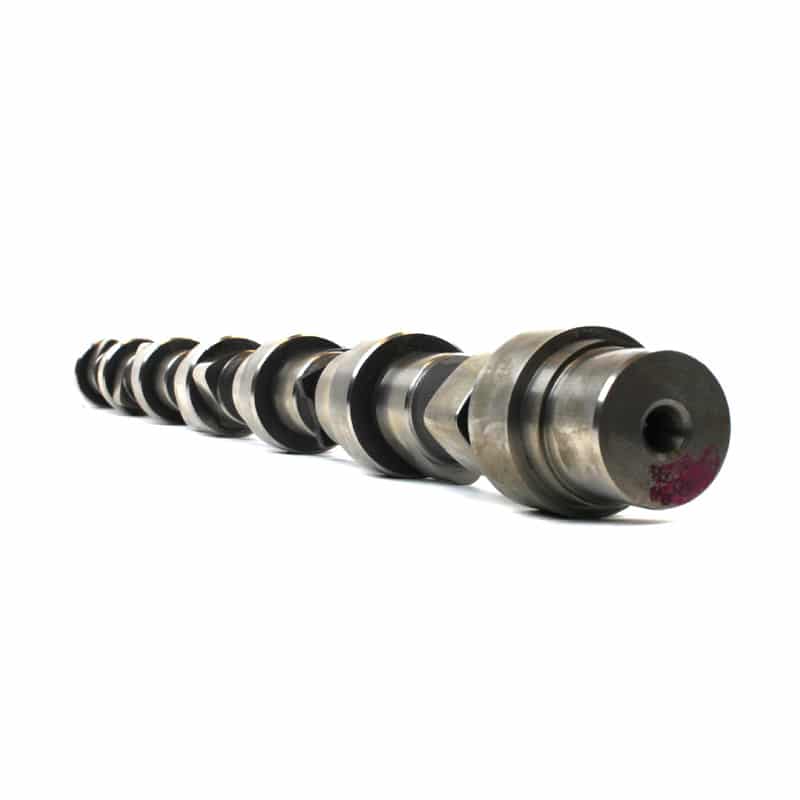

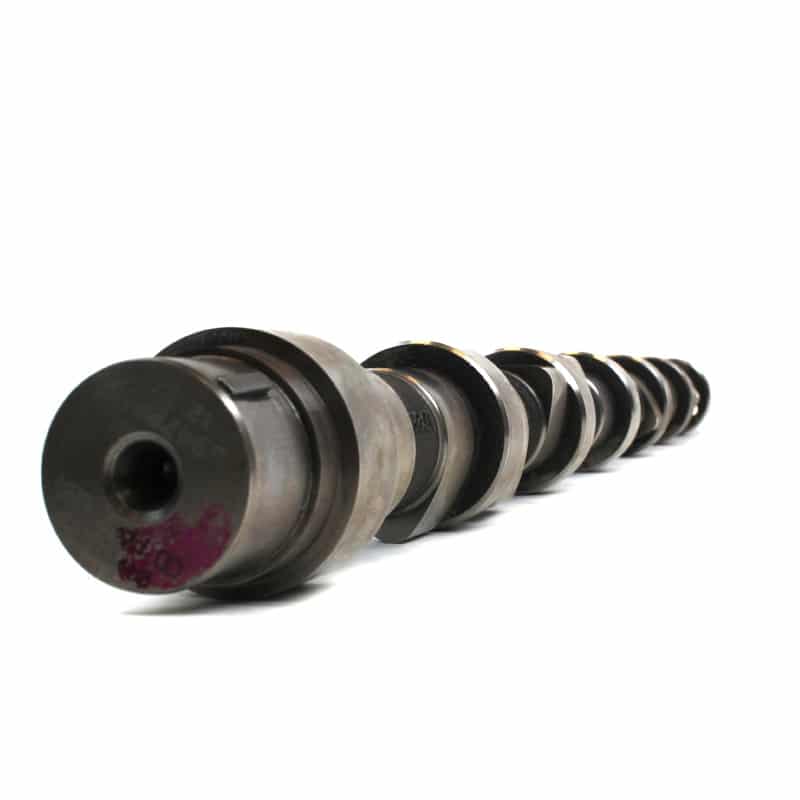

Industrial Injection Stage 2 race performance camshaft for 1998.5-2002 Dodge Ram 2500/3500 5.9L 24V Cummins. A 210/220-grind race cam tuned for the 2000-4800 RPM band — the cam for sled pullers and drag race builds where the Stage 1 isn't enough and where the engine has been opened up to run upgraded valvetrain.
Bigger duration than the Stage 1 means the pistons need to be fly-cut for valve clearance, and the heavier valve action means stock springs and pushrods aren't enough — plan on .100" valve reliefs in the pistons plus upgraded performance valve springs and chromoly pushrods at the same time as the cam swap.
Features
Features
- Stage 2 Race-Spec Camshaft
- 210/220 Duration Spec
- Optimized for 2000-4800 RPM Band
- Race / Sled-Pull Application
- Part Number: PDM-567HP
Notes
Notes
- Requires .100" valve reliefs in pistons — fly-cut required before install. Will not clear stock pistons.
- Requires upgraded valve springs and pushrods. See the PDM-160-1484S-24 95lb Performance Valve Springs and the 24EE03 Stage 1 Pushrod Set or 24EE02 Stage 2 Chromoly Pushrods.
- For the milder daily-driver/tow Stage 1 cam (drops in with stock springs/pushrods), see the PDM-567RV Stage 1 Camshaft 188/220.
- Core deposit applies — keep your old camshaft and return it to recover the deposit.
