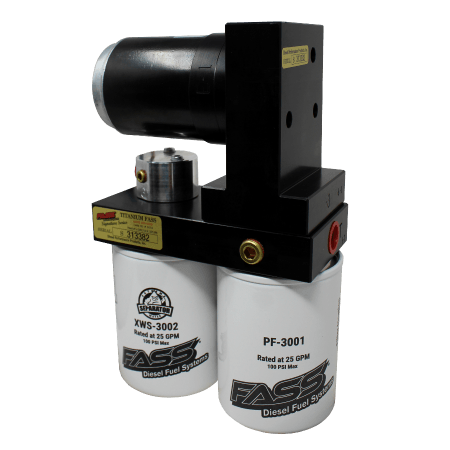

1998.5-2004 Cummins Titanium Signature Series 165GPH Lift Pump (TSD08165G)

Description

Fits

Power Rating: 600 - 900HP

Preset Fuel Pressure: 16-18PSI

Flow Rating: 165GPH

Filter Life Expectancy: 30,000 Miles

Filtration Rating: 2 Micron

Warranty: Limited Lifetime Warranty

This Titanium Series diesel fuel lift pump was engineered by FASS Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration system in the diesel industry. Rated at 165 gallons per hour and backed by a limited lifetime warranty this Titanium Series lift pump is capable of supporting your Dodge Cummins 5.9L engine with enough fuel for multiple aggressive fueling upgrades commonly used in competition. If you're running this for a performance-built Cummins, we highly recommend adding a bulkhead & suction tube kit to allow for a larger volume of diesel fuel to be retrieved and the added benefit of gaining a return system.

A Titanium Series lift pump also offers advanced filtration benefits that will help protect your injection systems, effectively extending the life of both your Bosch Injection Pump and Bosch Diesel Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Fuel Systems' patented air/vapor removal process. Aftermarket lift pumps are important for both daily drivers and high-performance applications when looking to improve either fuel economy or increase horsepower/torque.

FASS has taken the time to perfect its System before letting it hit the market and because of this, they have less than a 2% failure rating with its motor and a design that implements unique design features you can only get with Fass Diesel Fuel Systems.

Part Number: TSD08165G

Superseded Part Number: TS D08 165G

Features

• New Whisper Technology
• New Bolt On Bracket Installation
• Removes Water, Air, and Debris From Diesel Fuel
• Protects and Extends The Life Of Your Injectors
• Improved Cold Weather Starts
• ½ Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Quietest Motor On The Market
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy

Notes

• If you've converted to an In-Tank Pump, use the TSD07165G Kit!
• It is suggested for this higher performance System to upgrade your System kit to also purchase a Bulkheading and Suction Tube kit (STK-1002).  This bulkhead kit allows for a larger volume of diesel fuel to be retrieved by the fuel System and will offer a convenient return option.  This is important for high-performance Dodge Cummins application that demands a large amount of diesel fuel for aggressive fueling upgrades.

Additional Info

FASS Whisper Technology (FWT)  was engineered to meet the stringent demands of today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.

Bolt On Bracket Mounts is the latest update we have made to our Titanium Series lift pumps.  Old mounting styles required drilling or welding when mounting your new pump.  This has now been simplified with our new bolt-on brackets that utilize your Dodge Cummins factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Series lift pump takes only minutes and all brackets are made from machined steel for superior support and strength.

The FASS Fuel Systems are important for both daily drivers and high-performance applications when looking to improve engine operation. The added filtration with the removal of air/vapor will greatly enhance the life of your fuel injection system along with improving the horsepower/idle quality/throttle response/fuel economy/lower EGT’s & extreme cold weather operations if equipped with FASS fuel heating options.

Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90° sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90° fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
