1994-2002 Cummins Pintop 2.5” Lift Kit (CS-DPT25-94)

Fits

Note: Review 'Additional Info' for required and optional components

One of the best off-road suspension systems Carli offers, the Pintop 2.5" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-DPT25-94

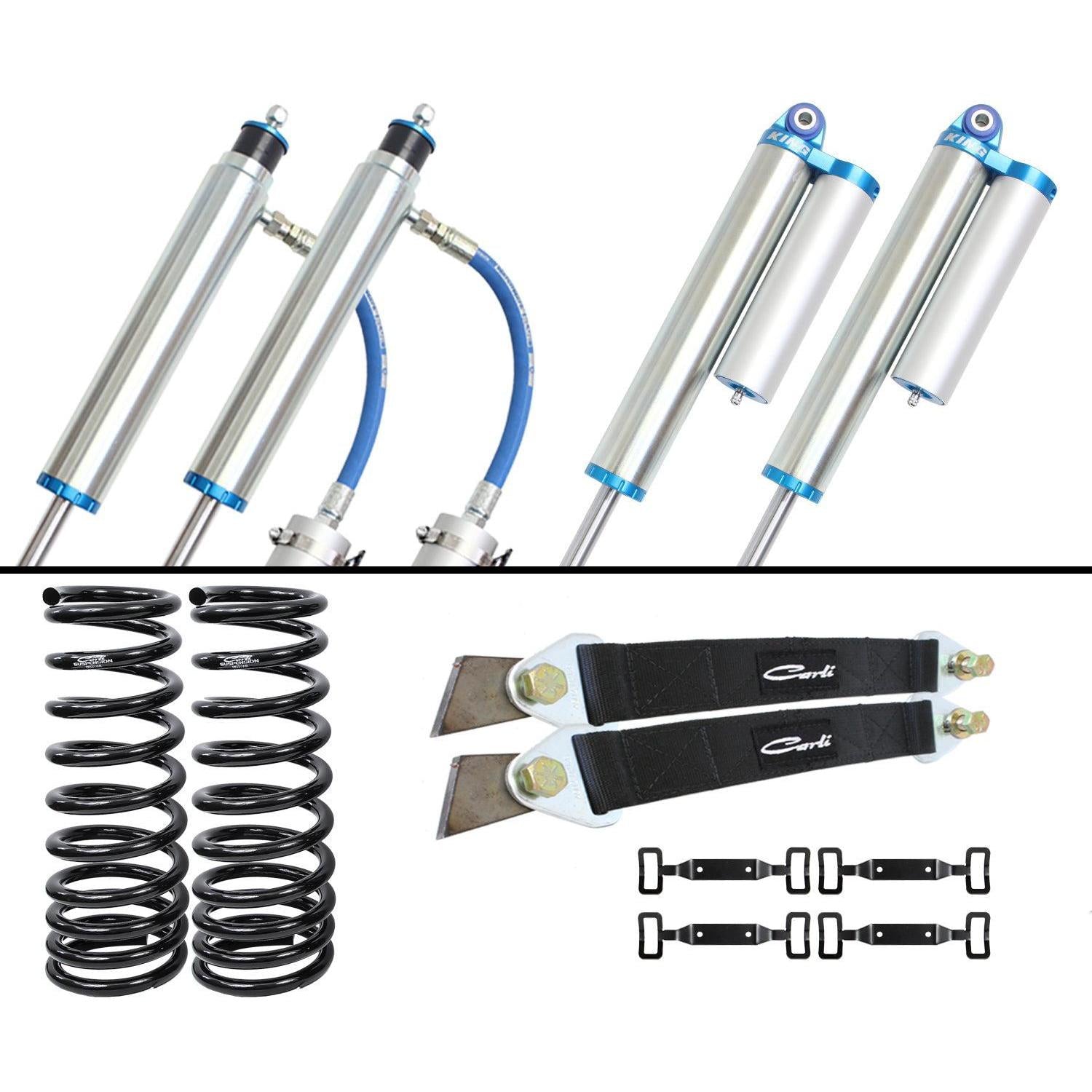

• Linear-rate front springs and front and rear shock package
• Allows for 10" of front suspension travel and 12" rear
• Allows for the fitment of 35" tires


• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): CS-DEL-94 or CS-DEL-985
  • Control Arms: CS-CA-MS14-94 or CS-CA-MS16-94,
  • Front Diff Guard: CS-DFSP-94
  • Leaf Springs: CS-DFSP-94 (REQUIRES BUT DOES NOT INCLUDE - 5" Bump Stop Drop Bracket (Or Timbren PN: DR1525H4)

• 2.5” Rear Piggyback Reservoir shocks should be drained of nitrogen and cycled to their collapsed dimension to ensure the reservoirs clear all under-bed crossmembers. These shocks mount body down, shaft up, reservoirs point AWAY from the axle.
• The passenger’s side will require a 3”x 1.5” Section to be removed to clear the shocks. Once confirmed, install rear shocks to full extension and charge to 225psi of Nitrogen.
