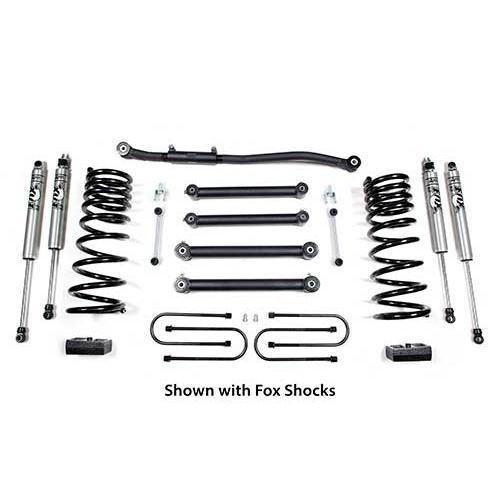

2003-2013 Cummins 3" BDS Lift Kit (BDS690H)

This 3" lift kit features 3" front Pro-Ride dual-rate coil springs providing great ride and performance in all conditions. Fixed length, greaseable, heavy-duty round tubular construction UCAs and LCAs position the axle properly and adjust for proper caster and pinion angles. Fixed length sway bar links with stud eliminator. The sway bar link setup converts the failure-prone stem style factory sway bar links to an eye-to-eye design providing greater strength, longer service life, and greater range of motion. An adjustable front track bar is included as well to center the axle. Not only is the kit designed to last, but so is the finish. Every bracket is electro-coated black to ensure the long-term performance of our finish.

Tire & Wheel Combinations:

  • 35" x 12.50" w/ 17 x 9 and 5"

Notes:

  • Measure rear axle tube before ordering. Some 4" axle models have dual overloads that will require #4063 u-bolts.
  • Rear lift options will not fit dually applications
  • Not recommended for PowerWagon models
  • Will not fit Cab and Chassis models

Installation:

Part Number: BDS690H

Base Kit


2006-2008 Cummins 6" Front Coil Springs (Pair) (BDS032301)-Coil Springs-BDS-BDS032301-Dirty Diesel Customs

6" Front Coil Springs


Show more

Front Box Kit


3" Front Box Kit

This Box Kit includes the following products:

  • 2 Upper Control Arms (17.25" long)
  • 2 Lower Control Arms (19.25" long)
  • 8 UCA Bushings
  • 4 0.75 x 0.095 x 2.40 DOM Sleeves
  • 8 90 Degree grease zerks
  • 2 14mm-2.00 prevailing torque nuts
  • 2 14mm-2.00 x 150mm bolts
  • 4 9/16" SAE flat washers
  • 8 1 B100 - 8 x 10 polybags
  • 8 LCA Bushings
  • 4 1.00 x 16mm ID x 2.60 DOM Sleeves
  • 2 1.00 x 18mm ID x 2.60 DOM Sleeves
  • Adjustable Track Bar Assembly
  • Bag Kit - Trackbar
  • 4 Bushings
  • 2 Trackbar Sleeve 14mm ID
  • 2 Trackbar Sleeve 16mm ID
  • 4 5/16"-18 x 1-1/4" Allen Bolt
  • 2 Sway bar u-brackets
  • 2 Sway bar links (6")
  • 2 EB1 - 3/4" ID - wide bushings
  • 2 EB1 - 5/8" ID - narrow bushings
  • 2 0.750 x 0.095 x 2.288
  • 2 1.25 x 0.219 x 0.70 spacer sleeves
  • 2 5/8" x 10mm ID x 1.375 Rolled Sleeves
  • Loctite

Show more

Rear Lift Option

Note: Please measure your rear axle and select the appropriate rear kit for your vehicle.

2" Rear Block Kit - (3.5" Axle Tube)

This Box Kit includes the following products:

  • 2 2" rear blockS - 3/4" centrepin
  • 4 9/16 x 3.50 x 12-1/2" U-bolts

Show more

2" Rear Block Kit - (4" Axle Tube)


Show more

Front Shocks


1994-2004 Cummins/Powerstroke 0-3" Lift NX2 Shock Absorber (BDS85620)-Shocks-BDS-BDS85620-Dirty Diesel Customs

NX2 Series Dual Shocks (4x)

The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.

Note:
This kit is designed to work with vehicles that have the BDS long arm system installed. This kit requires shocks in the stock location or appropriate limiting straps to avoid hanging the front axle from the dual shock cylinders. If the correct stock location shocks are not installed or limiting straps are not used, order 2 stock location shocks and 4 bracket location shocks with this system.

Show more

1994-2004 Cummins/Powerstroke 0-2" Lift Front Fox 2.0 Series Shock Absorber (FOX98224620)-Shocks-BDS-FOX98224620-Dirty Diesel Customs

Fox 2.0 Series Dual Shocks (4x)

Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.

Note:
This kit is designed to work with vehicles that have the BDS long arm system installed. This kit requires shocks in the stock location or appropriate limiting straps to avoid hanging the front axle from the dual shock cylinders. If the correct stock location shocks are not installed or limiting straps are not used, order 2 stock location shocks and 4 bracket location shocks with this system.

Show more

Stock Location Shocks

IMPORTANT: THIS SET IS USED FOR SINGLE FRONT SHOCKS & THE FACTORY LOCATION SHOCKS (THAT ARE REQUIRED IF YOU ORDER DUAL FRONT SHOCKS)

No Thanks

Dual Shock Mounting Bracket

Required if you have selected Dual Front Shocks.

No Thanks

2003-2012 Cummins 4-8" Lift Dual Aux Shock Mounting Bracket (BDS122614)-Shock Mount-BDS-BDS122614-Dirty Diesel Customs

Dual Auxiliary Shock Mounting Bracket


Show more

Rear Shocks


1994-2017 Cummins/Powerstroke 0-6" Lift NX2 Shock Absorber (BDS85759)-Shocks-BDS-BDS85759-Dirty Diesel Customs

NX2 Series Shocks (2x)

The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.


Show more

2001-2017 Cummins/Powerstroke/Duramax 0-6" Lift Fox 2.0 Series Shock Absorber (FOX98224759)-Shocks-BDS-FOX98224759-Dirty Diesel Customs

Fox 2.0 Series Shocks (2x)

Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.

Show more

Sway Bar Disconnect

IMPORTANT: Upgrading to our sway bar disconnect kit (122413) will change the installation process for this system. Installation changes are clearly outlined in our instructions.

Notes:

  • Works with 3-8" of lift
  • Not for use with any other sway bar relocation brackets. The sway bar needs to be mounted in stock location on the frame.
  • It will not work with 03-08 BDS 8" kits that have the sway bar relocation brackets at the axle or any other kit that does not have the factory axle mount bracket intact
  • Inverted 'T' steering found on 08.5+ trucks is high recommended for steering-to-sway bar link clearance on 03-08 trucks. Do not vary from shock length listings. Max extended length is 25-1/4" for 3" lift, 30" extended for 8" lift.

No Thanks

2003-2013 Cummins Sway Bar Disconnect Kit (BDS122413)-Anti-Sway Bar Links-BDS-BDS122413-Dirty Diesel Customs

Sway Bar Disconnect Kit


Show more

Steering Stabilizers


No Thanks

2003-2008 Cummins NX2 Steering Stabilizer (BDS85405)-Steering Stabilizer-BDS-BDS85405-Dirty Diesel Customs

NX2 Series Dual Steering Stabilizer - (Y-Style Linkage) (2x)

Steering Dampers may differ from the installation image.

Note:

  • This is an end-to-end style dual stabilizer.
  • This system will work on stock height vehicles.

Show more

Steering Stabilizer Bracket Kit


No Thanks

2003-2008 Cummins Dual Steering Stabilizer Bracket Kit (BDS55357)-Steering Kit-BDS-BDS55357-Dirty Diesel Customs

Dual Steering Stabilizer Bracket Kit - (Y-Style Linkage)

Note:

Select this option if you have selected the NX2 Dual Steering Stabilizer and have the Y-Style Linkage equipped in your Cummins.

Show more

2008-2013 Cummins Steering Stabilizer Bracket Kit (BDS55371)-Steering Kit-BDS-BDS55371-Dirty Diesel Customs

Dual Steering Stabilizer Bracket Kit - (T-Style Linkage)

Note:

Select this option if you have selected the NX2 or Fox 2.0 Dual Steering Stabilizer and have the T-Style Linkage equipped in your Cummins.

Show more

Traction Bar Box Kit


No Thanks

Universal RECOIL Traction Bar (BDS123409)-Traction Bars-BDS-BDS123409-Dirty Diesel Customs

Universal Recoil Traction Bar

BDS Suspension's revolutionary spring-loaded, full-floating RECOIL traction bar system is engineered to improve traction and limit axle wrap without limiting suspension travel or decreasing ride quality. These traction bars offer you the freedom to tune the spring tension for optimal performance on-road, off-road, towing, or competition pulling. These traction bars can be used on stock height or lifted trucks and work with both lift blocks and replacement leaf spring kits.

Show more

2003-2018 Cummins 0-8" Lift Fixed Traction Bar System - 3.5" Axle (BDS122619)-Traction Bars-BDS-BDS122619-Dirty Diesel Customs

Standard Series Traction Bar - (3.5" Axle)

Reduce rear pinion angle change commonly referred to as axle wrap during acceleration with these BDS heavy-duty traction bars. Tubular design for good looks as well as serious axle control.

Show more

2003-2018 Cummins 0-8" Lift Fixed Traction Bar System - (4" Axle) (BDS122618)-Traction Bars-BDS-BDS122618-Dirty Diesel Customs

Standard Series Traction Bar - (4" Axle)

Reduce rear pinion angle change commonly referred to as axle wrap during acceleration with these BDS heavy-duty traction bars. Tubular design for good looks as well as serious axle control.

Show more

Traction Bar Mounting Kit

Required if you have selected the Recoil Traction Bar.

No Thanks

2003-2018 Cummins 0-6" Lift Recoil Traction Bar Mounting Kit (BDS122408)-Traction Bar Mounting Kits-BDS-BDS122408-Dirty Diesel Customs

Recoil Traction Bar Mounting Kit - (4" Axle/SRW)

 Bracket kits are vehicle specific. The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.

Show more

U-Bolts

The following kit ID's 1567H, 1567F, 1551H, 1551F - If installed on a truck with a top mount overload spring, and the overload spacer block is taller than 1-1/8" then these U-Bolts (Qty:4) are required.


All U-Bolts come with high nuts and washers.

No Thanks

Universal Round 4"X14.5" U-Bolt (UBT4063)-U-Bolts-BDS-UBT4063-Dirty Diesel Customs

U-Bolts - (4"X14.5") (4x)


Show more

Front Brake Line

Features:

  • Kevlar lined Stainless Steel Braided Brake Lines
  • Virtually no volumetric expansion Firmer brake pedal feel with less pedal effort.
  • Hose assemblies comply with D.O.T. Federal regulations (MVSS-106) Legal for street use in all 50 States.
  • Teflon inner core (chemically inert) Approved for use with all brake fluids, including D.O.T. 5 Silicone.
  • Resists moisture, Very flexible.
  • Five-layer construction Rugged construction that resists road shock and hazards.
  • Higher fitting pull-off than other D.O.T. assemblies.
  • Standard SAE female fittings and ends Utilize standard brake fittings and hardware.
  • PN# 102009 - Will NOT work on 2012+ trucks.

No Thanks

2006-2008 Cummins 31" Front Brake Line (BDS102001)-Brake Lines-BDS-BDS102001-Dirty Diesel Customs

31" Front Brake Line


Show more

Rear Brake Line

Features:

  • Kevlar lined Stainless Steel Braided Brake Lines
  • Virtually no volumetric expansion Firmer brake pedal feel with less pedal effort.
  • Hose assemblies comply with D.O.T. Federal regulations (MVSS-106) Legal for street use in all 50 States.
  • Teflon inner core (chemically inert) Approved for use with all brake fluids, including D.O.T. 5 Silicone.
  • Resists moisture, Very flexible.
  • Five-layer construction Rugged construction that resists road shock and hazards.
  • Higher fitting pull-off than other D.O.T. assemblies.
  • Standard SAE female fittings and ends Utilize standard brake fittings and hardware.
  • PN# 102009 - Will NOT work on 2012+ trucks.

No Thanks

2005-2011 Cummins 27" Rear Brake Line (BDS102009)-Brake Lines-BDS-BDS102009-Dirty Diesel Customs

27" Rear Brake Line

Show more

Carrier Bearing Drop Kit


No Thanks

1994+ Cummins 2500 Carrier Bearing Drop Kit (BDS122501)-Carrier Bearing Drop-BDS-BDS122501-Dirty Diesel Customs

Carrier Bearing Drop Kit


Show more
