2003-2013 Cummins 3" BDS Lift Kit (BDS690H)


Part Number: BDS690H-4"

Sale price$2,209.39 CAD

Rear Axle Tube Diameter:4"
This item may have additional freight costs. Learn more
Product images may differ from exact product.

Click here to customize this Kit


Year Make Model Type
2003-2013 Dodge / Ram 2500 Truck 4WD Diesel
2003-2012 Dodge / Ram 3500 Truck 4WD Diesel


This 3" lift kit features 3" front Pro-Ride dual-rate coil springs providing great ride and performance in all conditions. Fixed length, greaseable, heavy-duty round tubular construction UCAs and LCAs position the axle properly and adjust for proper caster and pinion angles. Fixed length sway bar links with stud eliminator. The sway bar link setup converts the failure-prone stem style factory sway bar links to an eye-to-eye design providing greater strength, longer service life, and greater range of motion. An adjustable front track bar is included as well to center the axle. Not only is the kit designed to last, but so is the finish. Every bracket is electro-coated black to ensure the long-term performance of our finish.

Part Number: BDS690H

  • 3" ProRide Coil Springs
  • 2" Rear Block Kit
  • HD Tubular Upper & Lower Control Arms
  • Upgraded Sway Bar Links
  • Adjustable Front Track Bar
  • Electroplated Black Brackets
  • Clears 35" Tires
  • Problematic Sway Bar Stud Eliminator System

Tire & Wheel Combinations:

  • 35" x 12.50" w/ 17 x 9 and 5"
  • Measure rear axle tube before ordering. Some 4" axle models have dual overloads that will require #4063 u-bolts.
  • Rear lift options will not fit dually applications
  • Not recommended for PowerWagon models
  • Will not fit Cab and Chassis models

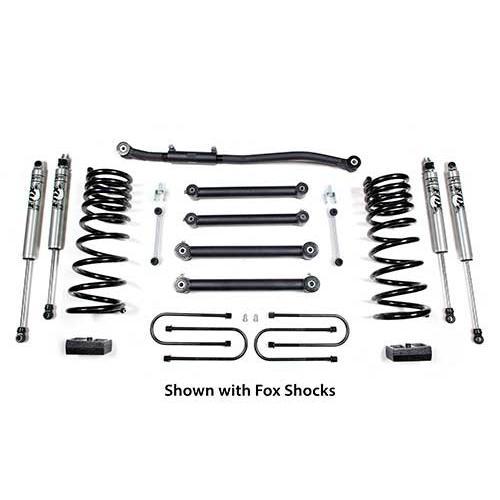

  • Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
