- 22% more cooling over other designs
- 200 Micro Extruded passages
- Large surface area to transfer heat for external airflow cooling
- Turbulent oil flow design promotes a more complete cooling
- Large 5/8-inch ports prevent inlet/outlet restriction
- Furnace brazed rails have been tested to 300psi of pressure
- 80-watt, 10-inch, 800 CFM electric fan
- 33,930 BTU/HR and in excess of 30,000 GVW!
- The motor is IP54 with 65% duty cycle
- Cooler Assembly Only
- Exceeding the duty cycle may result in voiding the warranty
- Intended to be used in conjunction with factory transmission coolers and not as stand-alone units

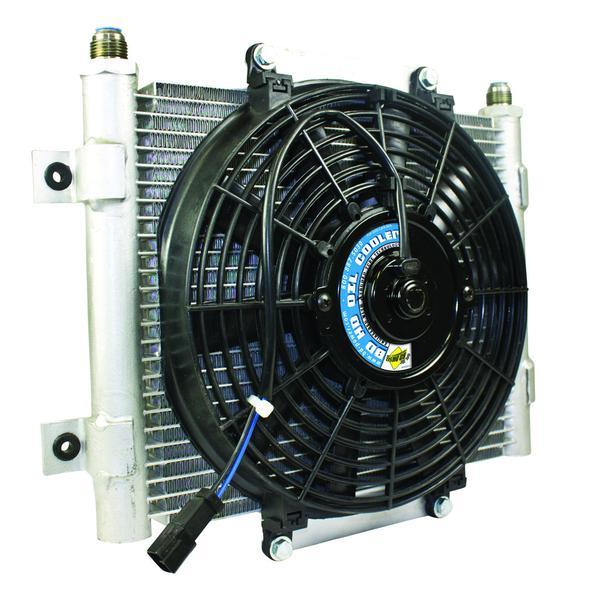

Part Number: 1300611
