Universal Weld-In Forged Tube Adapters (3621-XXXX)
Synergy MFG
Part Number:
3621-0701
$72.00 CAD
Unit price
/
Unavailable
Purchase to earn 72 Dirty Dollars Learn More
Description
Description
Fits: Universal

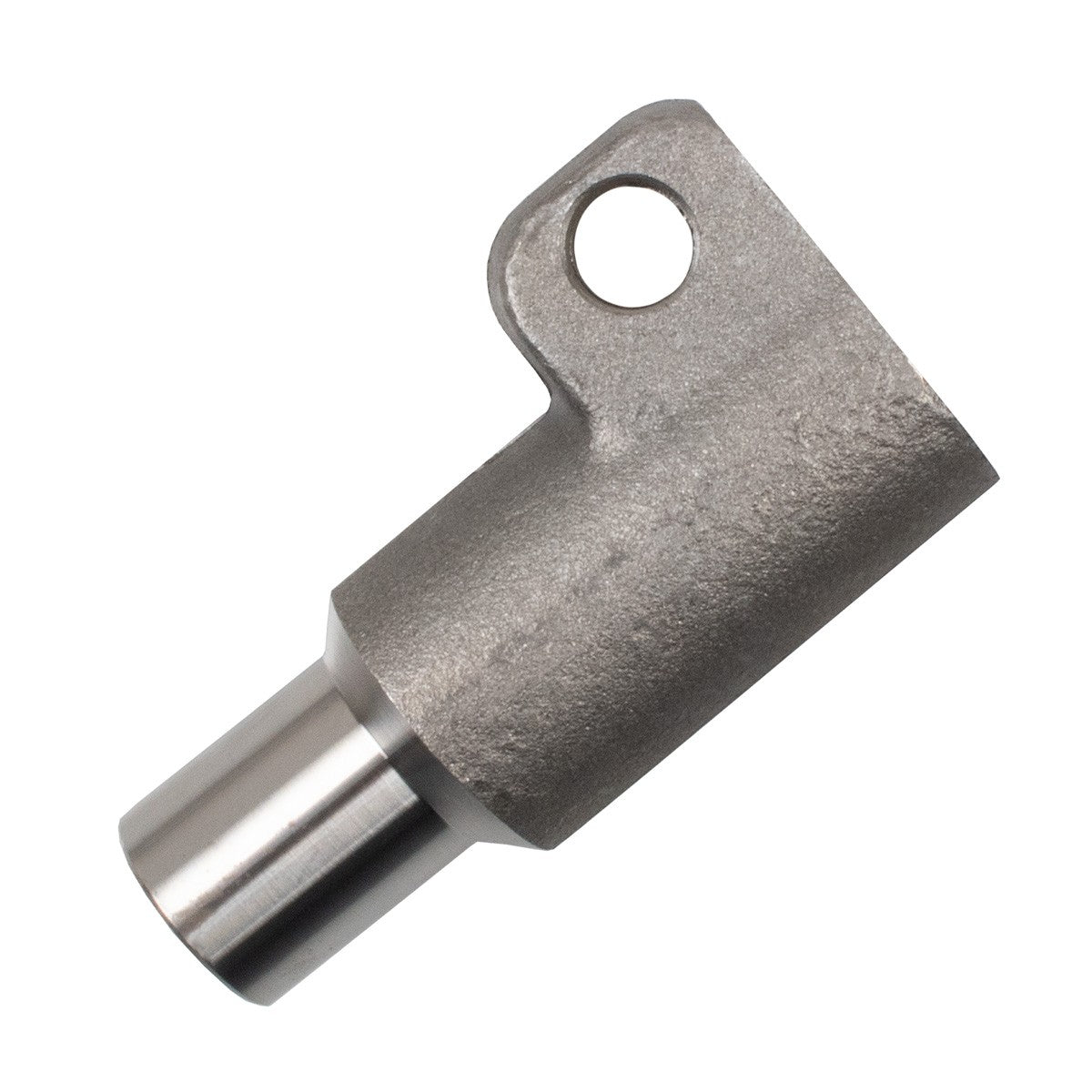

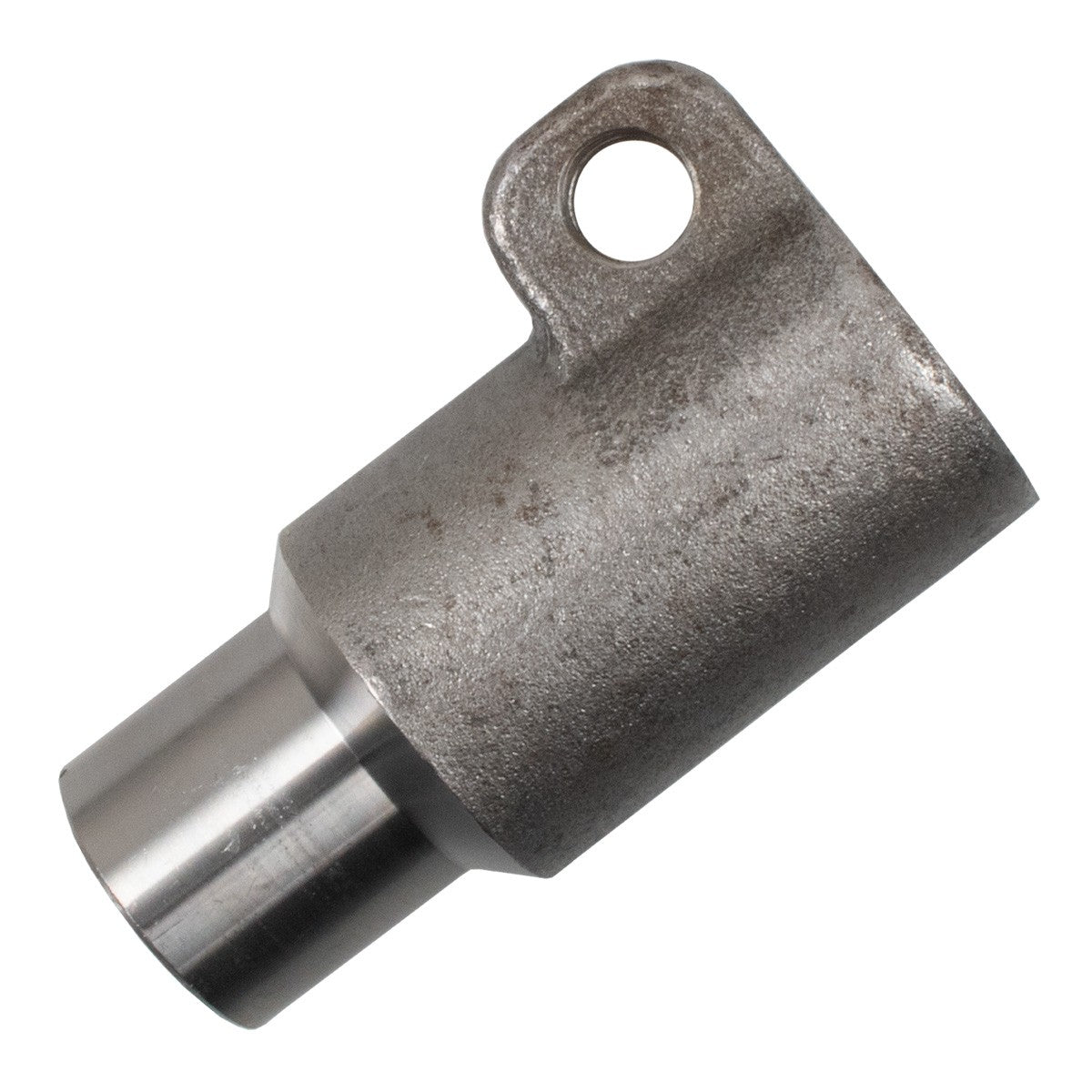

Synergy Weld-In Forged Tube Adapters eliminate the need for tap sets and jam nuts. Designed for heavy-duty rod ends, they offer a strong, reliable solution for custom steering and suspension fabrication. Engineered to withstand aggressive driving conditions.
Part Number: 3620-XXXX
Features
Features
- Tube adapters are forged from high-strength SAE AISI 1045 steel
- Ideal for fabricating bent suspension links or adjustable bars with one rod end

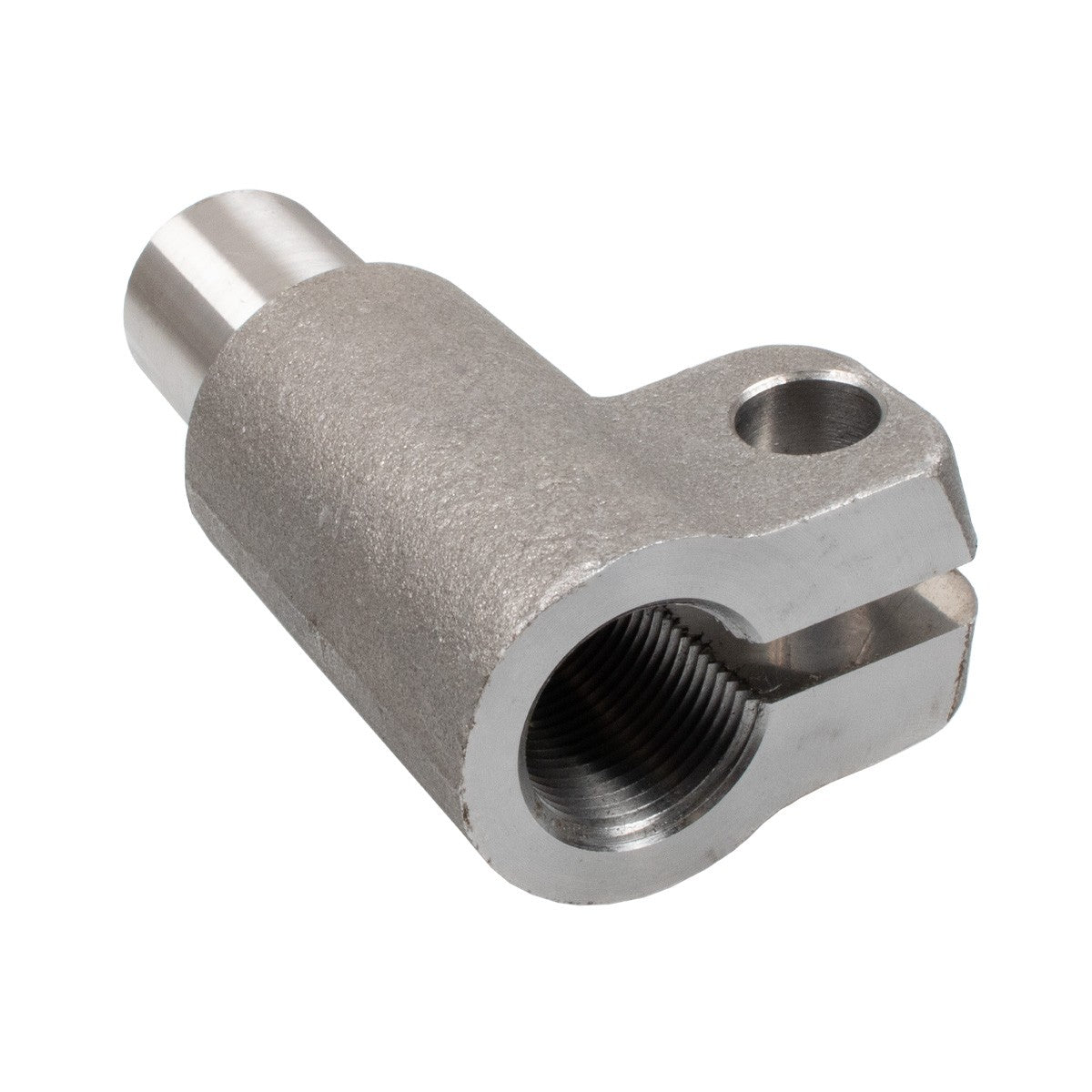

- Synergy Pinch Bolt Assembly eliminates the need for jam nuts
- Durable Zinc-plated Double Adjuster Sleeves
- Versatile weld-on application
- Grade 8 hardware

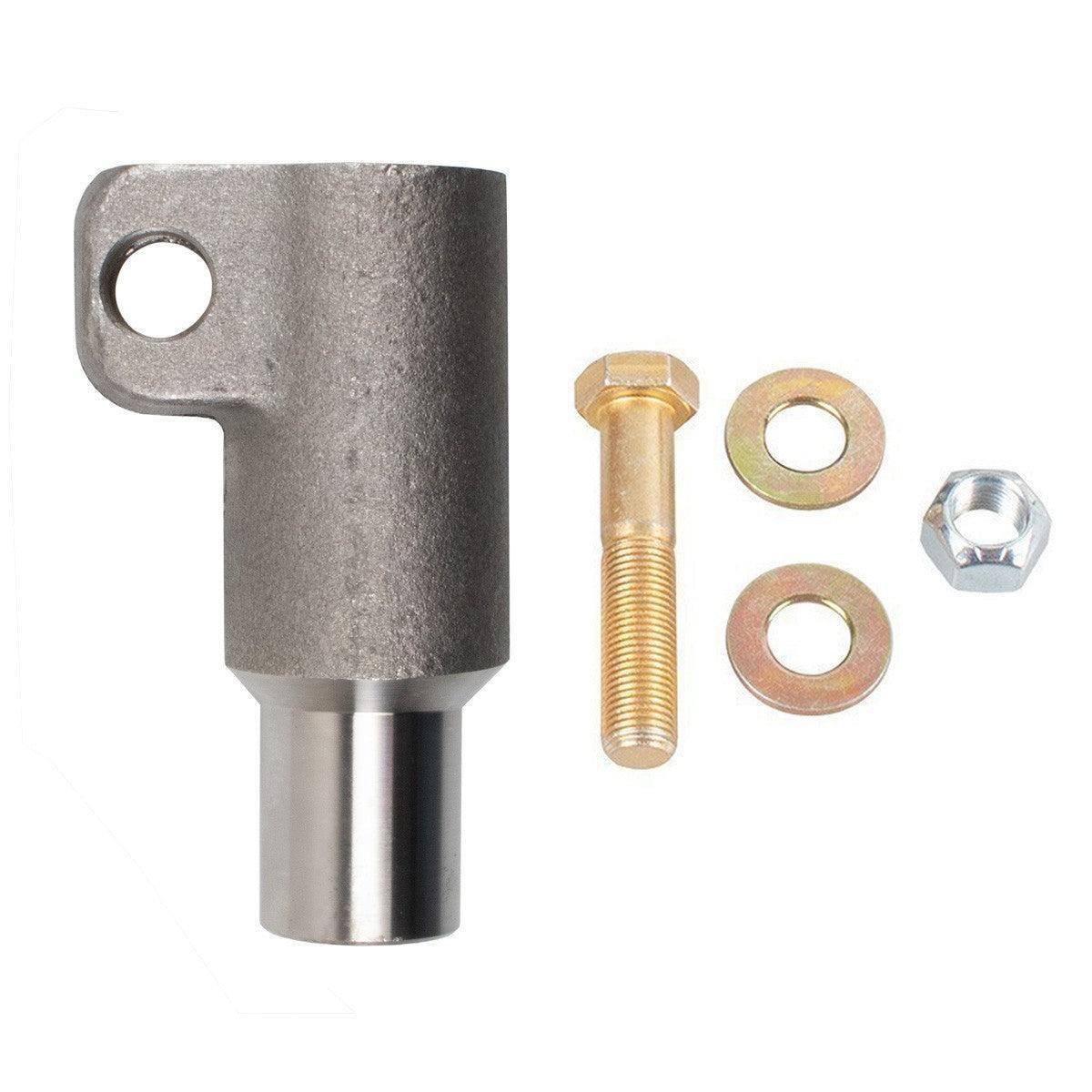

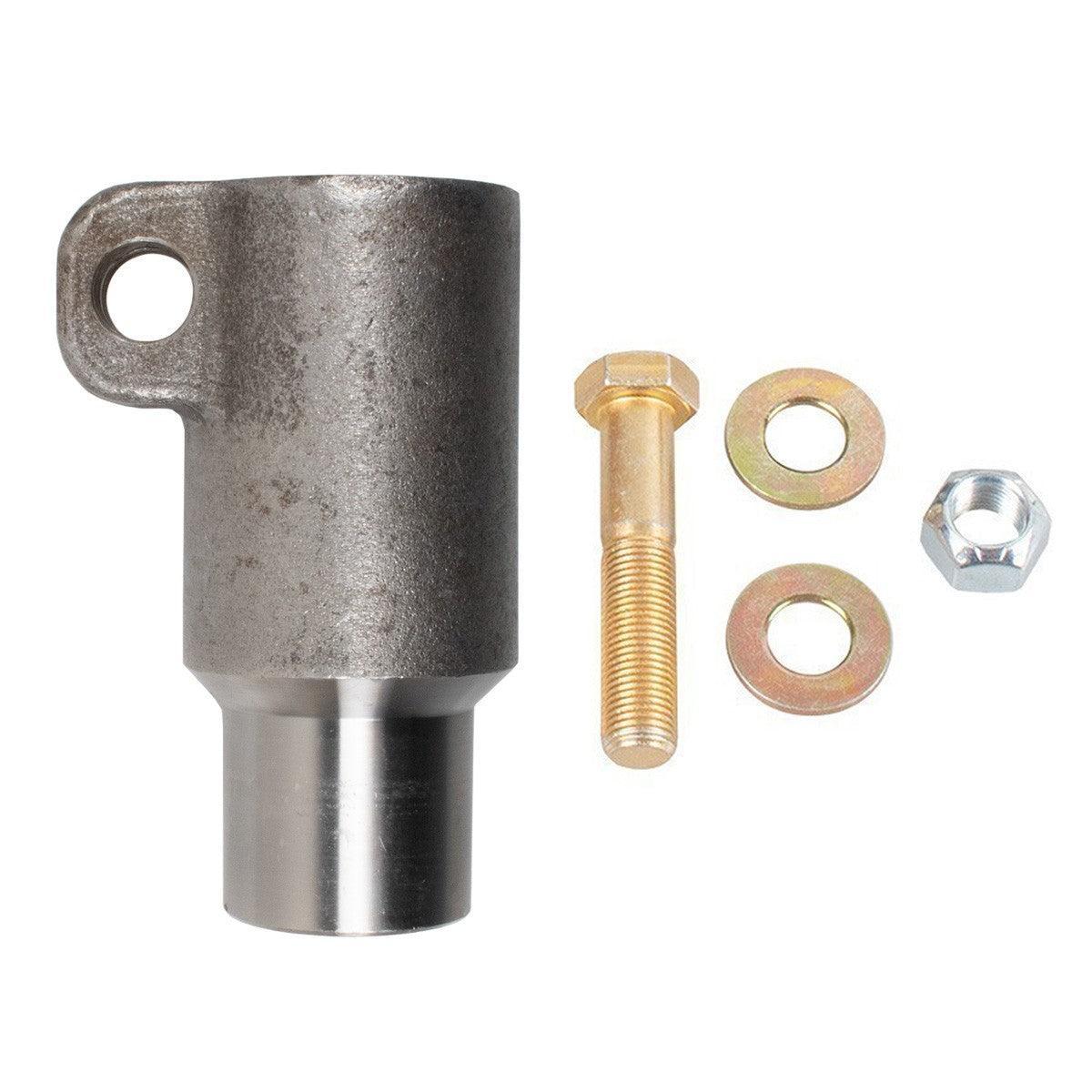

Includes:
-
(1) Forged Pinch Bolt Tube Adapter
(1) Pinch Bolt Hardware Kit
Notes
Notes
- All Synergy Double Adjusters utilize an internal left-hand thread compatible with all Synergy left-hand thread forged ends with Dual Durometer Bushings, Johnny Joints, or heim joints
- Replacement hardware available with part number PINCHBOLT-HDW-DOUBLE
- Synergy recommends all welding be done by an experienced welder / fabricator
Additional Fitment
Additional Fitment
Fitment:
| Part # | Useable Thread Size | For Tube ID (Inches) |
|---|---|---|
| 3621-0701 | 7/8" - 14 UNF-2B Left Hand Thread | 1.125" |
| 3621-0801 | 1" - 14 UNS-2B Left Hand Thread | 1.00" |
| 3621-0802 | 1" - 14 UNS-2B Left Hand Thread | 1.125" |
| 3621-1001 | 1-1/4" - 12 UNF-2B Left Hand Thread | 1.375" |
| 3621-1002 | 1-1/4" - 12 UNF-2B Left Hand ID Thread | 1.50" |
Specifications:
| Part # | A | B | C | D | E | Thread Length |
|---|---|---|---|---|---|---|
| 3621-0701 | 1.125" | 3.50" | 2.50" | 1.56" | 2.28" | 1.30" |
| 3621-0801 | 1.00" | 4.02" | 2.77" | 1.56" | 2.28" | 1.50" |
| 3621-0802 | 1.125" | 4.13" | 2.88" | 1.56" | 2.28" | 1.88" |
| 3621-1001 | 1.375" | 4.25" | 3.00" | 1.81" | 2.56" | 1.88" |
| 3621-1002 | 1.50" | 4.25" | 3.00" | 2.00" | 2.70" | 1.88" |
