Universal Single Channel Wireless Air Spring Control Kit W/ SD Compressor W/ Remote (HP20472-R)

Fits: Universal

Control your air springs from the comfort of your cab with the Pacbrake Dual Channel Wireless Air Spring Control kit. They'll fit on any vehicle application/frame & any air spring kit on the market!

Part Number: HP20472-R

• Max Working Pressure: 827.4 kPa [120 psi], 9% @ 689.5 kPa [100 psi]
• Max Continuous Run Time: 5 Minutes ON / 55 Minutes OFF
• Rated Flow: 29 L/min [1.02CFM] @ 0kPa [0 psi]

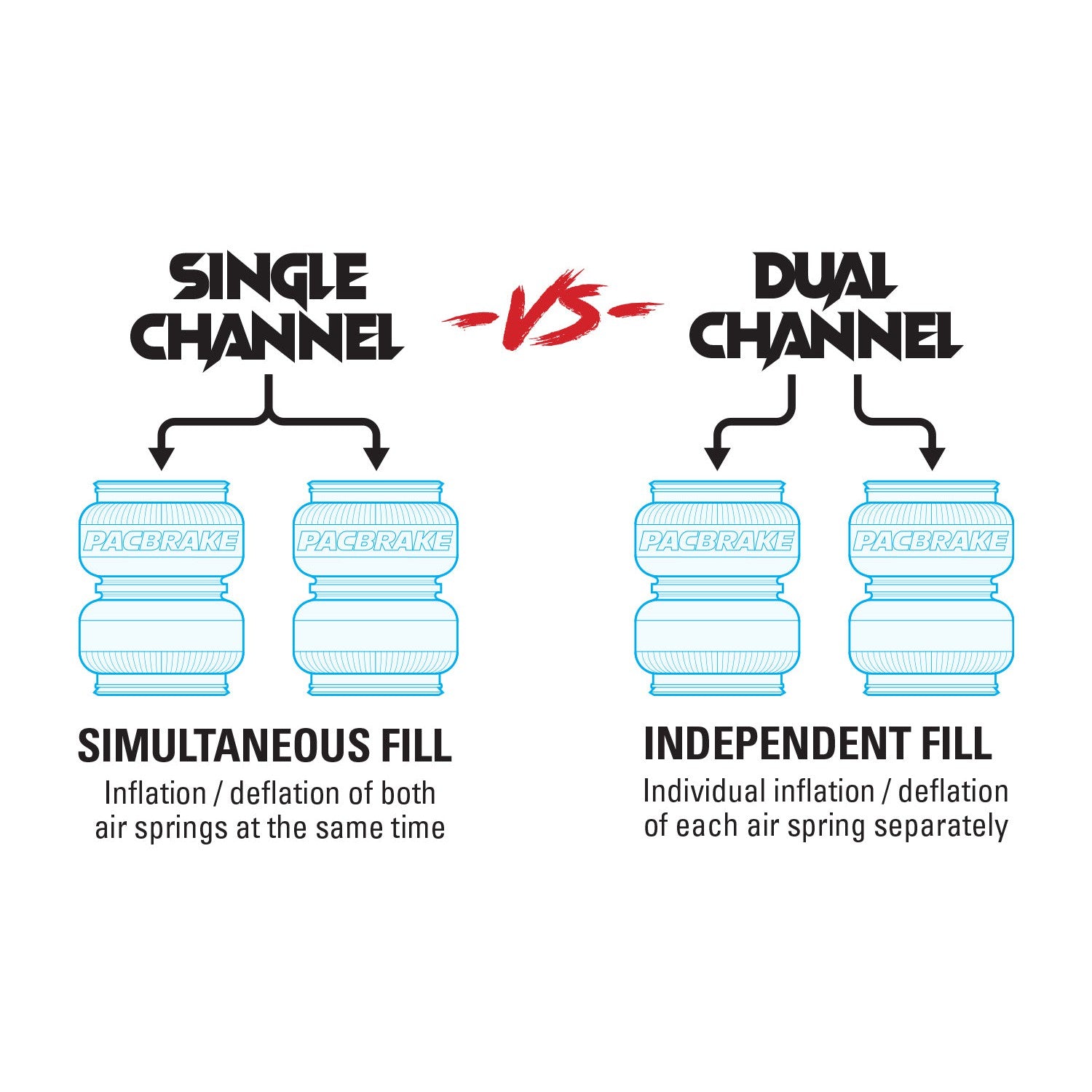

• Simultaneous Fill
• Ingress Protection: IP55 Compressor, IP67 Electric Connectors
• Ambient Operating Temp: -40C to +70C [-40F to +158F]
• 12 VDC MAX current draw: 11 AMPS

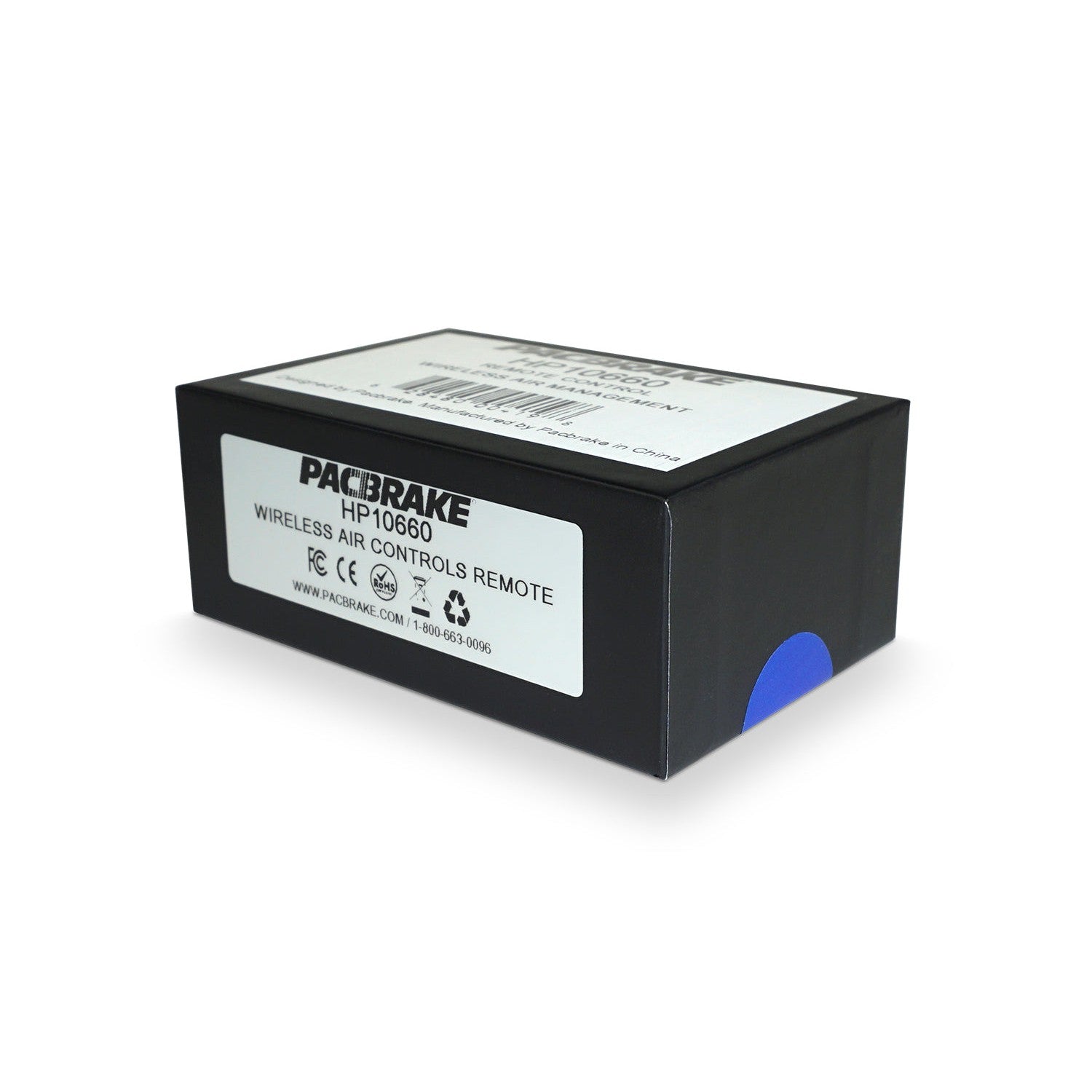

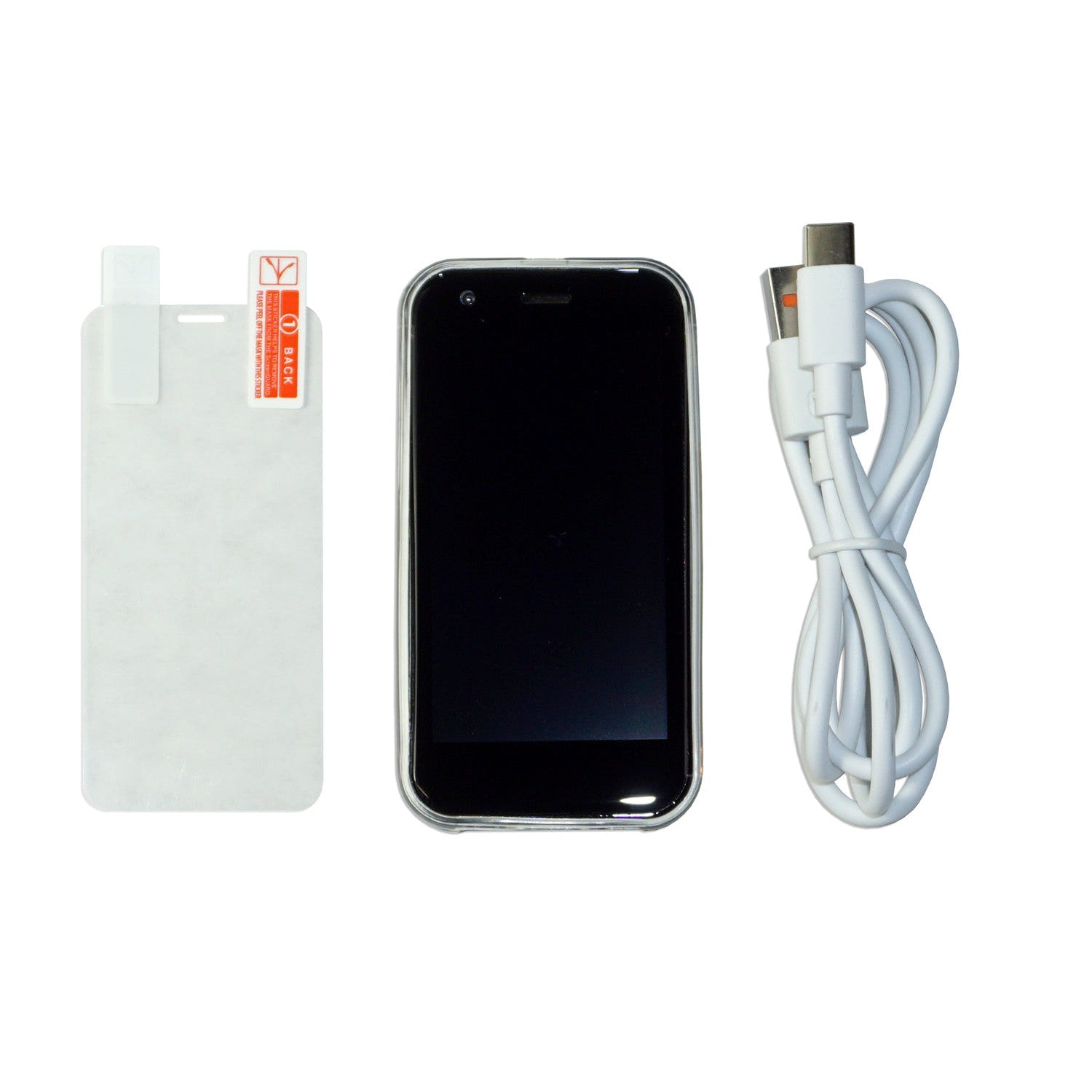

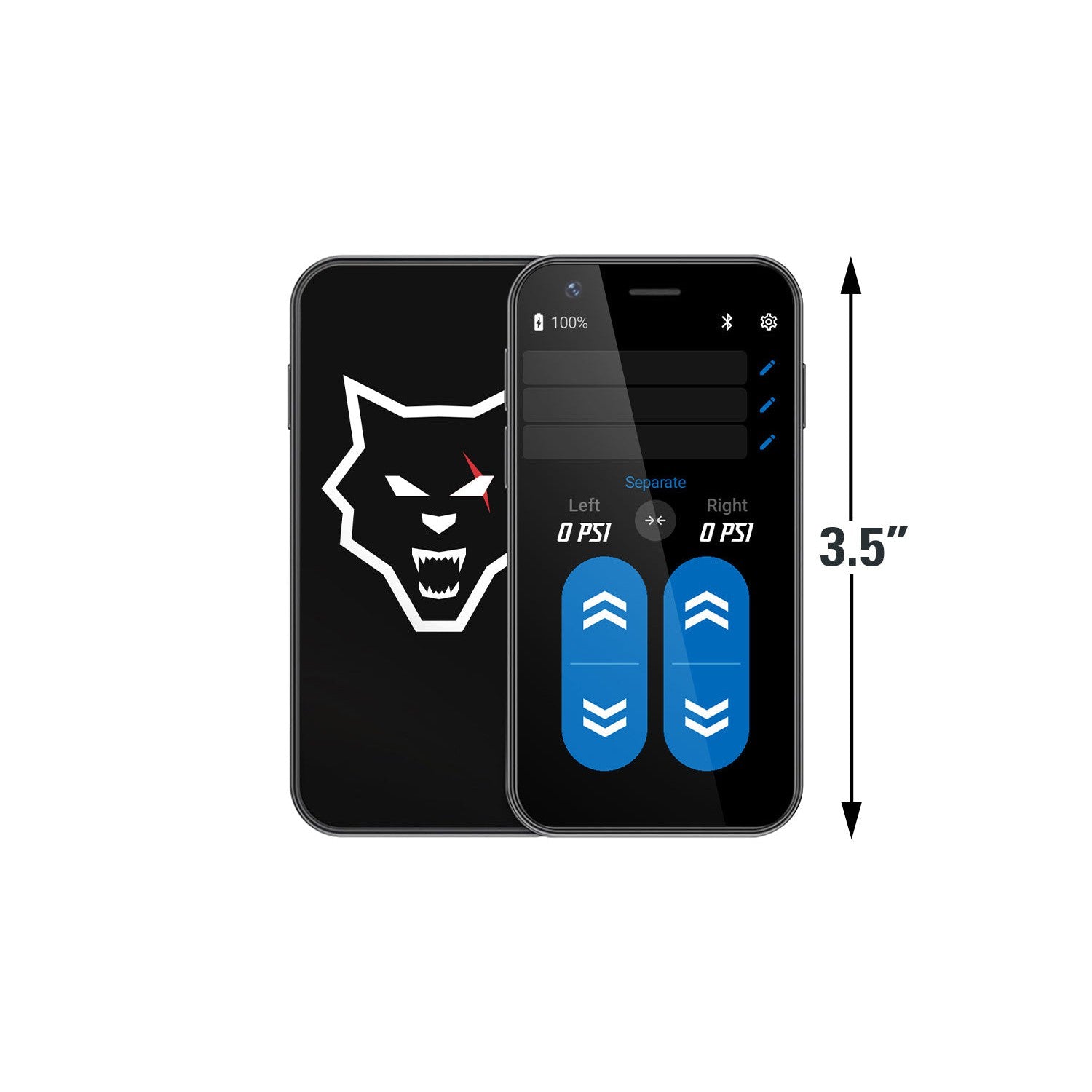

• Remote Control

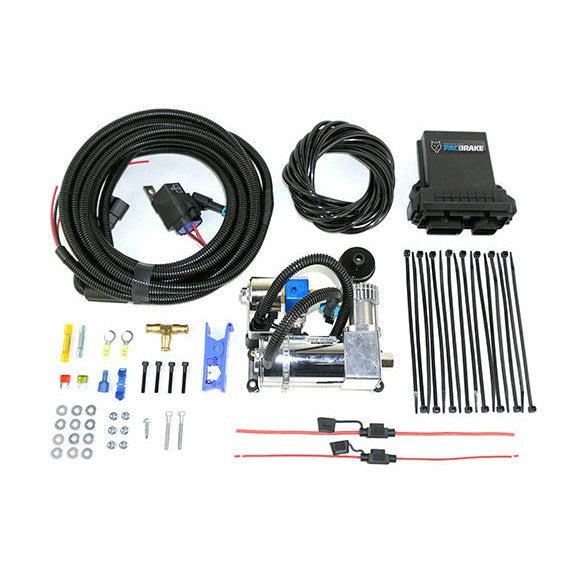

• Air compressor, controller, solenoid block, pressure sensors and harnesses

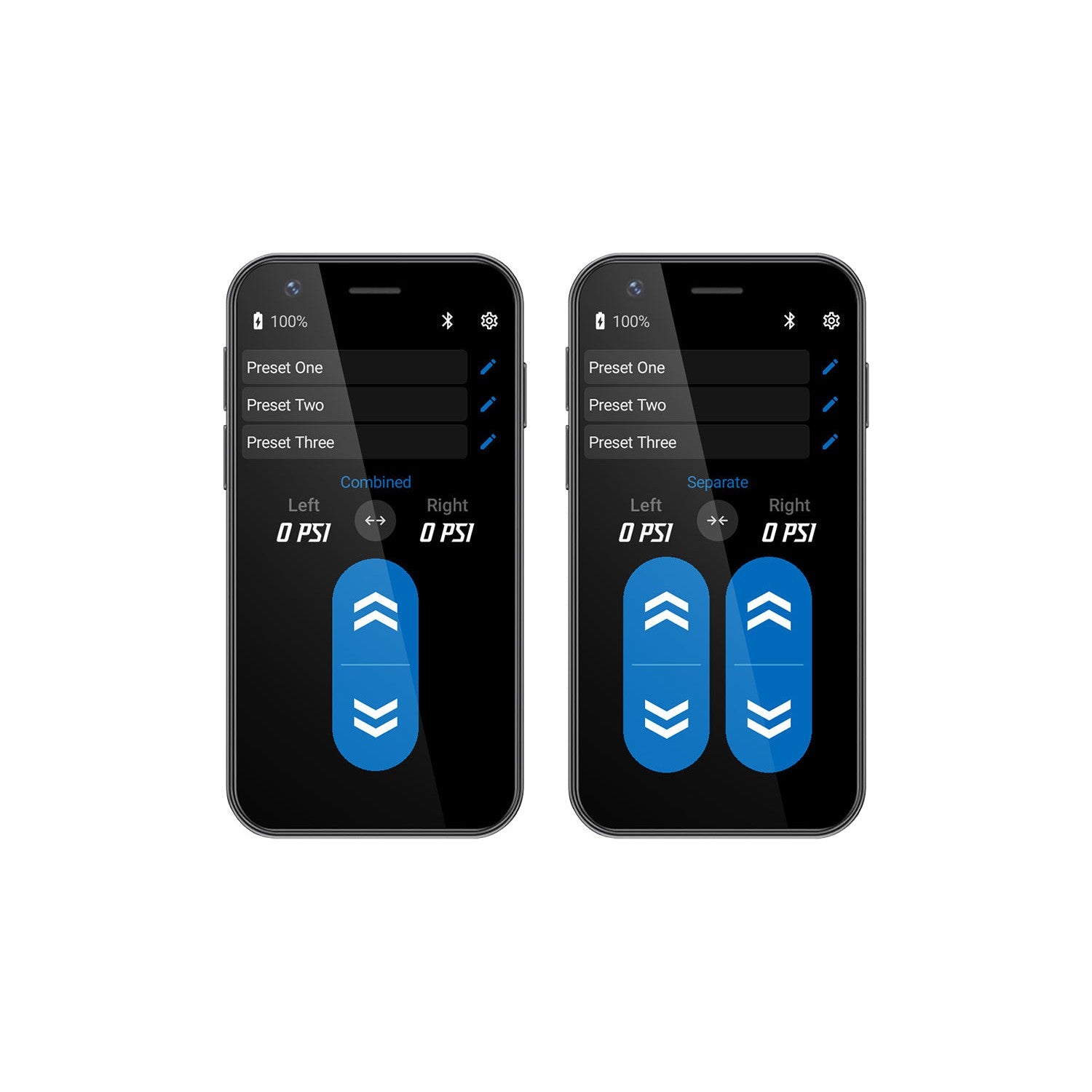

• Free Phone app (For use with Android 4.3+ or Apple iOS 10.3+ mobile device)
• Air lines, pressure connectors and mounting hardware

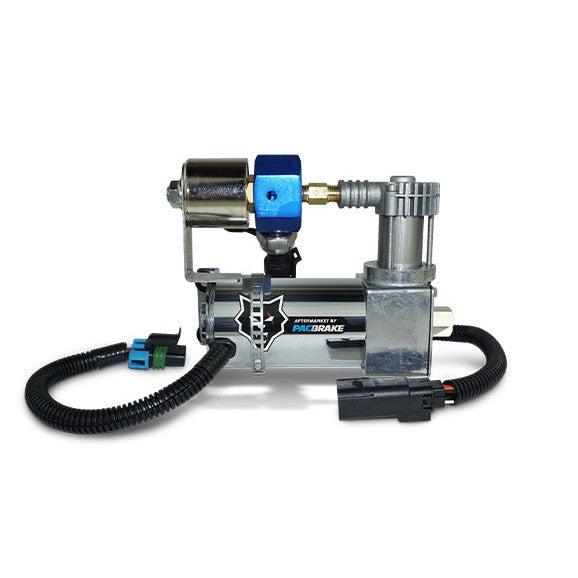

• This kit comes with HP325 12V DC Air Compressor

• The kit is on demand and intended to use without an air tank

• Click Here
• Trouble Shooting Guide
