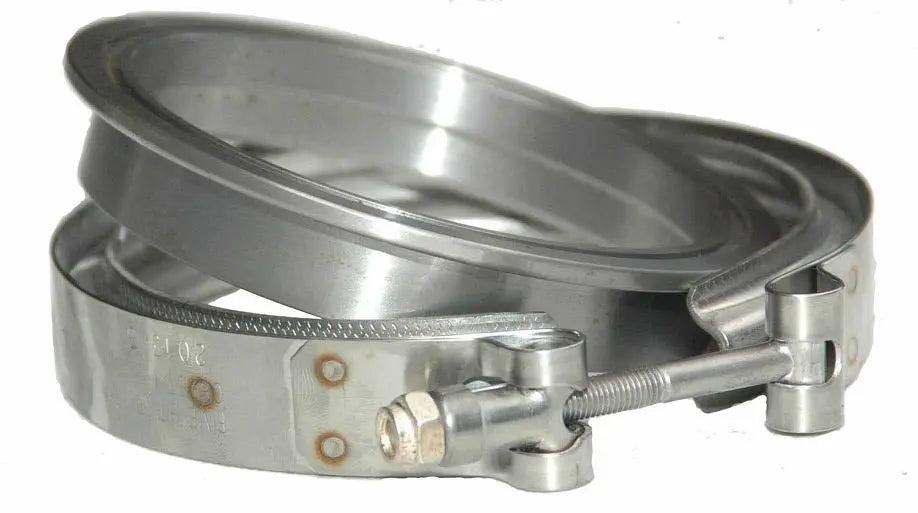

Universal S400 T4 Turbine Outlet Dual V-Band Flange (S400T4FL)

Turbine outlet flange and V-band clamp set for S400 frame turbochargers running a T4 flat, non-Marmon dual V-band turbine housing. It ties the exhaust side of the turbo to a 4" downpipe with a strong, repeatable V-band connection built for high exhaust gas temperature service. This is the turbine outlet flange VS Racing specifies for the Universal 72/89 Billet Gen3 DBB Performance Turbocharger (ST1Z-D45-31T) and other S400 style units.

Choose mild steel for a cost effective weld on flange, or stainless steel for maximum corrosion resistance on a stainless downpipe. The matching V-band clamp is included with either option.

Part Numbers:

• S400T4FLMS - Mild Steel
• S400T4FLSS - Stainless Steel

• Fits S400 frame turbochargers with a T4 flat, non-Marmon dual V-band turbine housing
• Machined to accept 4" downpipe tubing
• V-band clamp included
• Available in mild steel or stainless steel
• Built for high exhaust gas temperature service
• Universal application across S400 builds

• This is a non-Marmon (T4 flat) flange. It will not fit a T6 Marmon turbine housing.
