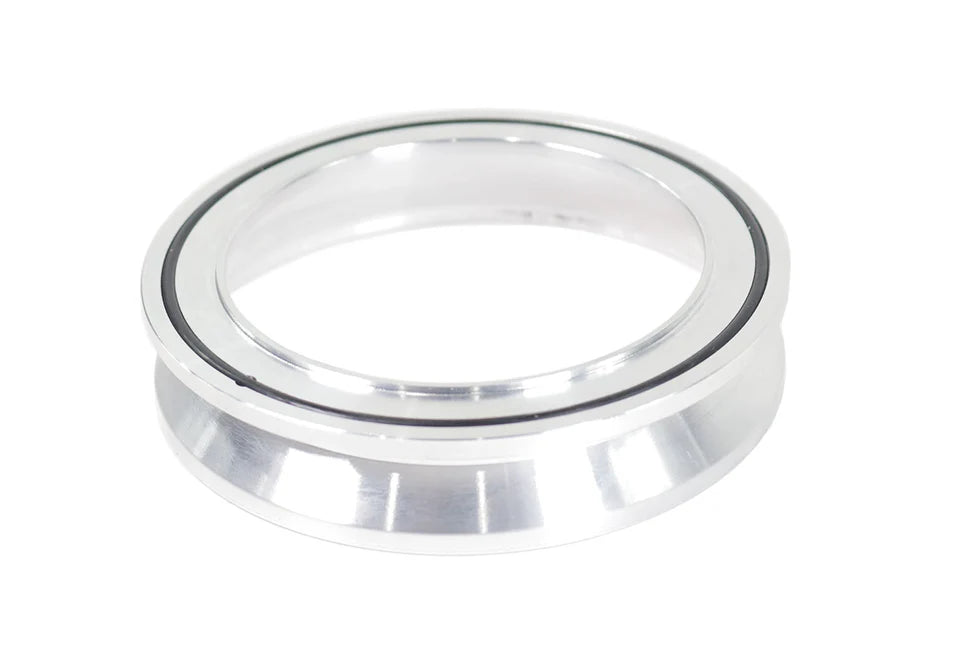

Universal S400 Compressor Outlet V-Band Flange (S400FLAL)

Compressor outlet V-band assembly for S400 frame turbochargers. This is the cold side discharge connection that mates the turbo compressor housing to your charge piping with a clean, repeatable V-band joint. VS Racing supplies it as a complete assembly, so the machined flange, sealing o-ring and V-band clamp are all included. This is the compressor outlet VS Racing specifies for the Universal 72/89 Billet Gen3 DBB Performance Turbocharger (ST1Z-D45-31T) and other S400 style units.

Choose the flange to match your intercooler piping in 3", 3.5" or 4". The same assembly also fits GT42, GT45, GT55 and ProMod frame turbochargers that use a V-band compressor discharge.

• S400FLAL - VS Racing uses a single part number across all three piping sizes

• Machined from 6061 aluminum
• Complete assembly with flange, o-ring and V-band clamp included
• Available for 3", 3.5" or 4" intercooler piping
• Fits S400, GT42, GT45, GT55 and ProMod turbochargers with a V-band compressor discharge
• Clean, repeatable V-band connection to charge piping
• Universal application across S400 builds

• Requires a turbocharger with a V-band style compressor discharge. It will not fit a standard S400 compressor housing that uses a bolt on or hose style outlet.
• Select the piping size that matches your intercooler pipe outside diameter.
