Universal Onboard Air Kit W/ 2½ Gallon Aluminum Air Tank W/Compressor (HP10164-AL)

Fits: Universal

The Pacbrake HP10164-AL HP325 Series Onboard Air Kit is perfect for utilizing accessories such as Air Horns, Air Lockers, and filling up to 33" tires. This kit consists of an air compressor, aluminum 2 ½ gallon air tank, fittings, pressure switch, relay(s), electrical connectors and all the required accessories.

Part Number: HP10164-AL

• Copper wire wound permanent magnet motor
• Oil-less design; sealed bearings
• PTFE piston ring
• Cast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve

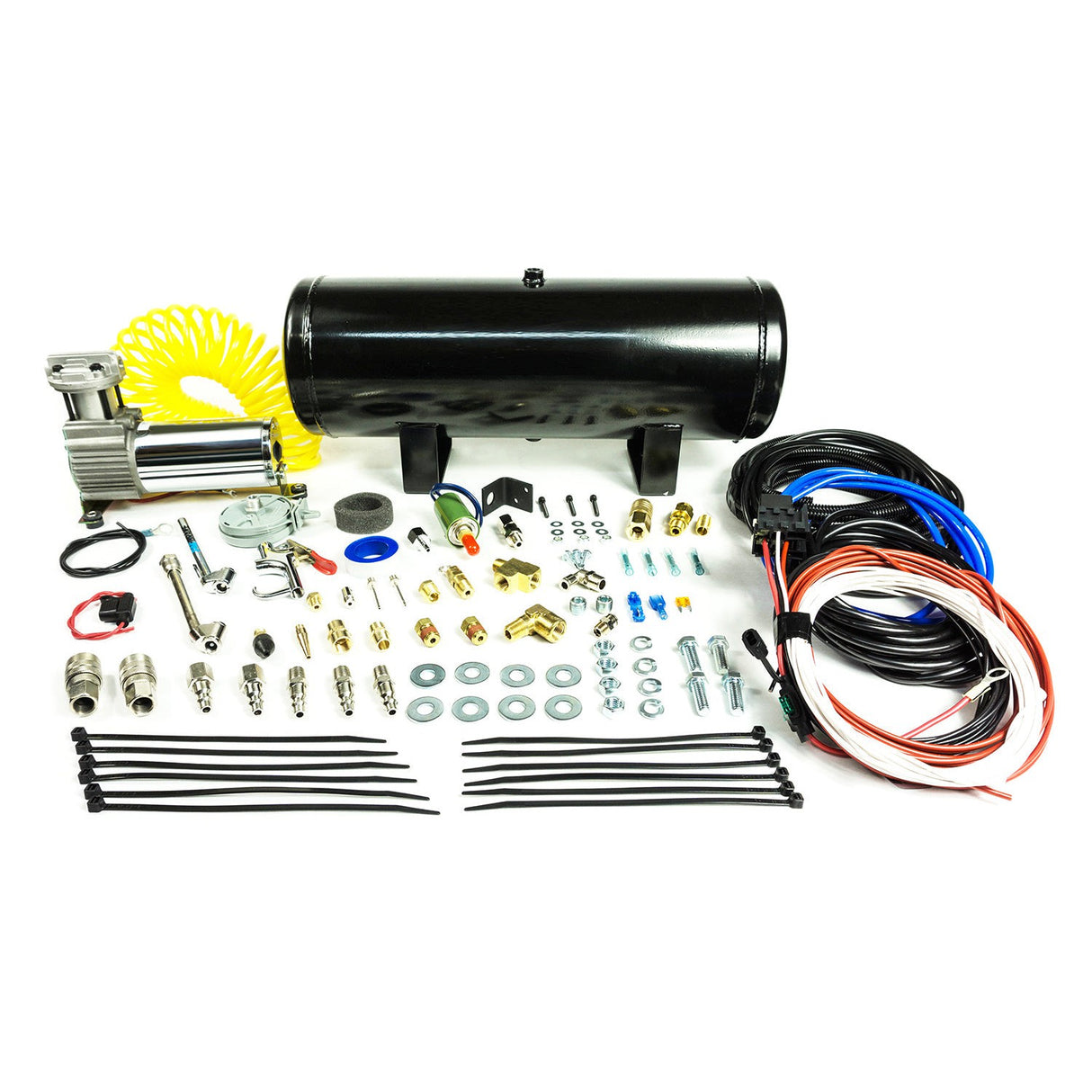

Includes:

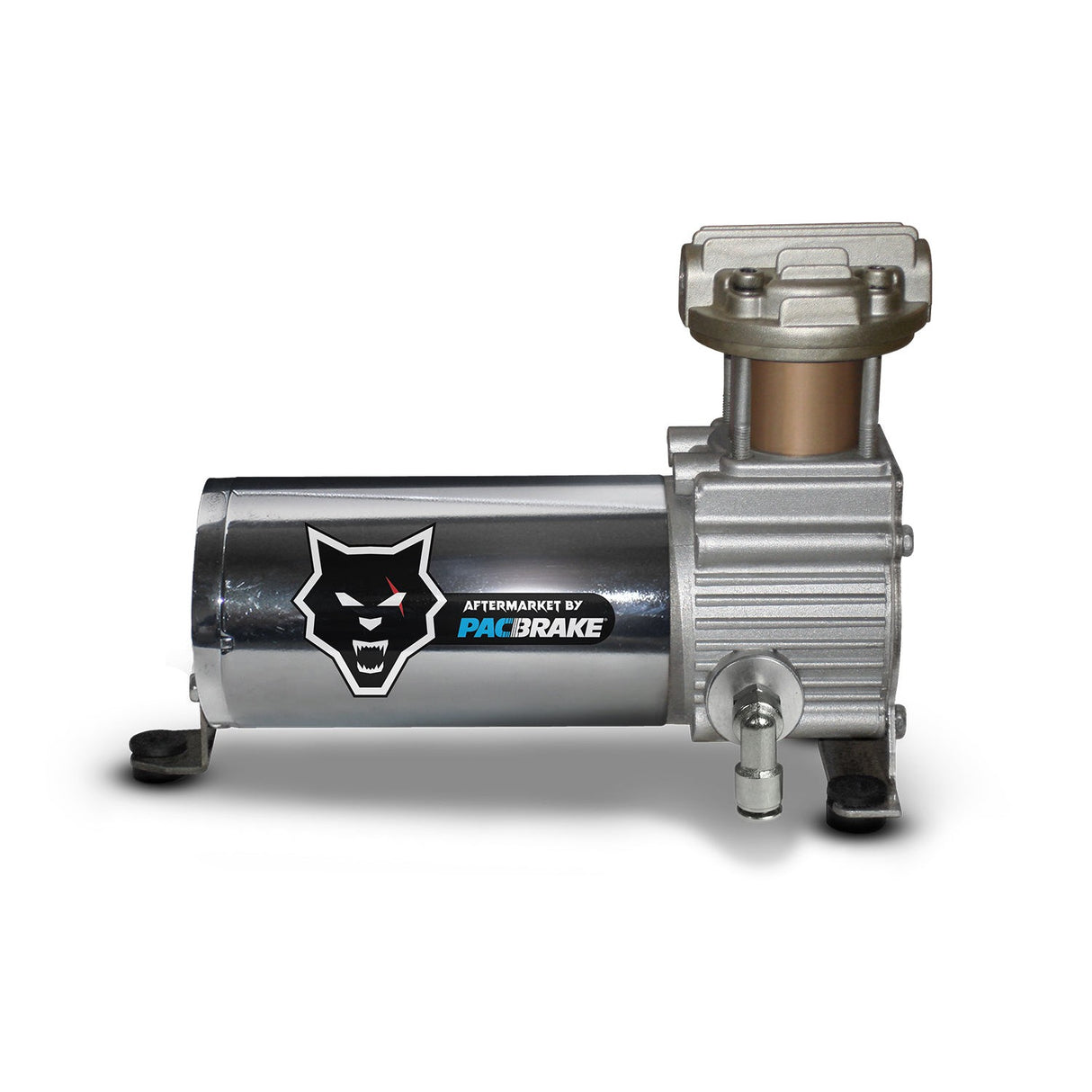

• HP325 Series 12V DC compressor

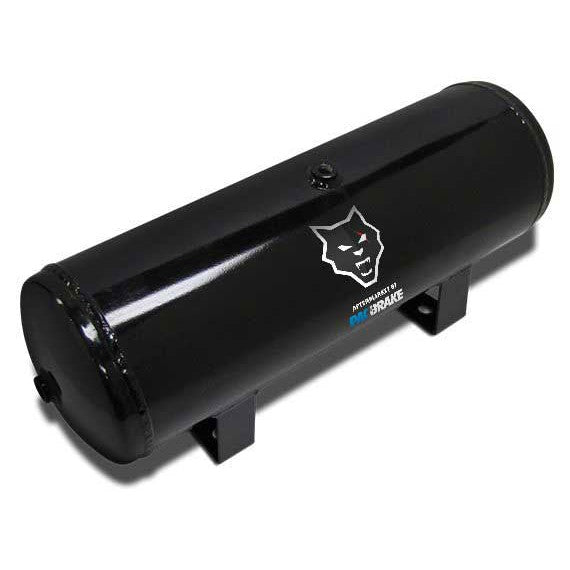

• 2 ½ Gallon aluminum air tank
• Fittings, pressure switch, relay(s)

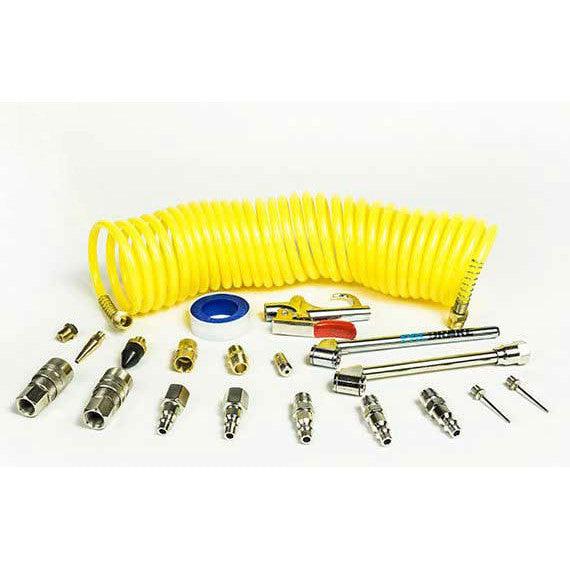

• Electrical connectors and all applicable accessories

Compressor Specifications:

• 12 VDC
• 33% (20min at 100 PSI) duty cycle
• 1/4 HP
• Weight is 9.8 lbs. Air Tank Specifications 2 gallon capacity
• 2-1/4 inch NPT ports
• Rust inhibitor applied to the inside of the tank
• Max working pressure 150 PSI
• Size is 21 inch x 6.9 inch x 8.9 inch (LxWxH)
• Welded on mounting brackets

• For installation instructions, Please Click Here
