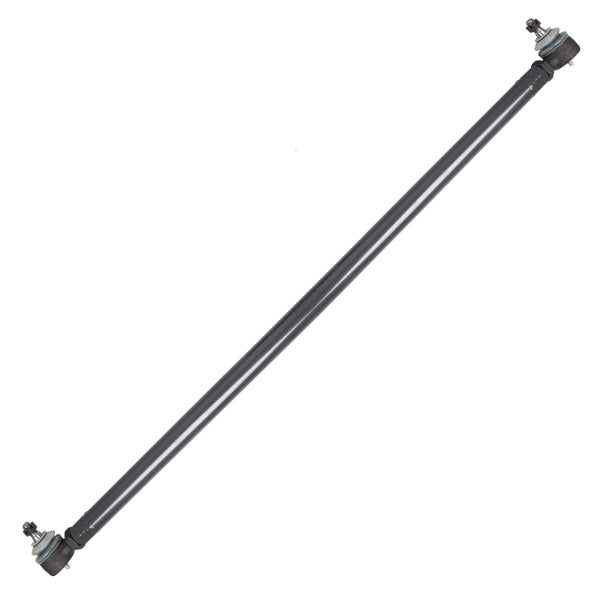

Universal Jeep HD Tie Rods (8121-01)

Synergy's HD Tie Rods are made from 1-3/8" Heat Treated Chromoly with metal on metal tie rod ends with LH and RH opposing threads to allow adjustment without removing it from vehicle.

Part Number: 8121-01

• Tie Rod is made from 1-3/8" 4130 Chromoly and Heat Treated for maximum strength
• Comes with Synergy HD metal on metal tie rod ends, 4135-L and 4135-R
• Features LH and RH opposing threads to allow adjustment of tie rod length without removal from vehicle
• abrasion-resistant Powdercoat finish for maximum durability and corrosion resistance
• Designed to be used with 8121-02 Drag Link only

Wheel Back Spacing Requirements:

• 15 inch wheel - max 3.75 inch
• 16 inch wheel - max 4.00 inch
• 17 inch wheel - max 4.50 inch

Requirements:

• Minimum of 2" front bump stop spacers required
• Fits vehicles with 2-6" of lift
• 2-4" of Lift must use stock pitman arm
• 4.5"-6" of Lift must use drop pitman arm

Click here for installation instructions
