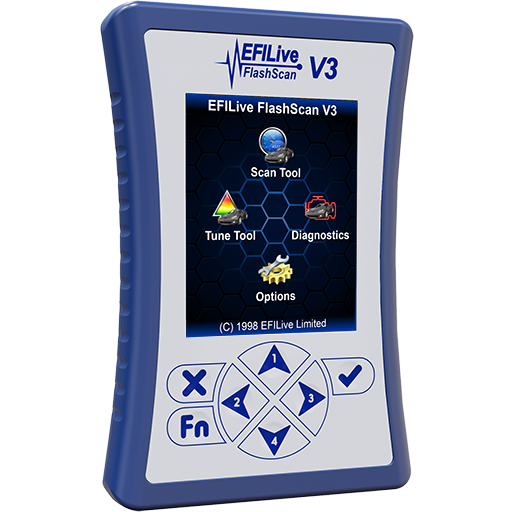

The EFI-Live FlashScan V3; is a scan tool, data logger & calibration reader for select engine controllers, this GMC/Chevrolet tuning option will include calibration flashing to suit any GM application. You can use this device in either standalone mode (FlashScan V3 to vehicle connection), or in pass-through mode (PC/laptop to FlashScan V3 to vehicle connection).
You will need:
- PC or laptop capable of running Win7 or higher
- USB port
- Color screen with 1280x960 or greater resolution
- 1GB of available disk space
Features
- GM Tuning - tune supported GM Gas and Diesel controllers. Customers who purchase GM Tuning should also consider purchasing the following:
- FlashScan V3 Serial Cable to integrate with serial wide band O2 devices for GM Gas applications.
- WO2 Serial Adapter (Null Modem) Male required when connecting FlashScan's serial cable to supported wide band serial cables.
- FlashScan V3 Expansion Cable to connect a remote switch to FlashScan V3 that allows remote activation/deactivation of data logging.
Additional Info
- EFILive FlashScan interface
- OBDII cable (RJ45 to SAE-J1962)
- PC cable (USB A to B)
- Large, easy to read color screen.
- Built-in 512MB micro SD Card.
- Built-in audible alarms.
- Upgradeable bootblock and firmware.
- Vehicle Input Voltage - Min 9V, Max 28V.
- Battery backed real-time clock.
- Appears as a Windows USB drive.
- Built-in power supply prevents data corruption if the external power supply is interrupted.
Scanning
If you have no tuning options, the following features are available to you
- Quick Setup
- Configure and program all device settings and scan settings in a single process.
- Save Quick Setup configurations for easy reuse.
- Email BBX configurations to support remote customers.
- BBX
- Read FlashScan V3⇄Connected Vehicle between 30 seconds and 7 mins (vehicle dependent).
- Store read & log files to internal SD card.
- Read & clear DTC codes.
- High speed data logging.
- Display data while logging.
- Read calibration and/or operating system data.
- Pass-Thru
- PC⇄FlashScan V3⇄Connected Vehicle read between 30 sec & 7 minutes (vehicle dependent).
- Store read & log files onto PC.
- Read and clear DTC codes.
- High speed data logging.
- Gauges & charts display in real time.
- Read calibration and/or operating system data.
- Tools
- Search files using key vehicle data (VIN, OS, segment).
- Customize software settings – Scan file save templates, displays, units, dashboards.
Tuning
When you activate tuning the following additional features are available to you
- Security
- Prevent unauthorized reading, editing and flashing of custom tune files.
- Tune files are encrypted with EFILive proprietary routines.
- Use Locking options to prevent tune files from being read from the ECM/TCM.
- Licensing
- Multi-vehicle licensing.
- Each Tuning Option ships with 2 VIN licenses.
- Each VIN license supports one engine controller. Supported transmission controllers do not require a VIN license.
- Additional VIN licenses (up to 600) can be purchased.
- Tools
- Integrate your own tuning parameters.
- Command Line Interface (CLI) and gang programming automate processes and programs up to five devices simultaneously.
Notes
- Ships with 1 OBDII cable and 1 USB cable
- Each Tuning Option ships with 2 VIN Licenses to tune 2 supported controllers
