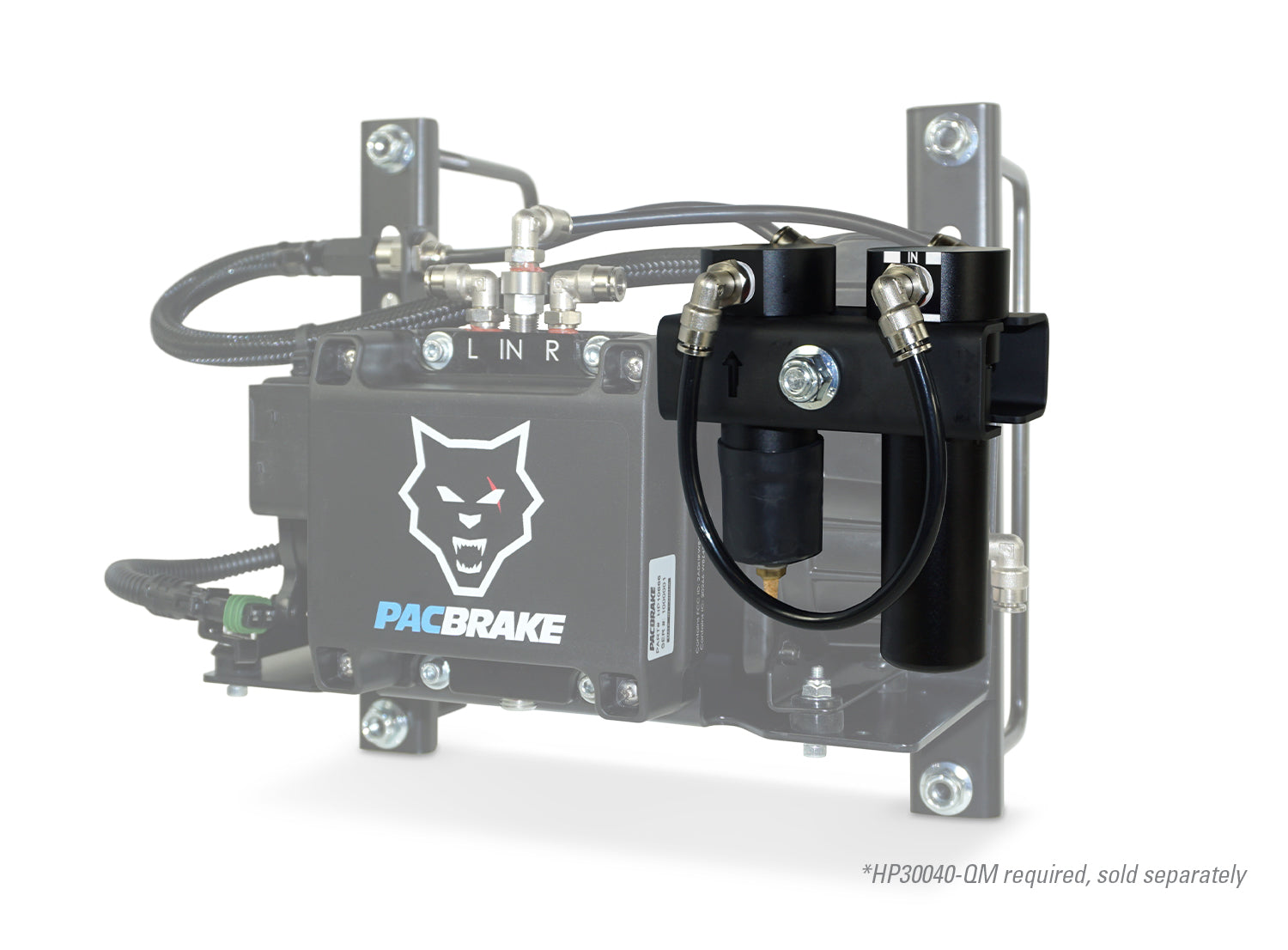

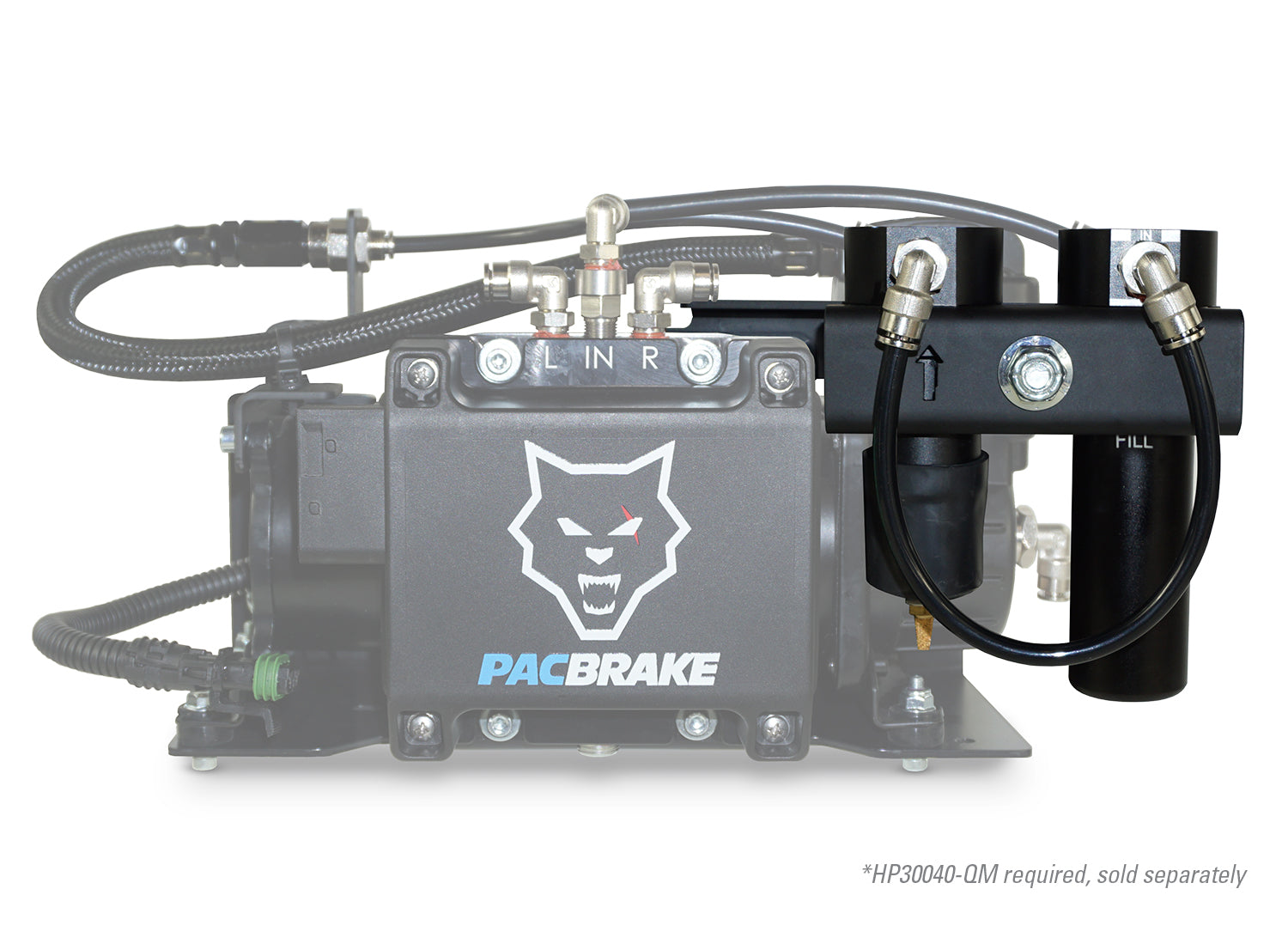

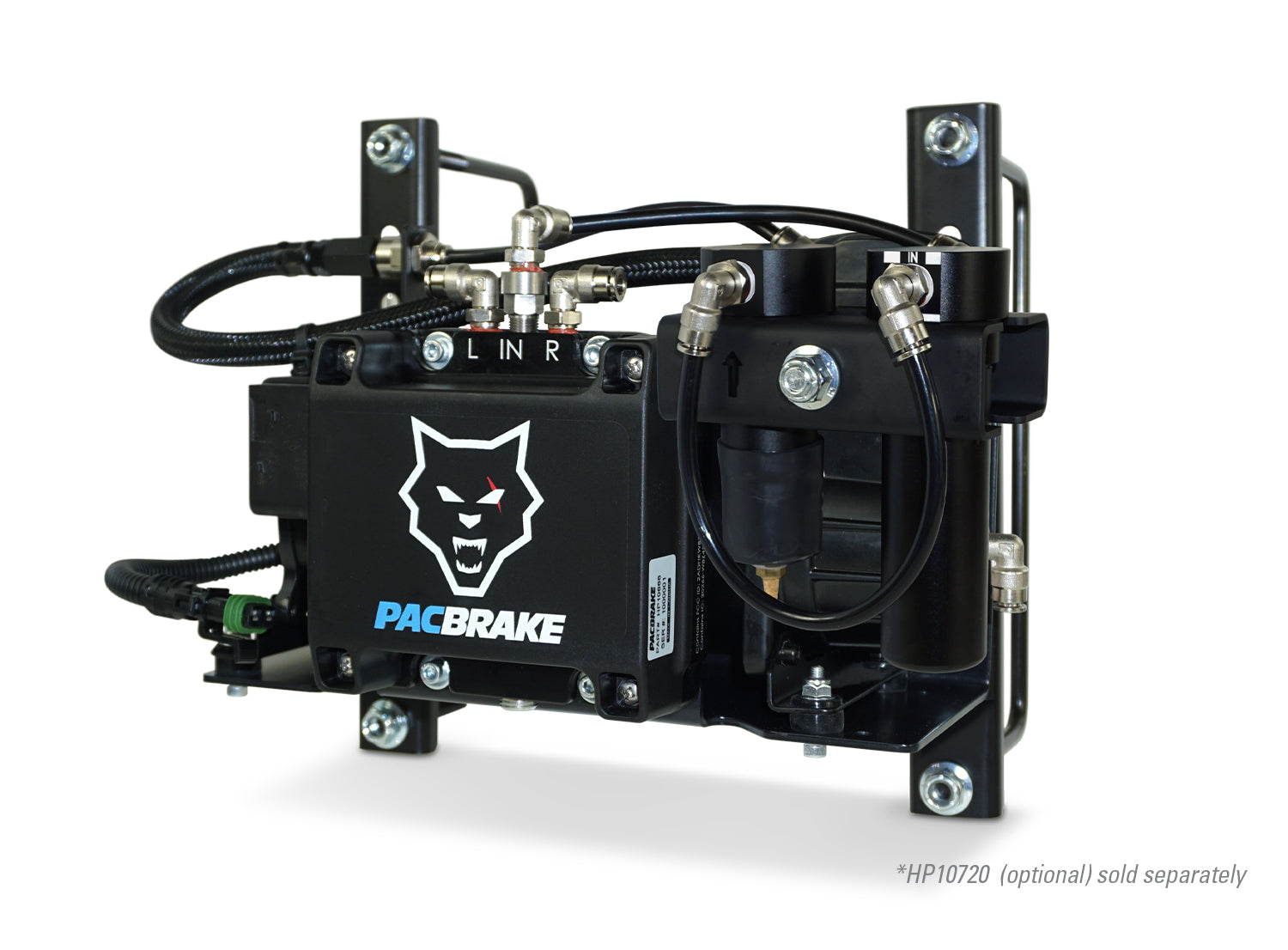

Universal DriAir Water Separator and Desiccant Kit (HP10720)

The Pacbrake HP10720 Water Separator Kit integrates with BRAVO air management systems to eliminate moisture at the source. Pacbrake's exclusive DriAir Technology runs a two-stage defense: the water separator pulls free water out of the compressed air stream, and the silica bead desiccant captures what is left before it can reach your air springs or lines. The solenoid auto-purges collected water on its own, and the BRAVO mobile app notifies you when the desiccant is due for service.

Part Number: HP10720

• DriAir two-stage moisture protection (water separator plus silica bead desiccant)
• Automatic solenoid drain - no manual draining required
• Desiccant service reminders through the BRAVO mobile app
• Protects against freeze blockage and corrosion, extending component life
• Quick-mount bracket for easy installation

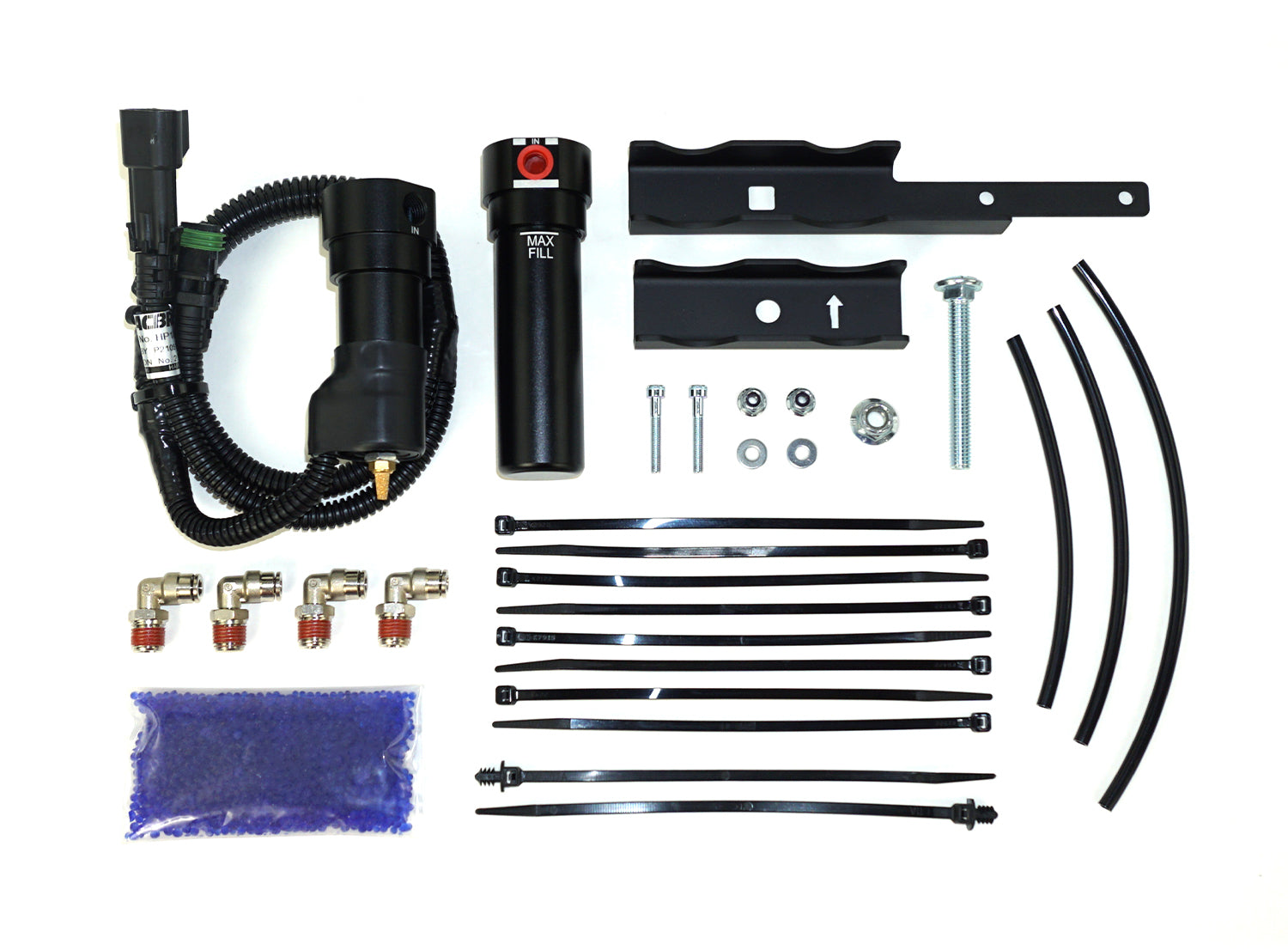

• Includes a spare desiccant cartridge and installation hardware

• Max working pressure: 150 PSI (1.03 MPa)
• Inlet/Outlet: 1/4 in push-to-connect 90-degree swivel
• Desiccant type: Silica bead
• Drain type: Automatic solenoid
• Operating temperature: -40 C to 70 C
• Dimensions: 8.8 in x 3 in x 5.2 in (L x W x H)
• Weight: 2 lbs (0.92 kg)

• Compatible with Pacbrake HP30040 versions only.
