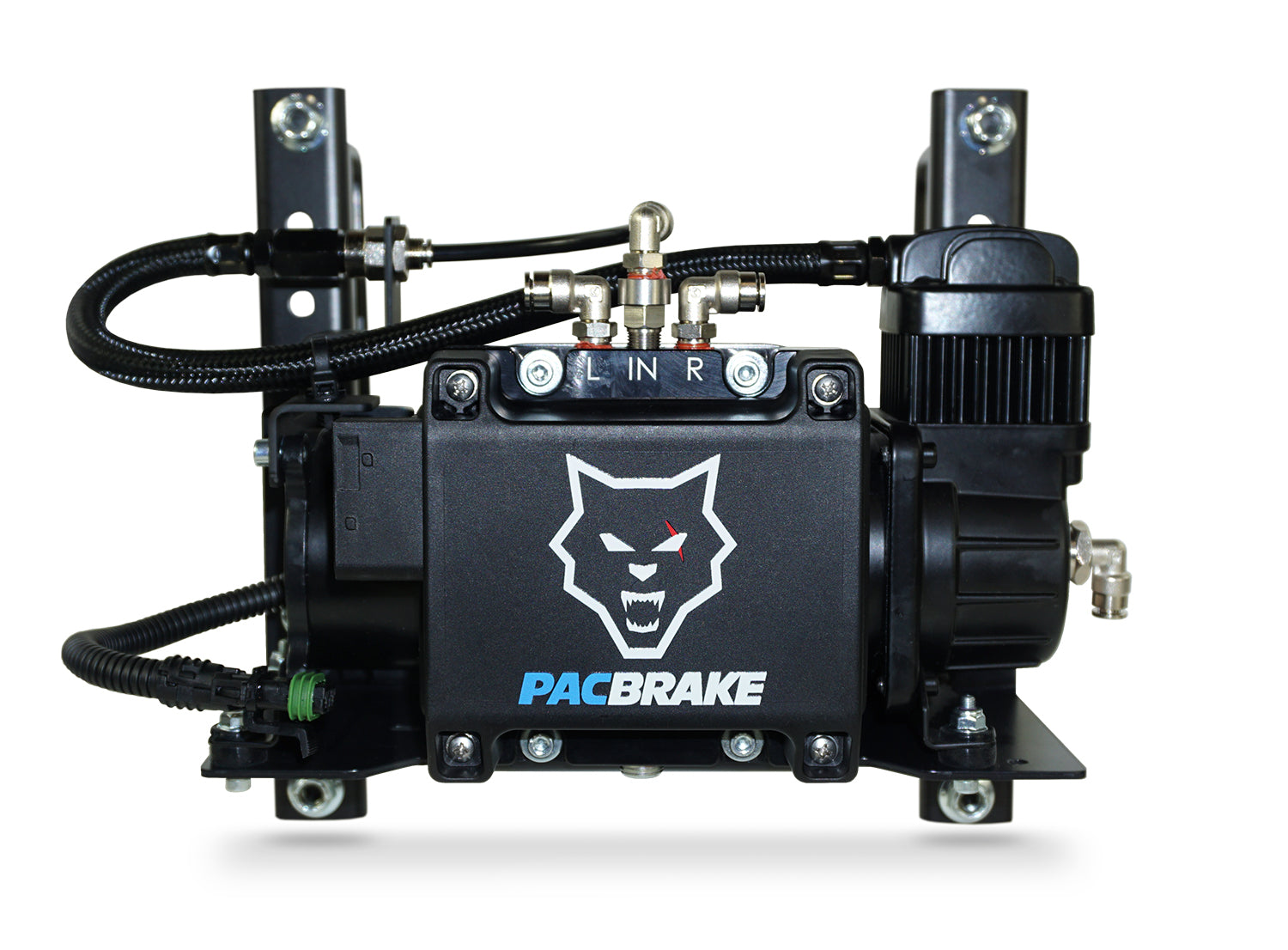

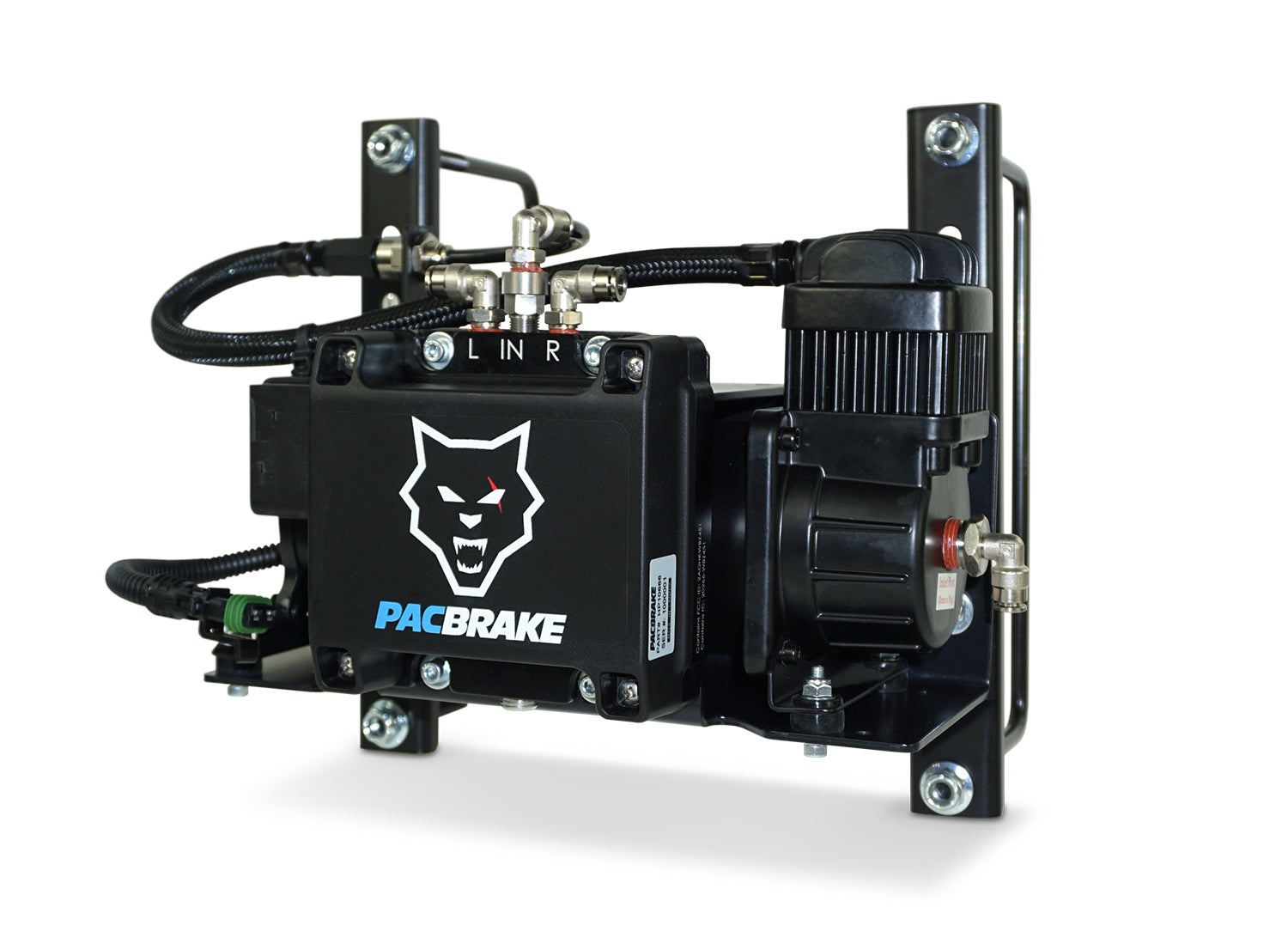

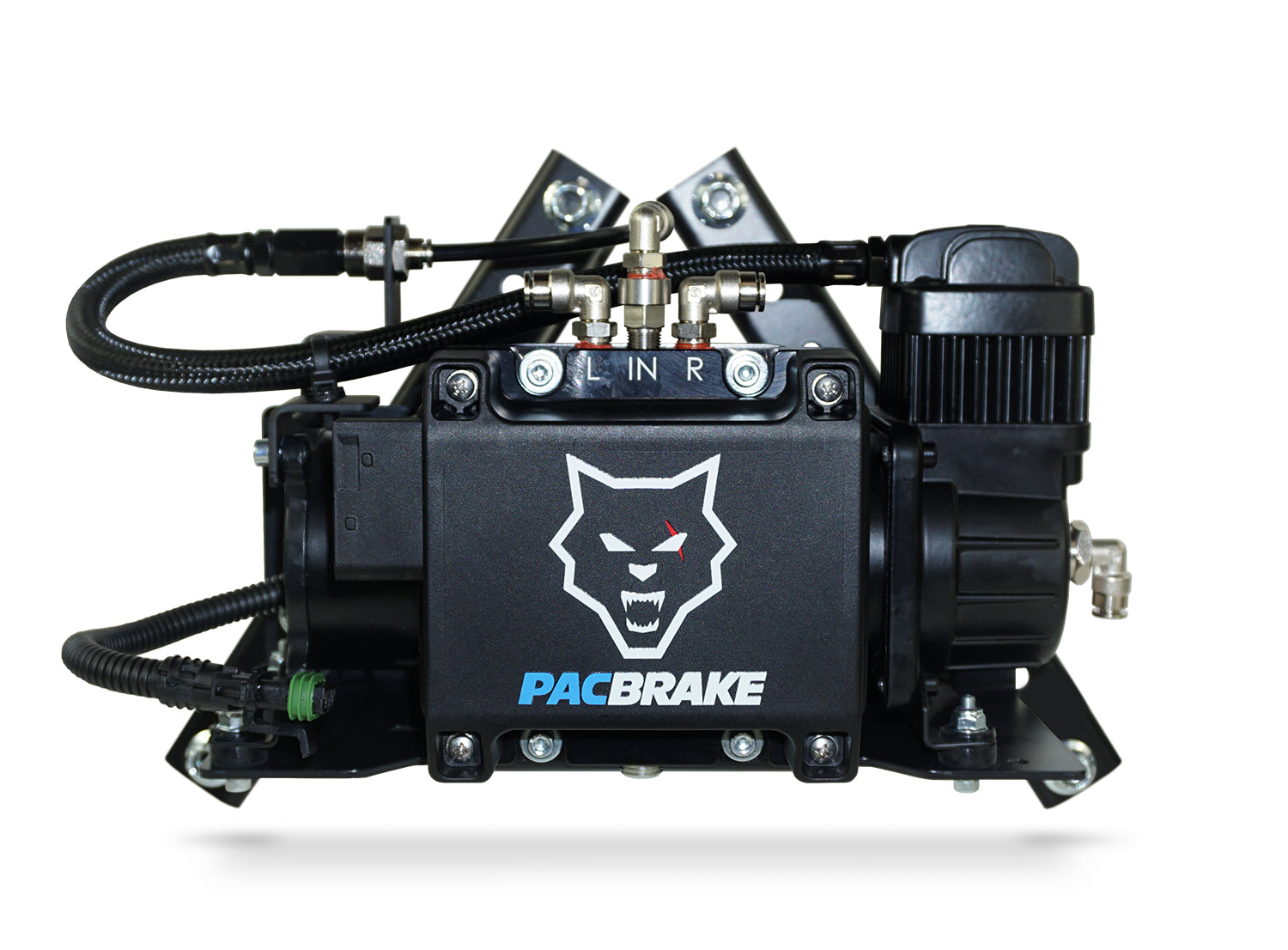

Universal BRAVO Wireless Air Control Kit w/ XD Compressor (HP30040-QM)

The Pacbrake HP30040-QM BRAVO Wireless Air Control Kit puts full wireless control of your air suspension system right in your hand. No drilling and no cutting - just push-to-connect fittings, plug-in wiring, and a sealed waterproof assembly that is ready to work in under an hour. Manage pressures, set inflation presets, and monitor your system live from the BRAVO mobile app, with single or dual-path fill so you can start simultaneous and upgrade to independent left/right control later without buying a new kit.

Part Number: HP30040-QM

• Wireless smartphone control - adjust air spring pressure from the cab
• Waterproof 425 Series compressor: up to 150 PSI, 1.75 CFM, 100% duty cycle at 100 PSI
• IP67-sealed for total weatherproof durability
• Billet aluminum control manifold for leak-free performance
• Real-time pressure feedback and setup assist catches leaks before they become problems
• Single or dual-path mode - simultaneous or independent left/right fill

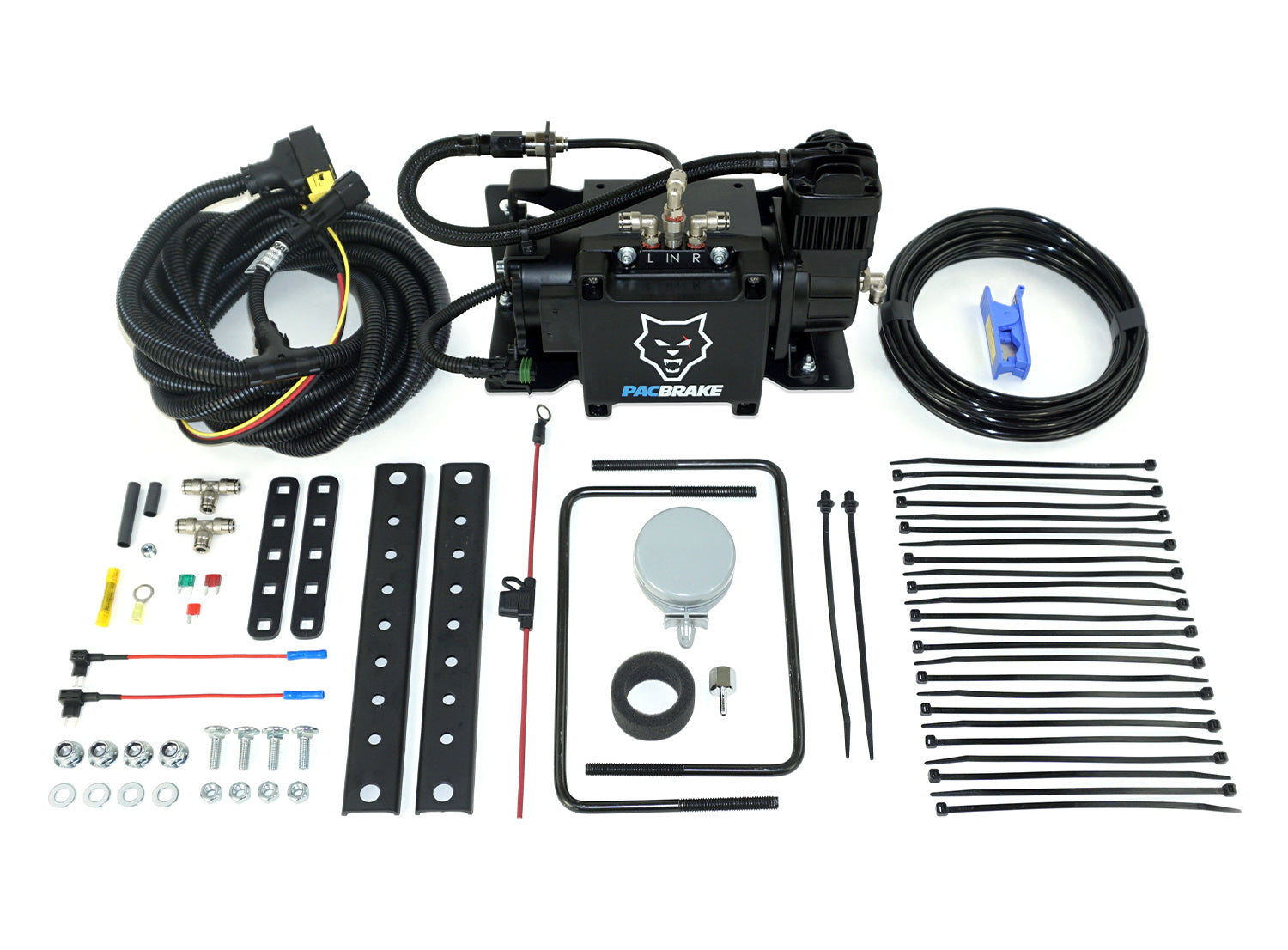

• No drilling or cutting - push-to-connect fittings and pre-assembled harness install in under an hour

• Ambient operating temperature: -40 F to 158 F (-40 C to 70 C)
• Maximum working pressure: 150 PSI (1034 kPa)
• Compressor duty cycle: continuous at 100 PSI
• Ingress protection: IP67 (requires compressor with remote-mounted intake filter)
• Wireless connectivity range: 30 ft (10 m) minimum
• Compatible with iOS and Android devices

• Pair with the HP10718 (1/2 gallon) or HP10719 (2.5 gallon) air tank for increased volume and faster fill times
• Add the HP10720 water separator for DriAir moisture protection, or the HP10723 air accessory kit to inflate tires and run tools
• Prefer a complete kit? See the HP30040-CB1 (1/2 gallon) or HP30040-CB2 (2.5 gallon) combo kits

• Universal - works with all existing air spring products.
• A mobile app is required for initial setup, servicing, and system notifications.
