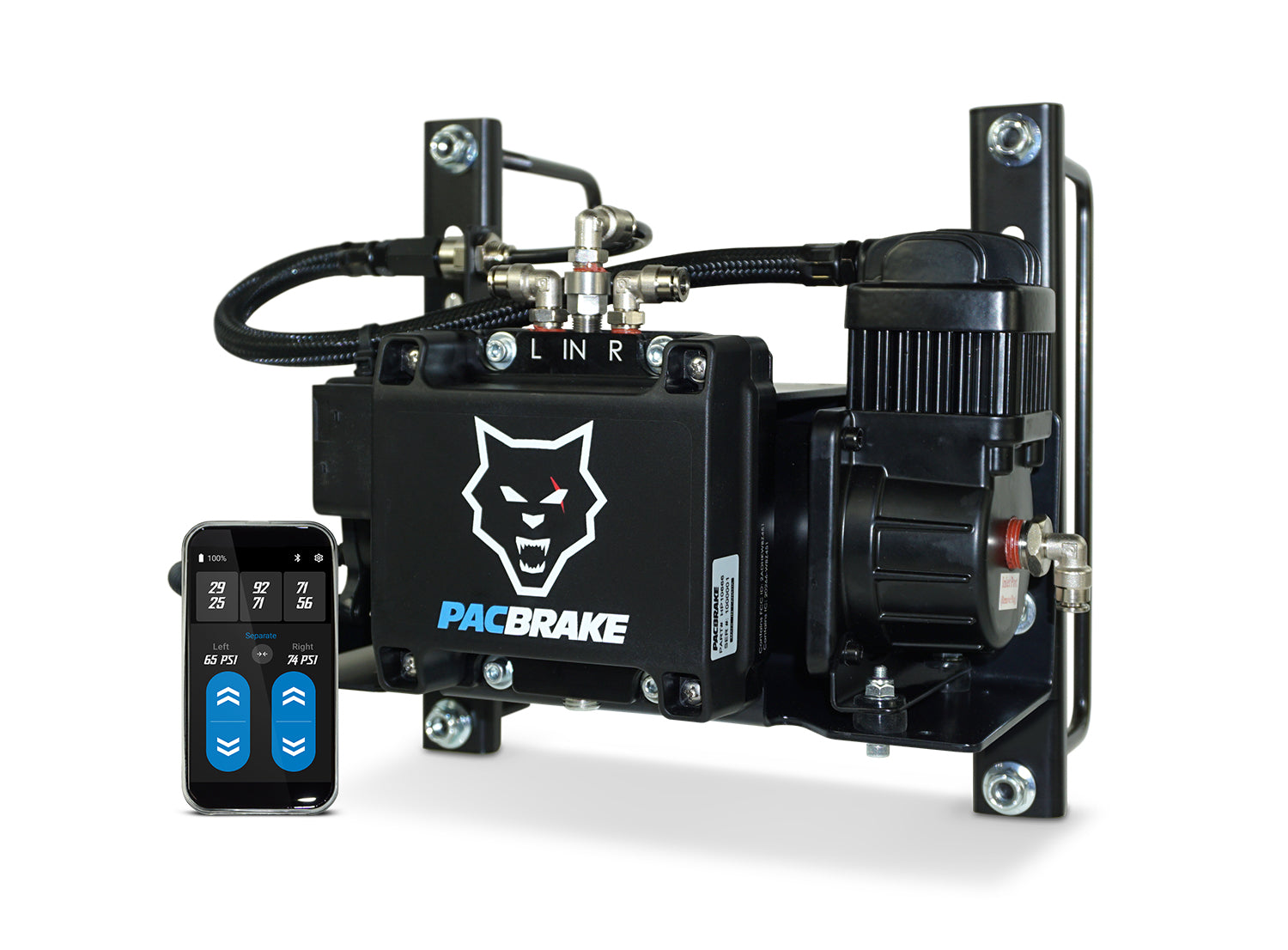

Universal BRAVO Wireless Air Control Kit Quick Mount w/ Remote (HP30040-QM-R)

The Pacbrake HP30040-QM-R BRAVO Wireless Air Control Kit puts full wireless control of your air suspension right in your hand and adds a handheld remote for independent control alongside the mobile app. No drilling and no cutting - just push-to-connect fittings, plug-in wiring, and a sealed waterproof assembly ready to work in under an hour. Choose independent or simultaneous fill at the touch of a button and monitor your system live from the BRAVO app.

Part Number: HP30040-QM-R

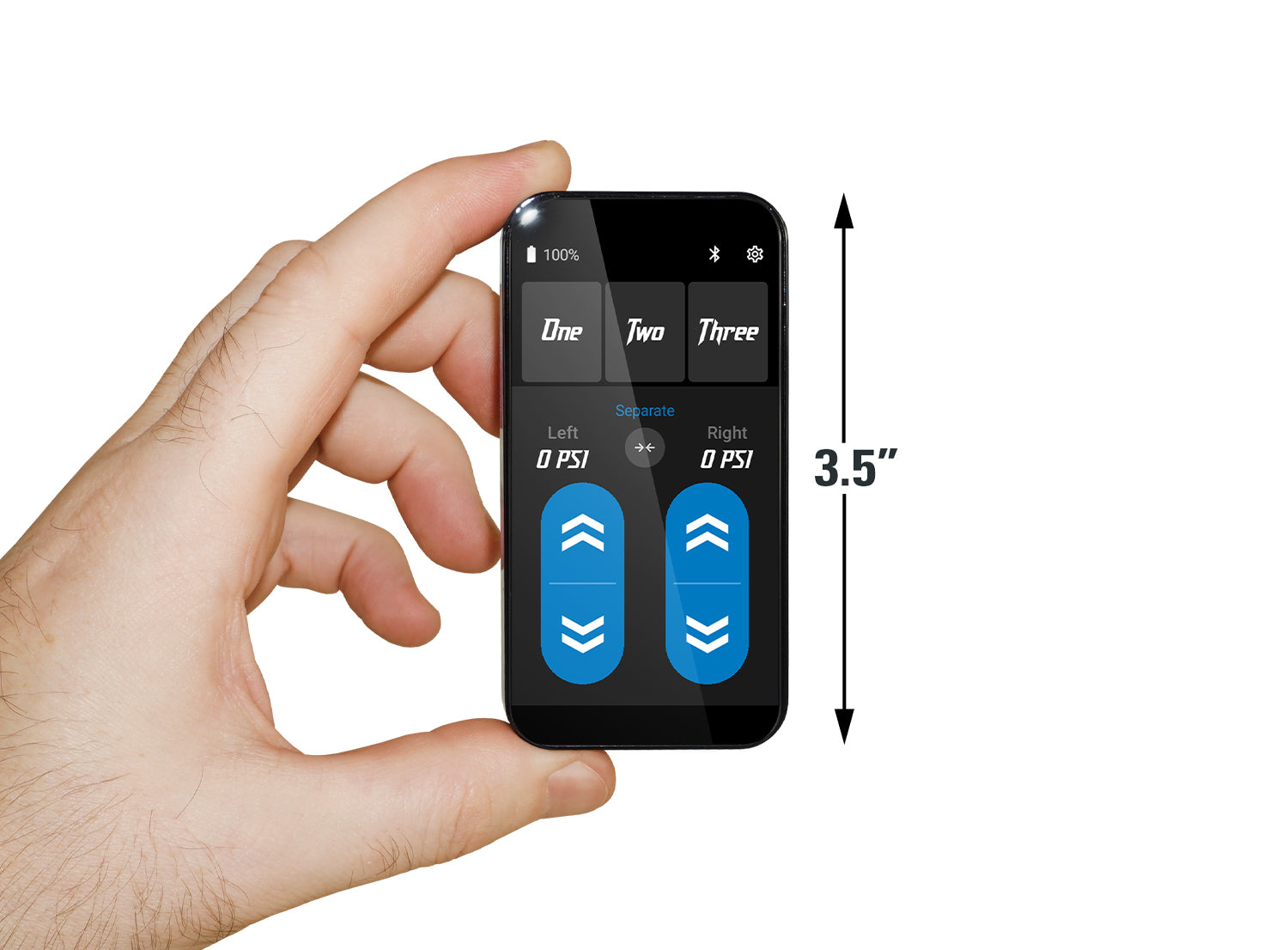

• Includes handheld remote for control in addition to the mobile app
• Quick-mount design for a faster, cleaner install
• Waterproof 425 Series compressor: up to 150 PSI, 1.75 CFM, 100% duty cycle at 100 PSI
• IP67-sealed for total weatherproof durability
• Single or dual-path mode - simultaneous or independent left/right fill
• Real-time pressure feedback and setup assist through the app

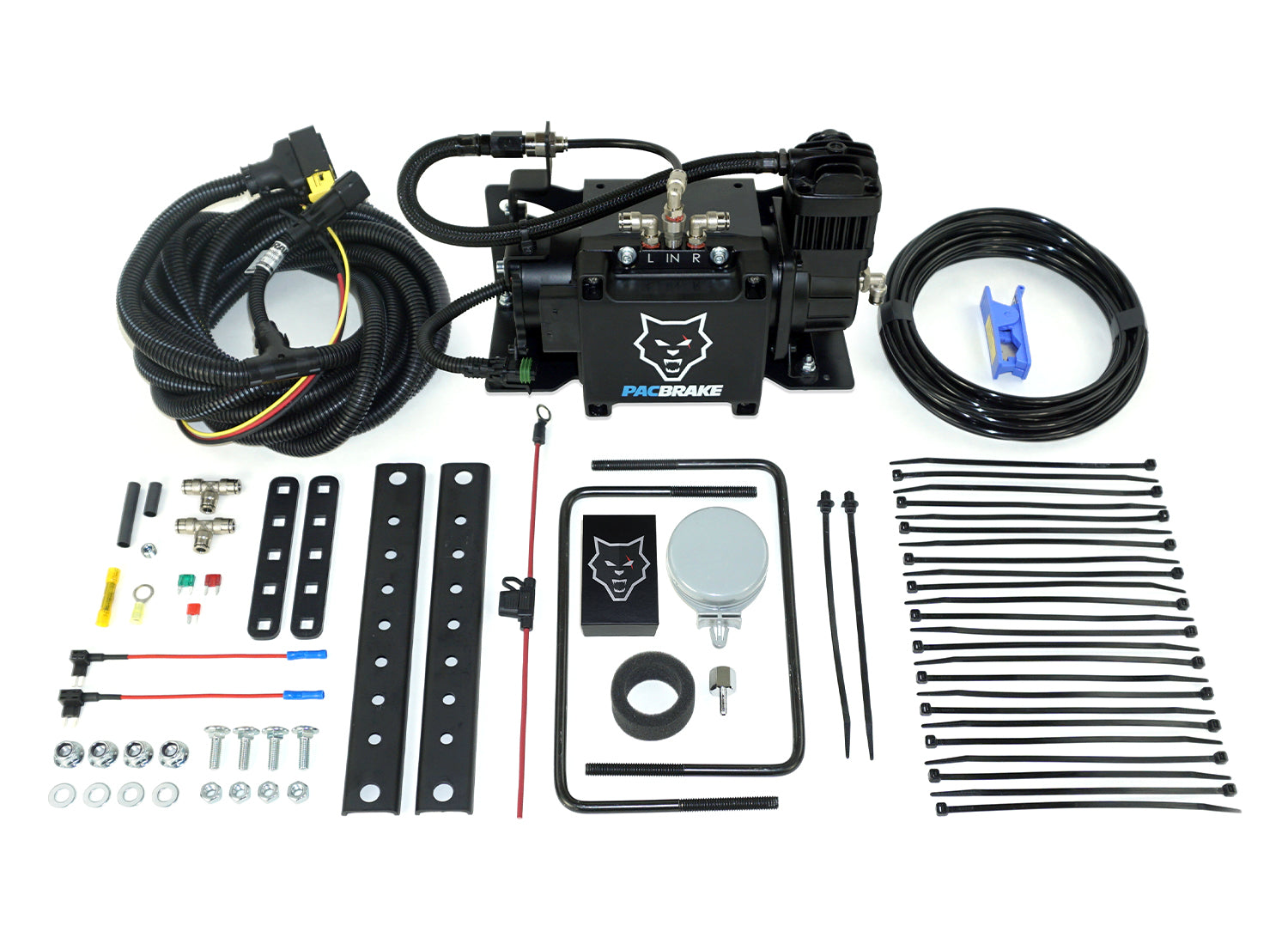

• No drilling or cutting - push-to-connect fittings and pre-assembled harness install in under an hour

• Ambient operating temperature: -40 F to 158 F (-40 C to 70 C)
• Maximum working pressure: 150 PSI (1034 kPa)
• Compressor duty cycle: continuous at 100 PSI
• Ingress protection: IP67 (requires compressor with remote-mounted intake filter)
• Wireless connectivity range: 30 ft (10 m) minimum
• Compatible with iOS and Android devices

• Pair with the HP10718 (1/2 gallon) or HP10719 (2.5 gallon) air tank for increased volume and faster fill times
• Add the HP10720 water separator for DriAir moisture protection, or the HP10723 air accessory kit to inflate tires and run tools
• Prefer a complete kit? See the HP30040-CB1 (1/2 gallon) or HP30040-CB2 (2.5 gallon) combo kits

• Universal - works with all existing air spring products.
• A mobile app is required for initial setup, servicing, and system notifications.
