Universal BRAVO Wireless Air Control Combo Kit w/ 2.5 Gallon Air Tank (HP30040-CB2)

The Pacbrake HP30040-CB2 gives you the full BRAVO experience without the guesswork of piecing it together. This combo kit pairs wireless air management with a larger 2.5 gallon air tank, DriAir moisture protection, and a complete onboard air accessory kit - all bundled and ready to install. The bigger tank means greater air reserve and faster fill times under heavier loads. No drilling, no cutting, and no sourcing separate components; just push-to-connect fittings, plug-in wiring, and a sealed waterproof assembly up and running in under an hour.

Part Number: HP30040-CB2

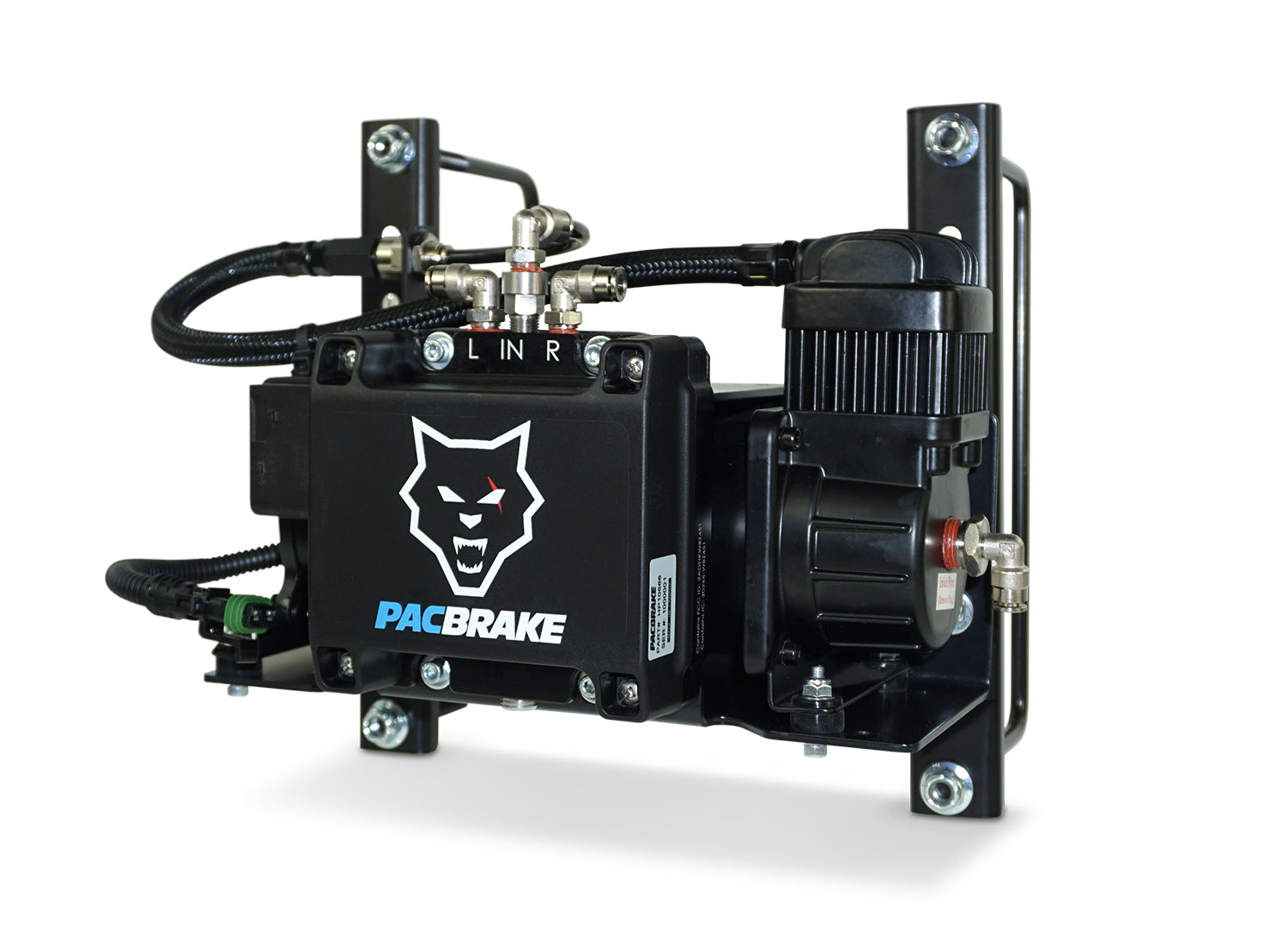

• HP30040-QM - Wireless Air Control Kit with 425 Series compressor (up to 150 PSI, 1.75 CFM, 100% duty cycle at 100 PSI, IP67-sealed)

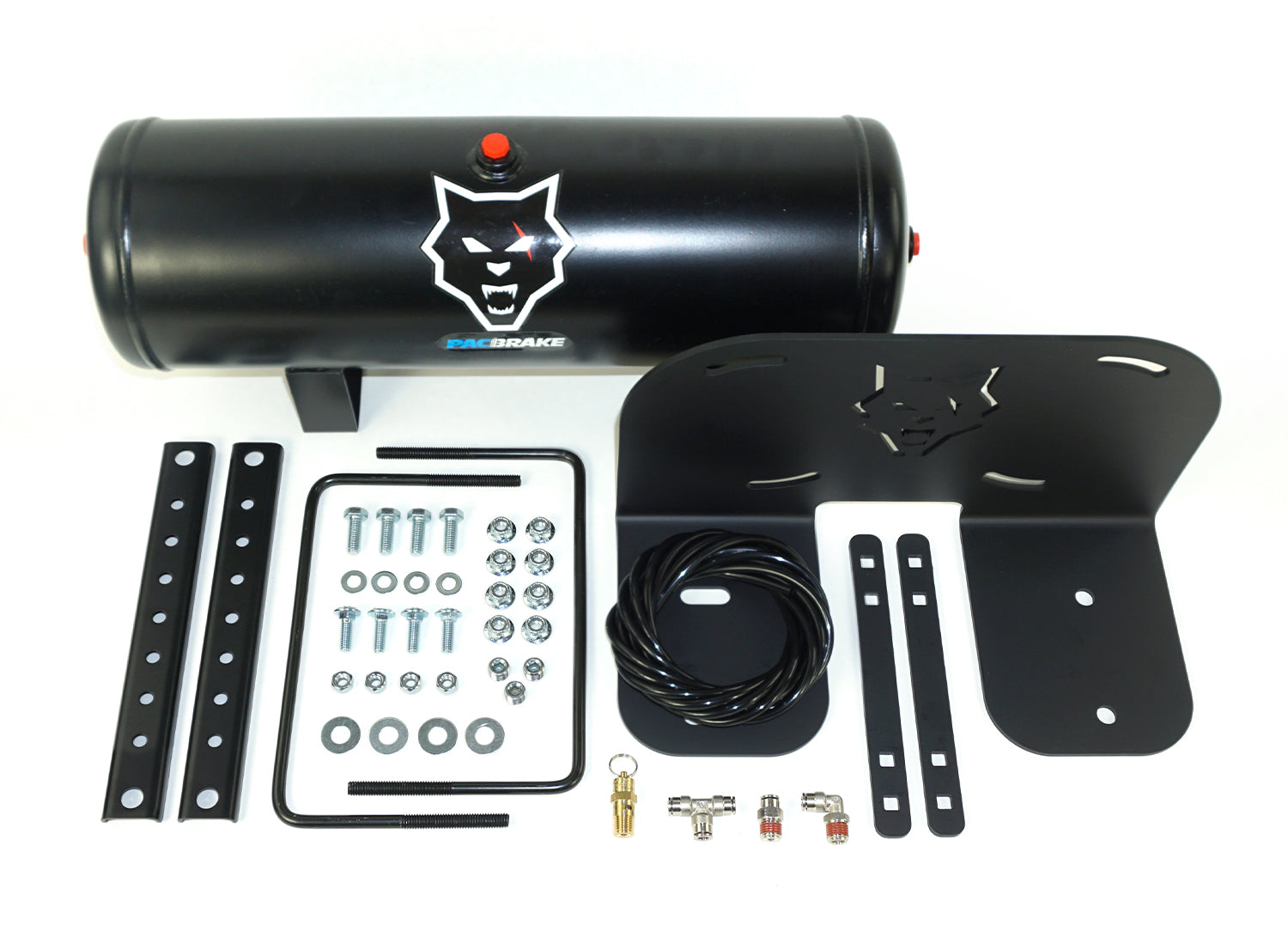

• HP10719 - 2.5 gallon carbon steel air tank with black powder-coated finish, anti-rust coating and quick-mount bracket

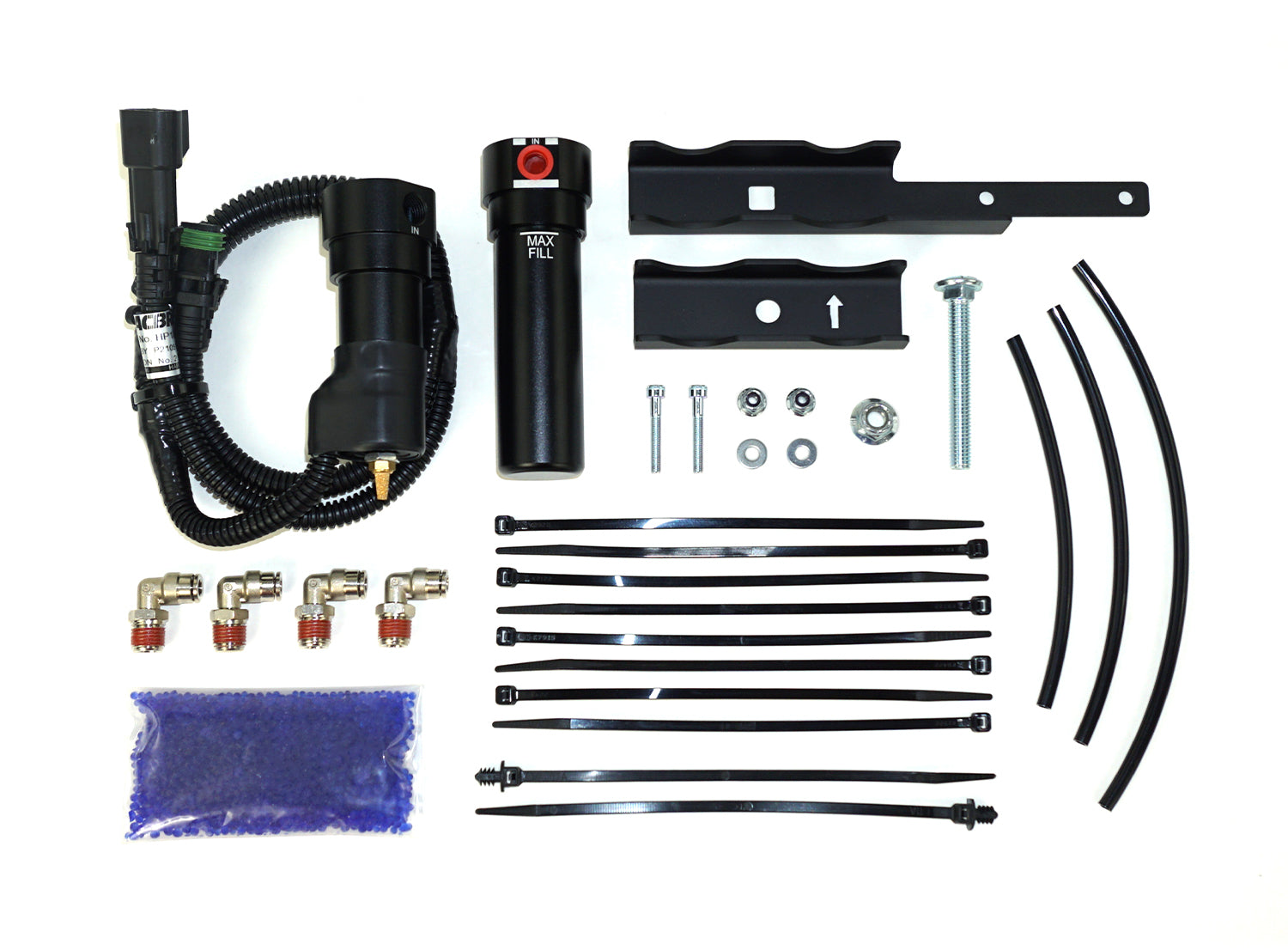

• HP10720 - DriAir water separator kit with silica bead desiccant and automatic solenoid drain

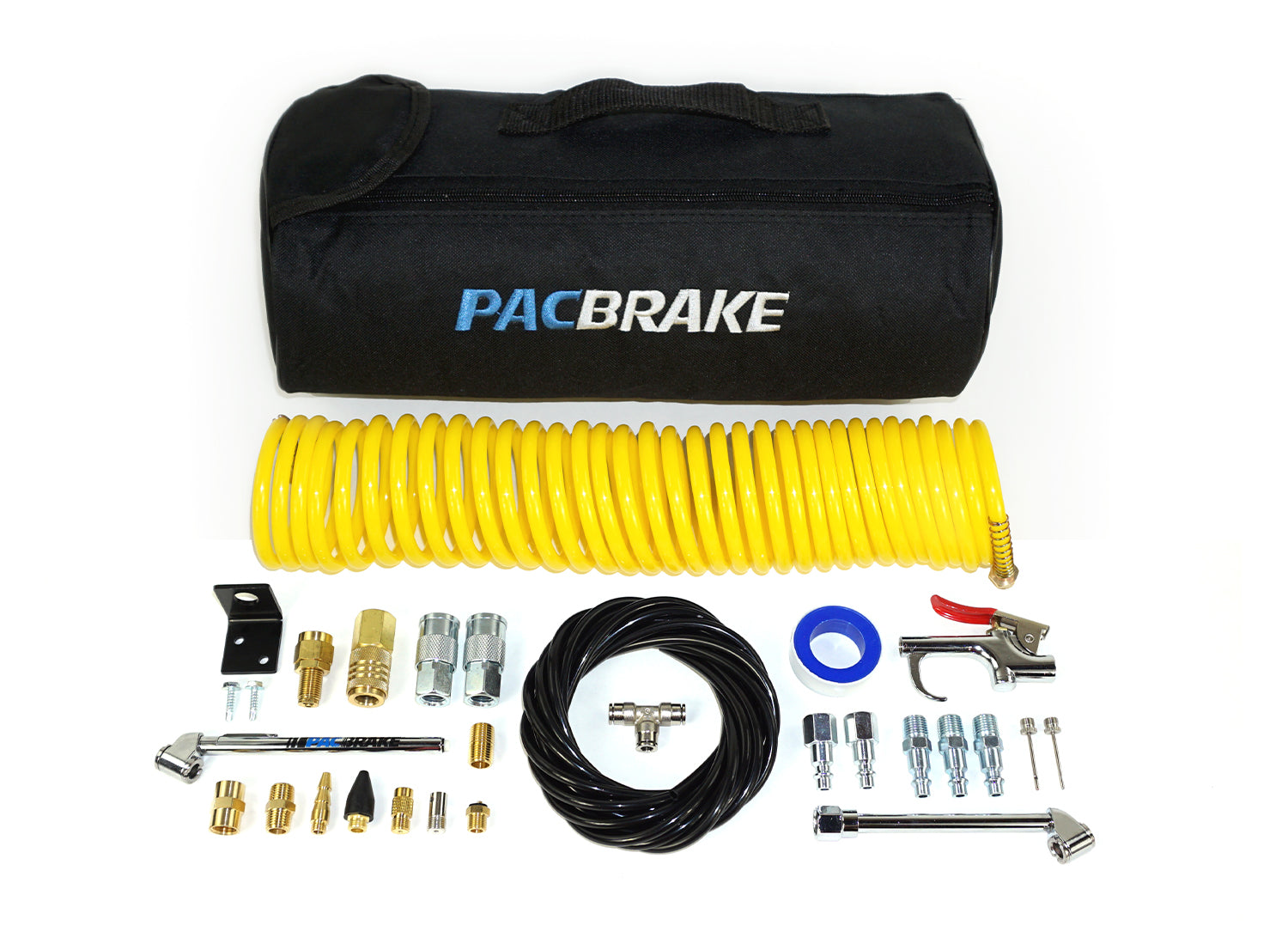

• HP10723 - Onboard air accessory kit with 25 ft coiled hose, blow gun, chuck, gauge, adapters and storage bag

• Complete wireless air management setup in one kit
• Larger 2.5 gallon reserve for greater capacity and faster fills
• Wireless smartphone control plus real-time pressure feedback
• DriAir two-stage moisture protection extends component life
• Full accessory kit for tire inflation and pneumatic tools
• Ignition-switched power means zero parasitic draw

• Maximum working pressure: 150 PSI (1034 kPa)
• Compressor duty cycle: continuous at 100 PSI
• Ingress protection: IP67 (requires compressor with remote-mounted intake filter)
• Wireless connectivity range: 30 ft (10 m) minimum
• Air tank capacity: 2.5 gallon
• Compatible with iOS and Android devices

• Universal - works with all existing air spring products.
• Want independent remote control in addition to the app? Add an HP10660 remote.
• Want a more compact option? See the HP30040-CB1 (1/2 gallon) combo kit.
• A mobile app is required for initial setup, servicing, and system notifications.
