Universal Alpha HD Pro S Air Suspension Kit (HP10019-J-S)
Purchase to earn 862 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Model | Drive | Notes |
|---|---|---|---|---|
| 1973–1987 | Chevrolet | C10 / C20 / C30 | 2WD | * |
| 1973–1987 | Chevrolet | K10 / K20 / K30 | 4WD | * |
| 1969–1993 | Dodge | W100 / W150 | 2WD/4WD | HEAVY LOADS * |
| 1969–1993 | Dodge | W250 / W350 | 2WD/4WD | * |
| 1969–1993 | Dodge | D150 | 2WD/4WD | HEAVY LOADS * |
| 1969–1993 | Dodge | D250 / D350 | 2WD/4WD | * |
| 1994–2001 | Dodge | 1500 | 2WD | HEAVY LOADS * |
| 1994–2002 | Dodge | 2500 / 3500 | 2WD/4WD | * |
| 1998–2010 | Ford | Ranger | 2WD/4WD | * |
| 1966–1996 | Ford | F-100 / F-150 | 4WD | HEAVY LOADS * |
| 1968–1996 | Ford | F-100 / F-150 | 2WD | HEAVY LOADS * |
| 1969–1979 | Ford | F-250 | 2WD | [UNDER 7500 GVWR] * |
| 1980–1996 | Ford | F-250 | 2WD | * |
| 1980–1997 | Ford | F-250 | 4WD | * |
| 1997 | Ford | F-250 | 4WD | HEAVY DUTY [OVER 8600 GVWR] * |
| 1997–1998 | Ford | F-250 | 2WD/4WD | LIGHT DUTY [UNDER 7500 GVWR] * |
| 1970–1997 | Ford | F-350 | 2WD | * |
| 1980–1997 | Ford | F-350 | 4WD | /* |
| 1999–2004 | Ford | F-350 Super Duty | 2WD | [11,200 GVWR & Under] * |
| 1998–2010 | Mazda | Pickups | 2WD/4WD | /** |
Note: * Will fit vehicles with a Reese 5th wheel rail kit (models 30033, 30035 & 30729) / ** Will not fit Super HD Chassis / *** Will only fit with stock wheel and tires.
| Fitment Status | Details |
|---|---|
| Will Fit | Vehicles with a Reese 5th wheel rail kit (Models 30033, 30035, and 30729) |
| Will Not Fit | 1994–2001 Dodge RAM 1500 (4WD) – Heavy Loads |
| Will Not Fit | 1998–2010 Ford Ranger (2WD/4WD) – Without stock wheels and tires only |
| Will Not Fit | 1966–1967 Ford F-100 / F-150 (2WD) |
| Will Not Fit | 1997 Ford F-250 (2WD) |
| Will Not Fit | 1969–1979 Ford F-250 (2WD) – Vehicles under 7500 GVWR |
| Will Not Fit | 1980–1997 Ford F-250 (4WD) – Heavy duty vehicles over 8600 GVWR |
| Will Not Fit | 1997–1998 Ford F-250 Light Duty (2WD/4WD) – Vehicles over 7500 GVWR |
| Will Not Fit | 1970–1979 Ford F-350 (2WD) |
| Will Not Fit | 1980–1997 Ford F-350 (4WD) – With Super HD Chassis |
| Will Not Fit | 1998–2010 Mazda Pickups (2WD/4WD) – Without stock wheels and tires only |

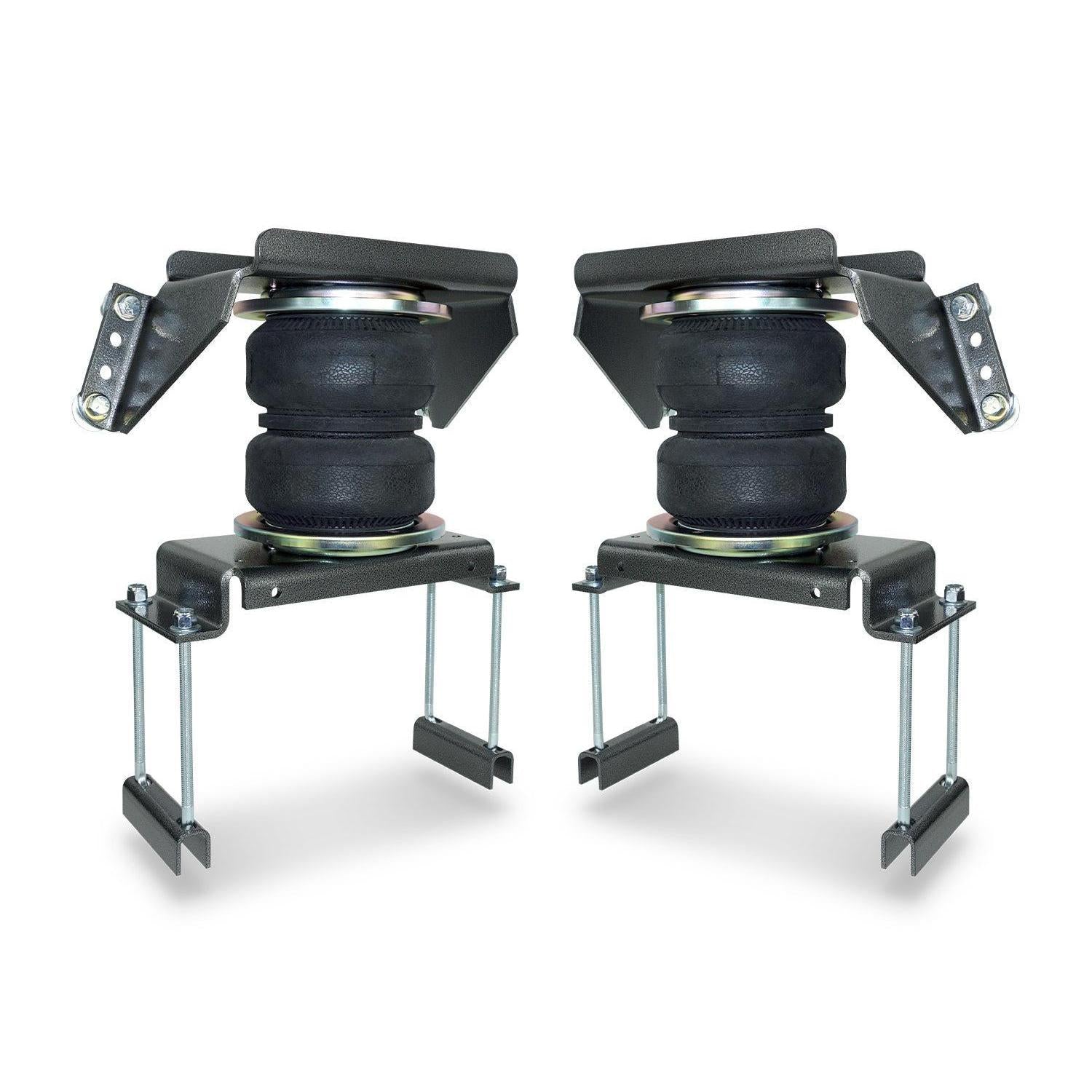

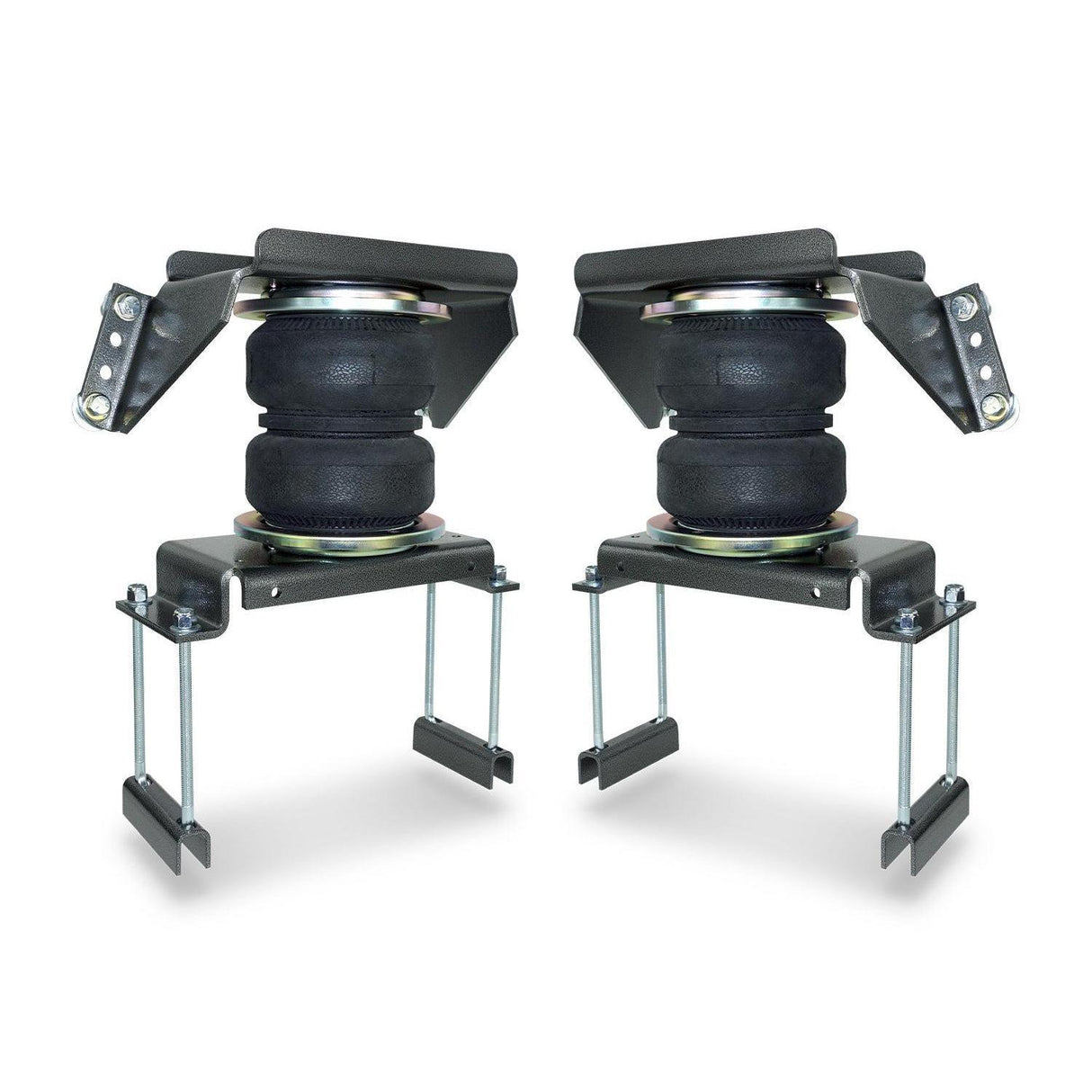

The ALPHA HD PRO S air suspension kit reduces truck sag, sway, and bottoming out. It includes corrosion-resistant end caps, stainless steel hardware, and 20 support wires for durability. The built-in polyurethane bumper protects against damage and allows safe driving without air when not towing. Available with or without an internal bag bump stop for added flexibility.
Part Number: HP10019-J-S
Features
Features
- 5,000 lbs of load leveling capacity
- 3 hour install time
- Lifetime warranty
- Can be run at 0 psi

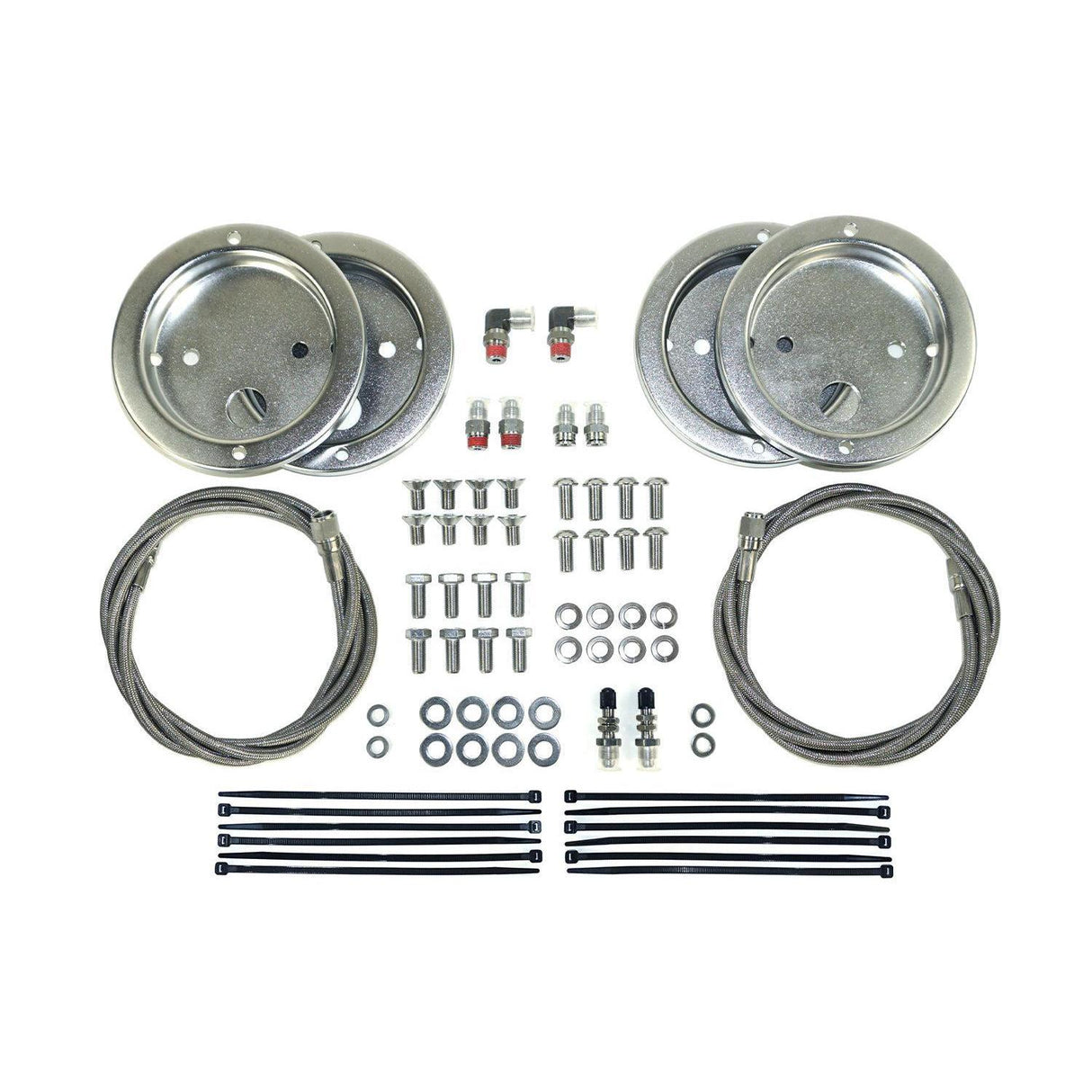

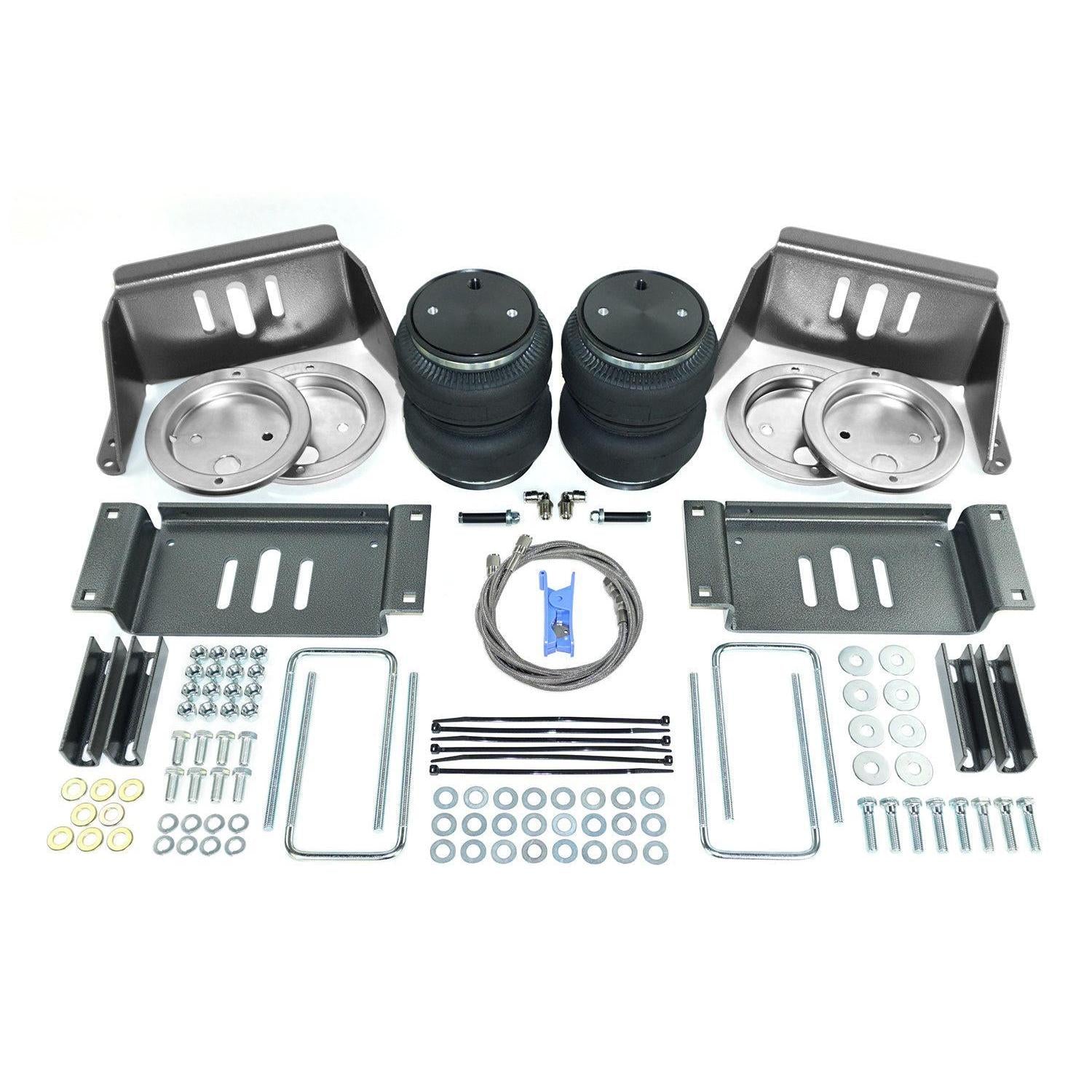

Includes:
- 6ft Braided Stainless Steel Air Lines
- Stainless Steel Air Spring Fittings
- Stainless Steel Air Spring Mounting Hardware
- Stainless Steel Schrader Valves
- Stainless Steel Roll Plates
- Two Air Springs
- Everything required for install
Installation
Installation
Notes
Notes
- Never exceed manufacturer's recommended Gross Vehicle Weight Rating.
Additional Info
Additional Info

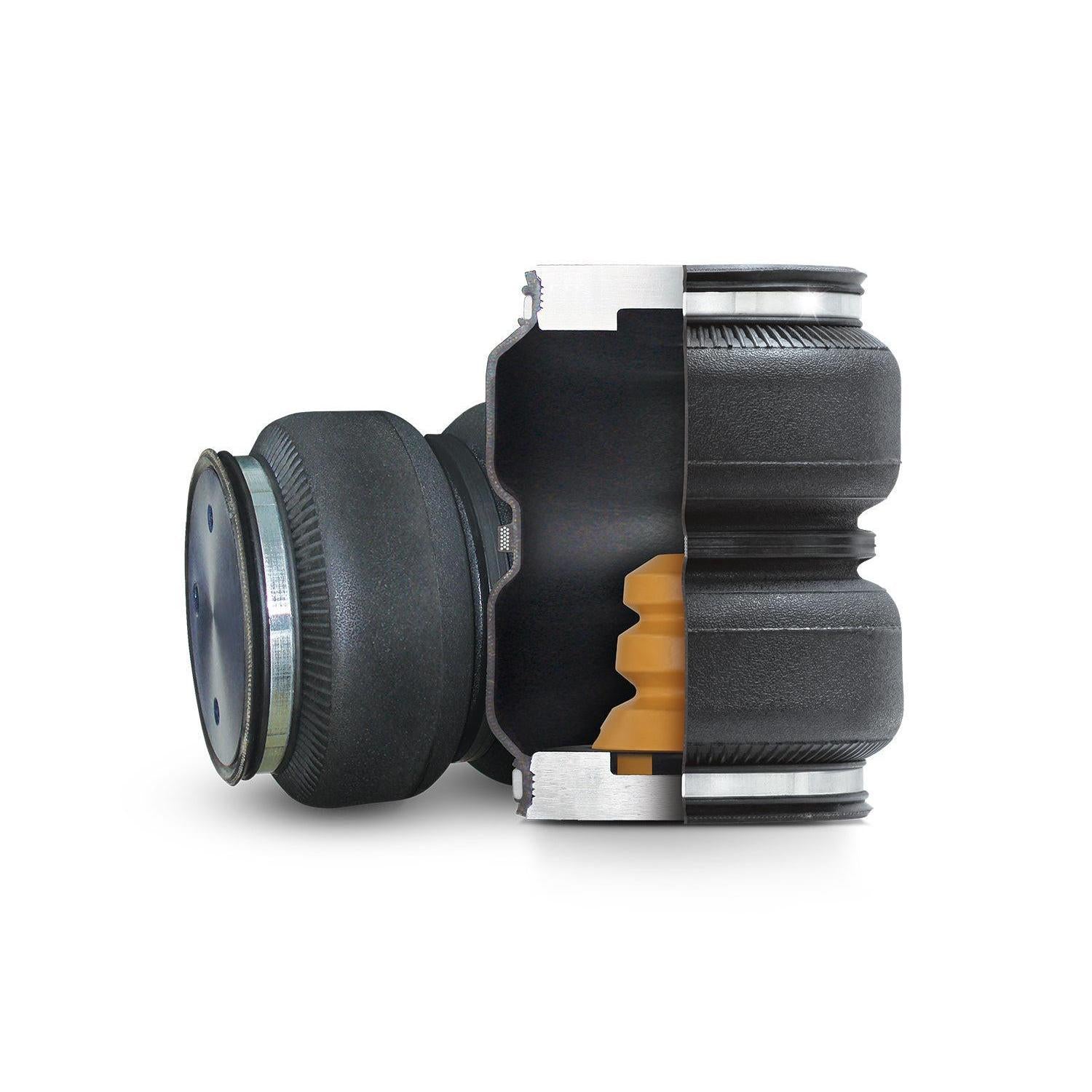

Why Pacbrake added a bump stop to their bags?
Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.
An additional benefit is that you can run these air bags at 0 psi when unloaded for superior ride comfort.
Are bump stops necessary?
No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off roading, air bags without bump stops are recommended. Consider the HP10019 ALPHA HD air bag.
Warranty
Warranty
Parts Only
