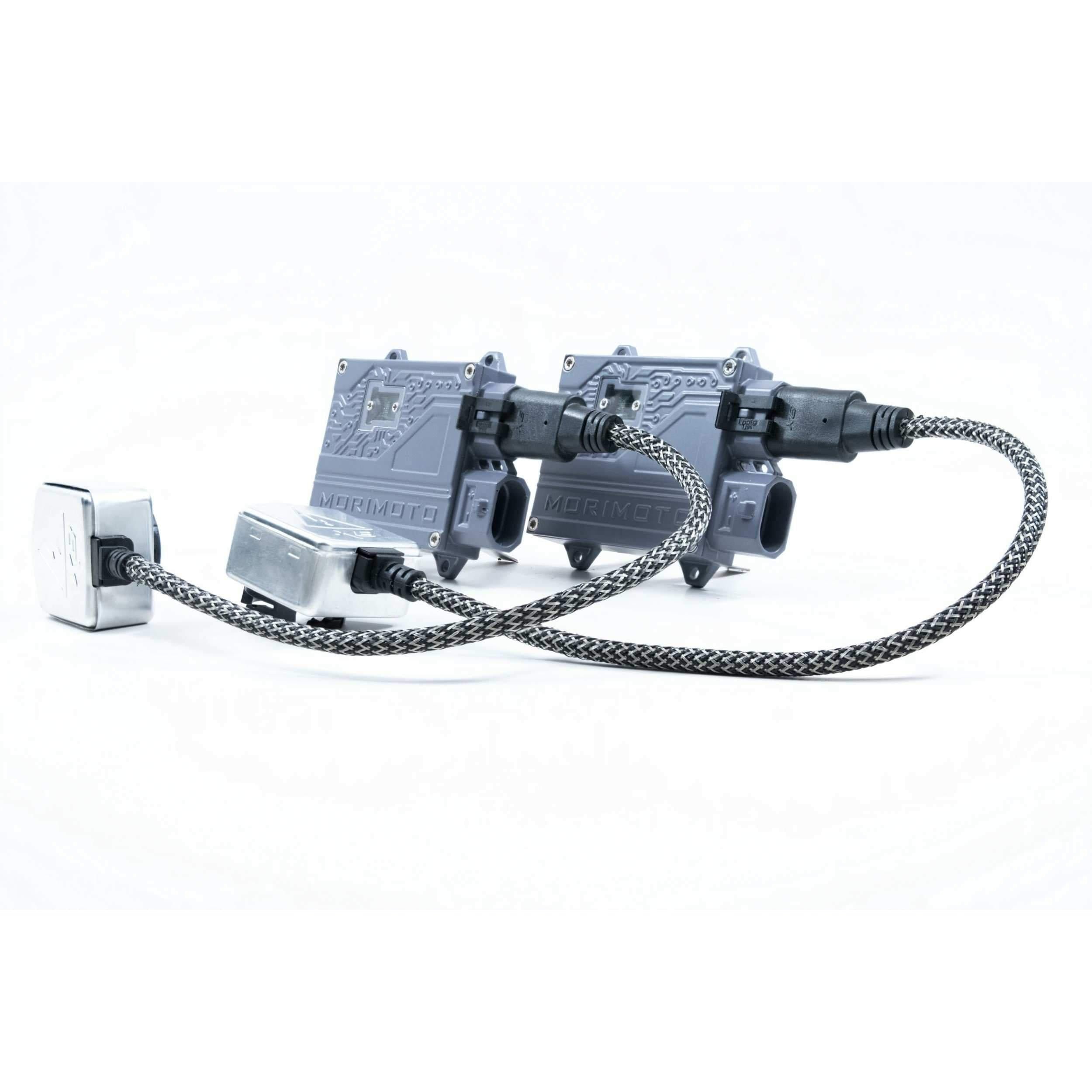

Universal 50w / D2S XB Ballast (BL22)
Morimoto
Part Number:
BL22
$140.00 CAD
Unit price
/
Unavailable
Purchase to earn 140 Dirty Dollars Learn More
Description
Description
Fits
| HID BULBS | Any with 'AMP' style inputs |
| VEHICLES | All with 9-18V electrical systems |
Designed to last for 2500 hours and we're confident they will. The powerful AS15-G4 IC chip recognizes outside system faults such as a loose high voltage connection, and after one misfire will cut power rather than potentially self-destruct. The software is proprietary to this ballast alone.

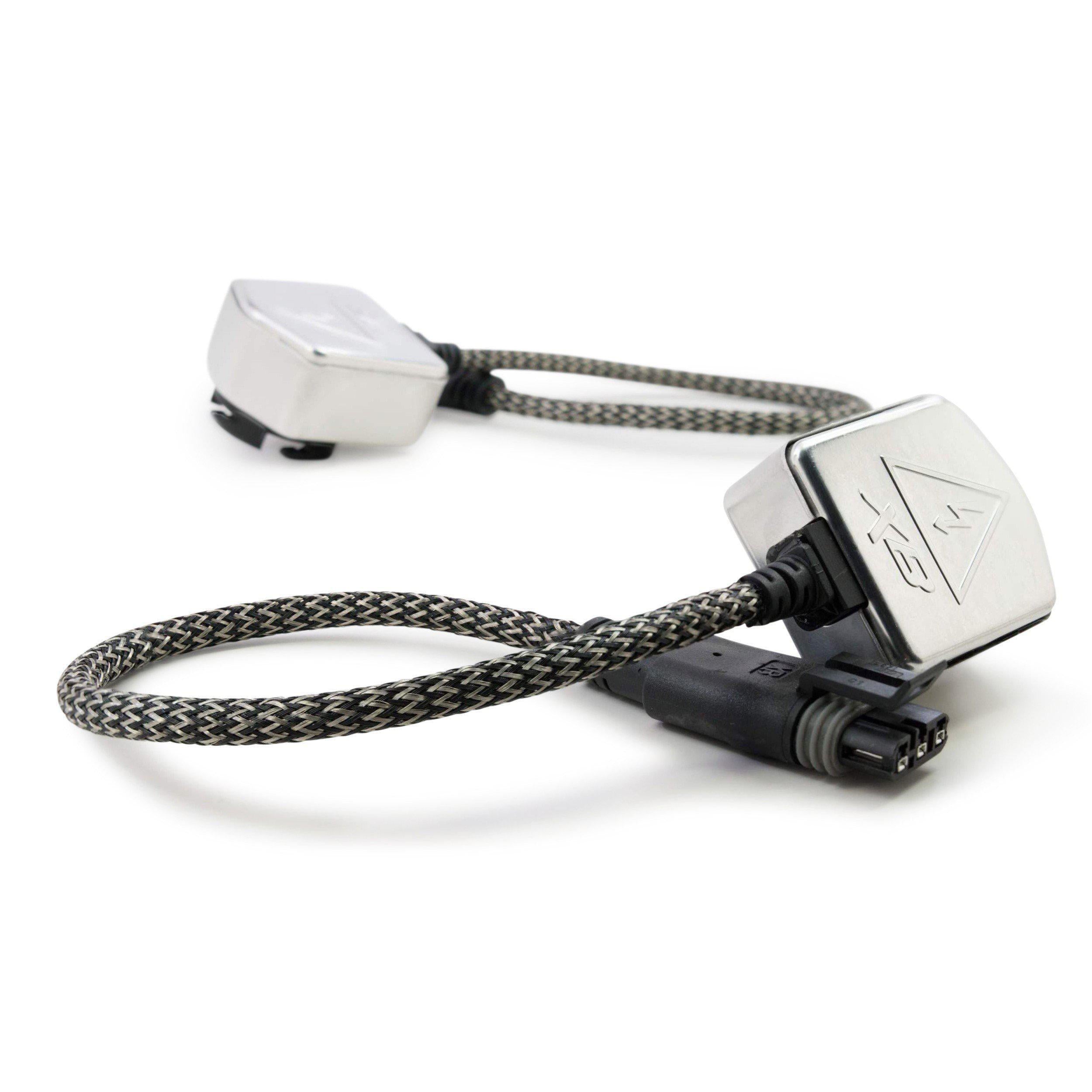

Since the igniter cord can be unplugged from the HID ballast computer, you can easily change from AMP to D2S or vice-versa (without the use of unreliable adapters, that is). Likewise, if an igniter does happen to go bad, it can easily be replaced.
Part Number: BL22
Features
Features
- Stainless Steel Hardware

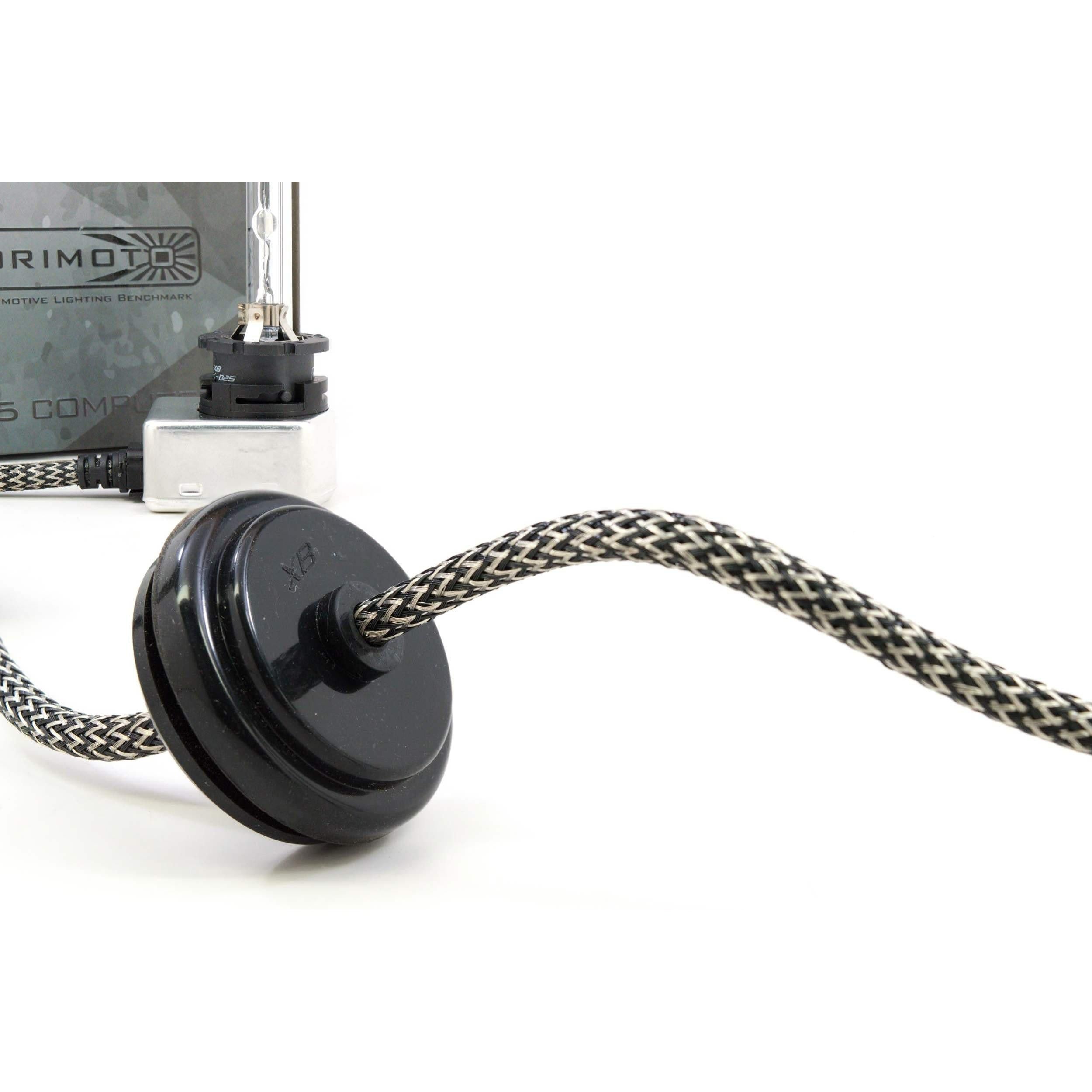

- TechFlex braided insulation
- Low voltage reduces radio interference
- Consumes significantly less current
- Slim 18mm body
- AMP Super seal 3 pin connector

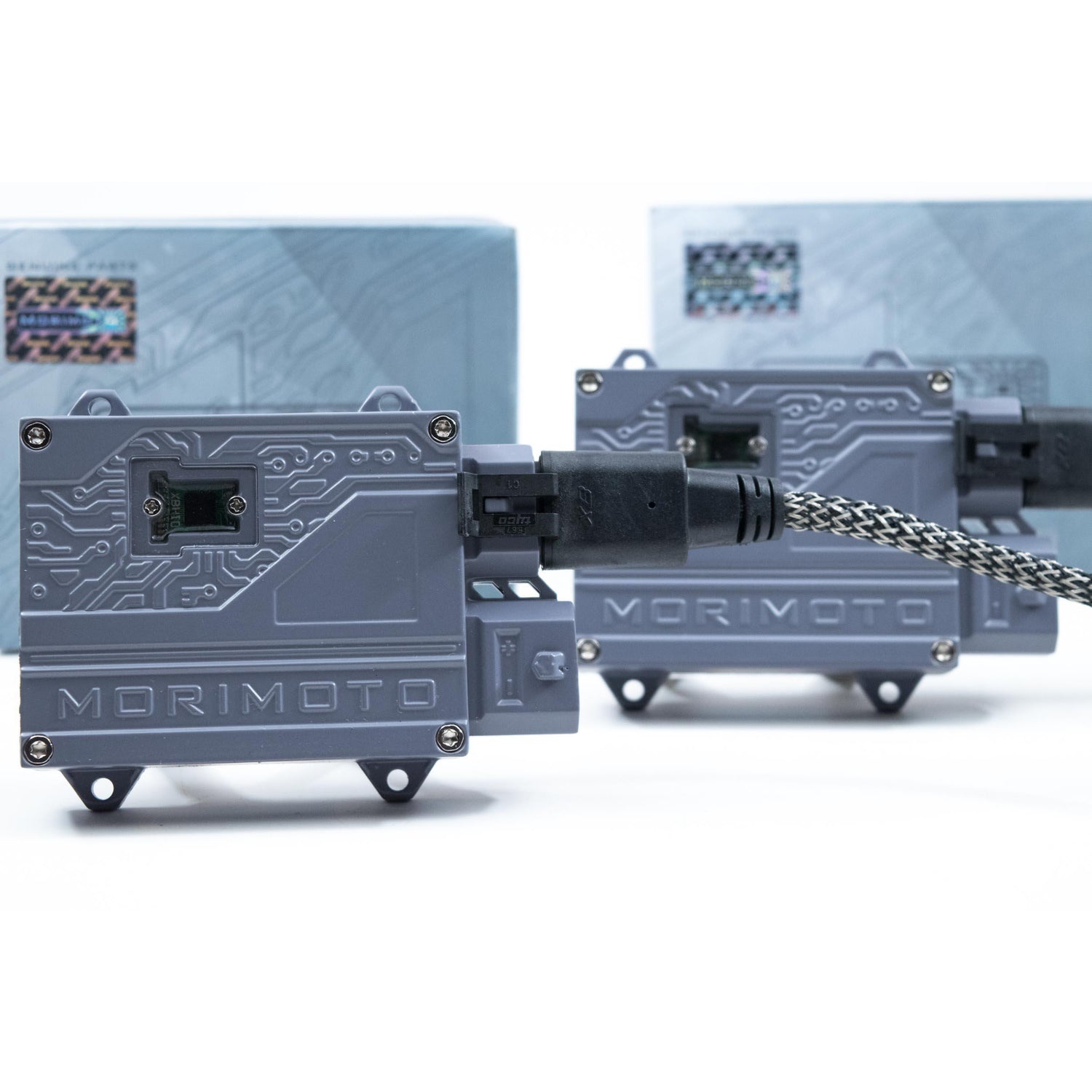

- Die-cast aluminum shell houses a 100% potted circuit board
Additional Info
Additional Info
| OUTPUT WATTAGE | 50W +/- 4% |
| OUTPUT CURRENT | 85V AC |
| IGNITION VOLTAGE | 23KV |
| INPUT VOLTAGE | 9-18V DC |
| INPUT CURRENT | 5A @ Startup |
| OPEN CIRCUIT | Protected (< 1s) |
| SHORT CIRCUIT | Protected (< 1s) |
| CLIMATE RANGE | -40C to +85C |
| RATED LIFESPAN | 2500hours (5-7 years) |

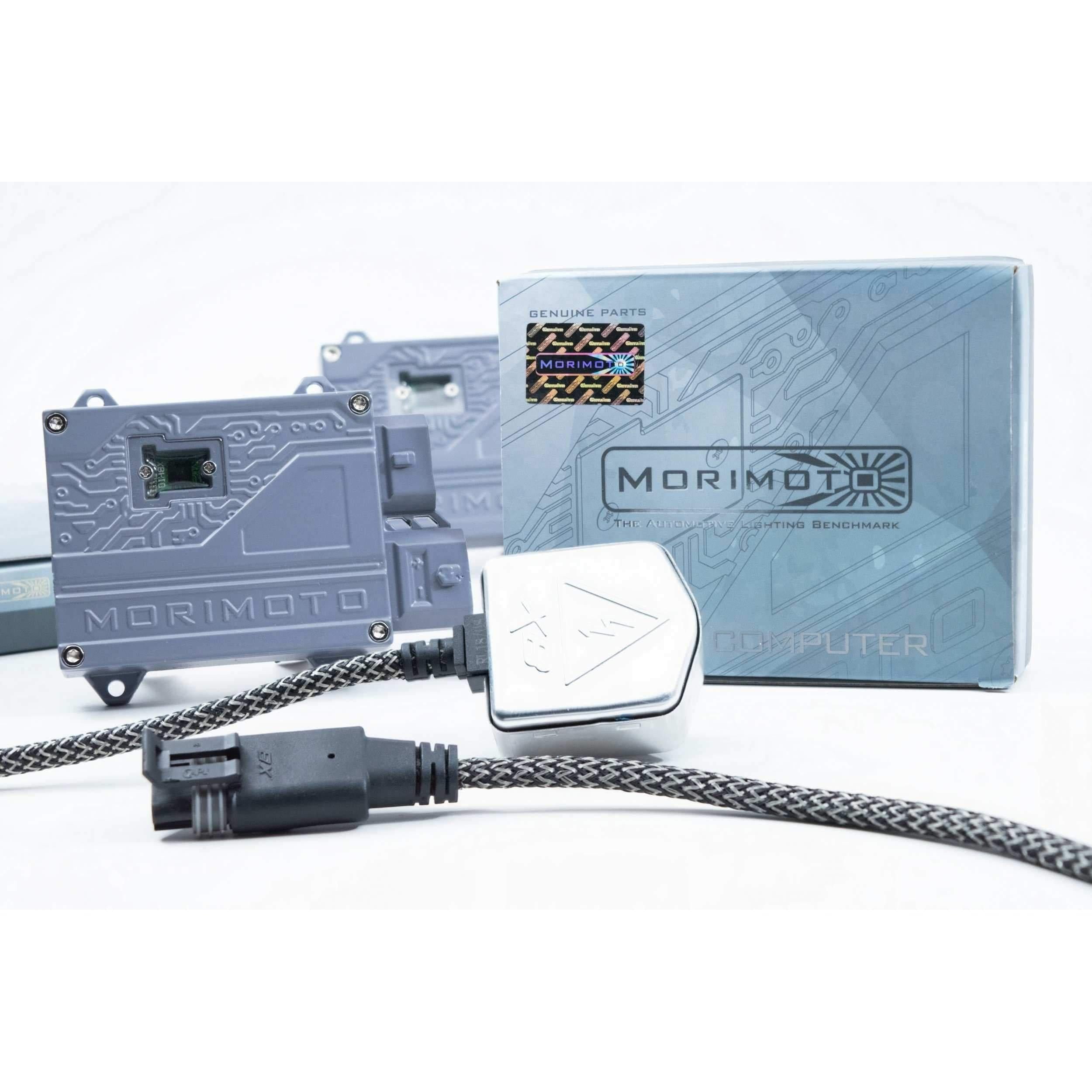

What's Included

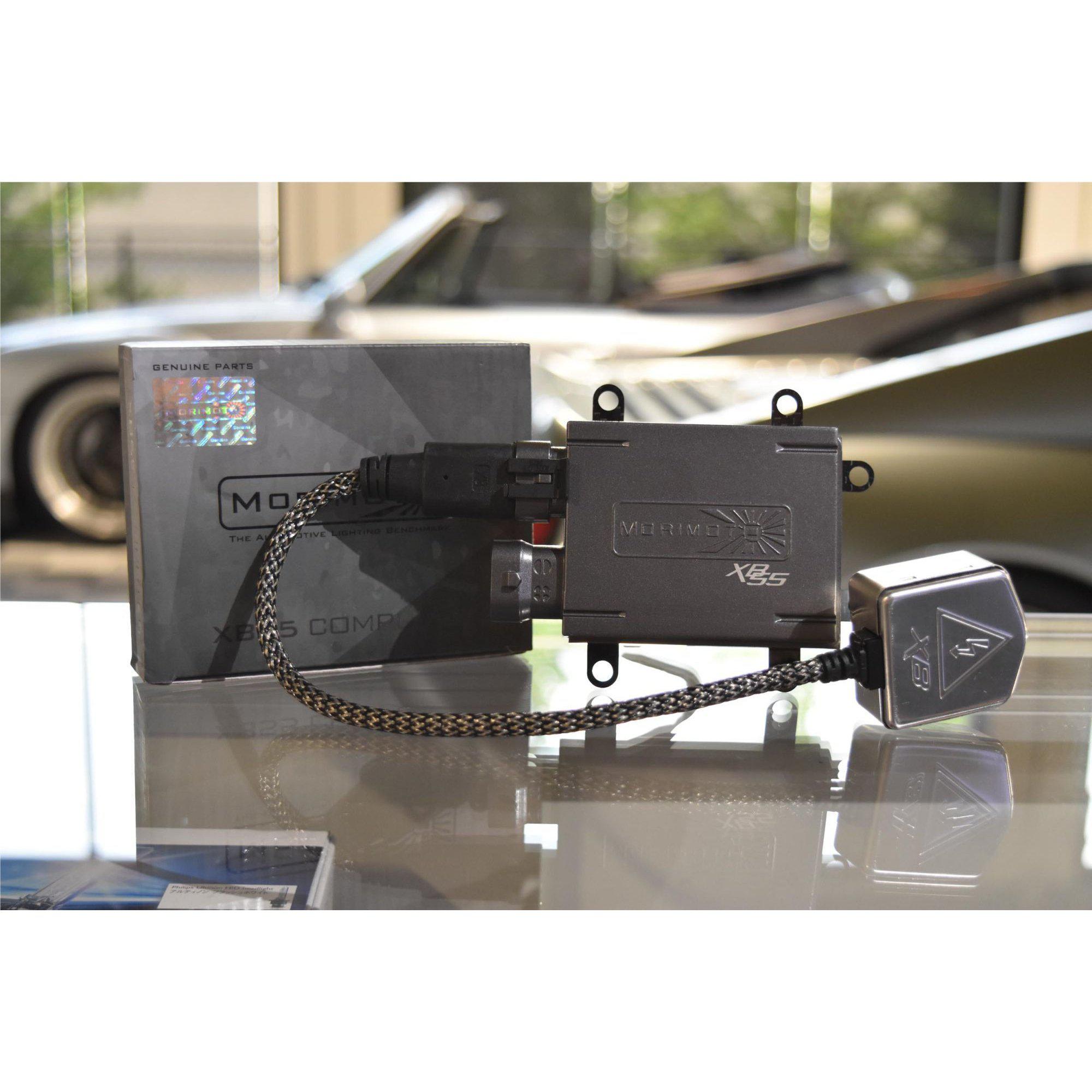

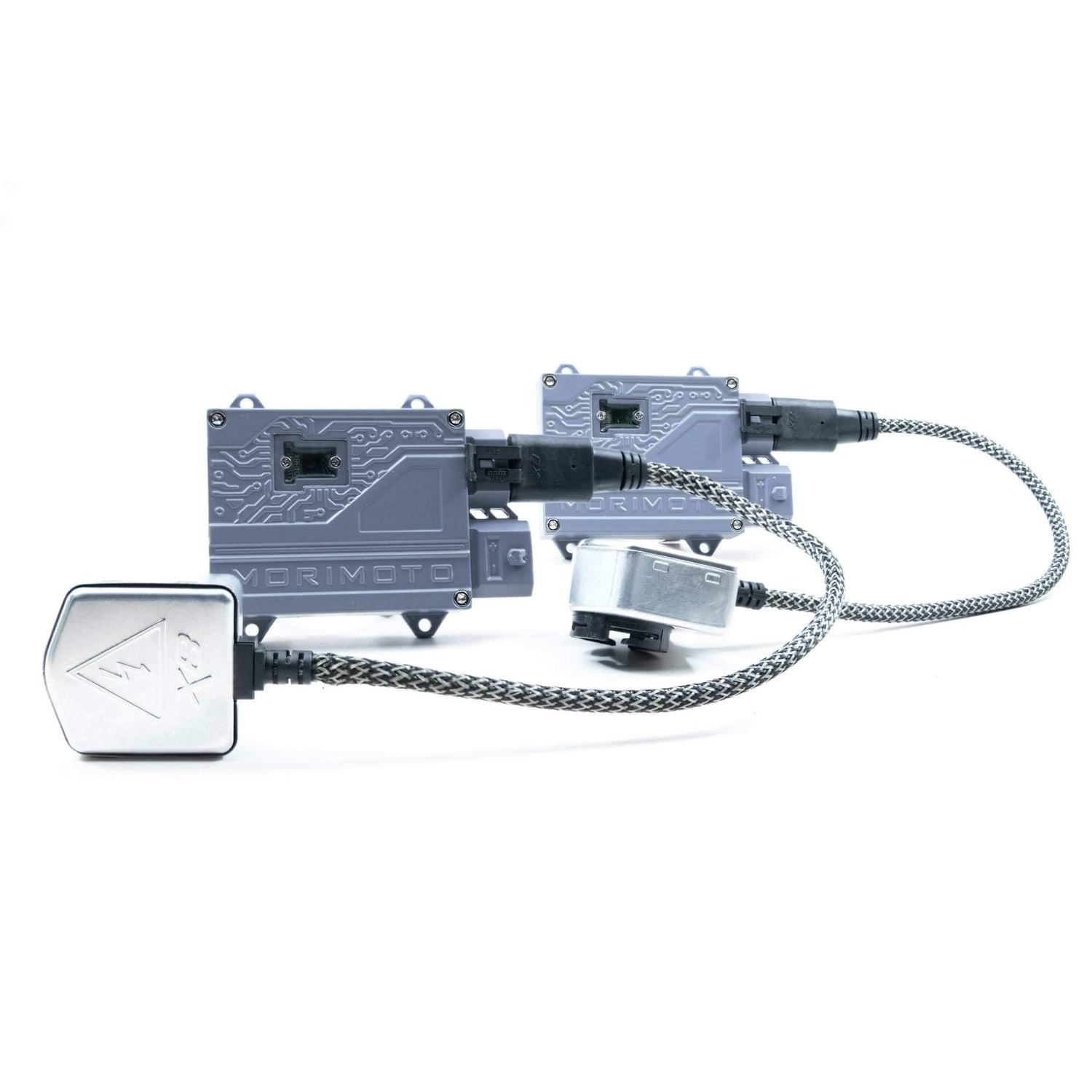

| BALLASTS | 1x Morimoto XB55 2.0 Computers |
| IGNITERS | 1x Morimoto XB D2S |
| WARRANTY | 2 Years |
