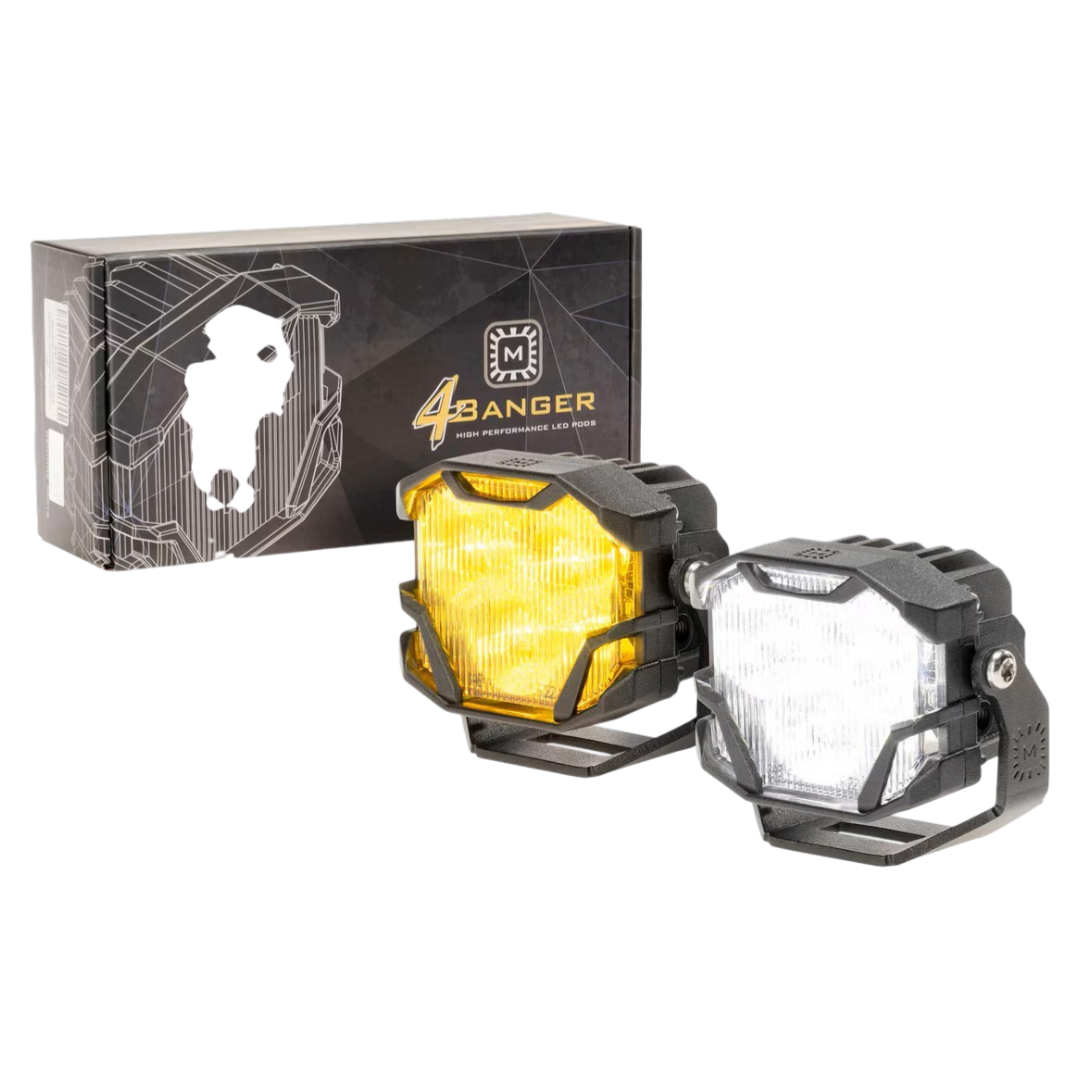

Universal 4Banger 2.0 NCS LED Pods Wide Beam Yellow (BAF006.2Y)

Fits: Universal with Standard Bottom Mount Brackets (BAF046)

Upgrade your rig’s visibility with the Morimoto 4Banger NCS Wide Beam pods, engineered to slice through the worst dust, snow, and fog with high-intensity yellow output. These street-legal pods offer a massive boost in peripheral lighting for tight trails or dark backroads, ensuring your diesel is prepared for any environment without drawing excessive power. Built with a rugged, powder-coated aluminum housing and IP69K weather resistance, these lights are designed to outlast the harshest off-road abuse you can throw at them.

Part Number: BAF006.2Y

• Street Legal Fog Output
• SAE J583 compliant beam
• Nichia NCS LED Technology
• Superior lumen-dense performance
• True Yellow Phosphor LEDs
• Maximum visibility in heavy fog
• Rugged IP69K Construction
• High Efficiency Cooling
• Ultra-Compact Footprint

Technical Specs:

• Note: These specifications are per pod / each!
• Intensity (Yellow): 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
• Input: Integrated Deutsch DT 2-Pin
• Power (stabilized): 15.6w
• Current: 1.5A @ 13.5V DC
• Peak Luminosity (raw): 1,350lm
• Dimensions: 82mm W, 67mm H, 60mm D
• Hardware: M6x1.0 8mm (4Banger to U-Bracket), M10x1.5 20mm (U-Bracket base)
• Color: 2400K (Yellow)
• Light Source: 3x Nichia NCSY131F
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

• 2 x (One Pair) Morimoto 4Banger NCS Wide Beam Pods (Yellow)
• 2 x M10x1.5 SS Carriage Bolts
• 2 x M10 SS Washers
• 2 x M10 SS Lock Nuts
• 8 x M6x1.0 SS Screws

• Wiring Not Included: This SKU includes the pods and hardware only; a Morimoto Switched Relay Harness or Pigtails are required for installation.
• Aiming: For street-legal use, pods must be aimed appropriately to avoid blinding oncoming traffic.

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
