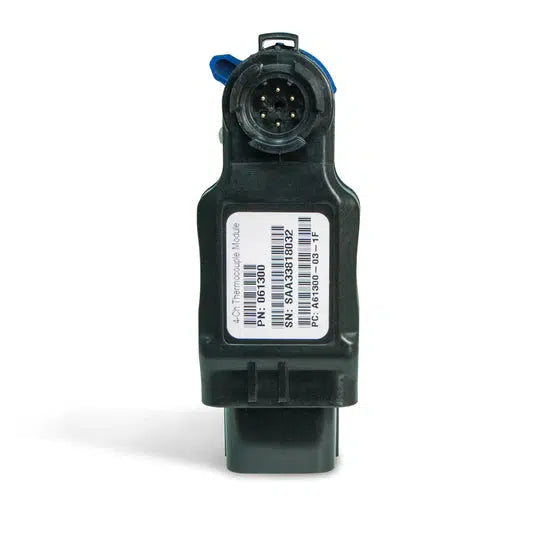

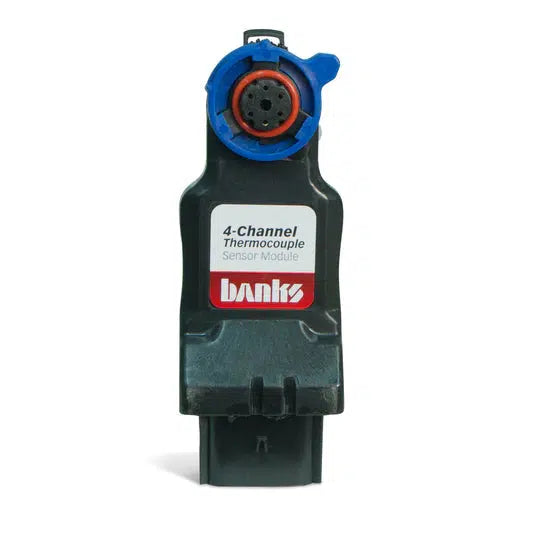

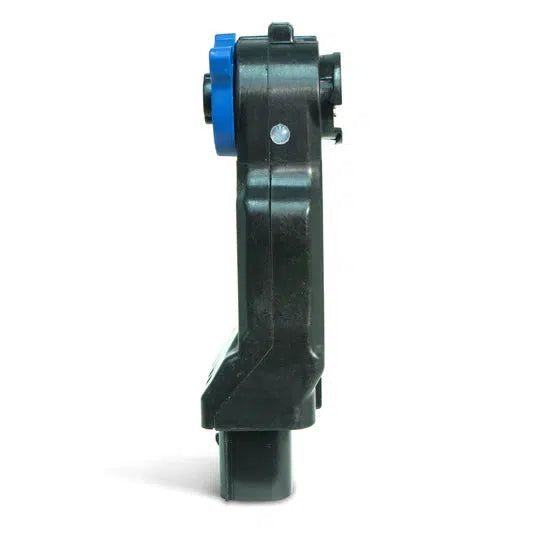

Universal 4 CH Thermocouple Module Kit (66543)

Banks Power Part Number: 66543
$384.25 CAD

Total w/ Addons:

Purchase to earn 384 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits: Universal

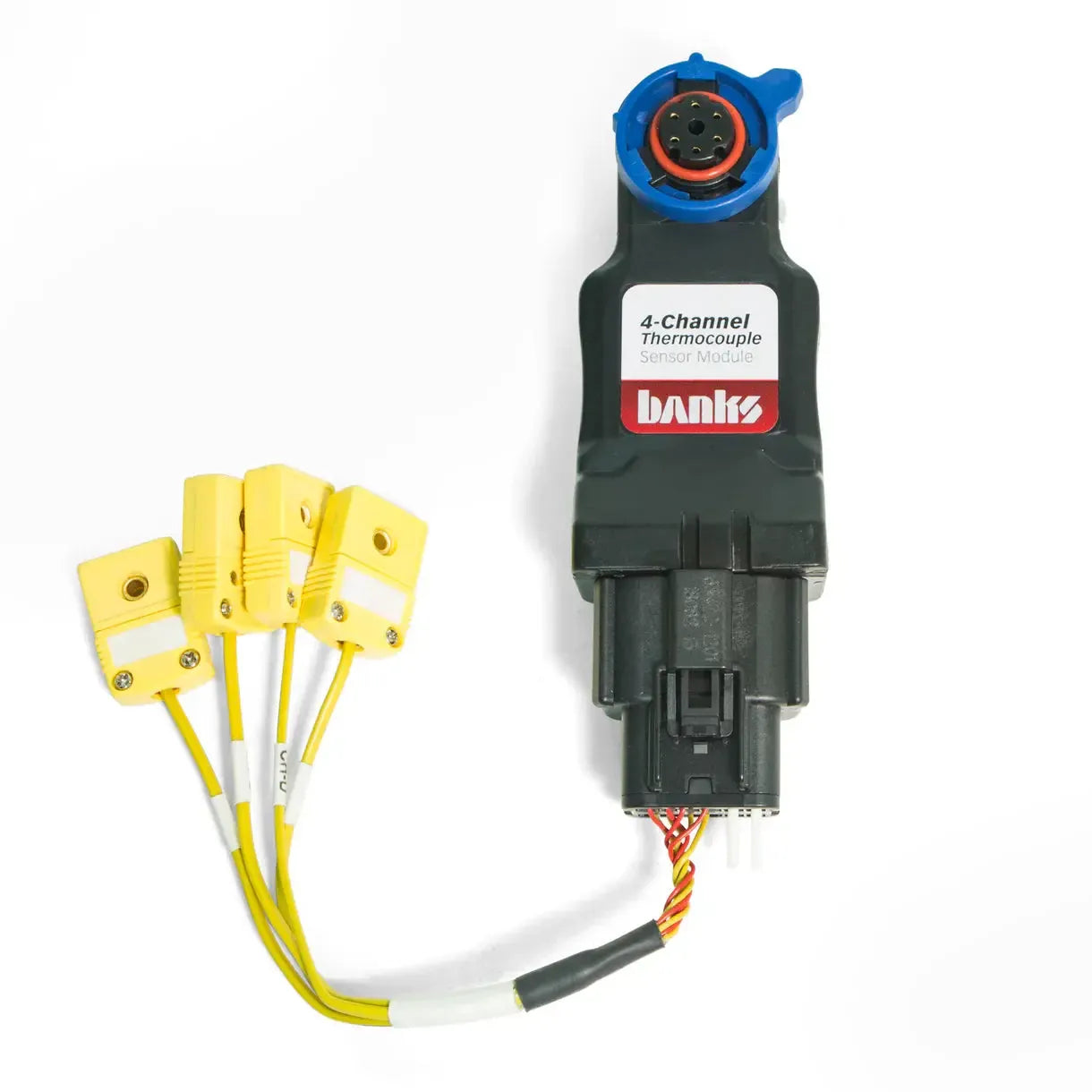

The 4-Channel Thermocouple Module plugs into your iDash, providing four additional temperature inputs per module. Each channel is customizable for any temperature reading, with K-type thermocouple sensors capable of measuring temperatures up to 1800°F, including EGTs. You can daisy chain up to six Thermocouple Modules and six Analog Sensor Modules, adding over 48 sensors to your Banks iDash DataMonster or SuperGauge system.

Part Number: 66543

Features
  • The 4-Ch Thermocouple Module
  • Connects to your iDash
  • Adds 4 temperature inputs per module.
  • Each channel can be configured to any temperature parameter.
  • The K-type thermocouple sensor can read any temperature, including EGTs as hot as 1800°F.
  • Combine with other Banks Sensor Modules to use additional sensors.

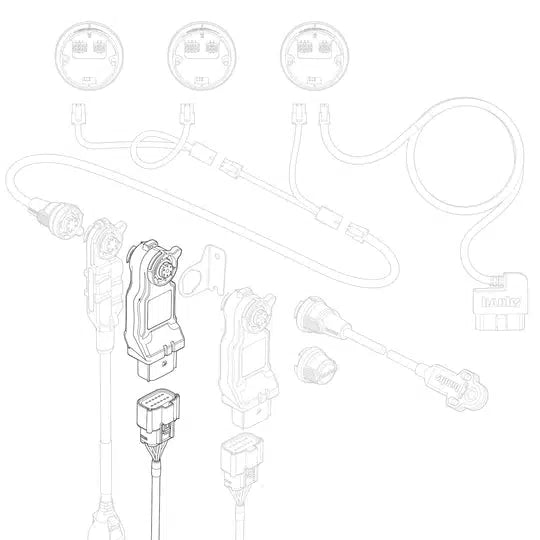

  • Daisy chain up to 6 Thermocouple and 6 Analog Sensor Modules per system
  • Connects inline with Banks Derringer and other Sensor Modules for easy connectivity.

Installation

Note
  • 66556 B-Bus Starter kit required except for customers with a Derringer or other B-Bus Module already installed.
  • Does not include the mounting bracket.
