Universal 3" Exhaust Brake (1028030)

Description

Fits: Universal

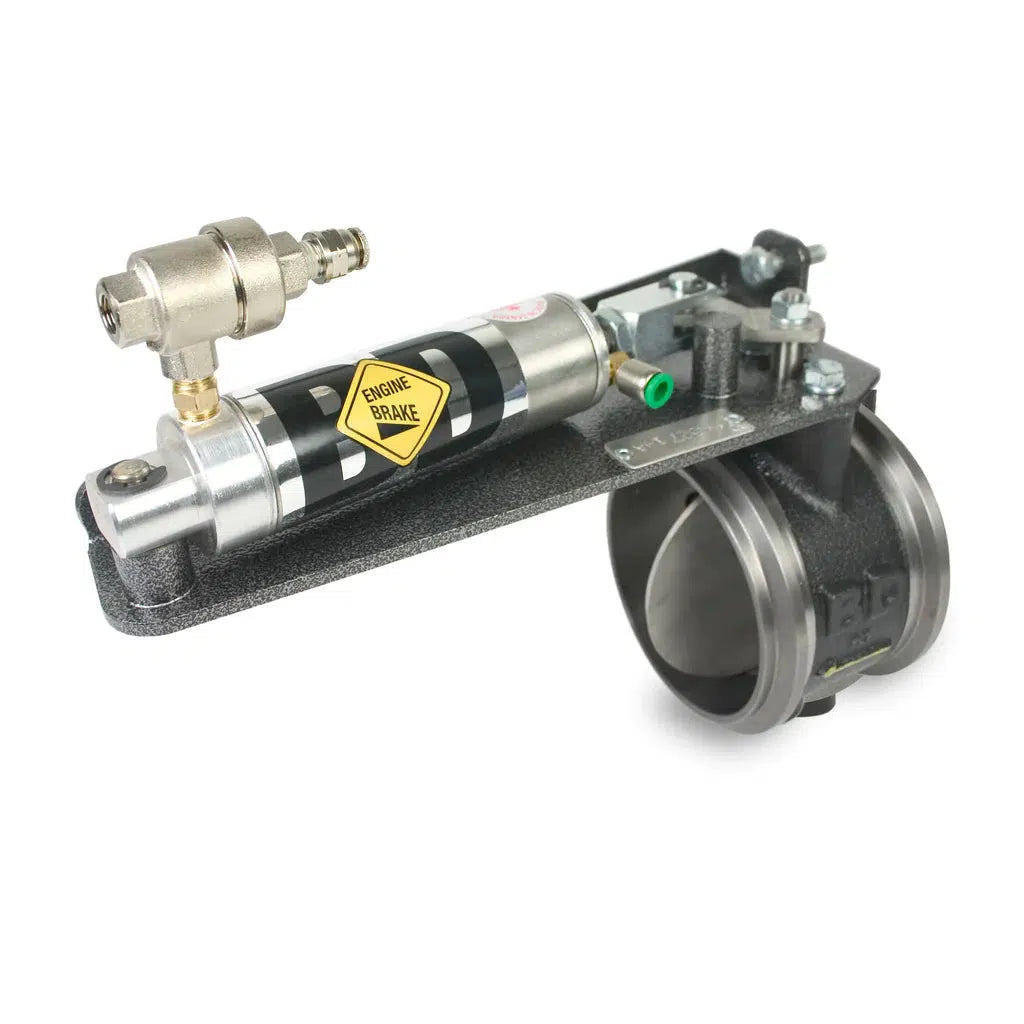

With mass amounts of time and testing BD strives to deliver only the best; with exclusive Variable Orifice Technology this exhaust brake can successfully deliver up to 150 retarding horsepower throughout any RPM range. Every part/ component in this kit is high quality to prevent any corrosion and resist any environment.

Part Number: 1028030

Features

• Provides up to 150 retarding horsepower throughout the engine's RPM range
• BD's exclusive Variable Orifice Technology
• Adjustable pressure regulation
• Pneumatic spring loaded cylinder
• BD's solid, offset butterfly
• Rugged, cast-iron housings
• BD's exclusive alumibronze bushing
• Piston ring-seals
• Stainless steel butterfly shaft
• Proven to stand-up under the harsh, high heat conditions of the exhaust environment

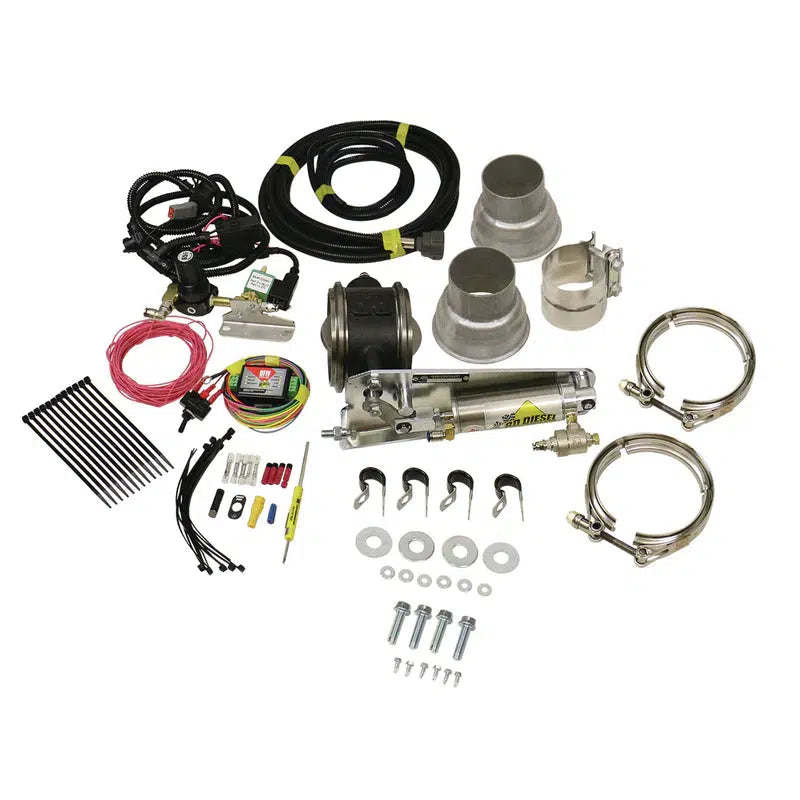

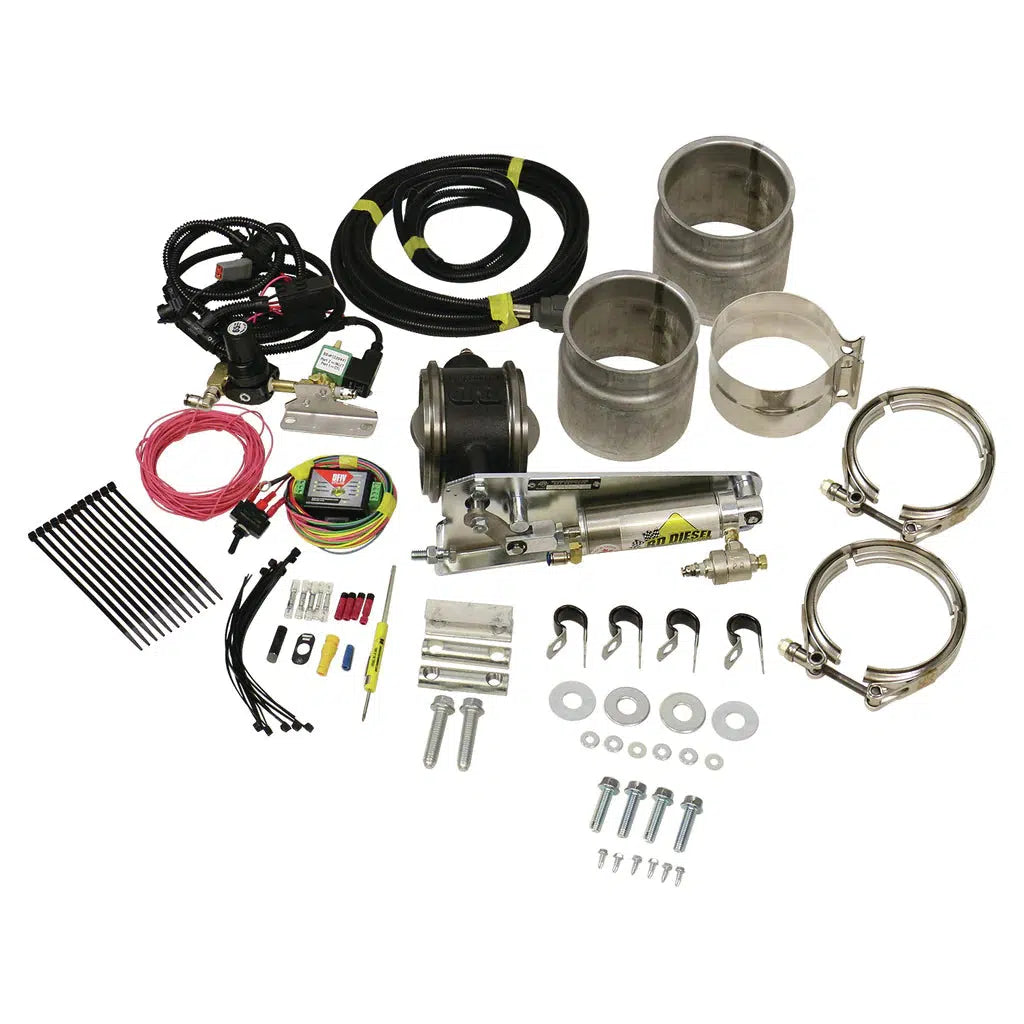

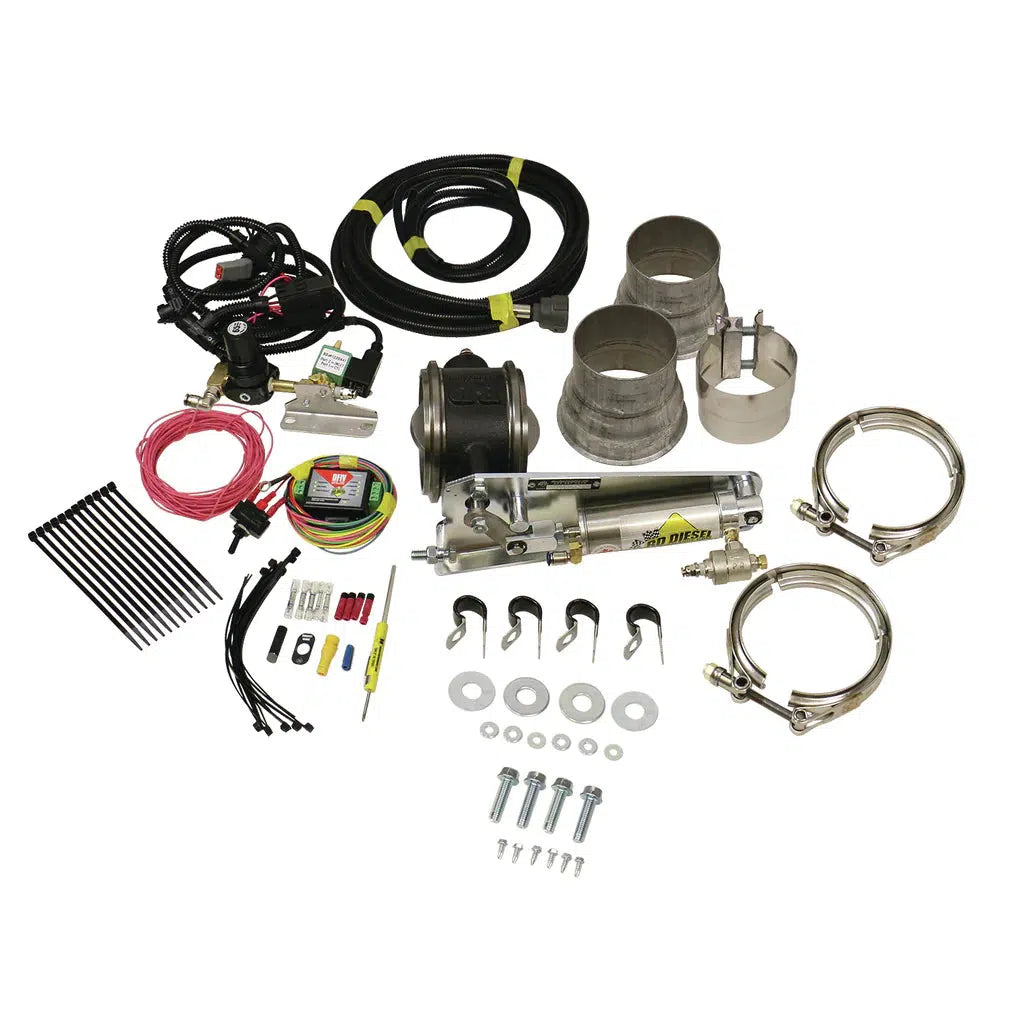

• All mounting hardware provided

Notes

• Brake controls connect to throttle pedal with Accelerator Pedal Position Sensor (APPS). Vehicles without APPS will require 1300420 micro switch and custom bracket will have to be made.
• Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes
• May not work with engines that have OEM Variable Vane (VGT) turbos such as Cummins ISX. Will work with aftermarket non-VGT turbos.
