Description
Fits
| APPLICATIONS |
Universal (cars/trucks/motorcycles) |
| MODIFICATIONS REQUIRED |
All fog light housings |
| BULBS |
D2S HID Only (Osram 66040 will not fit) |
| SHROUDS |
All Except Mini Gatling/Graphite (may require trimming) |
| CENTRIC RINGS |
2.5" Model Needs FX-R 3.0 model for Shrouds |

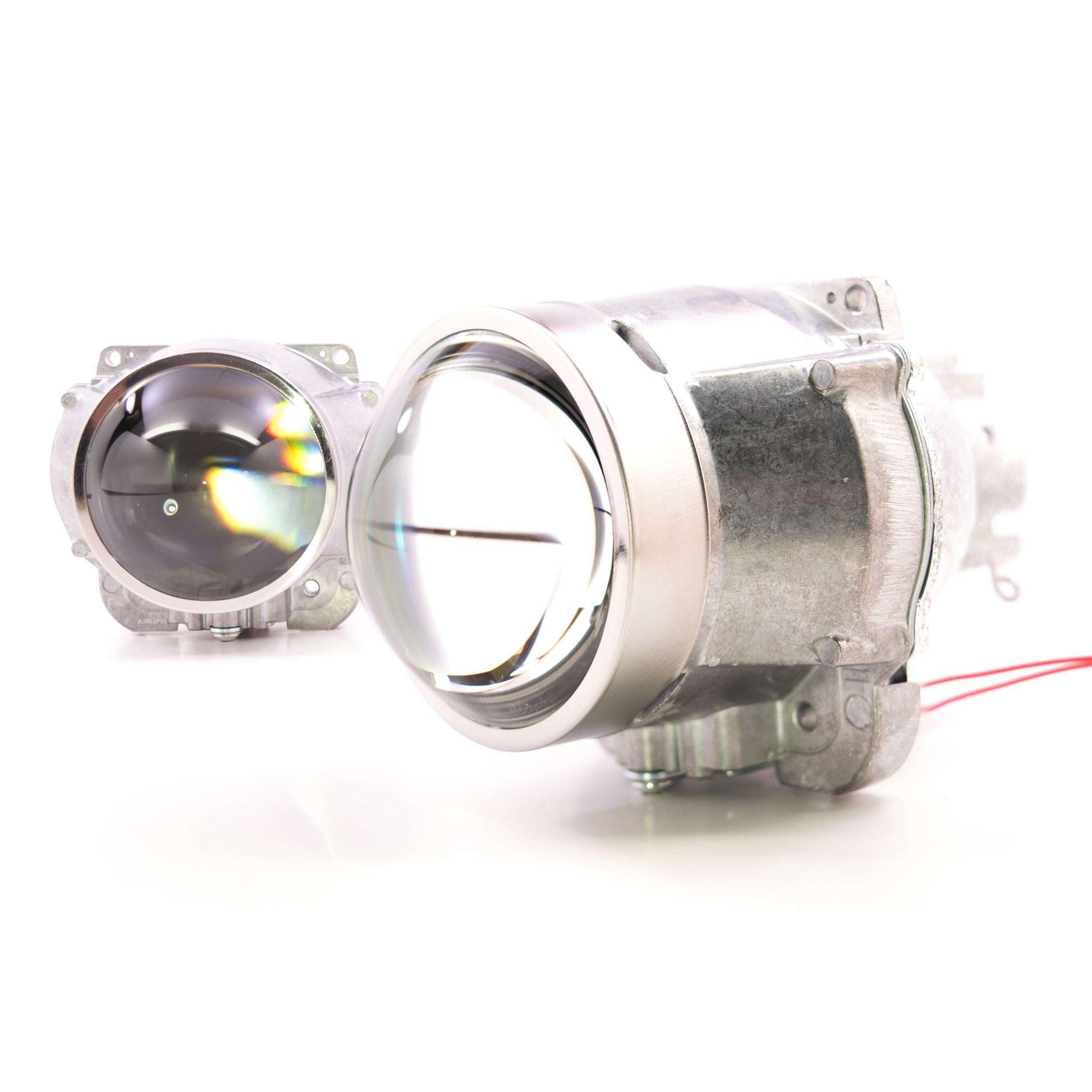

The FX-R 3.0 Projectors is a retrofitter's delight with its high precision castings, advanced optics, and available 2.5" and 3" clear bi-xenon lens. It all adds up to put the Morimoto FX-R 3.0 Projectors near the top of the lighting totem pole. If you've got the balls to cut up your fog lights in order to retrofit them, you won't be let down.

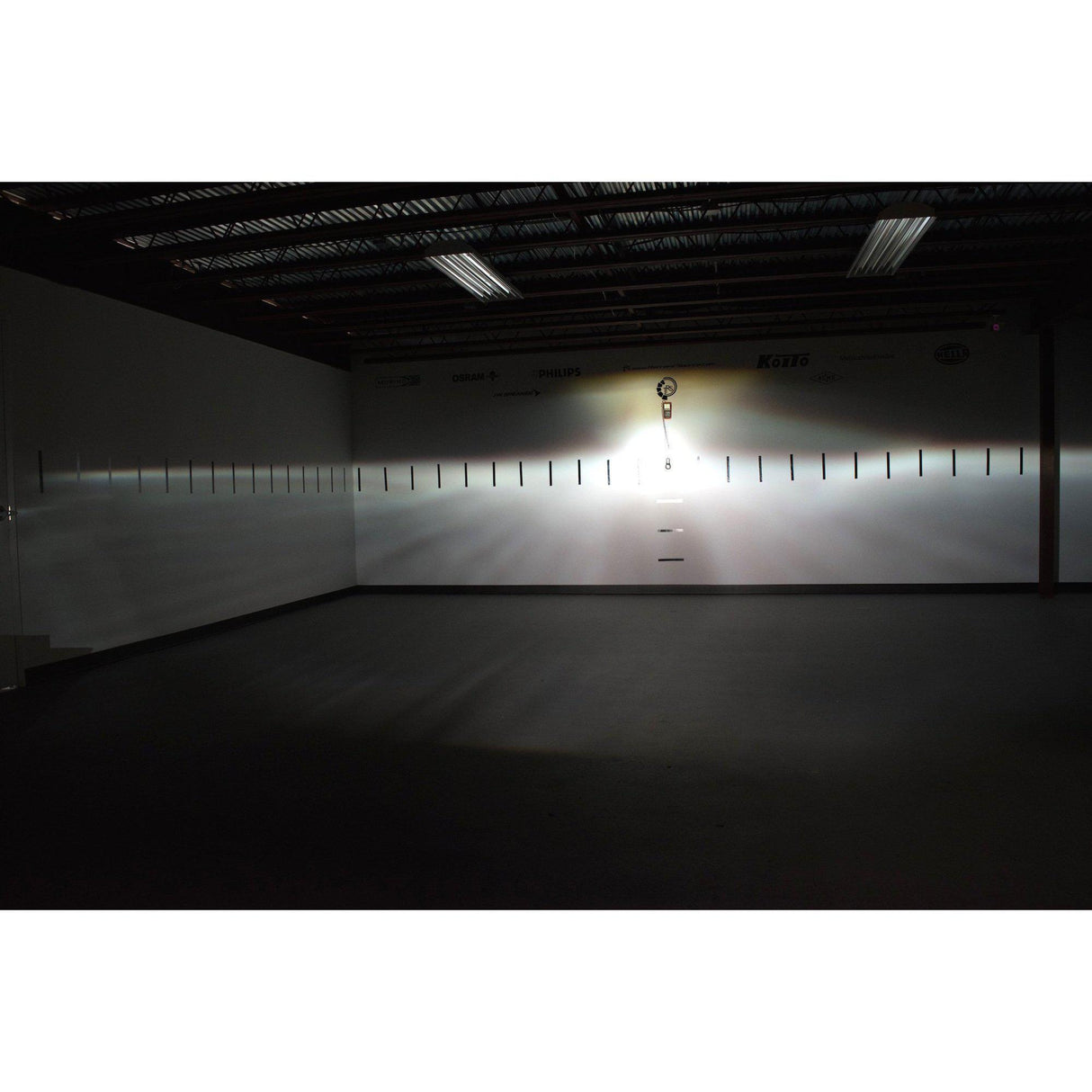

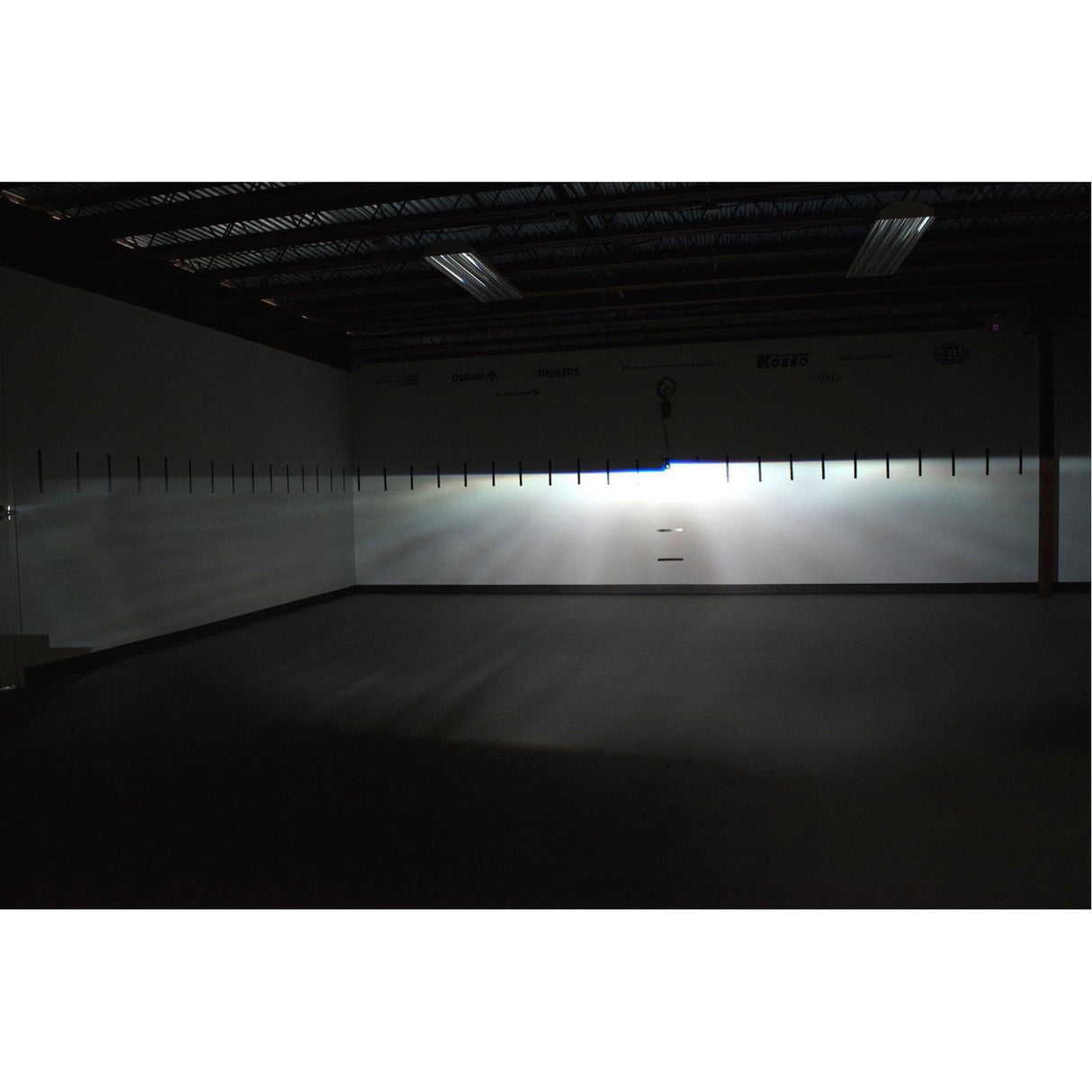

With a pre-installed clear bi-xenon lens and DOT-style stepped cutoff shield that's been tuned in-house, the FX-R 3.0 Projectors stand out. Their advanced internal optics create a wide beam pattern with a uniform distribution of light that cuts through darkness like a laser. They have one of the straightest, sharpest, and most vibrantly colored cutoff lines of any projector in existence.
Features

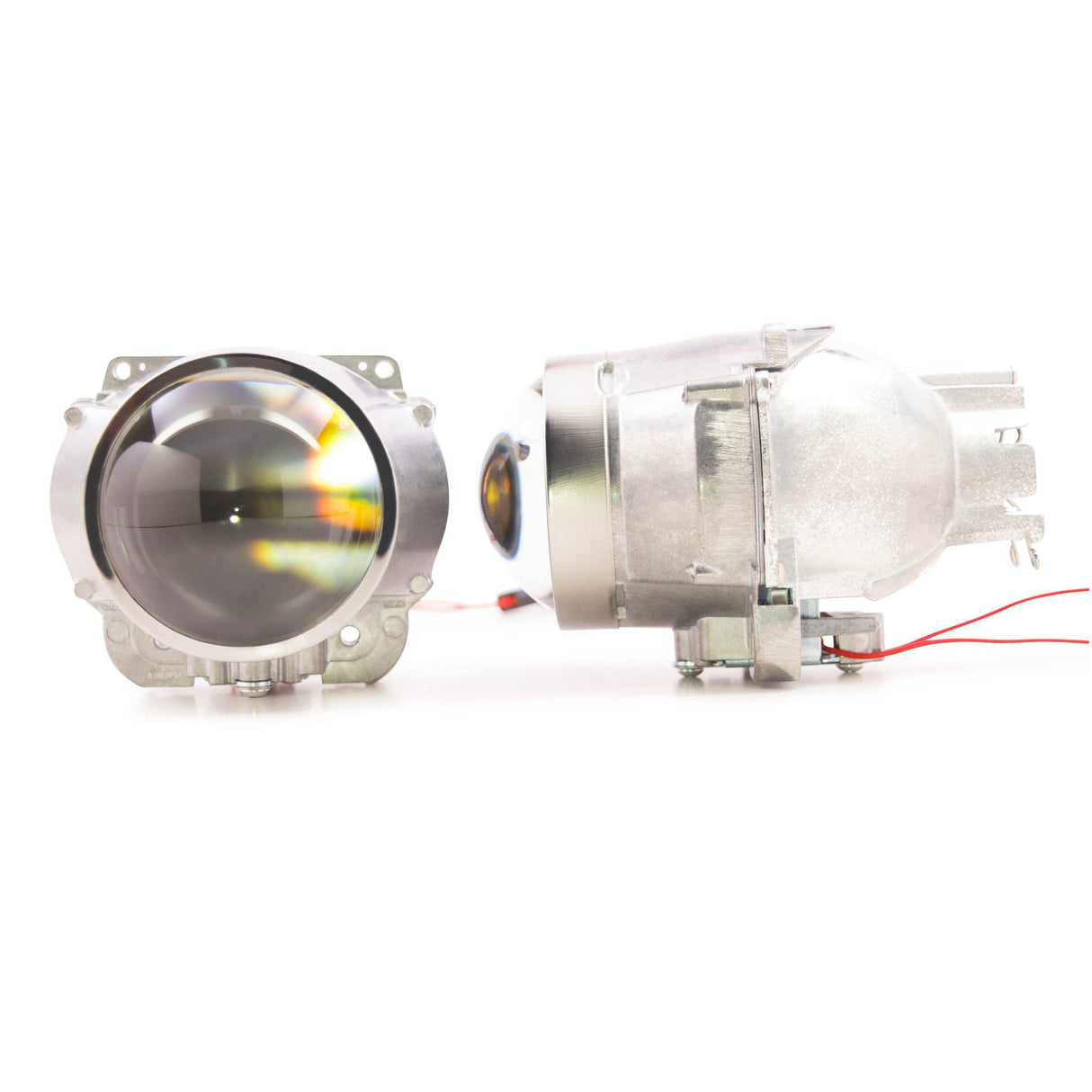

| DEPTH |
140mm (2.5" model) or 155mm (3.0" model) |
| WIDTH |
112mm |
| HEIGHT |
95mm |

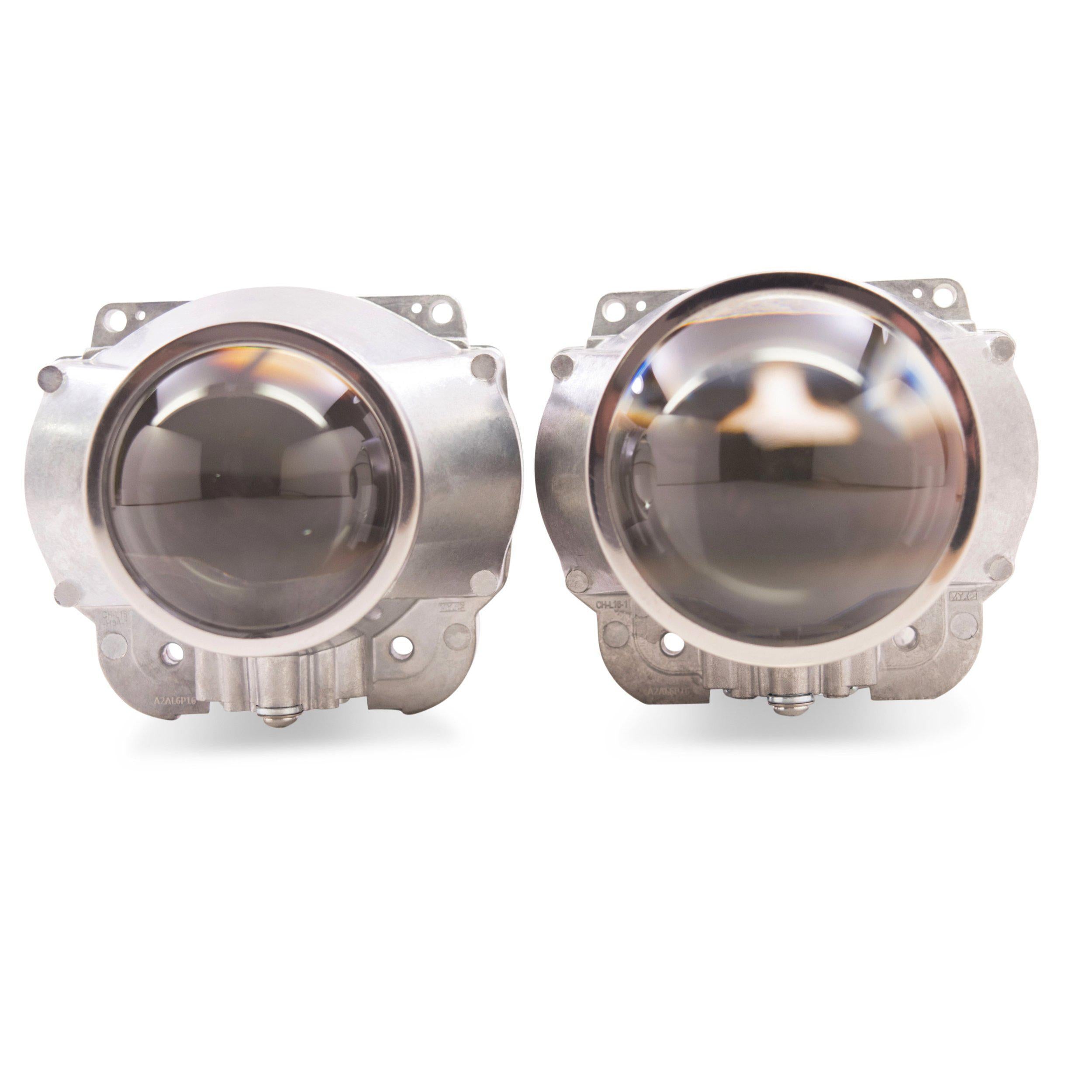

| LENS DIAMETER |
2.5 or 3.0 Inches |
| TRAFFIC PATTERNS |
LHD or RHD |
| COMPATIBLE WITH |
35W and 50W HID Systems |
| STANDARD LENS |
100% clarity 'Kuria Optic' glass |
What's Included

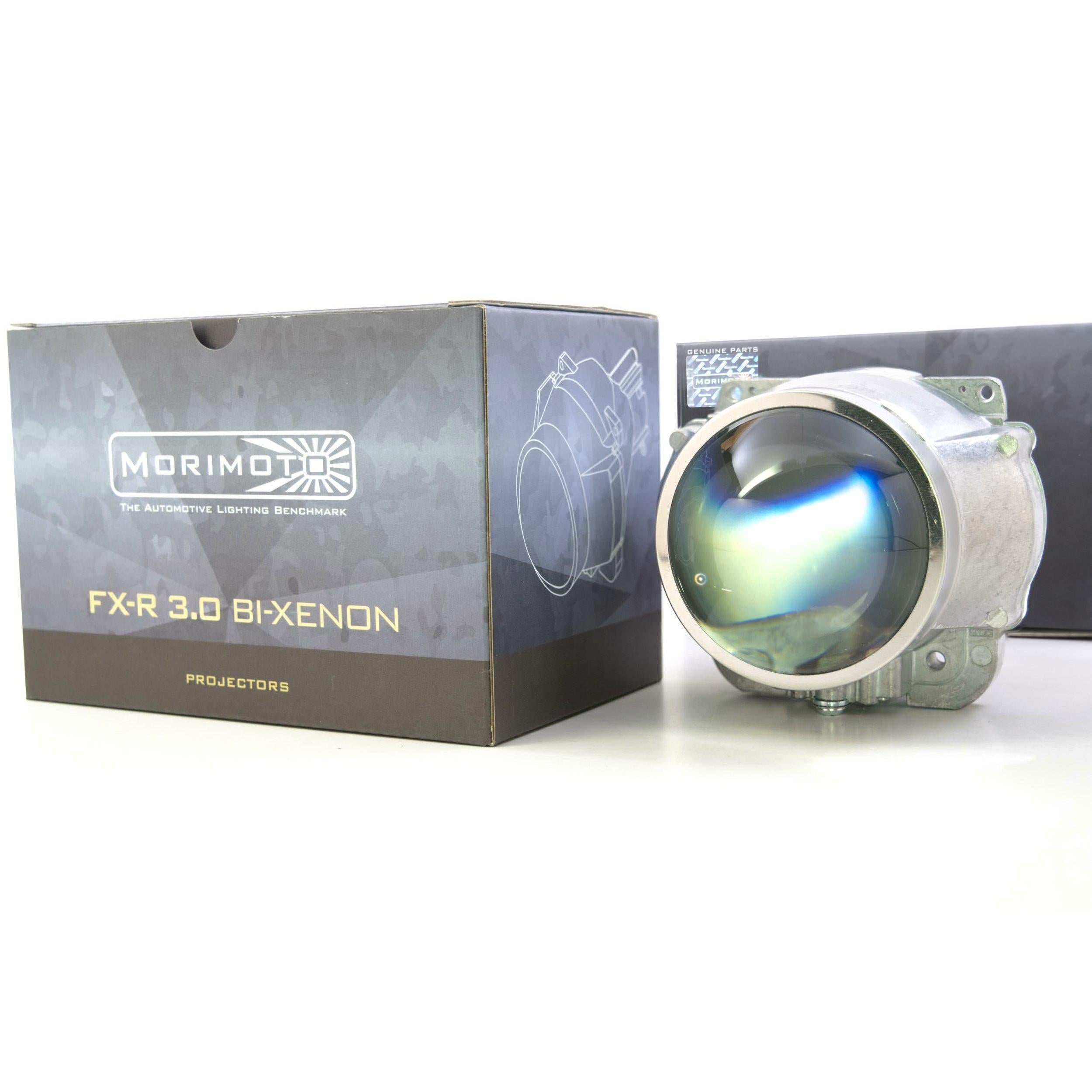

| Projector |
1x LHD Morimoto FX-R 3.0 Bi-Xenon |

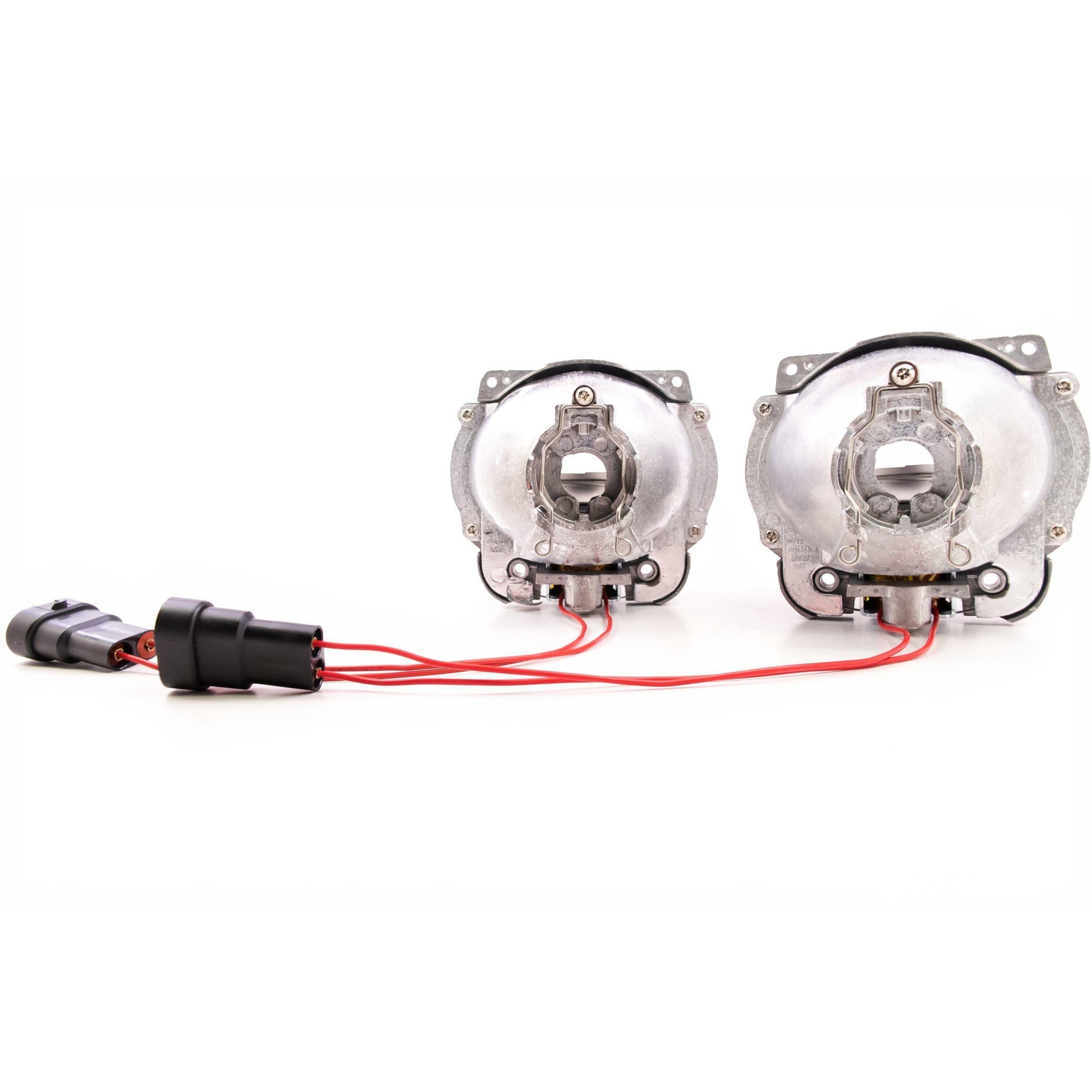

| SOLENOID INPUTS |
1x 9006 Male Sockets |
| WARRANTY |
3 Years |
Notes
- NOT DOT/SAE/FVMSS108 approved
Installation
Park car, mark stock beam-height on wall, disassemble fog light, cut original reflector to fit projector in place, re-mount modified fog lights without lens cover, illuminate projector, then tack it into place using the reference height/level using epoxy gum. Check out the installation procedure linked above.
