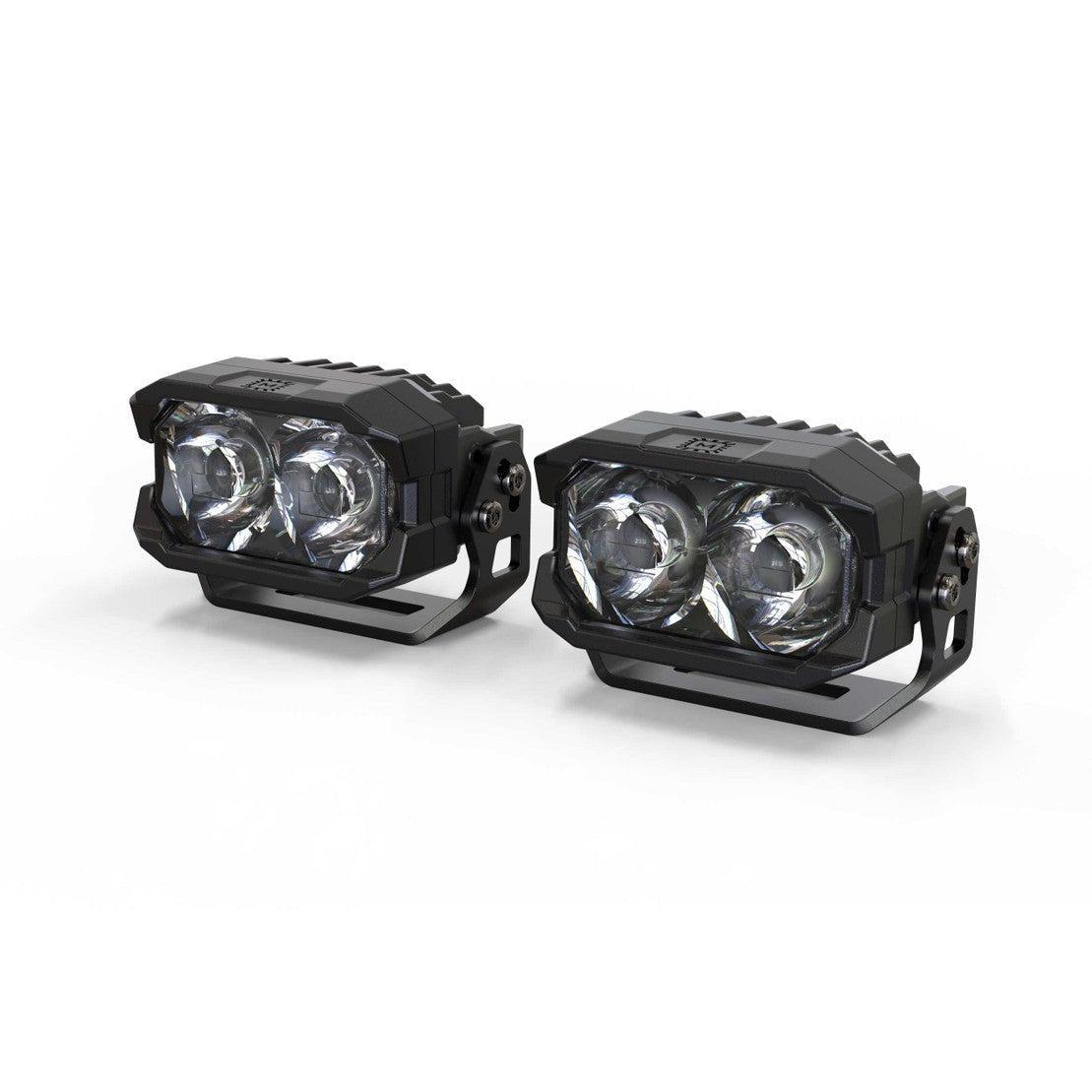

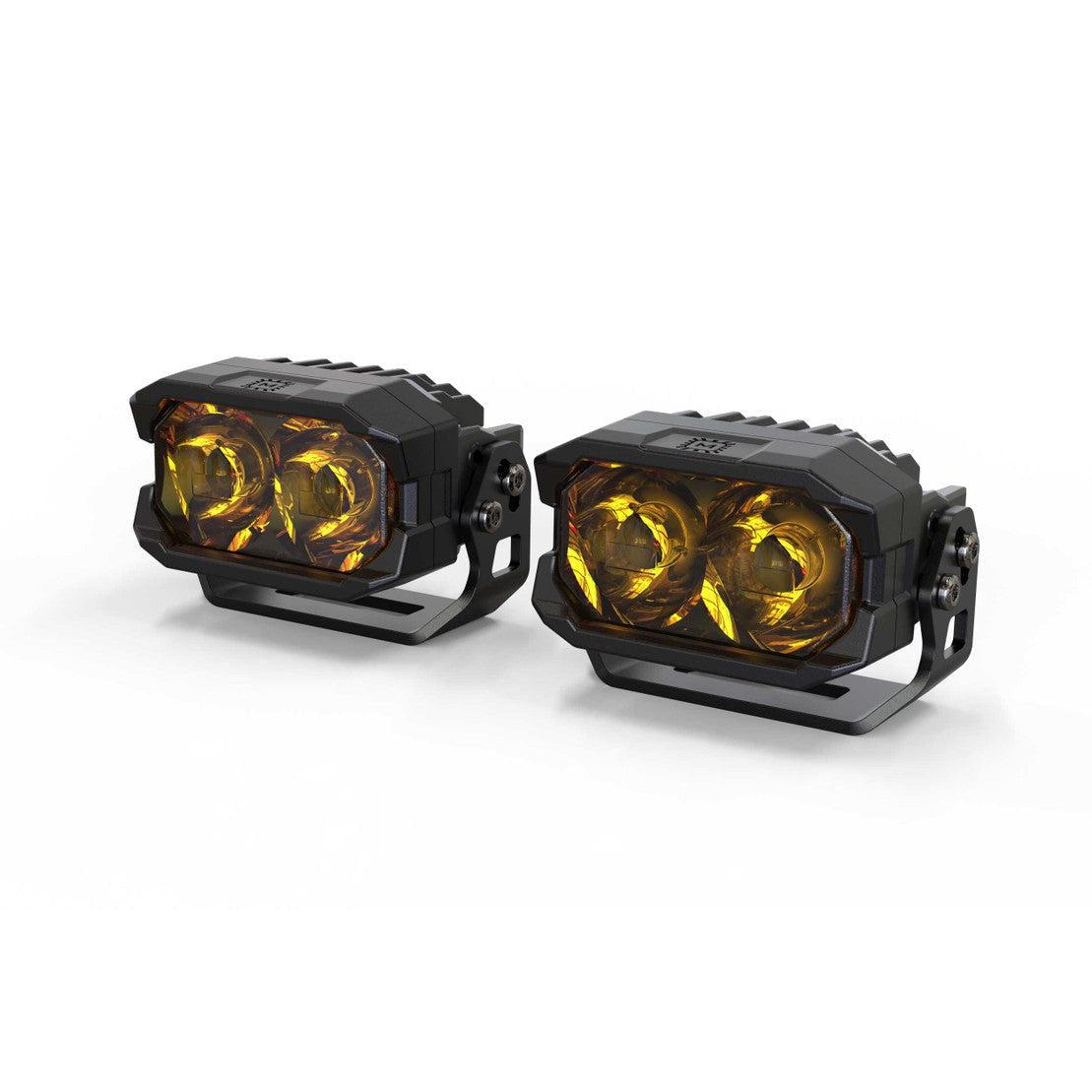

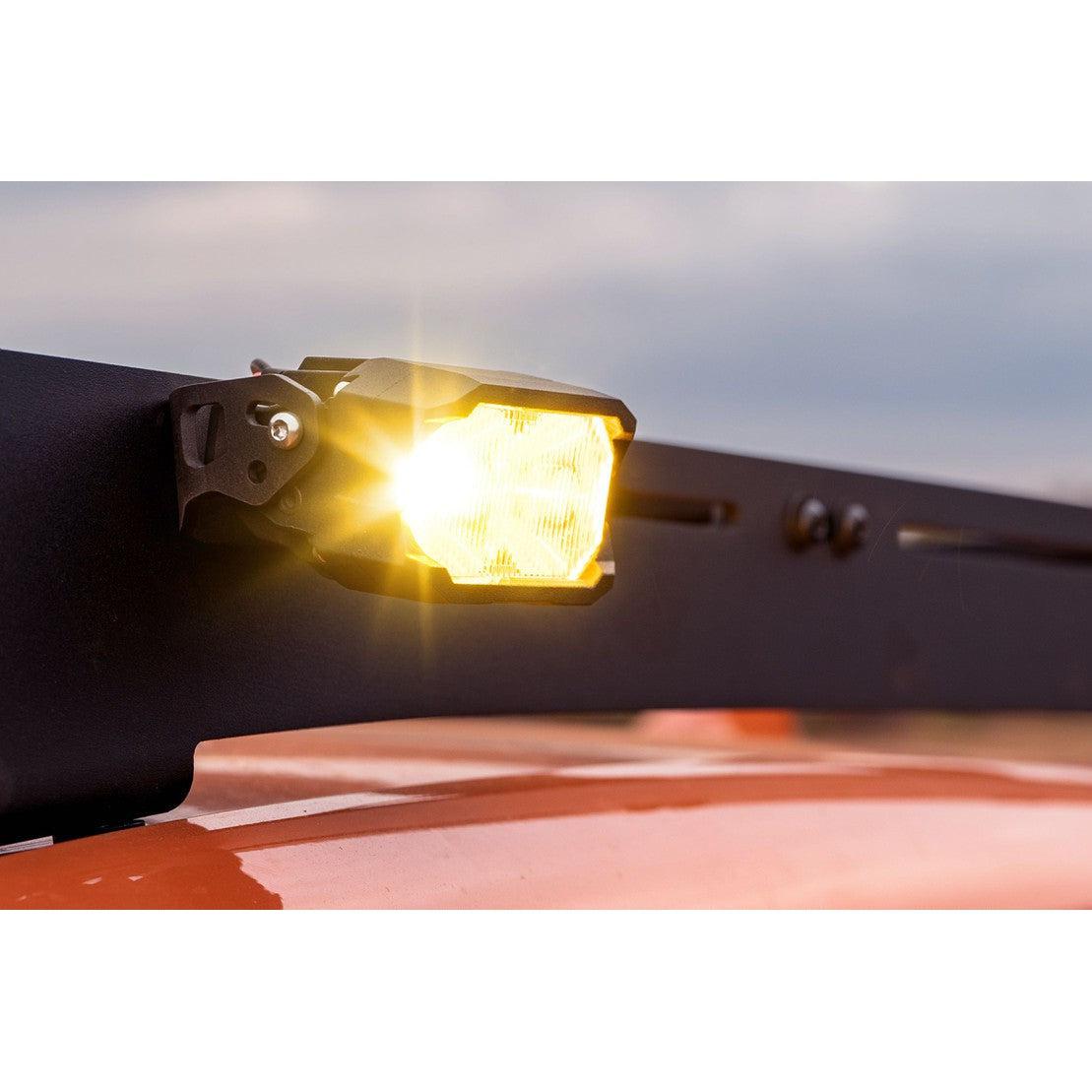

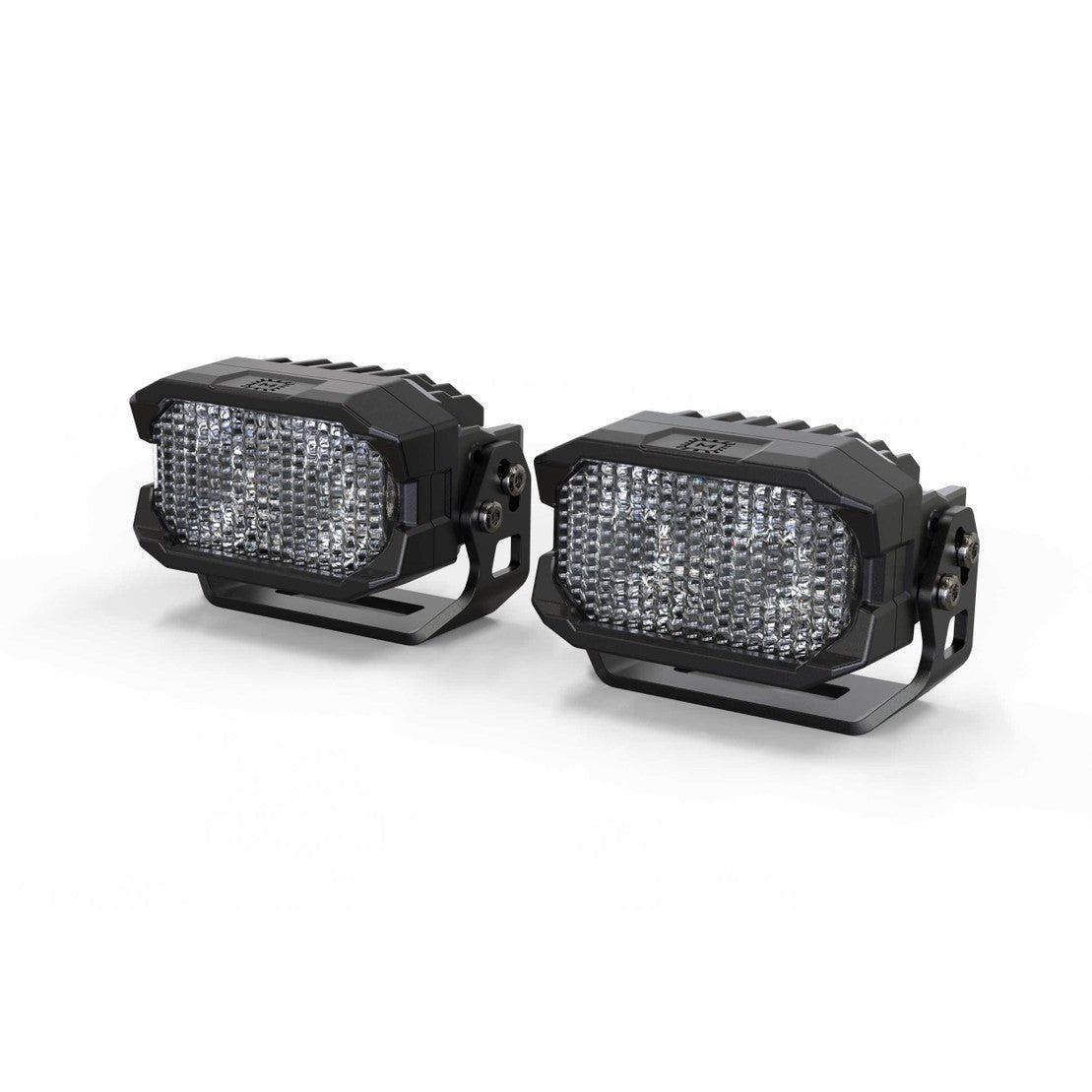

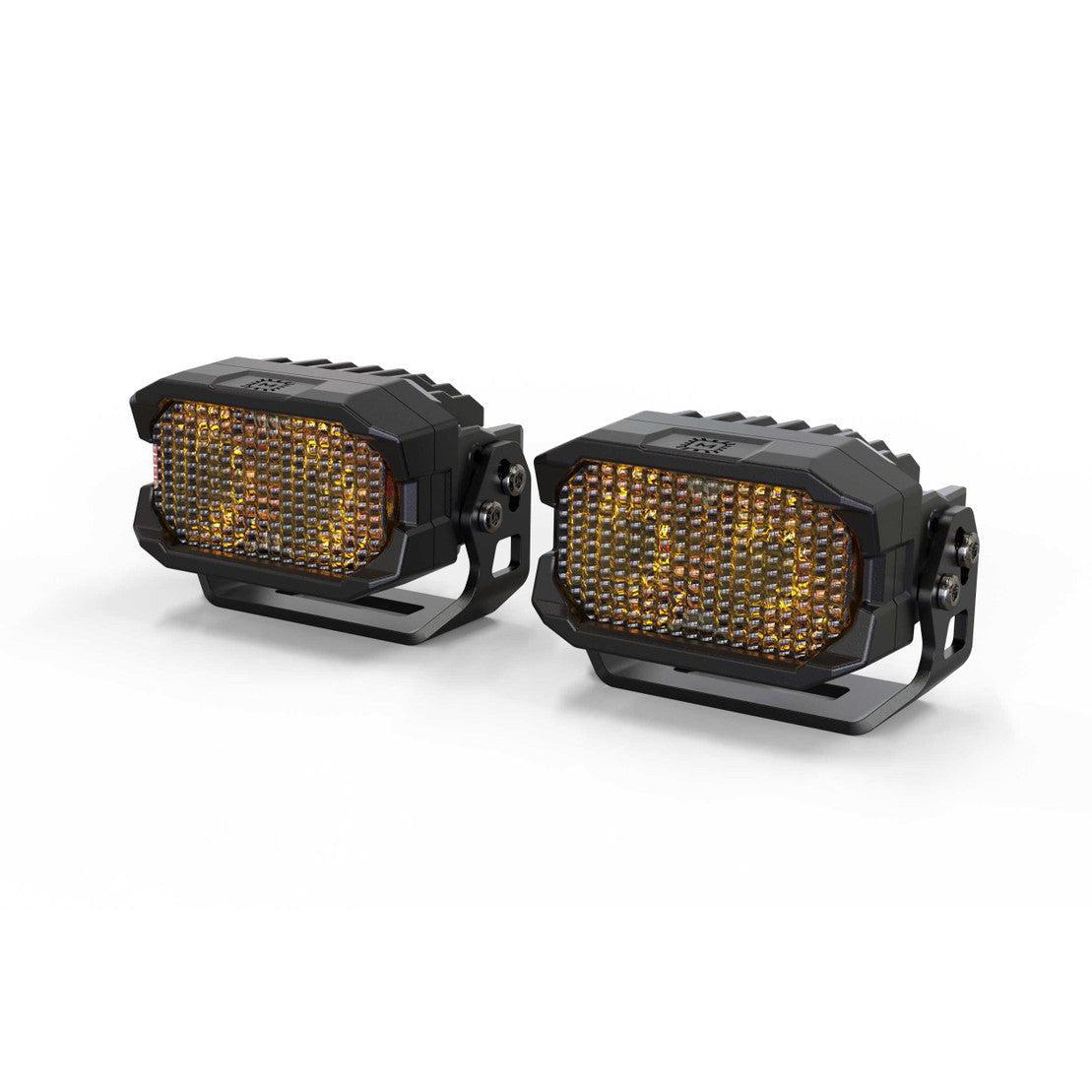

Universal 2Banger LED Ditch Light Pods

Fits: Universal

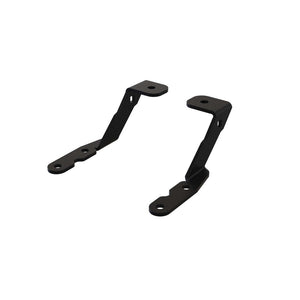

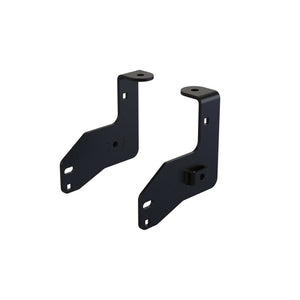

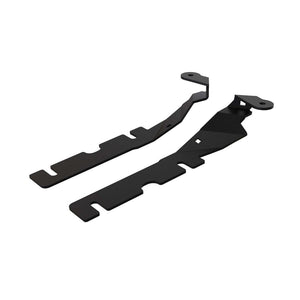

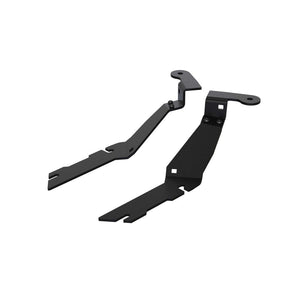

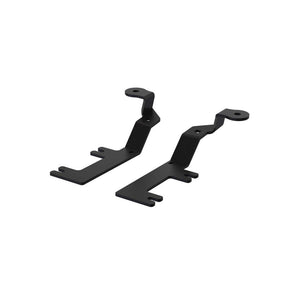

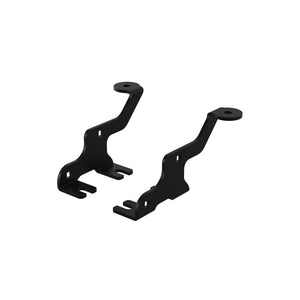

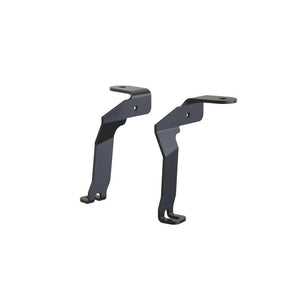

*IMPORTANT - THESE ARE PODS ONLY, Brackets are sold separately*

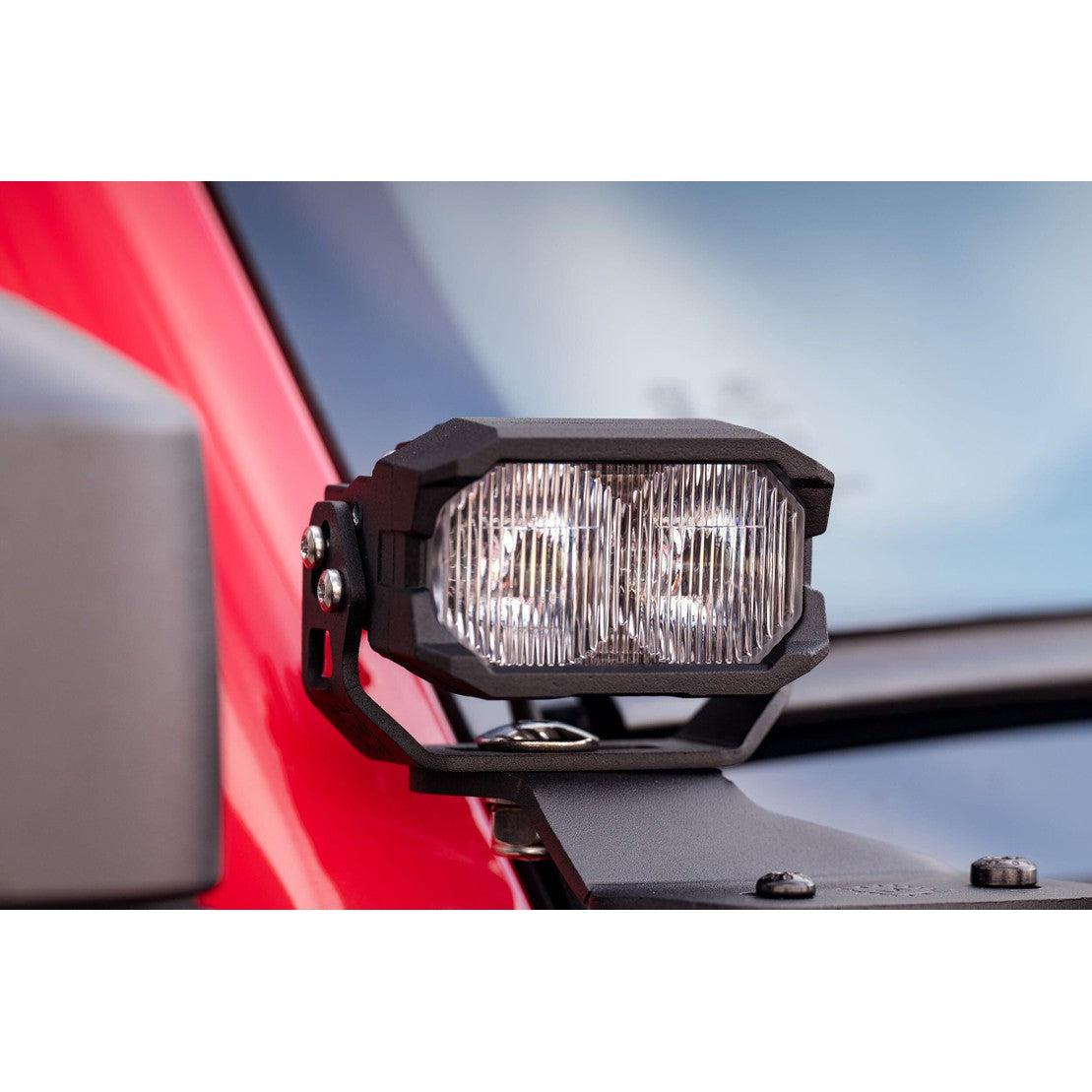

The 2 Banger Series from Morimoto is an A-Pillar LED system, designed for versatility & precision, modification-free installation guarantees a perfect fit. Crafted from durable 304 stainless steel, laser-cut brackets are powder-coated for longevity, ensuring your investment lasts.

Part Number: BAF102

• IP69K (Dust / High Pressure Water Resistant)
• Peak Luminosity (lm)(Raw): 900 lm (NCS), 2000 lm (HXB)
• Power (stabilized): 13.5 w (NCS), 24 w (HXB)
• Current (amps @ 13.5V DC): 1.0A (NCS), 1.78A (HXB)
• Light Source: 2x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost

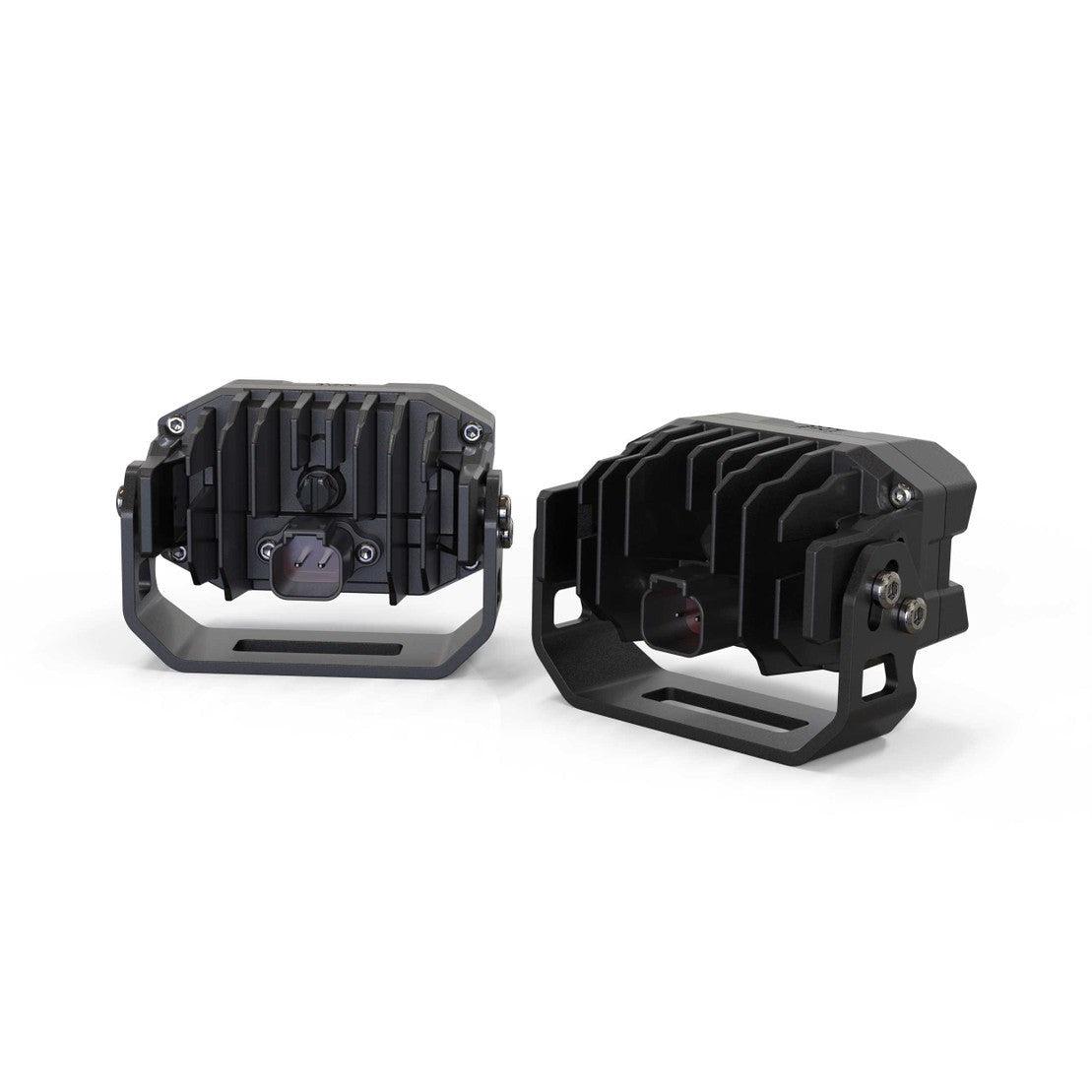

• Input: Integrated Deutsch DT 2-Pin w/ Pigtail

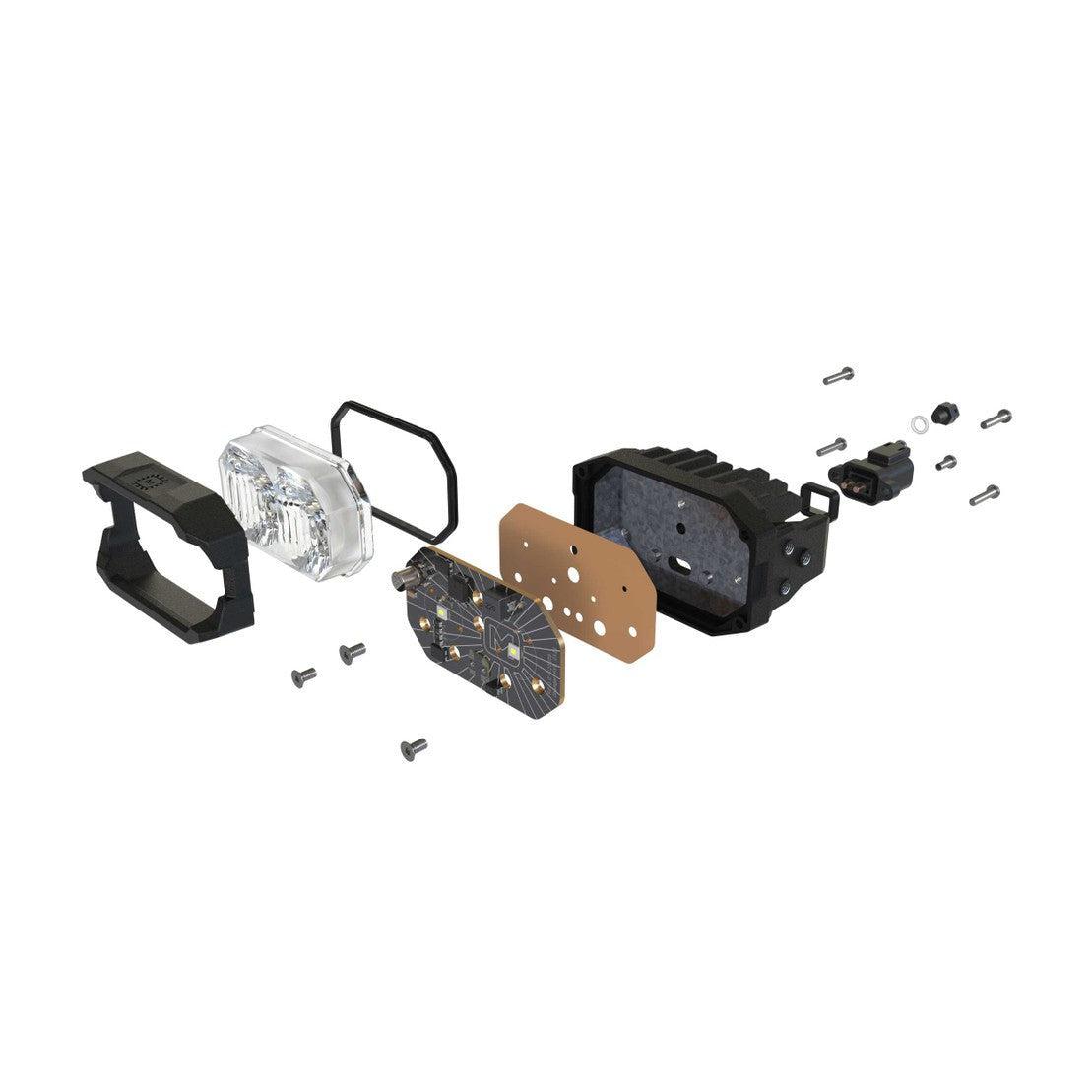

• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Includes:

• Hardware: Stainless bolts & plastic cable clips
• Optional LED Pods: 2x Morimoto 2Banger (Optional Color / Beam)

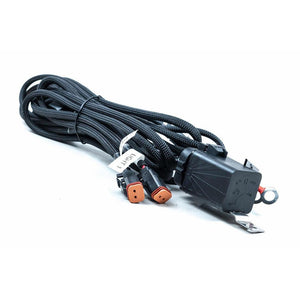

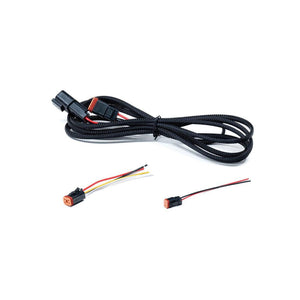

• Optional Wiring: 1x Morimoto Power Harness or 2x DT Pigtails

• Intensity (HXB Flood White): 900 Cd (9 lux @ 10m)
• Intensity (HXB Flood Yellow): 625 Cd (6.25 lux @ 10m)
• Intensity (HXB Spot White): 147,500 Cd (1,475 lux @ 10m)
• Intensity (HXB Combo White): 65,000 Cd (650 lux @ 10m)
• Intensity (HXB Combo Yellow): 42,500 Cd (425 lux @ 10m)
• Intensity (HXB Wide White): 12,700 Cd (127 lux @ 10m)
• Intensity (HXB Wide Yellow): 8,400 Cd (84 lux @ 10m)
• Intensity (NCS Flood White): 475 Cd (4.75 lux @ 10m)
• Intensity (NCS Flood Yellow): 230 Cd (2.3 lux @ 10m)
• Intensity (NCS Spot White): 97,500 Cd (975 lux @ 10m)
• Intensity (NCS Spot Yellow): 55,000 Cd (550 lux @ 10m)
• Intensity (NCS Combo White): 42,000 Cd (420 lux @ 10m)
• Intensity (NCS Combo Yellow): 21,000 Cd (210 lux @ 10m)
• Intensity (NCS Wide White): 8,000 Cd (80 lux @ 10m)
• Intensity (NCS Wide Yellow): 4,250 Cd (42.5 lux @ 10m)
