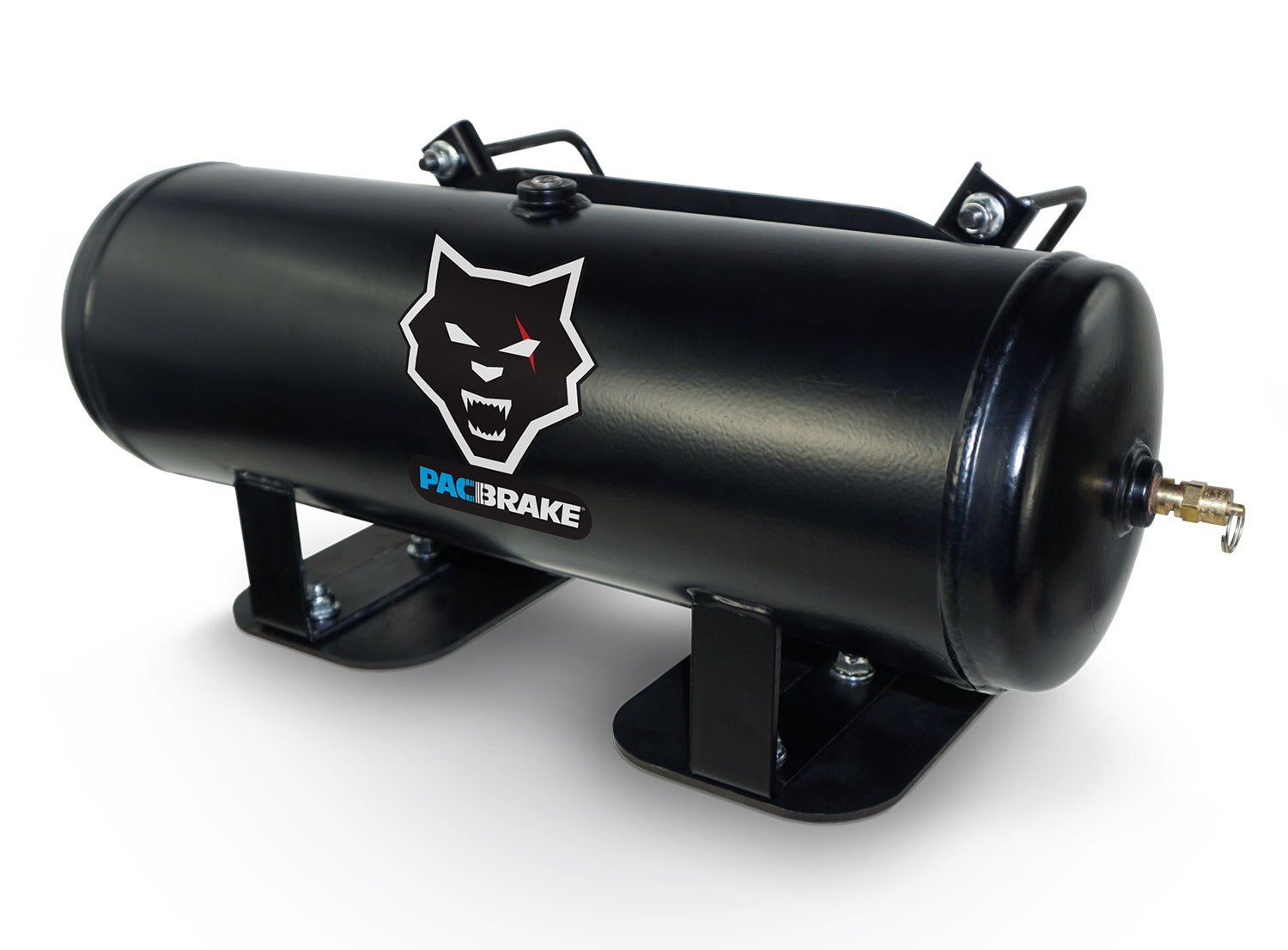

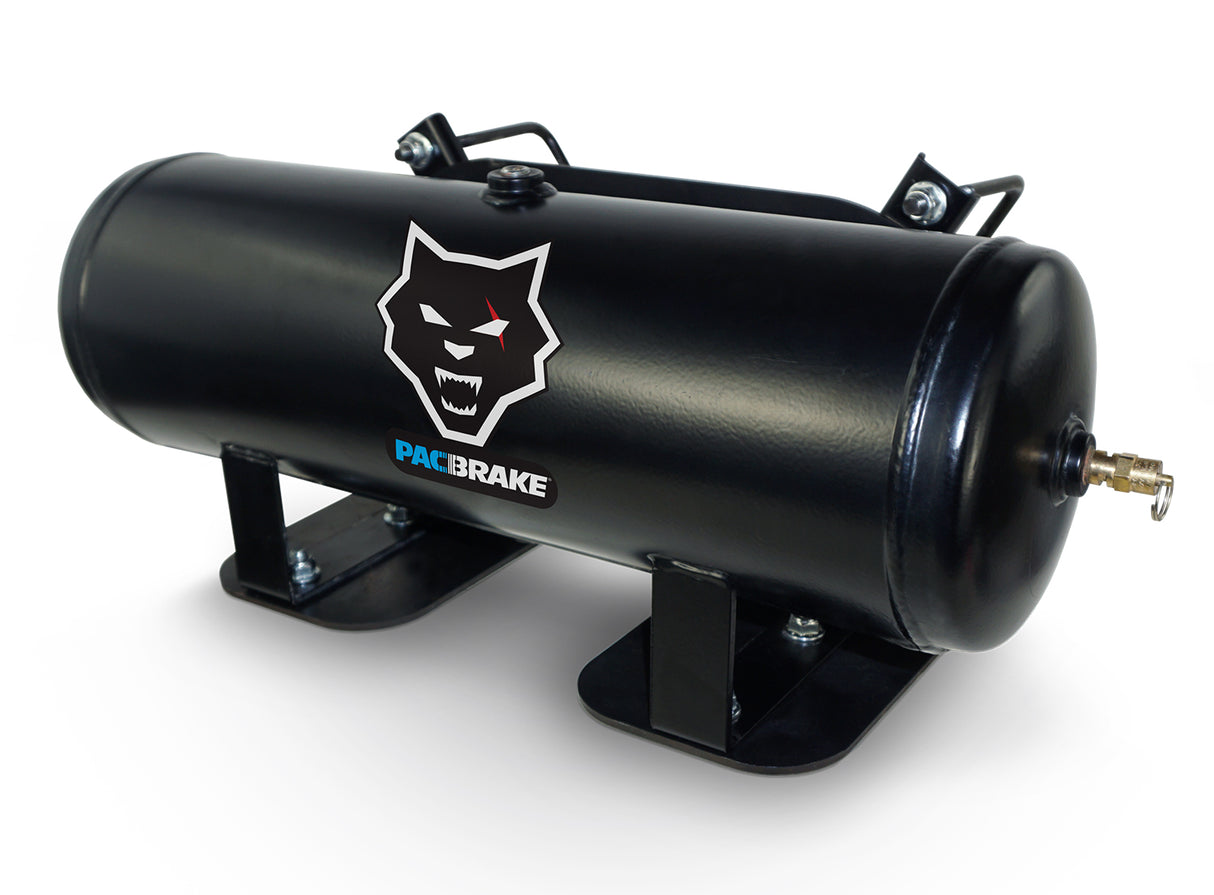

Universal 2.5 Gallon Steel Air Tank Kit (HP10719)

The Pacbrake HP10719 2.5 Gallon Steel Air Tank Kit delivers increased air storage for your HP30040 BRAVO air control system. This higher-capacity tank is built for users who need greater air reserve for faster air spring adjustments and accessory operation under heavier loads. Carbon steel construction with a black powder-coated finish and internal anti-rust coating, complete with a quick-mount bracket and all installation hardware.

Part Number: HP10719

• 2.5 gallon carbon steel air tank
• Black powder-coated finish with internal anti-rust coating
• Quick-mount bracket for universal mounting
• Includes all installation hardware
• Integrates with Pacbrake HP30040 BRAVO air management systems
• Larger reserve for faster response under heavier loads

• Tank capacity: 2.5 gallon
• Material: Carbon steel
• Max working pressure: 150 PSI (1.03 MPa)
• Dimensions: 21 in x 6.9 in x 8.4 in (L x W x H)
• Weight: 11.2 lbs (5.12 kg)

• Designed for use with BRAVO systems. If using with a non-BRAVO system, ensure it is compatible with an added tank.

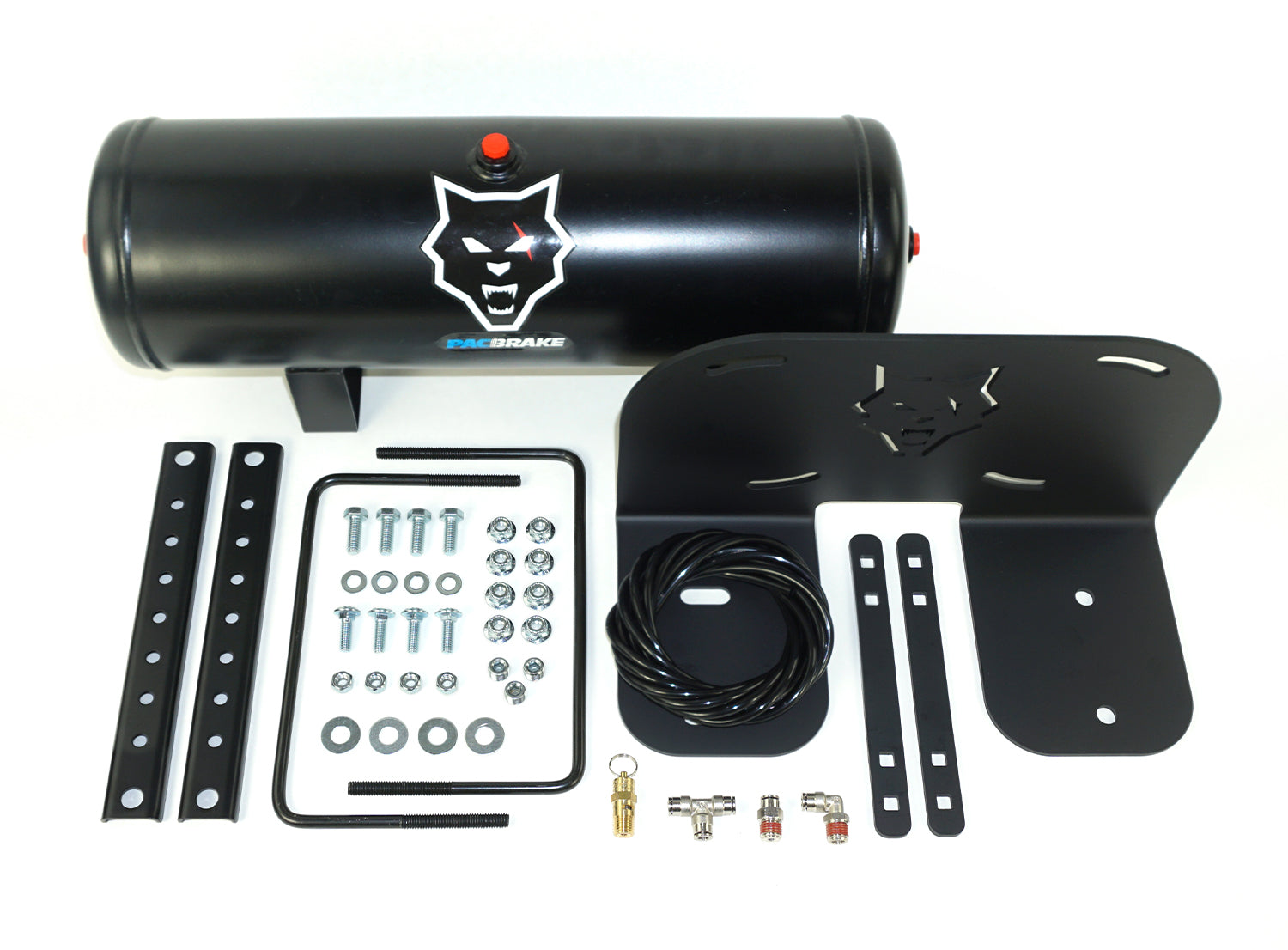

• Kit includes everything needed to connect to an existing air management system.
