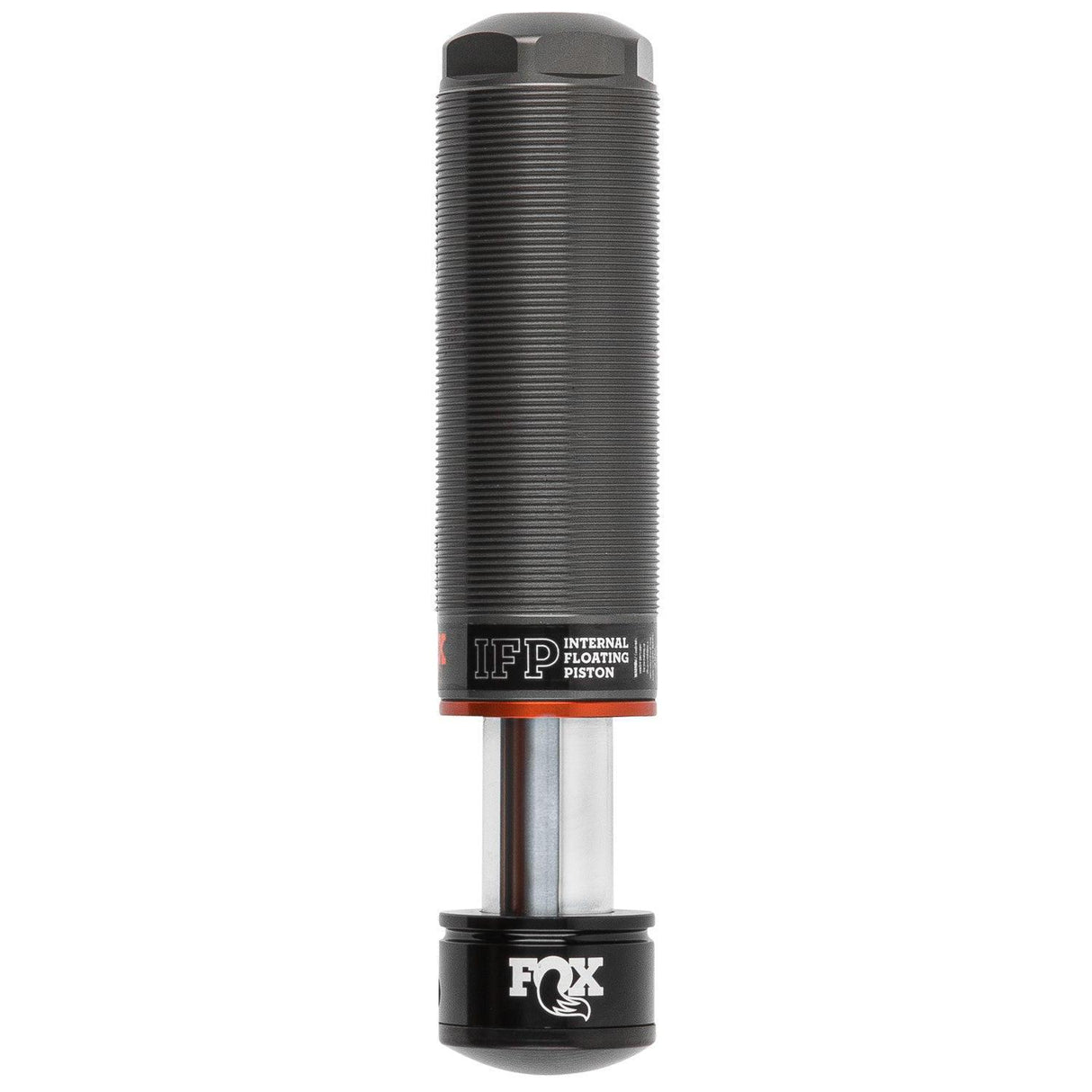

Universal 10.04" Race Series 2.0 Bump Stop (983-02-170)

Fits

Factory Series bump stops allow you to use every inch of suspension travel without harsh bottoming. The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top outs. The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad.

Part Number: 983-02-170

• Aluminum Body Dissipates Heat Faster Than Steel
• IFP Separates Oil From High-Pressure Nitrogen Gas
• Black Anodized CNC Machined Aluminum Components

Specs:

• Extended Length: 10.04"
• Compressed Length: 8.18"
• Travel Length: 1.85"
• Top Mount: Threaded Body
• Bottom Mount: None
