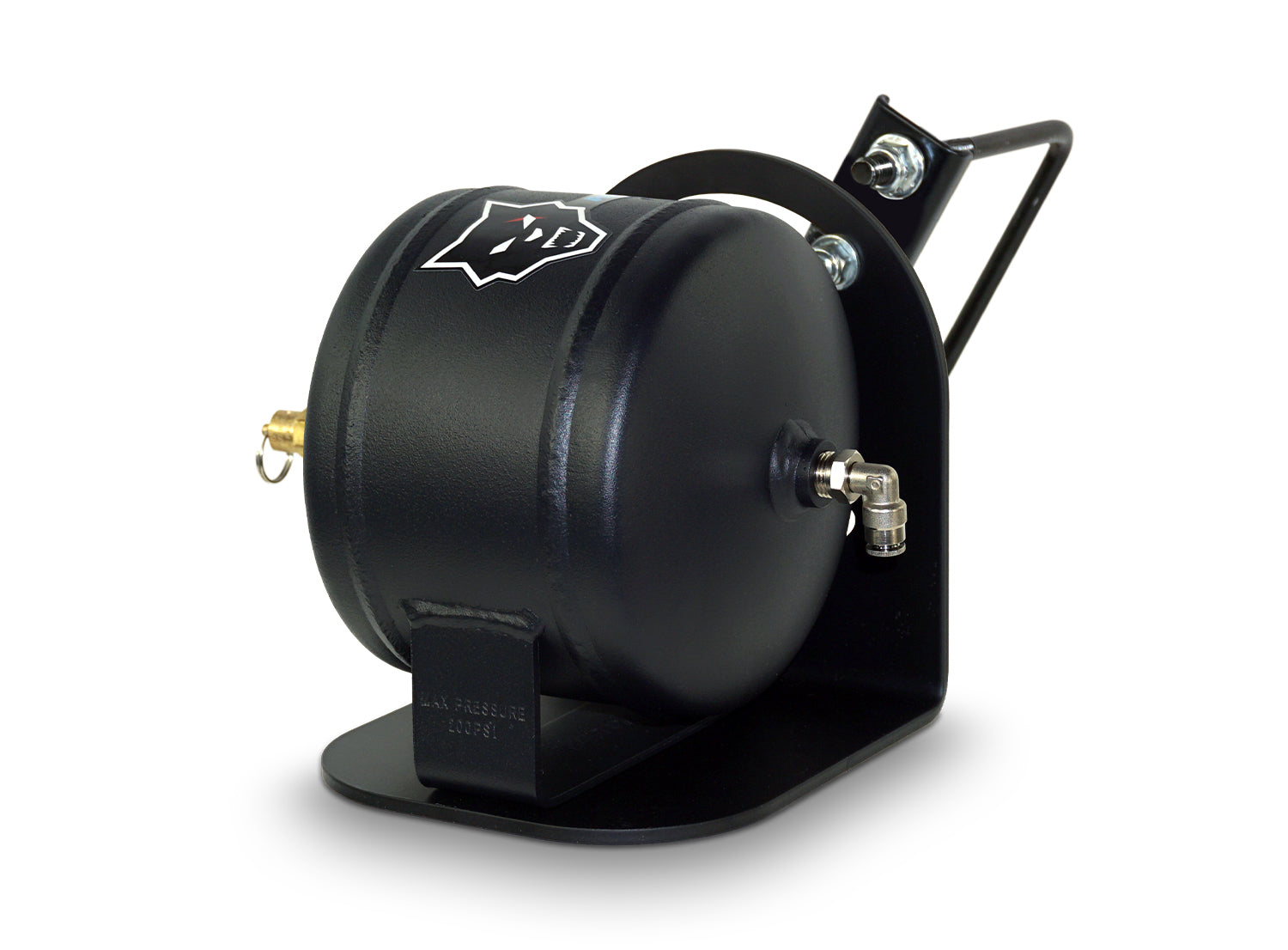

Universal 1/2 Gallon Steel Air Tank Kit (HP10718)

The Pacbrake HP10718 1/2 Gallon Steel Air Tank Kit adds stored air capacity to your BRAVO onboard air management system in a compact package. Extra air volume means faster air spring fill times, quicker response when running more than one product, and reserve air on tap. Built from carbon steel with a black powder-coated finish and an internal anti-rust coating, it includes a quick-mount bracket and all installation hardware.

Part Number: HP10718

• 1/2 gallon (0.5 gal) carbon steel air tank
• Black powder-coated finish with internal anti-rust coating
• Quick-mount bracket for universal mounting
• Includes all installation hardware
• Integrates with Pacbrake HP30040 BRAVO air management systems
• Compact size ideal for space-limited applications

• Tank capacity: 1/2 (0.5) gallon
• Material: Carbon steel
• Max working pressure: 150 PSI (1.03 MPa)
• Dimensions: 6.3 in x 5.3 in x 6.8 in (L x W x H)
• Weight: 3.6 lbs (1.63 kg)

• Designed for use with BRAVO systems. If using with a non-BRAVO system, ensure it is compatible with an added tank.

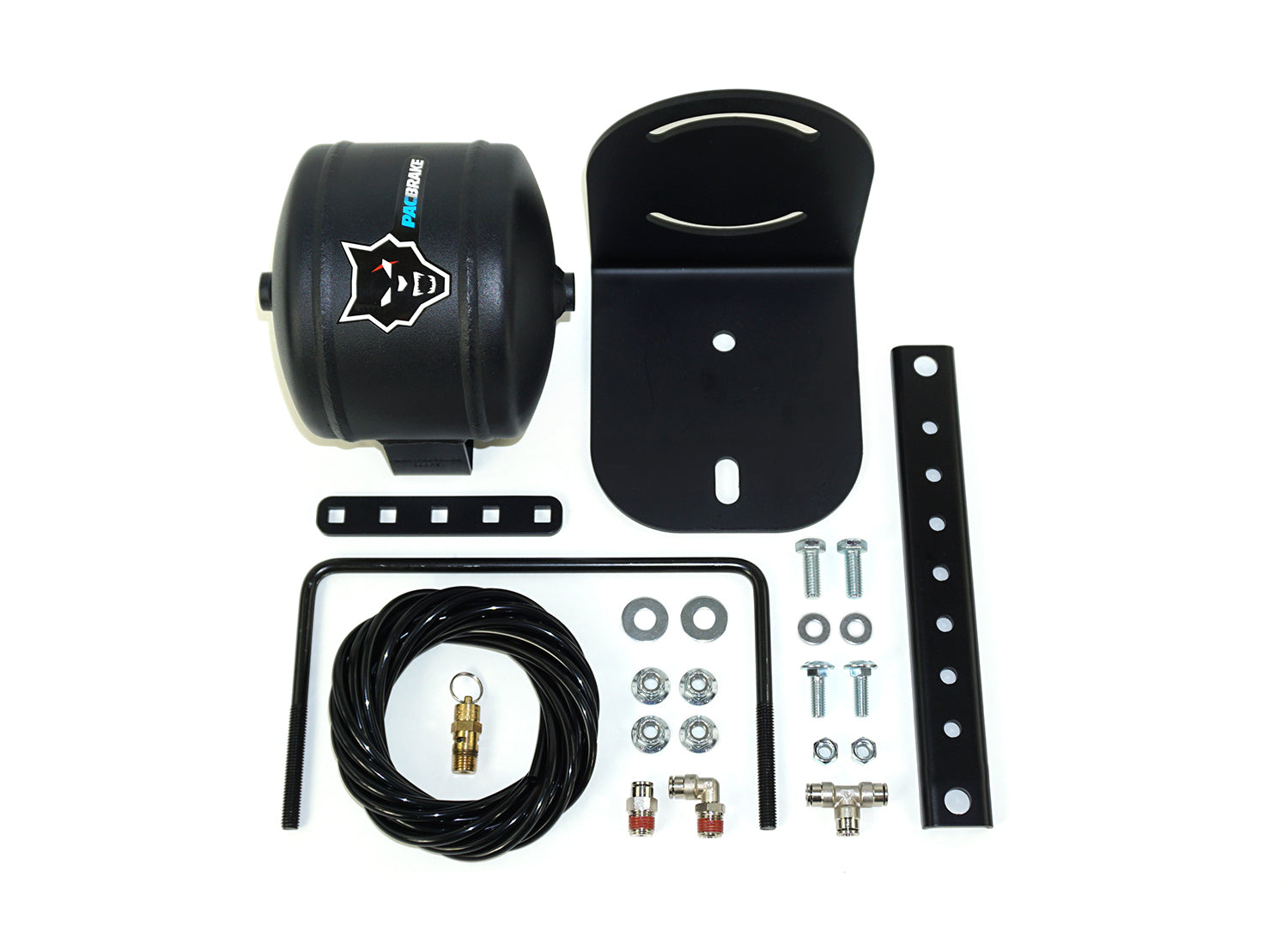

• Kit includes everything needed to connect to an existing air management system.
