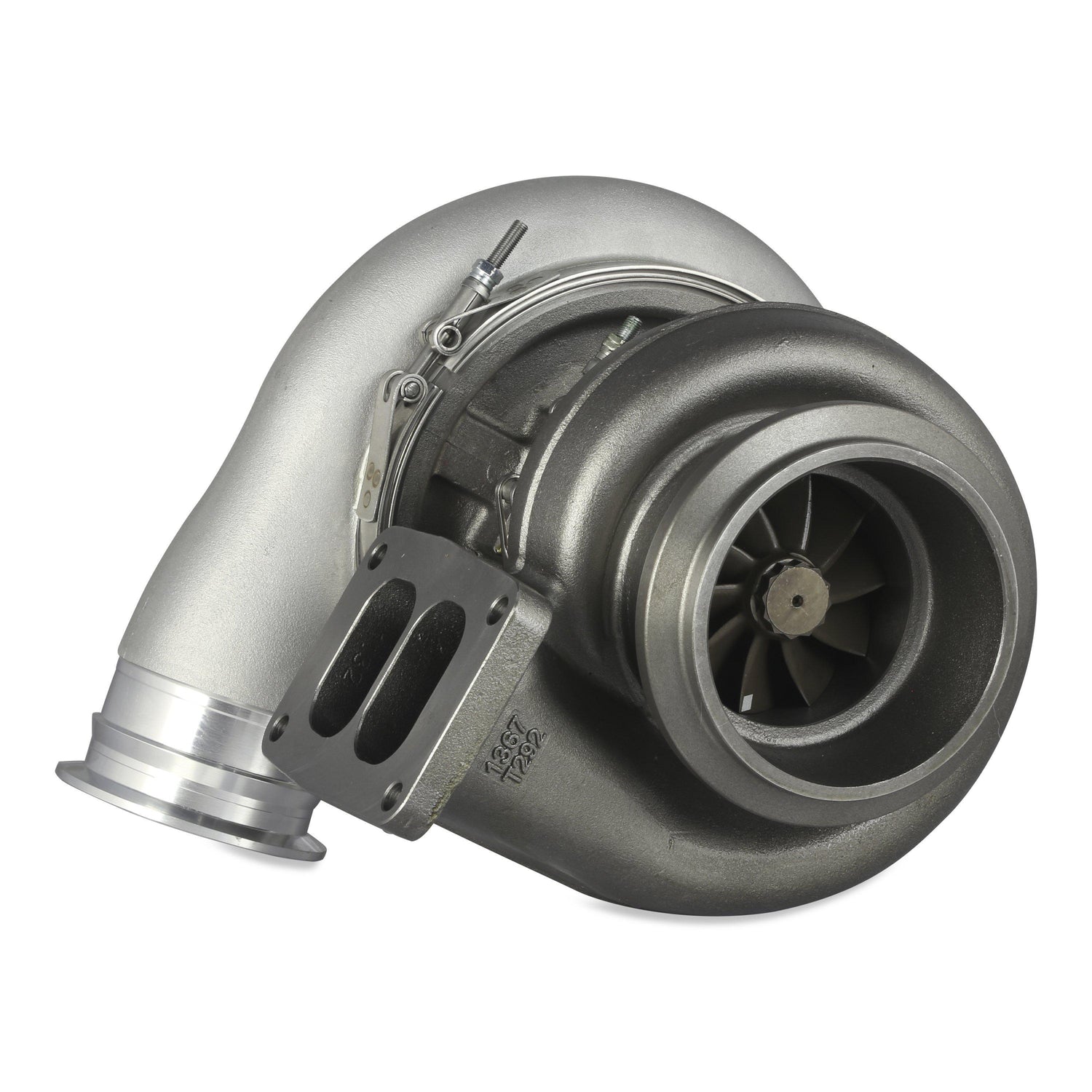

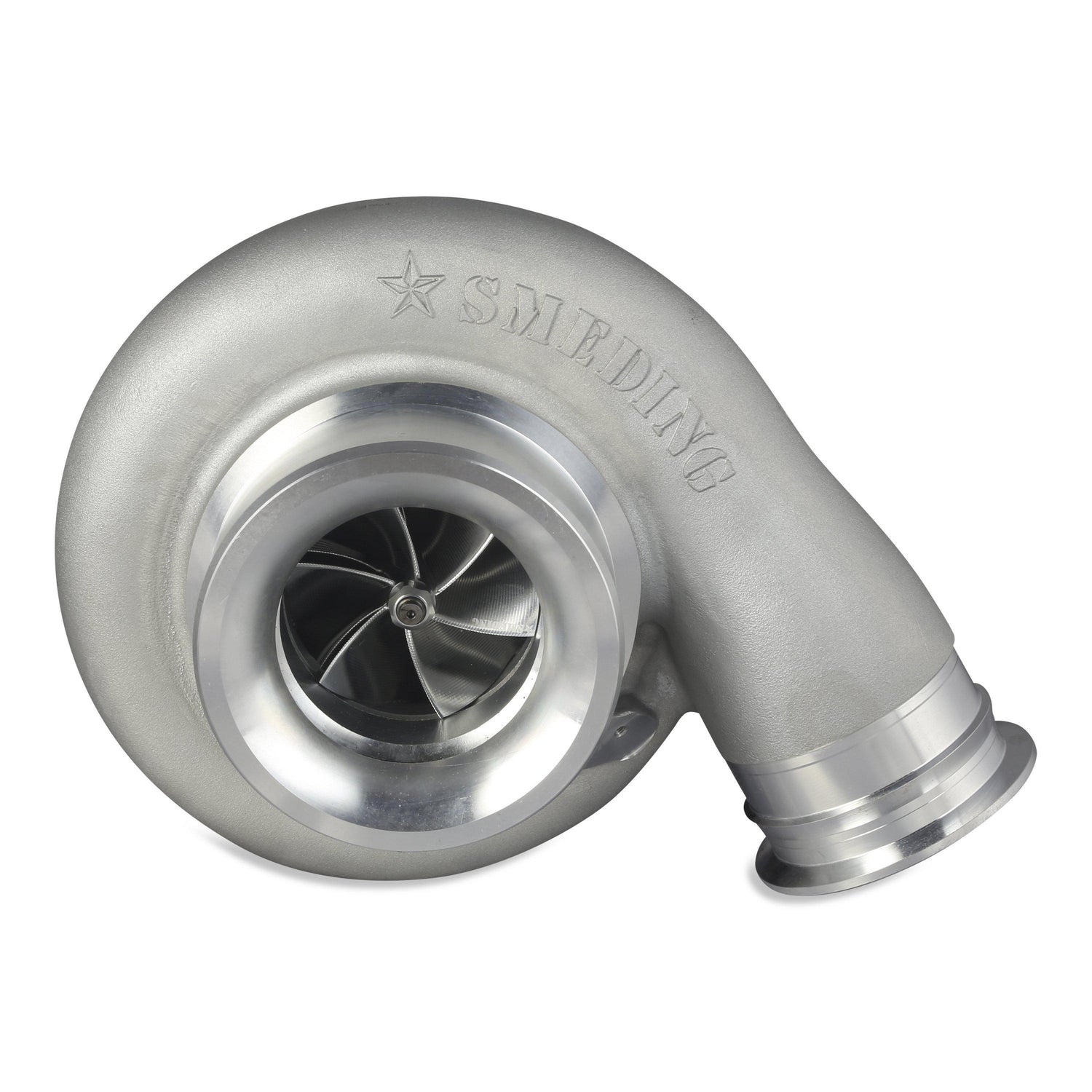

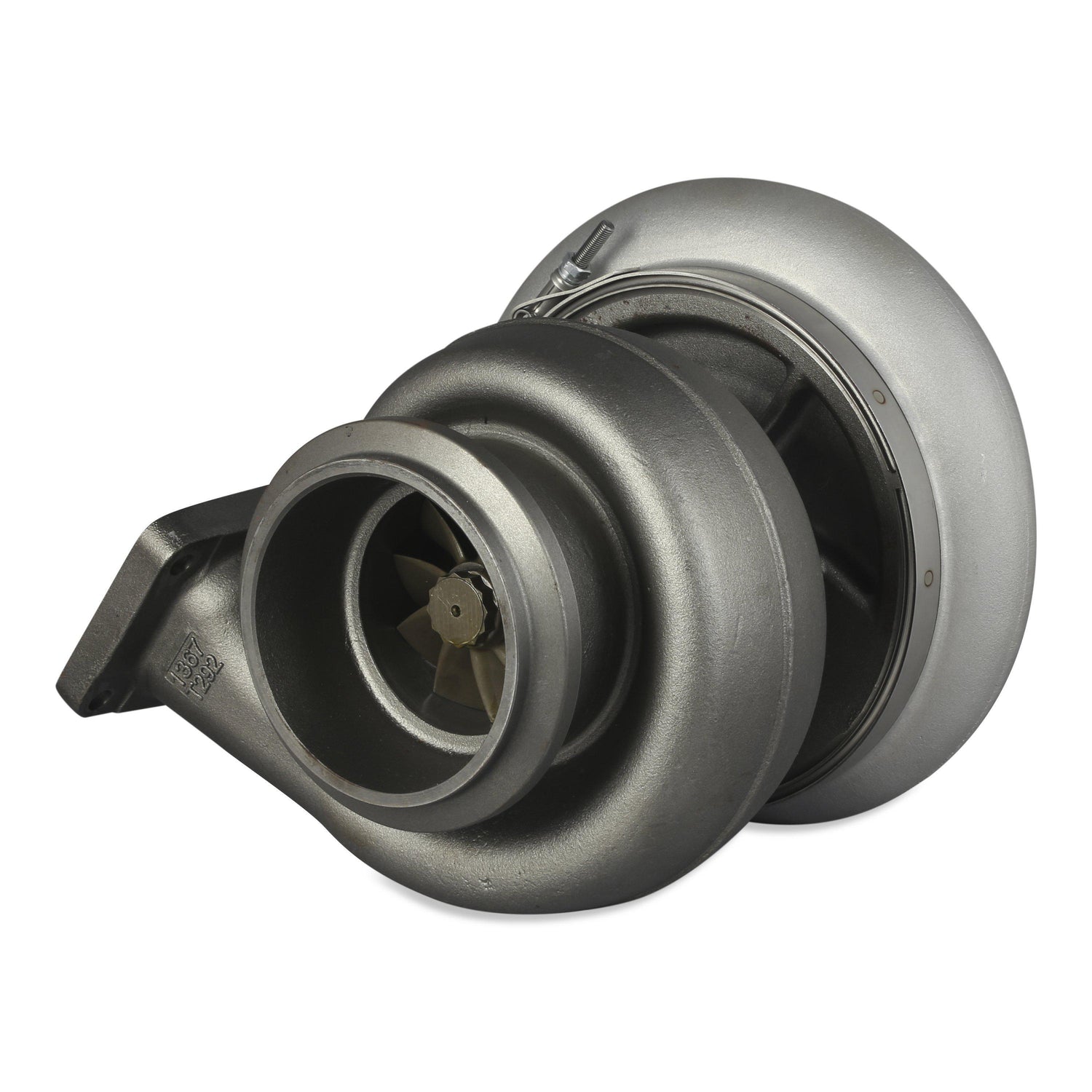

Universal Billet SXE-R S488 T6 Turbocharger (BS488R9632STD)

Fits: Universal

All Smeding Diesel Parts are Built To Order in Texas and are special orders, which can take longer than normal for fulfillment. If you're in a rush, contact us and we can make special arrangements.

Available in a wide variety of sizes, with the option of thrust bearings and exhaust flanges, makes it an ideal turbo for any application. Smeding ensures all turbochargers are high-speed balanced before shipping and features a V-band cover that utilizes a clamp that fits around a circular flange on the turbo housing, offering flexibility and easier disassembly for maintenance.

You're biggest decision will be choosing either 1.32 or 1.15 exhaust housings. Dont know which one suits your application? 1.32 A/R housing is larger, increases exhaust gas flow, and potentially higher horsepower, but spools slightly slower than a smaller housing. 1.15 A/R housing is smaller, leading to faster spool-up and better low-end response, but it may become a restriction at higher RPMs and produce more backpressure.

Part Number: BS488R9632STD

• Standard or Steel 360° bearing

• SXE-R compressor wheel with integrated nut
• May be purchased with 1.32 or 1.15 exhaust housing
• High-speed balanced before shipping
• Wider operating range

• Quick spooling and better throttle response
• S400s are specifically designed for higher power & torque applications

Thrust Bearings:

• Standard Bearing: The budget-friendly, robust & reliable option - NOT for those who want to push more power
• Steel 360 Bearing: The strongest bearing option Smeding offers is 360 degrees of coverage and aggressive pitch on the oiling surface, which allows the turbo to hold up to extreme applications like drag racing or sled pulling.
